Discharge Temperature Sensor (RH) C255

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

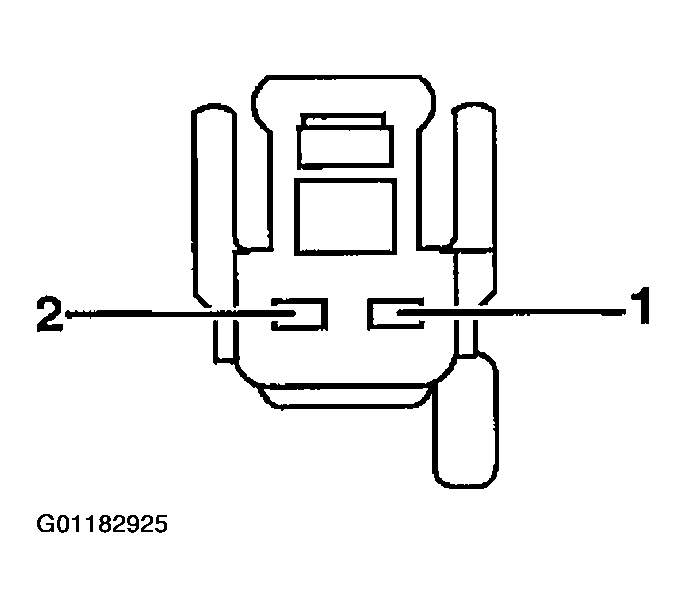

Fig 1: Identifying Discharge Temperature Sensor (RH) C255
G01182925Courtesy of FORD MOTOR CO.

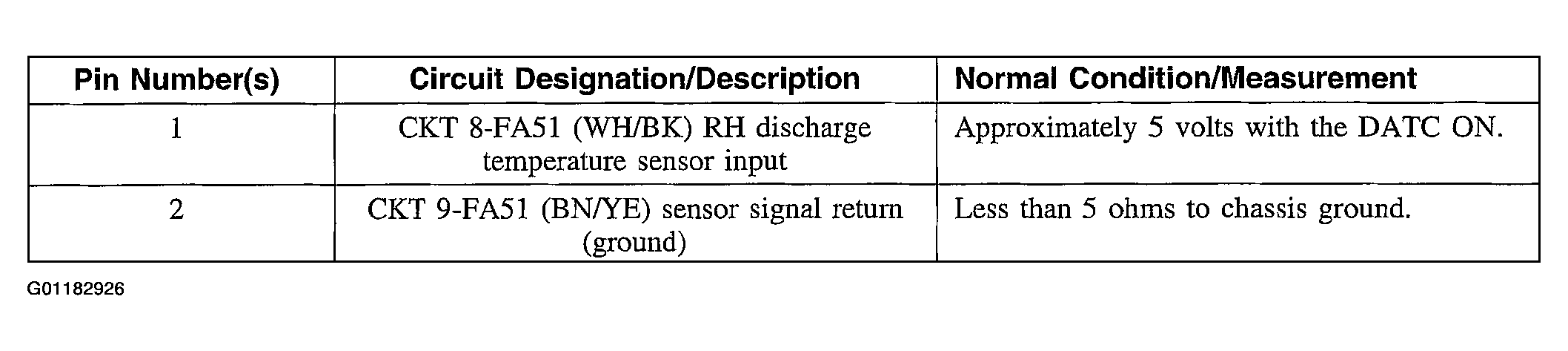

Fig 2: Discharge Temperature Sensor (RH) C255 Pin Specifications Chart (1 - 2)
G01182926Courtesy of FORD MOTOR CO.
