Solar Radiation Sensor C286

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

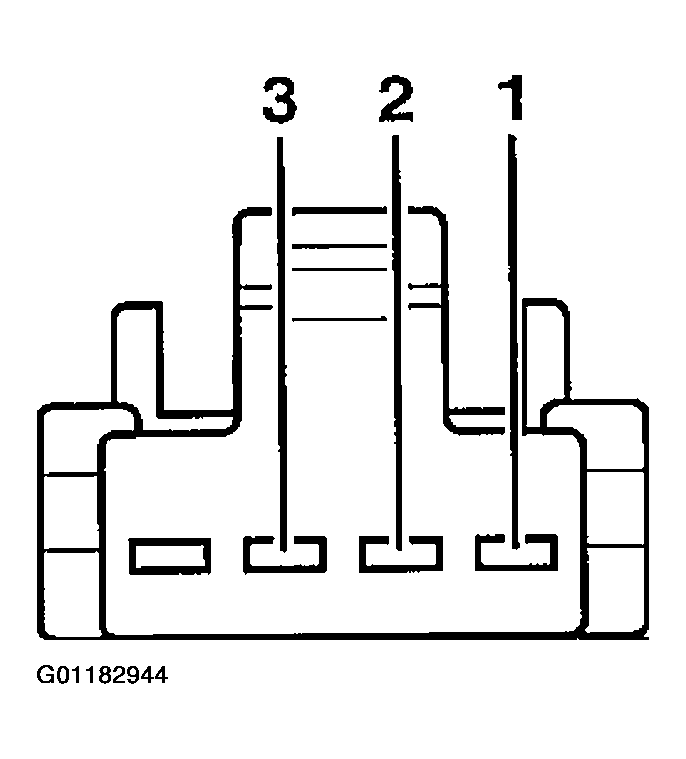

Fig 1: Identifying Solar Radiation Sensor C286
G01182944Courtesy of FORD MOTOR CO.

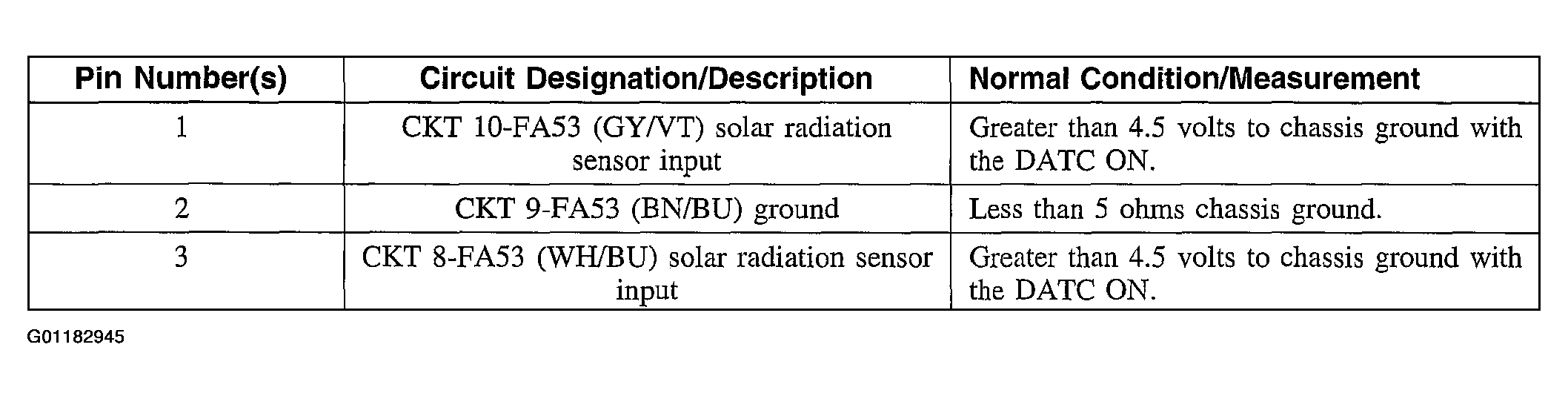

Fig 2: Solar Radiation Sensor C286 Pin Specifications Chart (1 - 3)
G01182945Courtesy of FORD MOTOR CO.
