Removal And Installation

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Remove the ignition lock cylinder.
1. Insert the key into the ignition key and turn to the RUN position.
2. Insert a punch in the access hole of the steering column and press the release tab while pulling out the ignition switch lock cylinder.

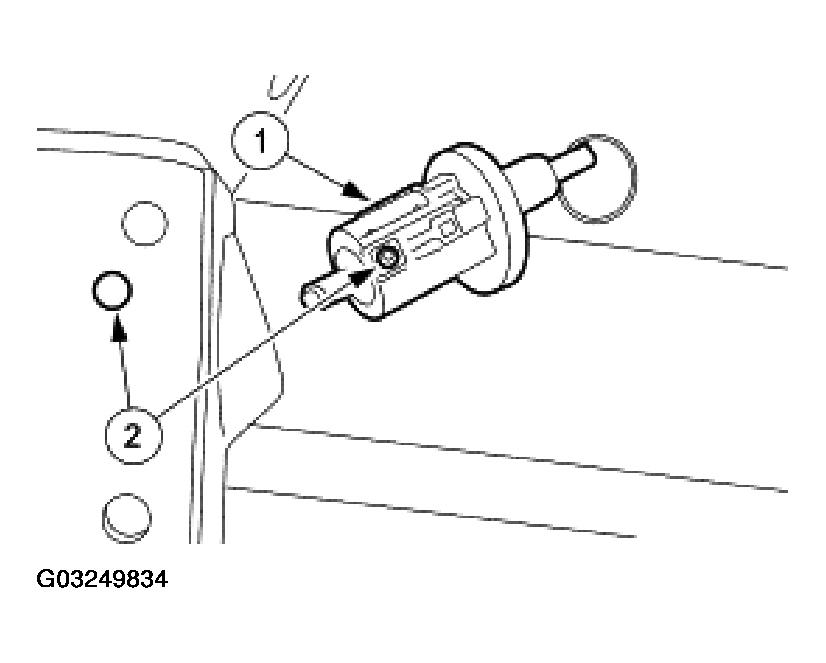

Fig 1: Removing Ignition Lock Cylinder
Courtesy of FORD MOTOR CO.
Remove the key-in-ignition warning switch.
1. Release the clip.
2. Push the key-in-ignition warning switch off the rear of the ignition switch lock cylinder.

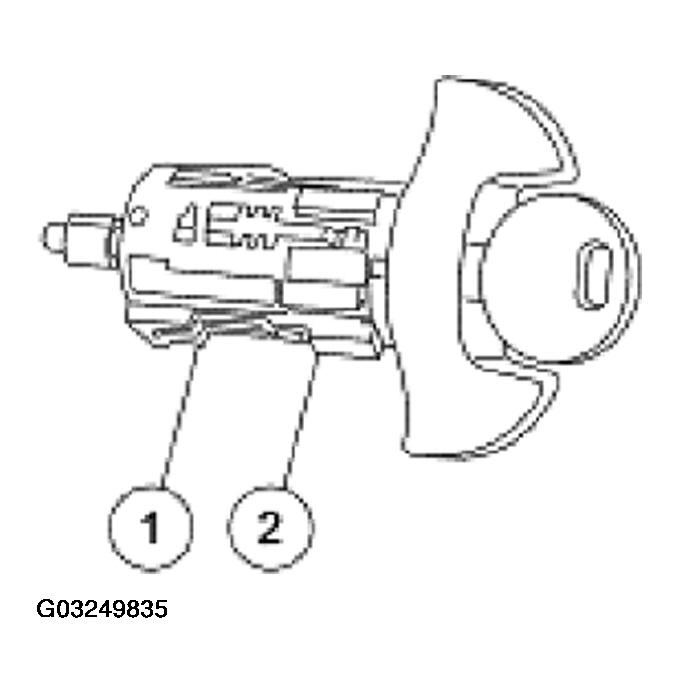

Fig 2: Removing Key-In-Ignition Warning Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Verify ignition lock cylinder operation.

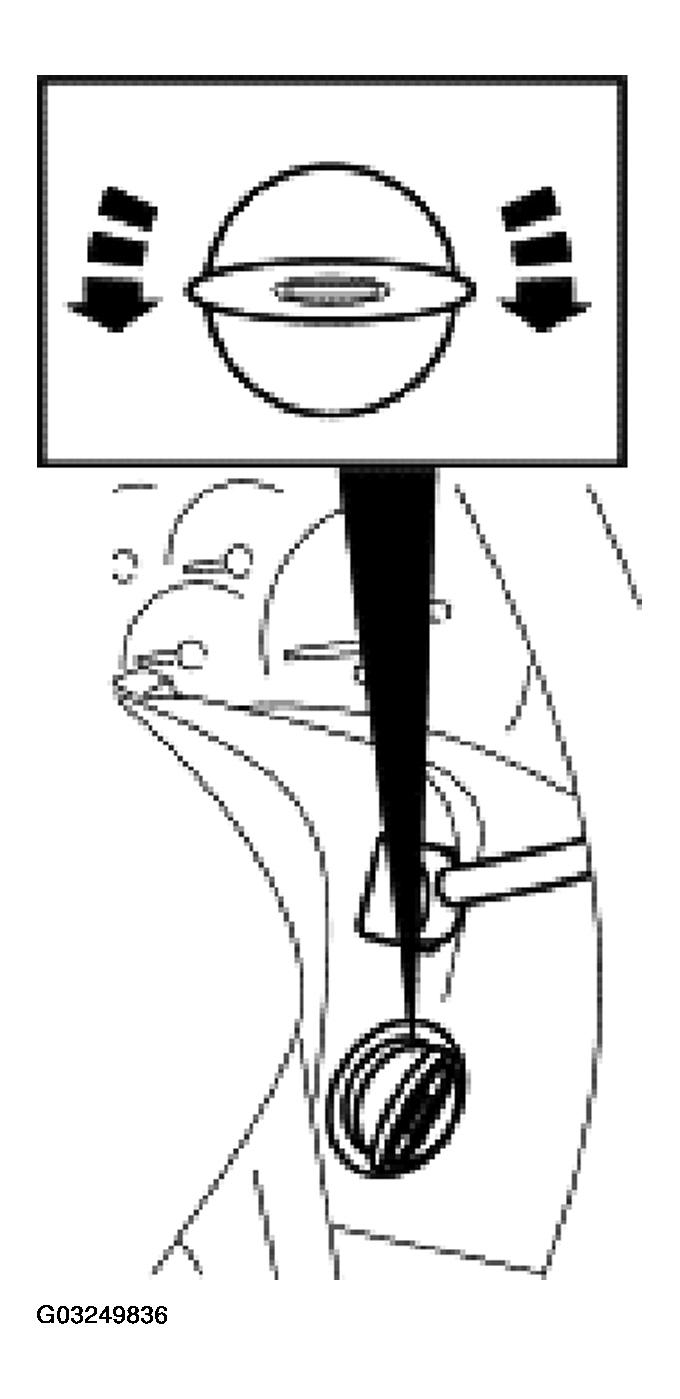

Fig 3: Checking Ignition Lock Cylinder Operation
Courtesy of FORD MOTOR CO.
