Function Selector Switch C294a - Manual Climate Control

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

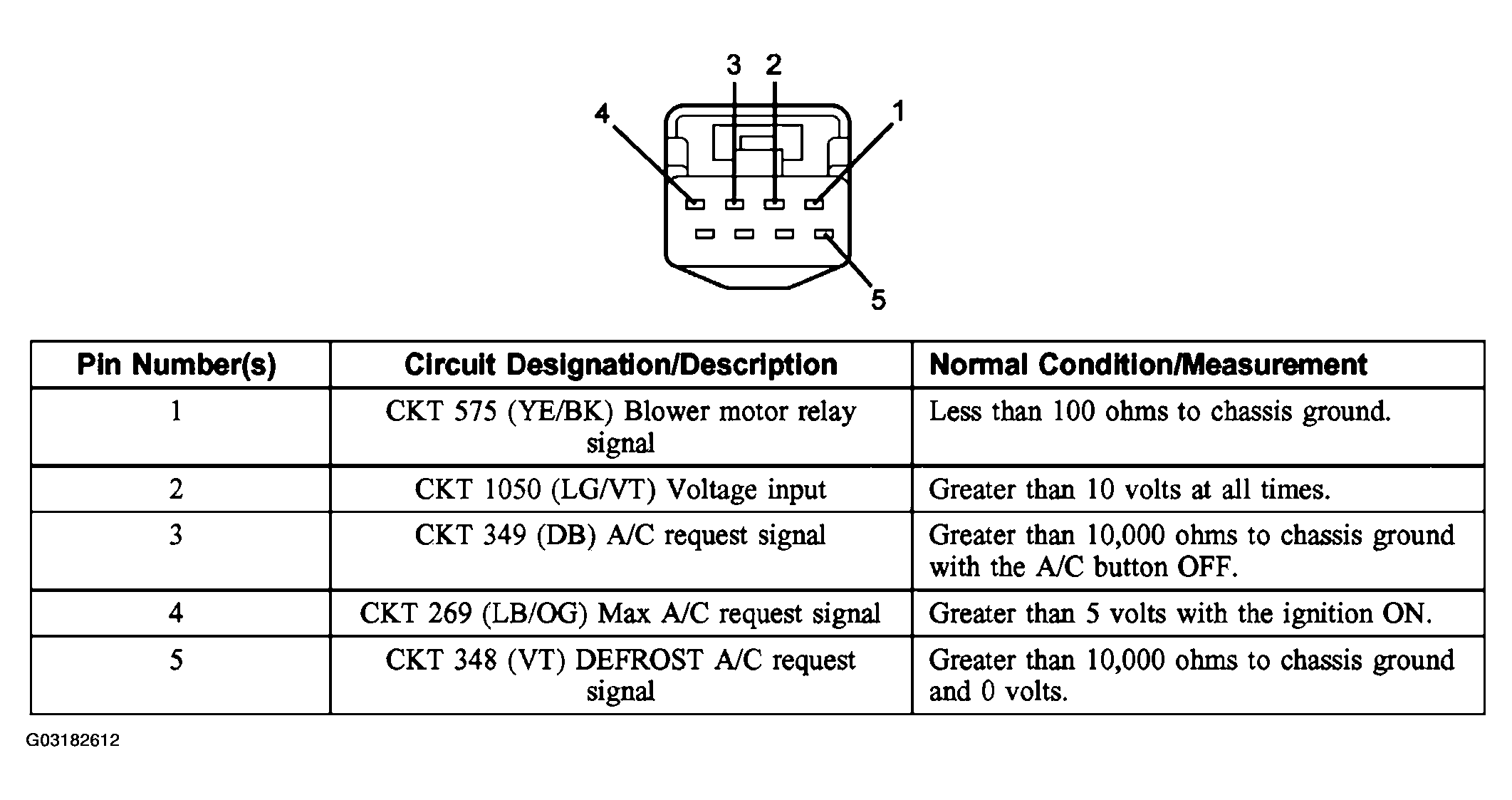

Fig 1: Identifying Function Selector Switch C294A - Manual Climate Control Connector Pins
G03182612Courtesy of FORD MOTOR CO.
