Function Selector Switch C294b - Manual Climate Control
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

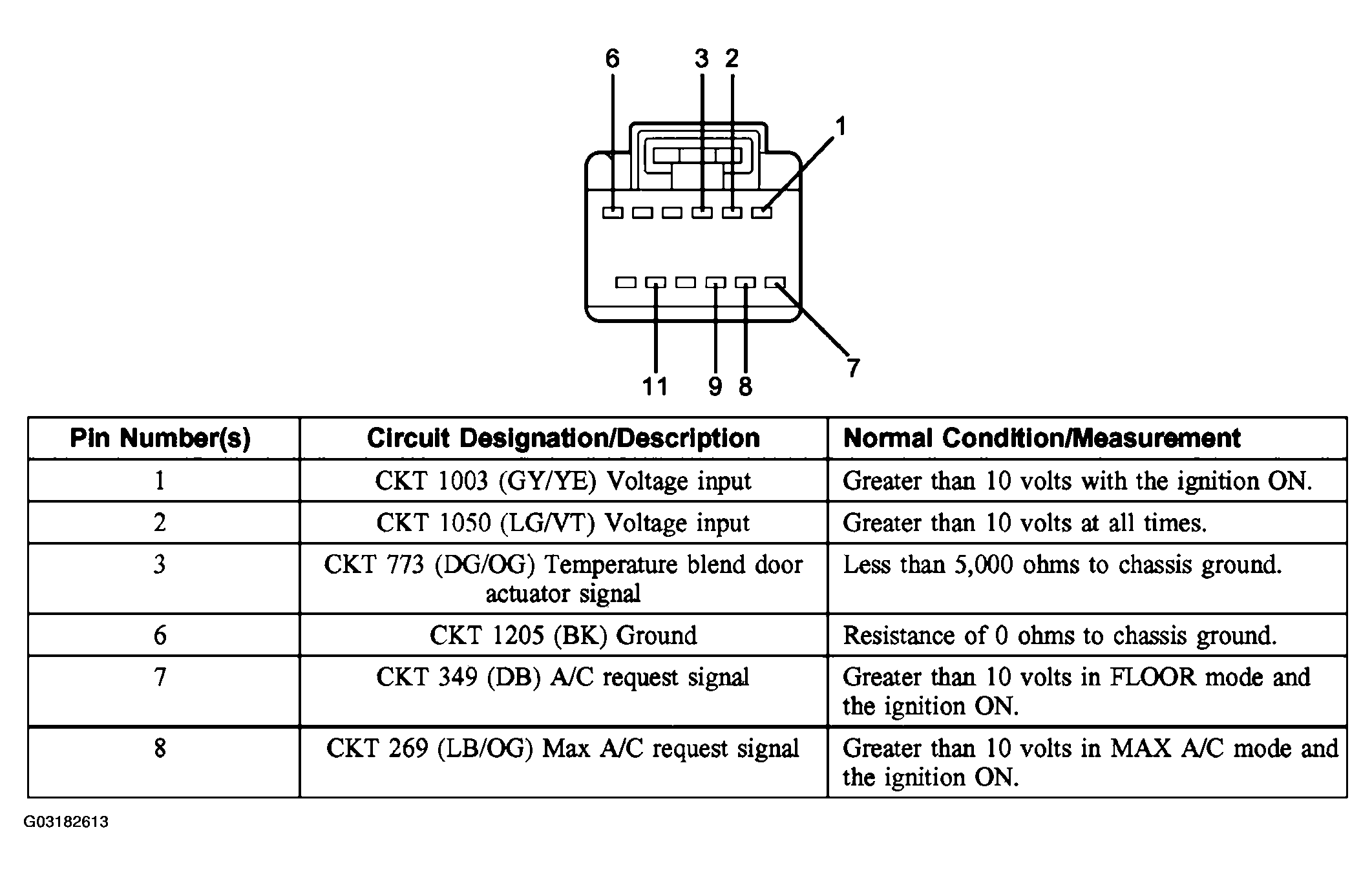

Fig 1: Identifying Function Selector Switch C294B - Manual Climate Control Connector Pins (1 Of 2)
Courtesy of FORD MOTOR CO.

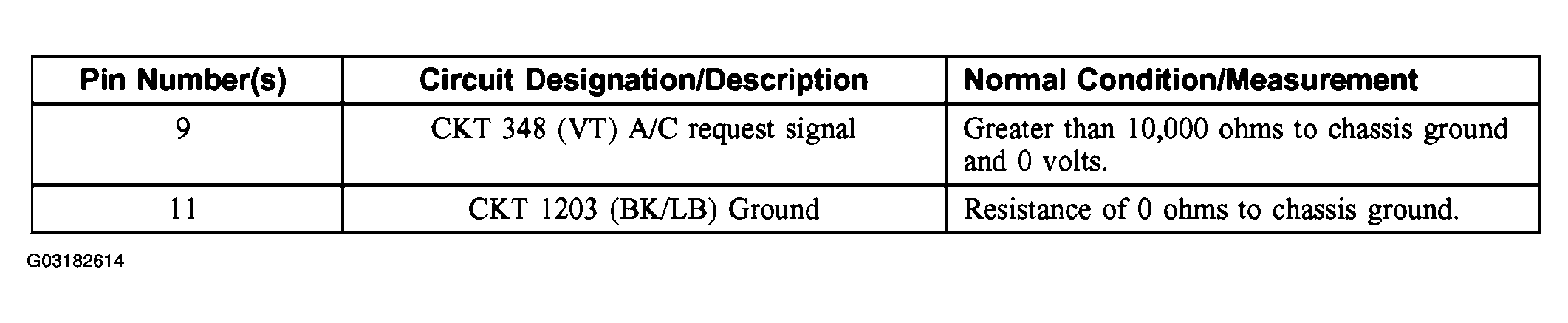

Fig 2: Identifying Function Selector Switch C294B - Manual Climate Control Connector Pins (2 Of 2)
