Audio Control Module (ACM) C240c

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

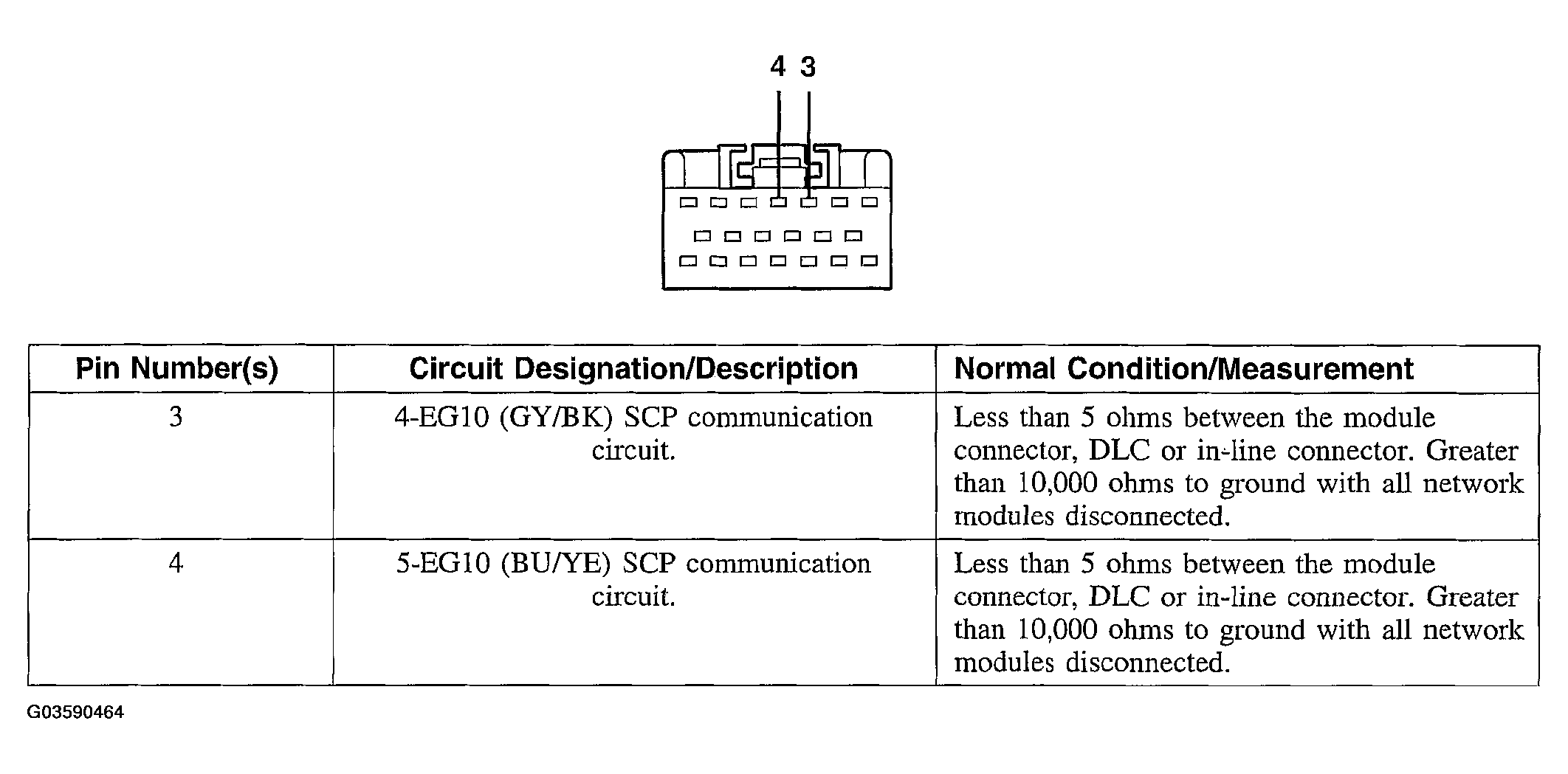

Fig 1: Identifying Audio Control Module (ACM) C240C
G03590464Courtesy of FORD MOTOR CO.
