Audio Control Module (ACM) C290c

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

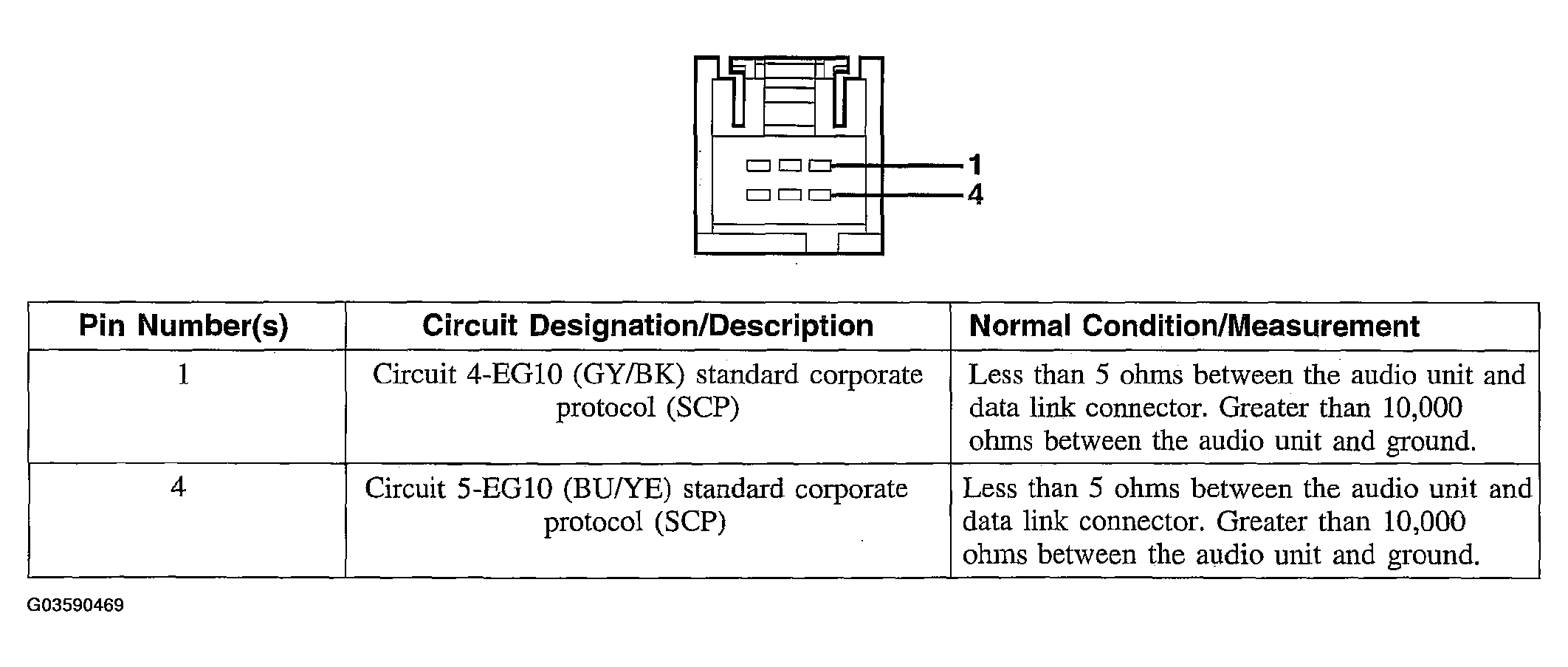

Fig 1: Identifying Audio Control Module (ACM) C290C
G03590469Courtesy of FORD MOTOR CO.
