Climate Control Seat Module Driver C3031a, Passenger C3036a

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

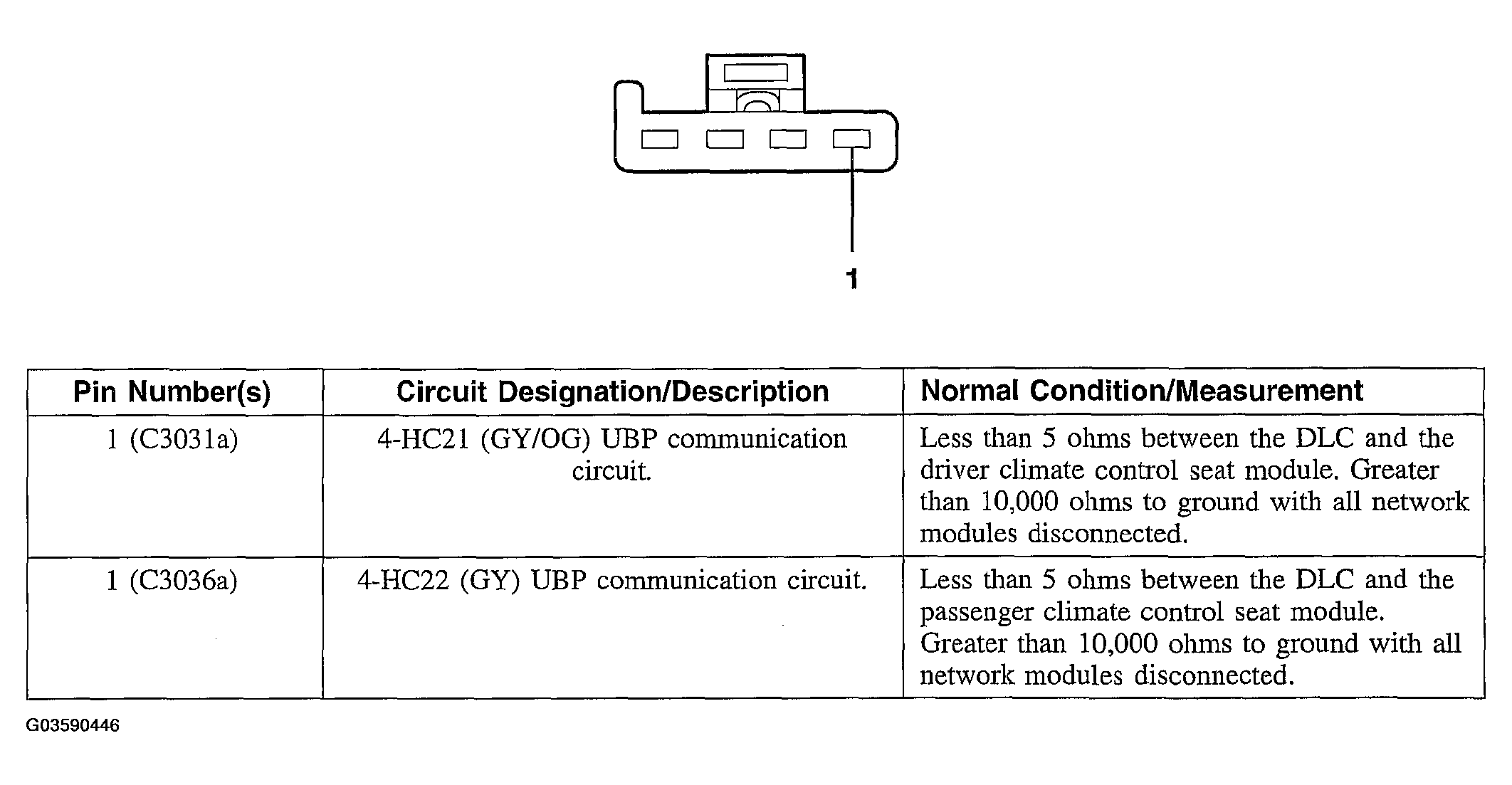

Fig 1: Identifying Climate Control Seat Module Driver C3031A, Passenger C3036A
G03590446Courtesy of FORD MOTOR CO.
