Restraint Control Module (RCM) C310a

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

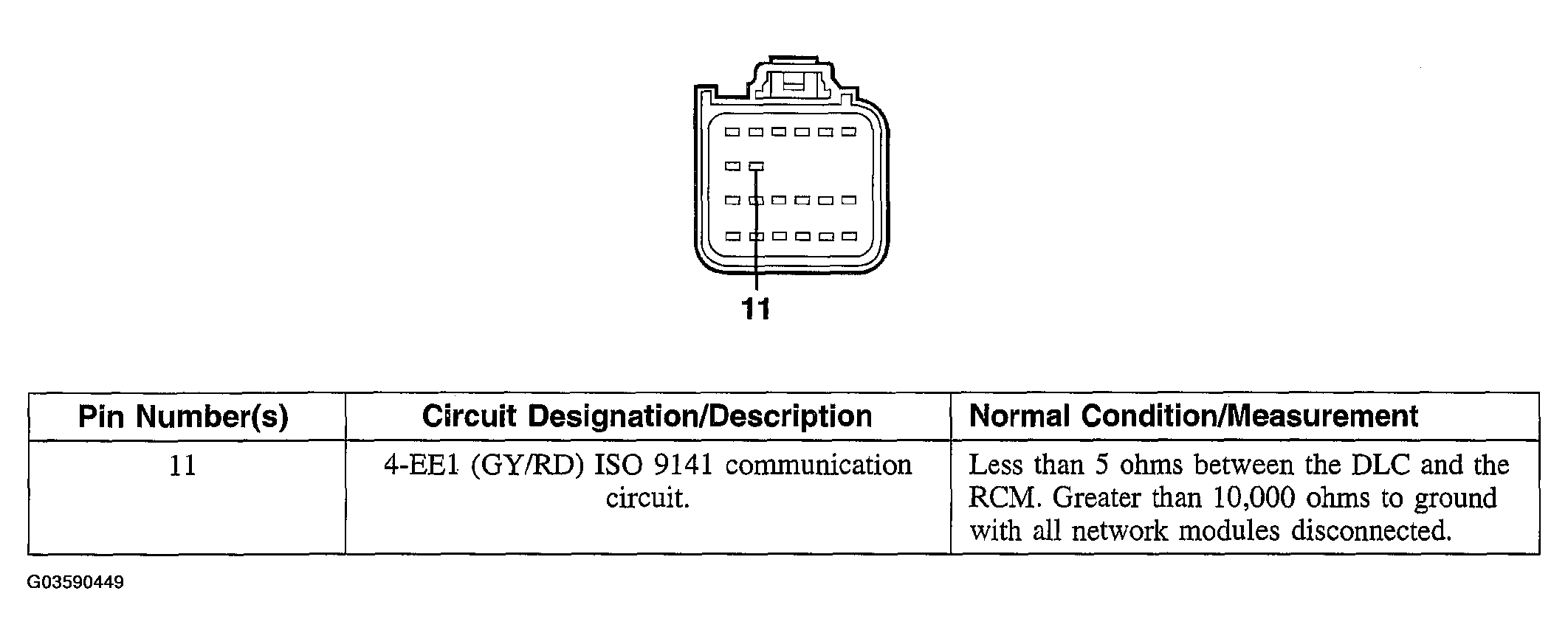

Fig 1: Identifying Restraint Control Module (RCM) C310A
G03590449Courtesy of FORD MOTOR CO.
