Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Prior to the removal of the module, it is necessary to upload module configuration information to the appropriate diagnostic equipment. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE CONFIGURATION .

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable. For additional information, refer to BATTERY AND CHARGING SYSTEM .
Remove the driver seat. For additional information, refer to SEATING .
Remove the shield.

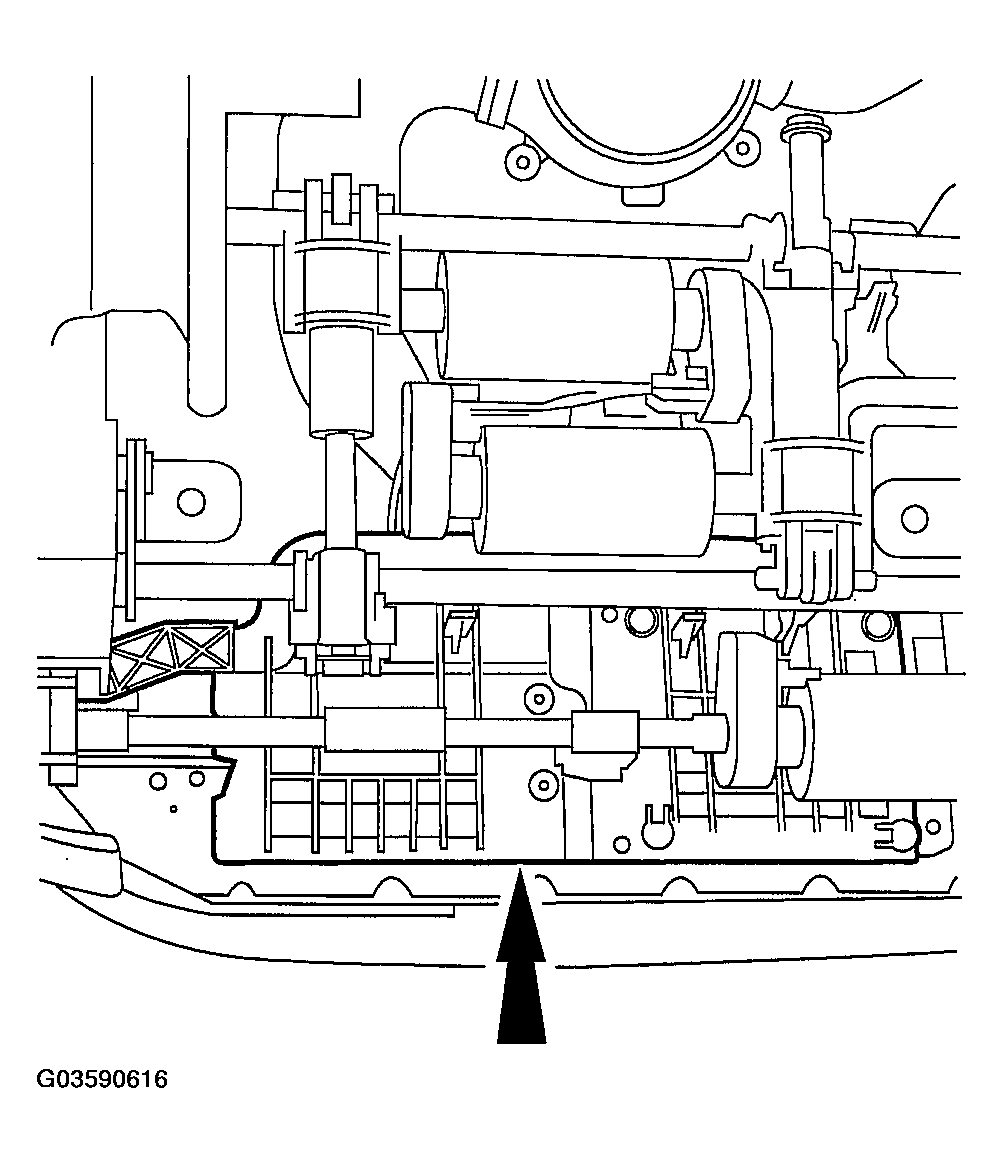

Fig 1: Removing Shield
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table.

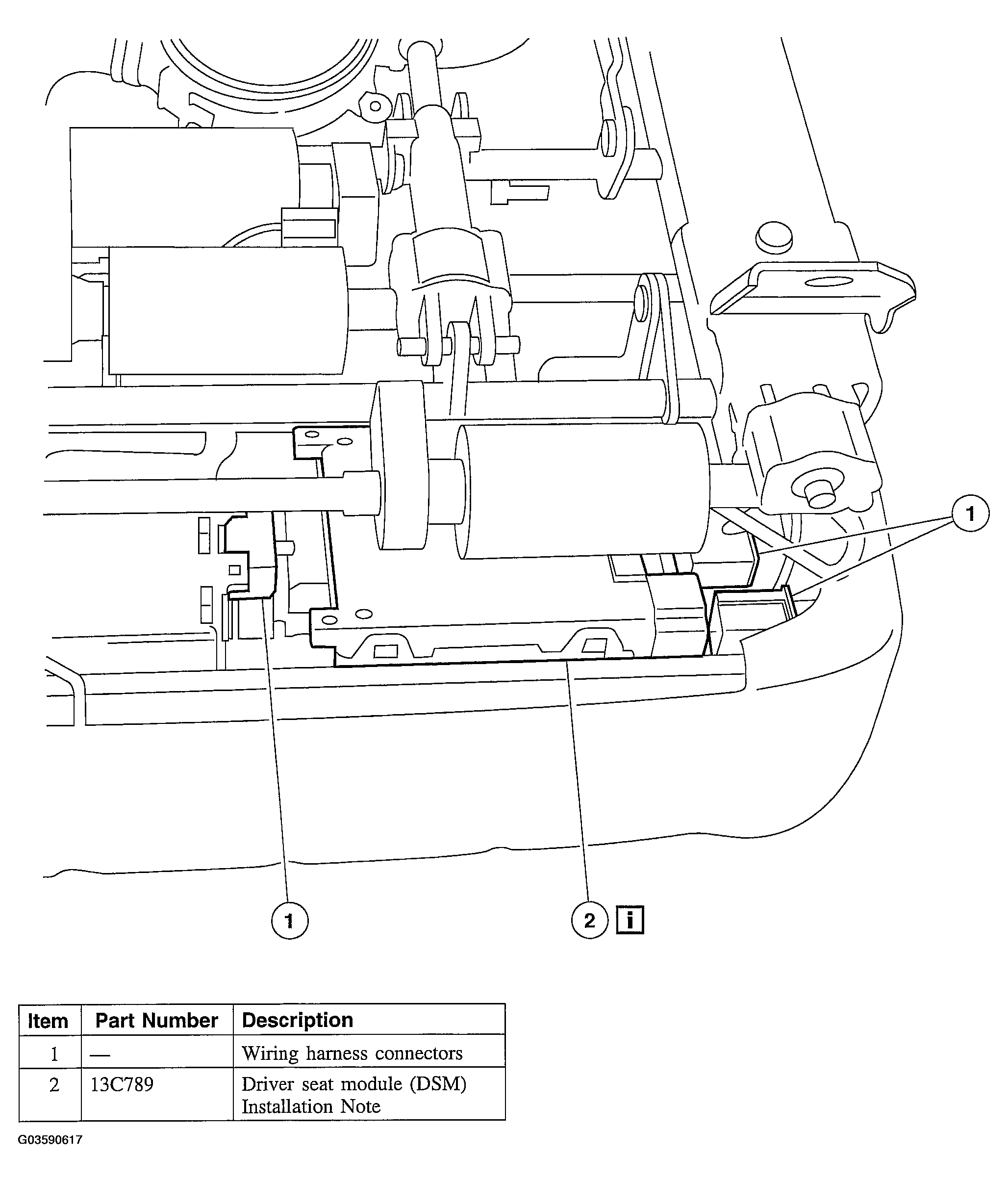

Fig 2: Identifying Driver Seat Module (DSM)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
