Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07840684

Courtesy of FORD MOTOR CO.

Fig 2: Generator Connector End View (C102a)

G07840685

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102b)

G07840686

Courtesy of FORD MOTOR CO.

Fig 4: Oil Pressure Switch Connector End View (C103)

G07840687

Courtesy of FORD MOTOR CO.

Fig 5: Cylinder-Head Temperature Sensor Connector End View (C107)

G07840688

Courtesy of FORD MOTOR CO.

Fig 6: Knock Sensor Connector End View (C109)

G07840689

Courtesy of FORD MOTOR CO.

Fig 7: Inline Connector End View (C110)

G07840690

Courtesy of FORD MOTOR CO.

Fig 8: Coil On Plug (COP) 1 Connector End View (C111)

G07840691

Courtesy of FORD MOTOR CO.

Fig 9: Coil On Plug (COP) 2 Connector End View (C112)

G07840692

Courtesy of FORD MOTOR CO.

Fig 10: Coil On Plug (COP) 3 Connector End View (C113)

G07840693

Courtesy of FORD MOTOR CO.

Fig 11: Coil On Plug (COP) 4 Connector End View (C114)

G07840694

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug (COP) 5 Connector End View (C115)

G07840695

Courtesy of FORD MOTOR CO.

Fig 13: Coil On Plug (COP) 6 Connector End View (C116)

G07840696

Courtesy of FORD MOTOR CO.

Fig 14: Coil On Plug (COP) 7 Connector End View (C117)

G07840697

Courtesy of FORD MOTOR CO.

Fig 15: Coil On Plug (COP) 8 Connector End View (C118)

G07840698

Courtesy of FORD MOTOR CO.

Fig 16: Power Steering Valve Solenoid Connector End View (C120)

G07840699

Courtesy of FORD MOTOR CO.

Fig 17: Power Steering Pressure Switch Connector End View (C121)

G07840700

Courtesy of FORD MOTOR CO.

Fig 18: Speed Control Actuator Connector End View (C122)

G07840701

Courtesy of FORD MOTOR CO.

Fig 19: EVAP Canister Purge Valve Connector End View (C123)

G07840702

Courtesy of FORD MOTOR CO.

Fig 20: Brake Fluid Level Switch Connector End View (C124)

G07840703

Courtesy of FORD MOTOR CO.

Fig 21: Windshield Wiper Motor Connector End View (C125)

G07840704

Courtesy of FORD MOTOR CO.

Fig 22: Anti-Theft Hood Switch Connector End View (C127)

G07840705

Courtesy of FORD MOTOR CO.

Fig 23: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07840706

Courtesy of FORD MOTOR CO.

Fig 24: Low Charge Protection Switch Connector End View (C130)

G07840707

Courtesy of FORD MOTOR CO.

Fig 25: Horn Connector End View (C131)

G07840708

Courtesy of FORD MOTOR CO.

Fig 26: Ambient Air Temperature Sensor Connector End View (C132)

G07840709

Courtesy of FORD MOTOR CO.

Fig 27: Inline Connector End View (C133)

G07840710

Courtesy of FORD MOTOR CO.

Fig 28: Inline Connector End View (C134)

G07840711

Courtesy of FORD MOTOR CO.

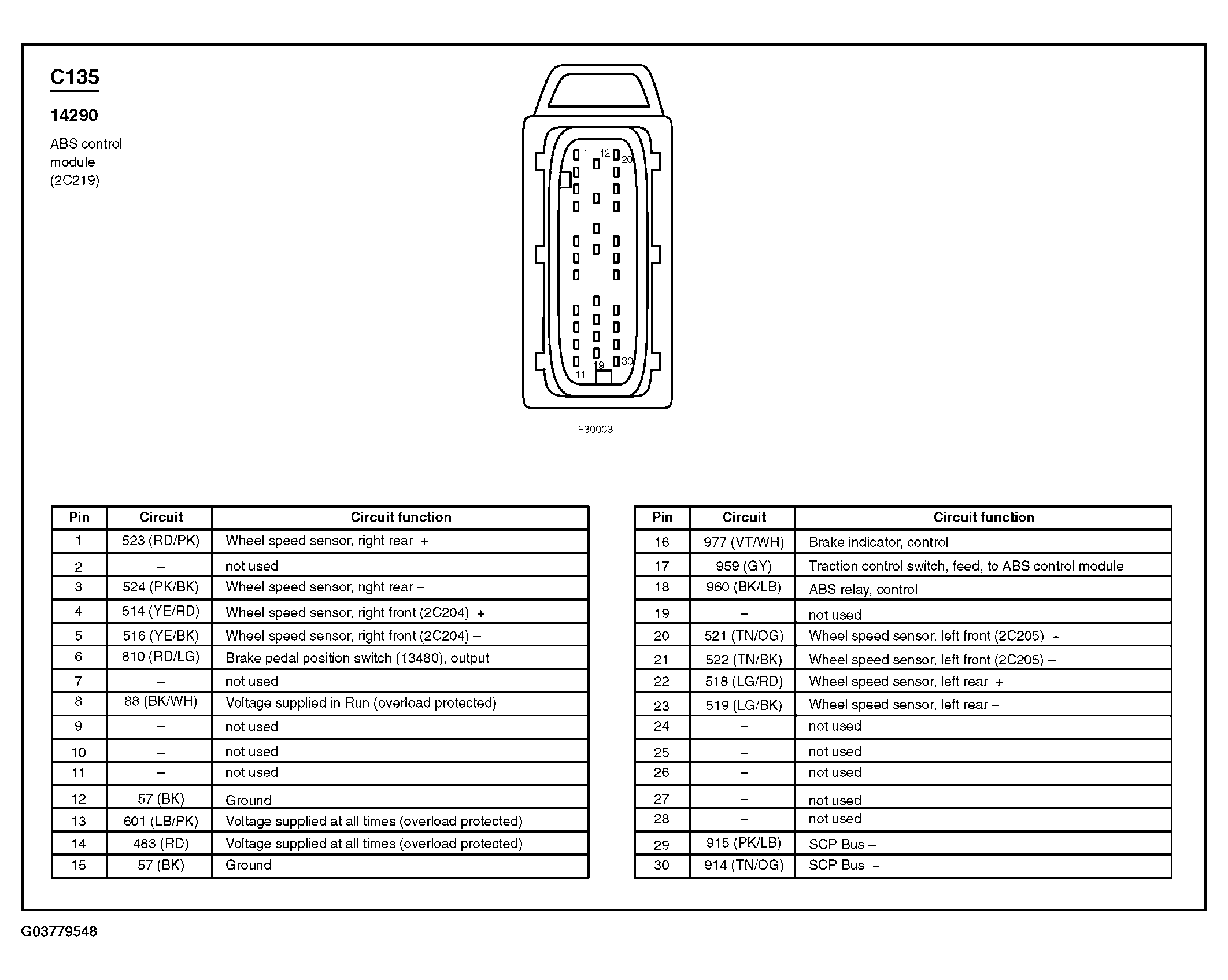

Fig 29: ABS Control Module Connector End View (C135)

G03779548

Courtesy of FORD MOTOR CO.

Fig 30: Windshield Washer Pump Motor Connector End View (C137)

G07840712

Courtesy of FORD MOTOR CO.

Fig 31: Washer Fluid Level Switch Connector End View (C138)

G07840713

Courtesy of FORD MOTOR CO.

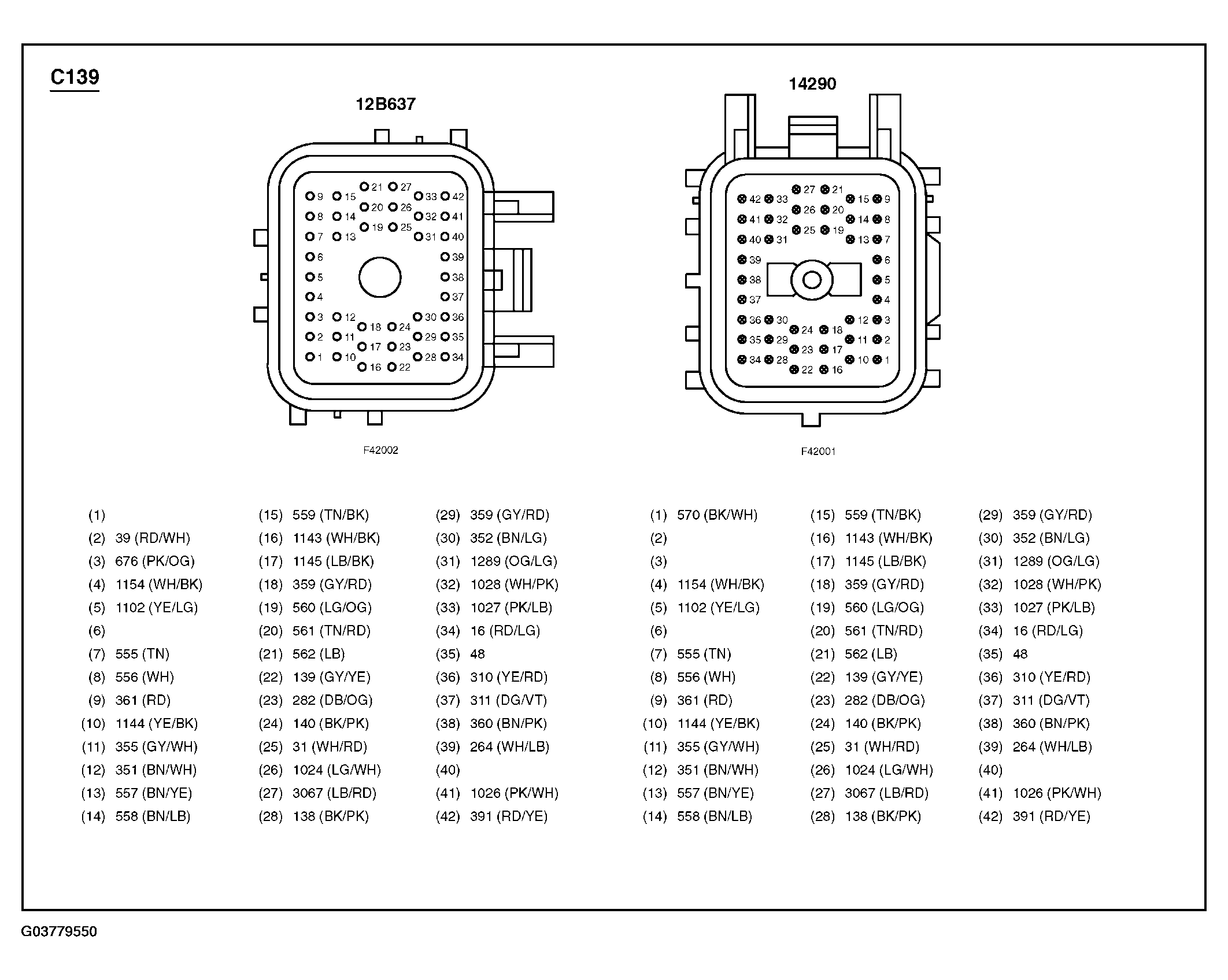

Fig 32: Inline Connector End View (C139)

G03779550

Courtesy of FORD MOTOR CO.

Fig 33: Inline Connector End View (C140)

G07840714

Courtesy of FORD MOTOR CO.

Fig 34: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07840715

Courtesy of FORD MOTOR CO.

Fig 35: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07840716

Courtesy of FORD MOTOR CO.

Fig 36: Inline Connector End View (C144)

G07840717

Courtesy of FORD MOTOR CO.

Fig 37: Inline Connector End View (C146)

G07840718

Courtesy of FORD MOTOR CO.

Fig 38: Wheel Speed Sensor, Left Front Connector End View (C150)

G07840719

Courtesy of FORD MOTOR CO.

Fig 39: Side Lamp, Left Front Connector End View (C151)

G07840720

Courtesy of FORD MOTOR CO.

Fig 40: Fog Lamp, Left Front Connector End View (C152)

G07840721

Courtesy of FORD MOTOR CO.

Fig 41: Wheel Speed Sensor, Right Front Connector End View (C160)

G07840722

Courtesy of FORD MOTOR CO.

Fig 42: Side Lamp, Right Front Connector End View (C161)

G07840723

Courtesy of FORD MOTOR CO.

Fig 43: Fog Lamp, Right Front Connector End View (C162)

G07840724

Courtesy of FORD MOTOR CO.

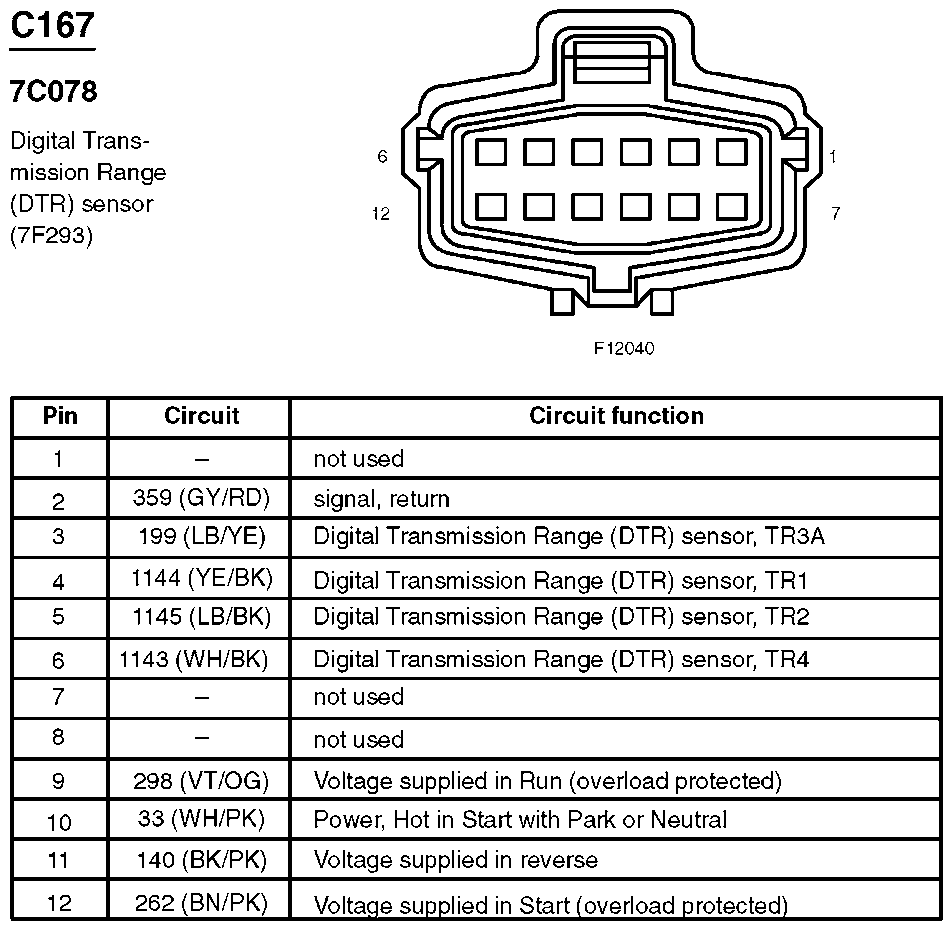

Fig 44: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07840725

Courtesy of FORD MOTOR CO.

Fig 45: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07840726

Courtesy of FORD MOTOR CO.

Fig 46: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07840727

Courtesy of FORD MOTOR CO.

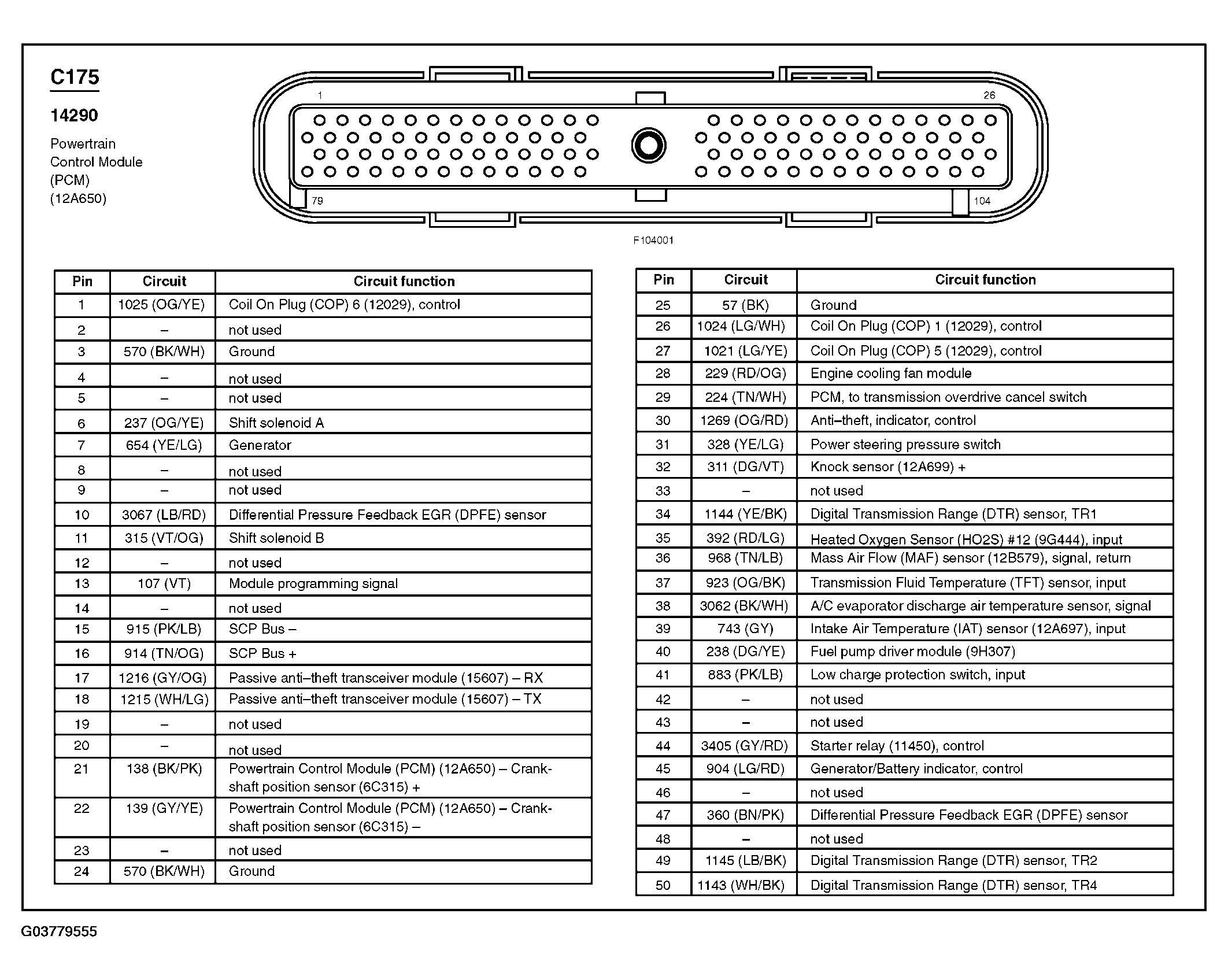

Fig 47: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

G03779555

Courtesy of FORD MOTOR CO.

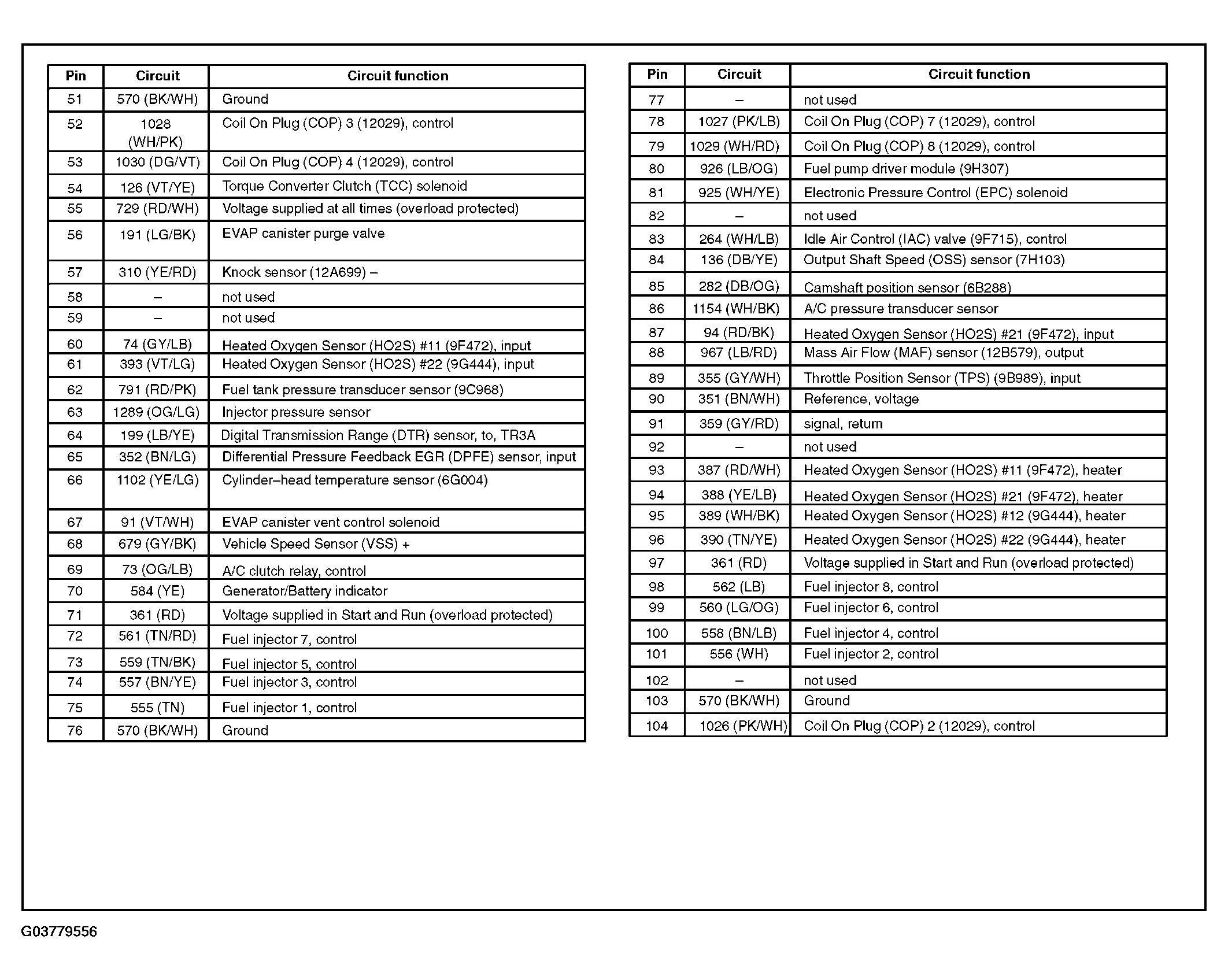

Fig 48: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

G03779556

Courtesy of FORD MOTOR CO.

Fig 49: Forward Crash Sensor Connector End View (C177)

G07840728

Courtesy of FORD MOTOR CO.

Fig 50: Camshaft Position Sensor Connector End View (C180)

G07840729

Courtesy of FORD MOTOR CO.

Fig 51: Fuel Injector 1 Connector End View (C181)

G07840730

Courtesy of FORD MOTOR CO.

Fig 52: Fuel Injector 2 Connector End View (C182)

G07840731

Courtesy of FORD MOTOR CO.

Fig 53: Fuel Injector 3 Connector End View (C183)

G07840732

Courtesy of FORD MOTOR CO.

Fig 54: Fuel Injector 4 Connector End View (C184)

G07840733

Courtesy of FORD MOTOR CO.

Fig 55: Fuel Injector 5 Connector End View (C185)

G07840734

Courtesy of FORD MOTOR CO.

Fig 56: Fuel Injector 6 Connector End View (C186)

G07840735

Courtesy of FORD MOTOR CO.

Fig 57: Fuel Injector 7 Connector End View (C187)

G07840736

Courtesy of FORD MOTOR CO.

Fig 58: Fuel Injector 8 Connector End View (C188)

G07840737

Courtesy of FORD MOTOR CO.

Fig 59: Inline Connector End View (C192)

G07840738

Courtesy of FORD MOTOR CO.

Fig 60: Starter Motor Connector End View (C197a)

G07840739

Courtesy of FORD MOTOR CO.

Fig 61: Starter Motor Connector End View (C197b)

G07840740

Courtesy of FORD MOTOR CO.

Fig 62: Multifunction Switch Connector End View (C202a)

G07840741

Courtesy of FORD MOTOR CO.

Fig 63: Multifunction Switch Connector End View (C202b)

G07840742

Courtesy of FORD MOTOR CO.

Fig 64: Multifunction Switch Connector End View (C202c)

G07840743

Courtesy of FORD MOTOR CO.

Fig 65: Main Light Switch Connector End View (C205a)

G07840744

Courtesy of FORD MOTOR CO.

Fig 66: Main Light Switch Connector End View (C205b)

G03779561

Courtesy of FORD MOTOR CO.

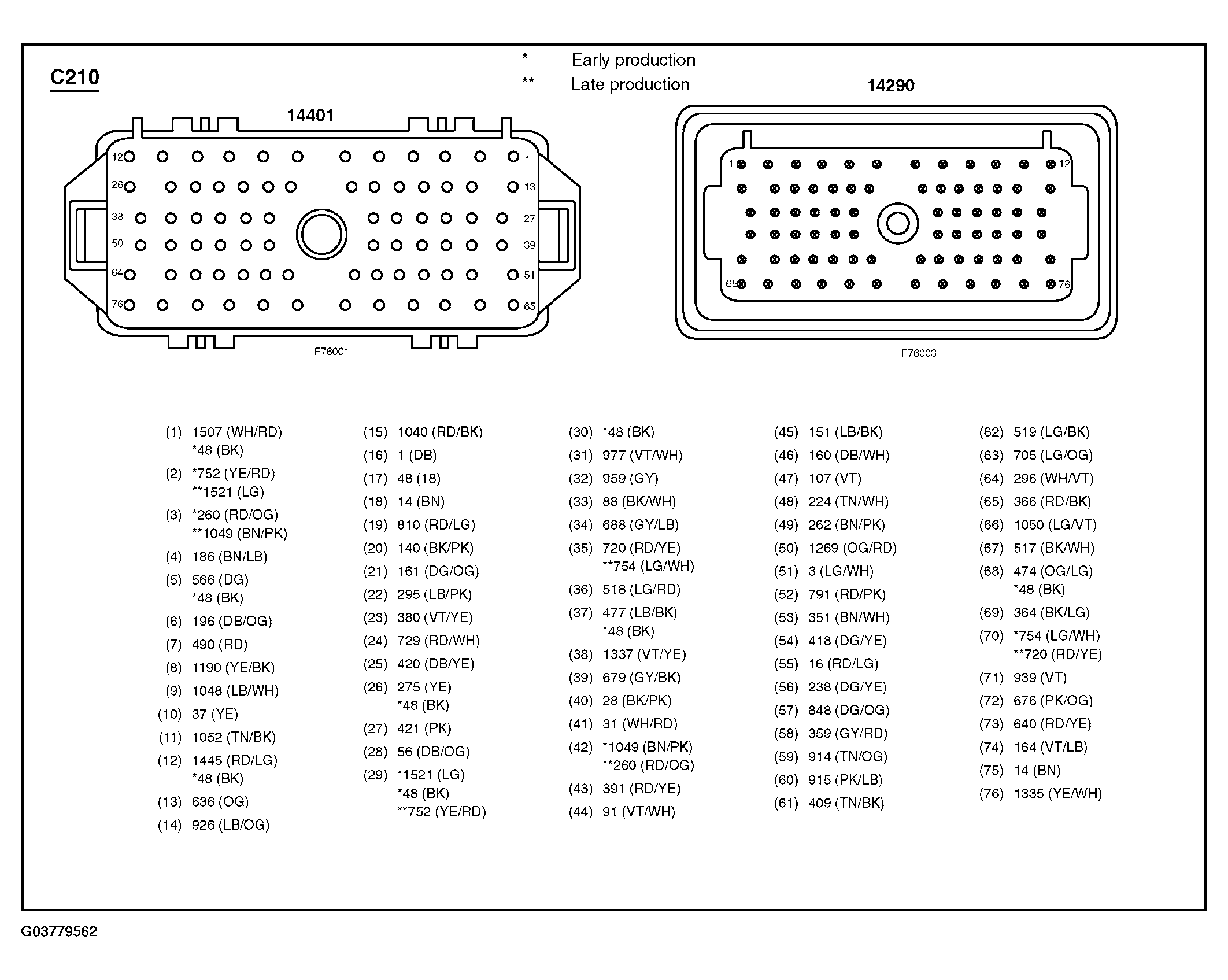

Fig 67: Inline Connector End View (C210)

G03779562

Courtesy of FORD MOTOR CO.

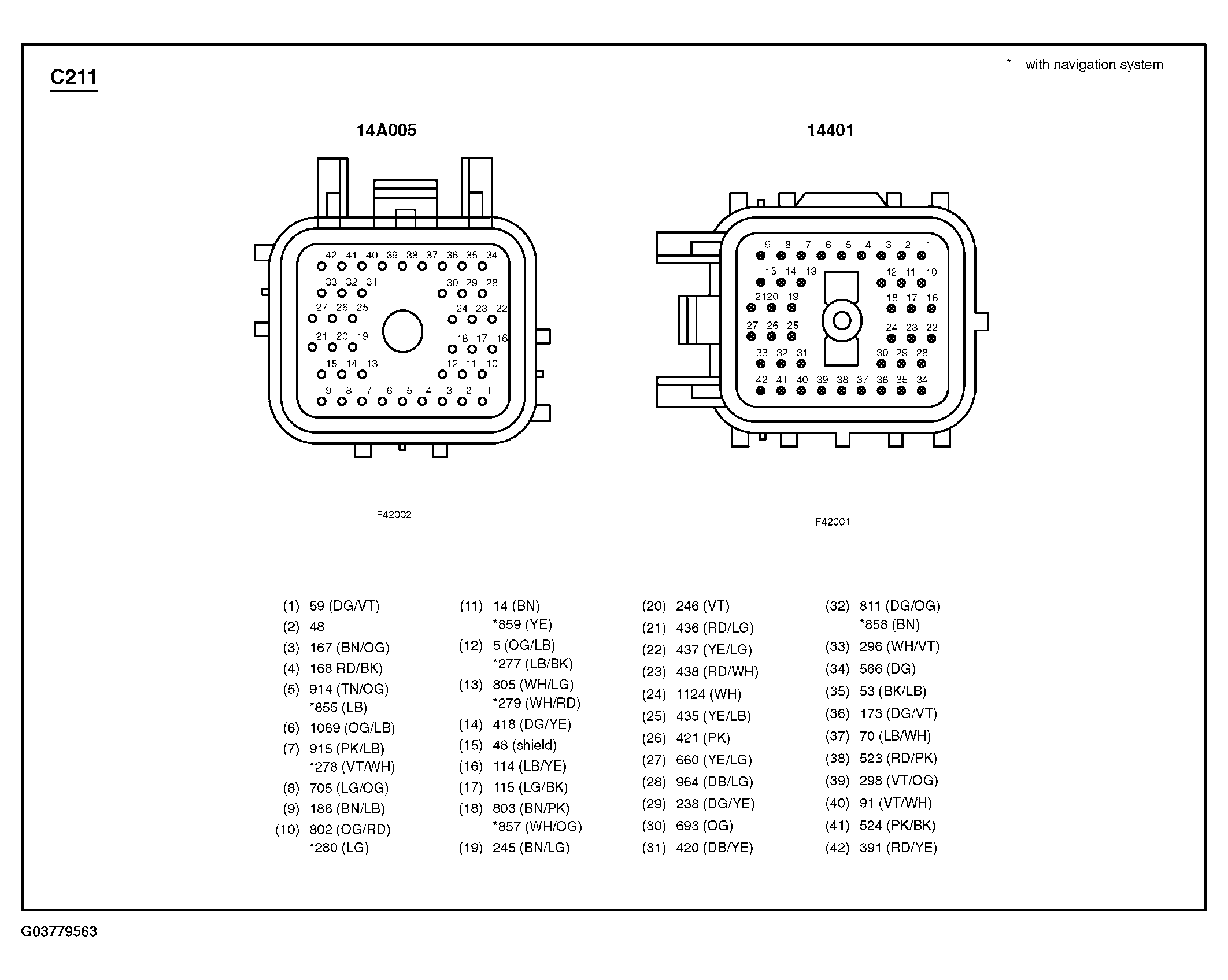

Fig 68: Inline Connector End View (C211)

G03779563

Courtesy of FORD MOTOR CO.

Fig 69: Inline Connector End View (C213)

G07840745

Courtesy of FORD MOTOR CO.

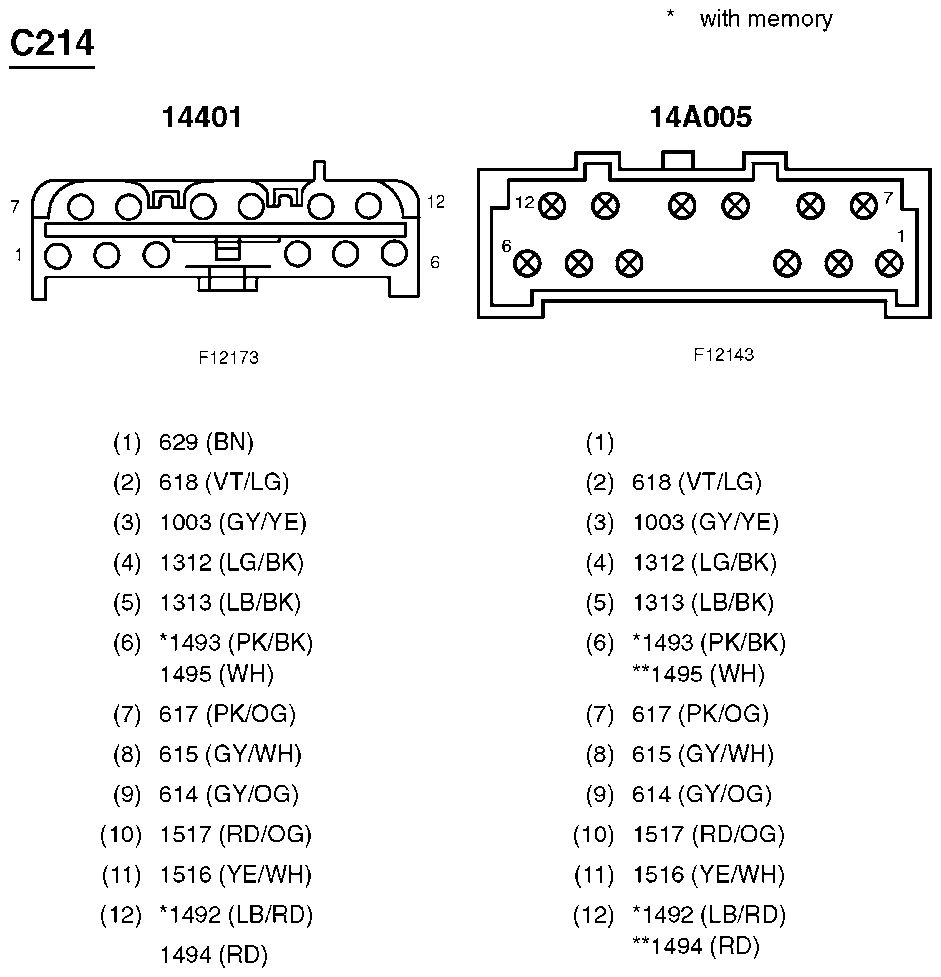

Fig 70: Inline Connector End View (C214)

G07840746

Courtesy of FORD MOTOR CO.

Fig 71: Inline Connector End View (C215)

G07840747

Courtesy of FORD MOTOR CO.

Fig 72: Air Bag Sliding Contact Connector End View (C218a)

G07840748

Courtesy of FORD MOTOR CO.

Fig 73: Inline Connector End View (C219)

G07840749

Courtesy of FORD MOTOR CO.

Fig 74: Instrument Cluster Connector End View (C220a)

G07840750

Courtesy of FORD MOTOR CO.

Fig 75: Instrument Cluster Connector End View (C220b)

G07840751

Courtesy of FORD MOTOR CO.

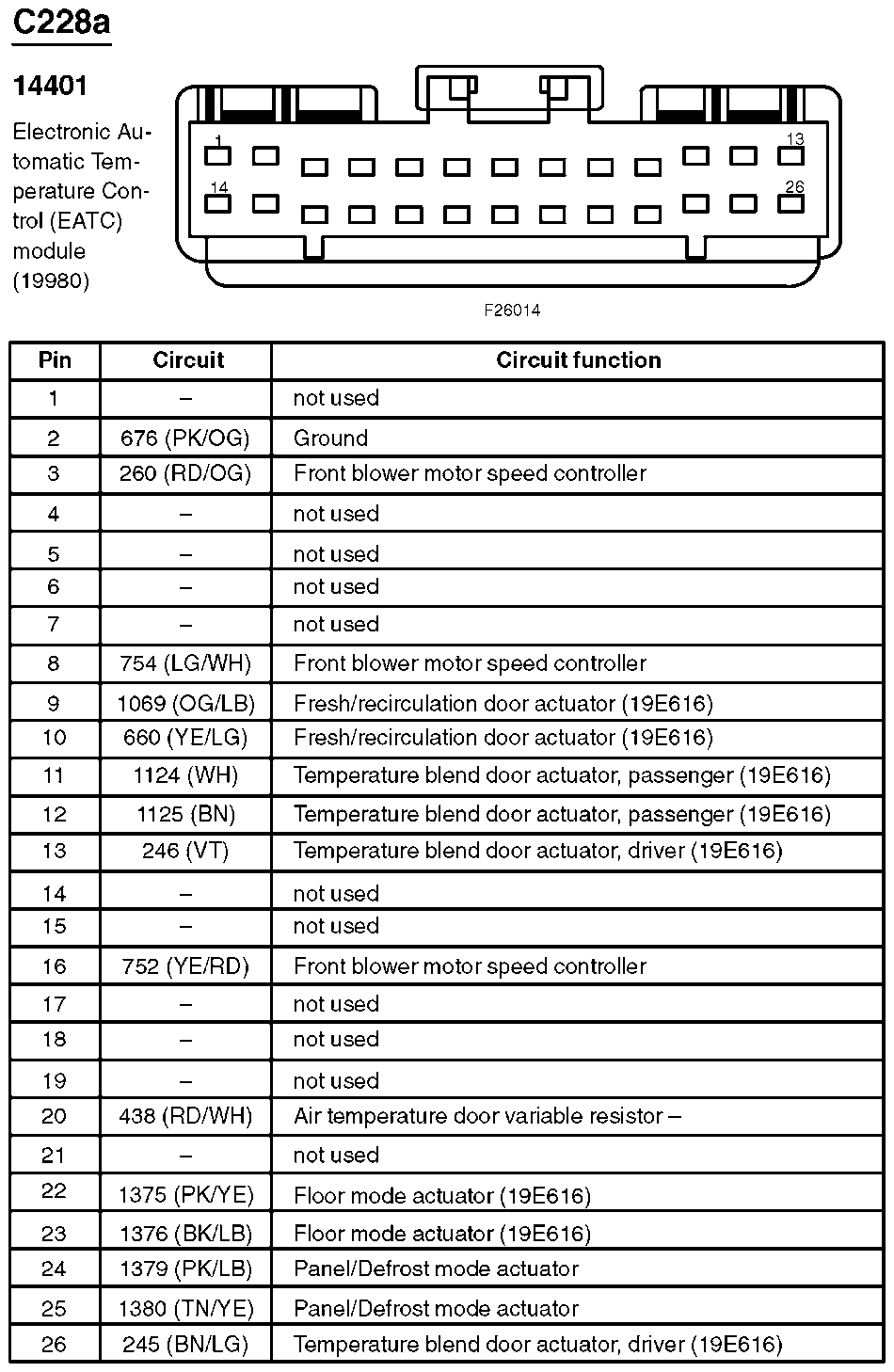

Fig 76: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)

G07840752

Courtesy of FORD MOTOR CO.

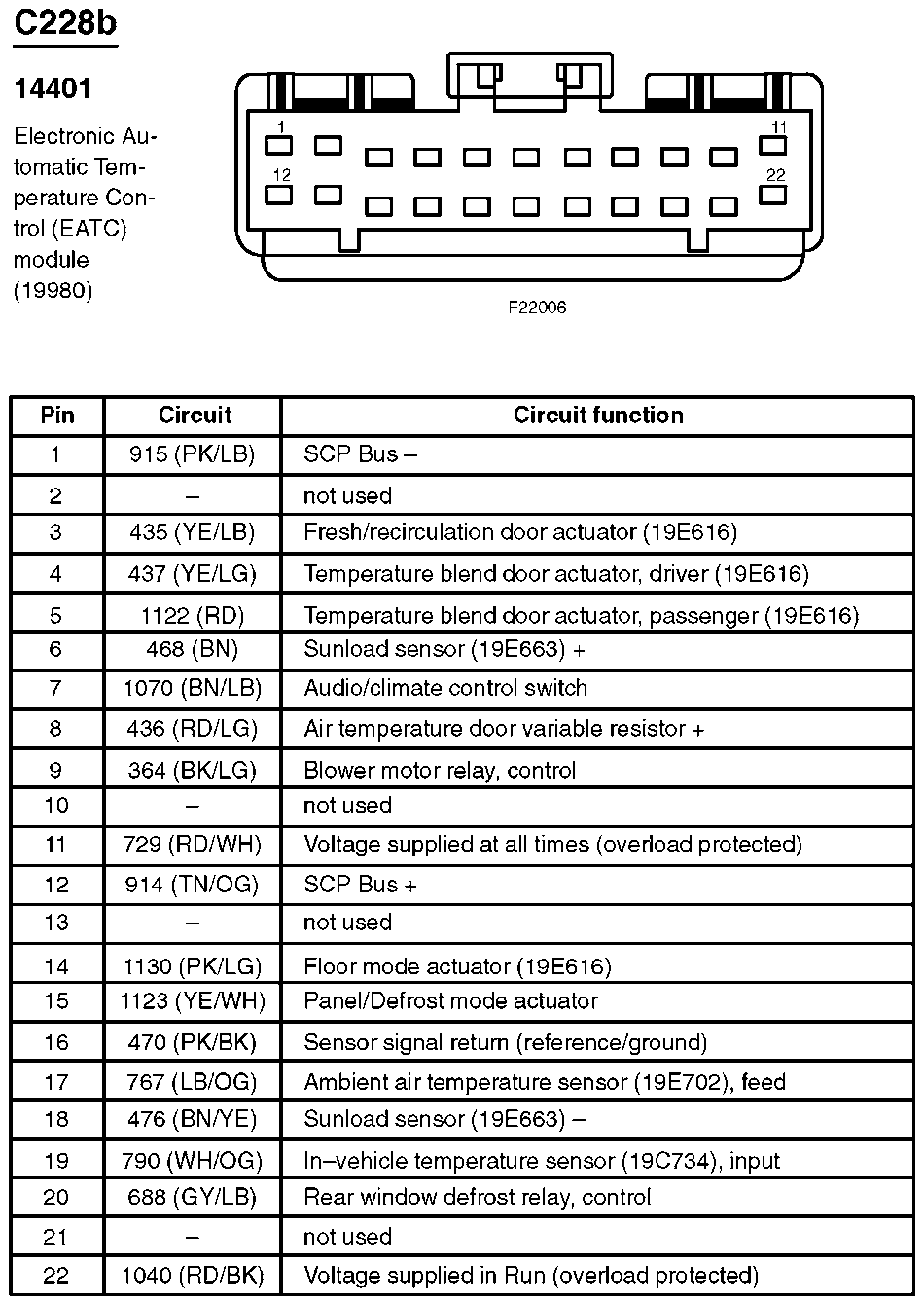

Fig 77: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)

G07840753

Courtesy of FORD MOTOR CO.

Fig 78: In-Vehicle Temperature Sensor Connector End View (C233)

G07840754

Courtesy of FORD MOTOR CO.

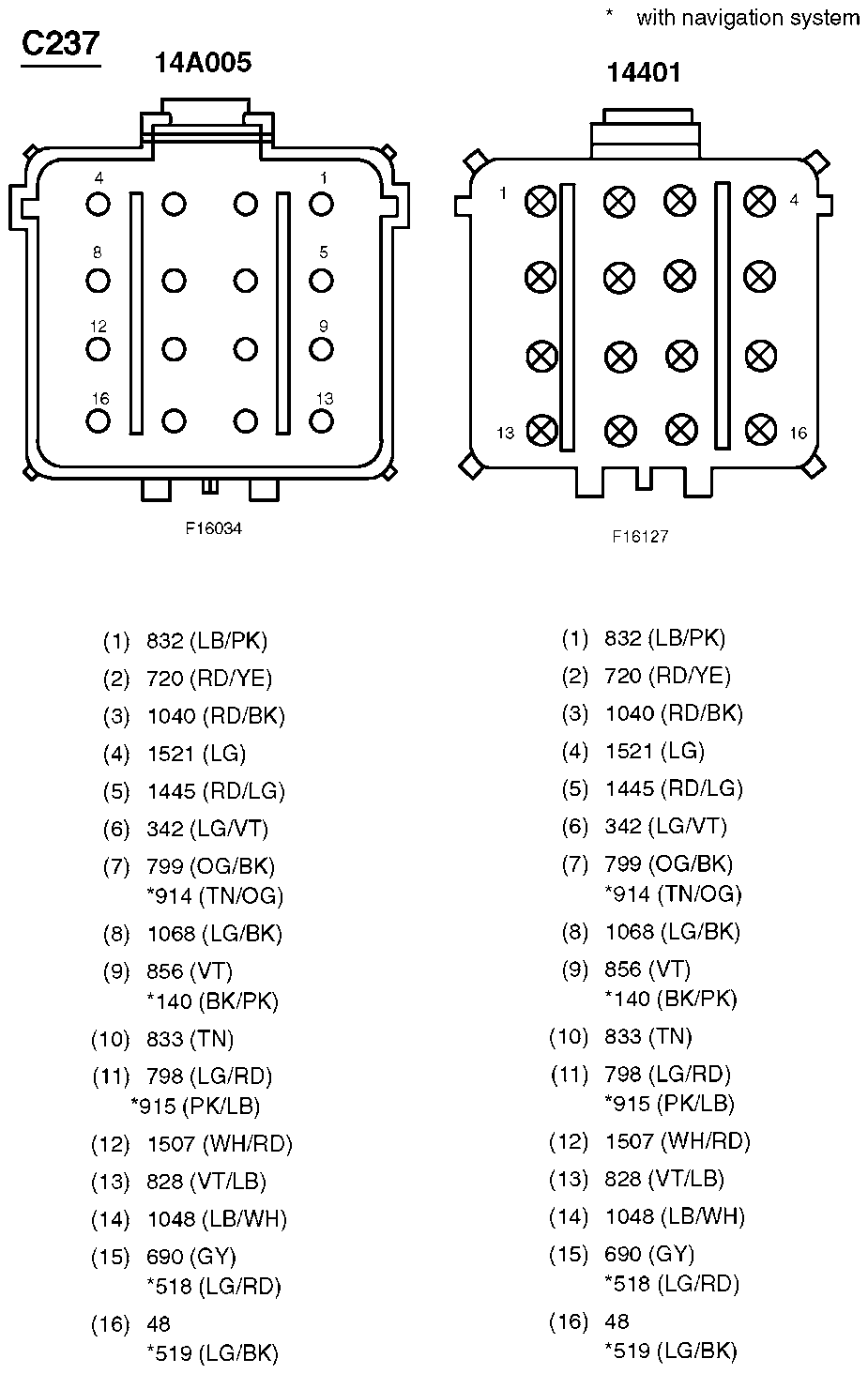

Fig 79: Inline Connector End View (C237)

G07840755

Courtesy of FORD MOTOR CO.

Fig 80: Inline Connector End View (C238)

G07840756

Courtesy of FORD MOTOR CO.

Fig 81: Inline Connector End View (C248)

G07840757

Courtesy of FORD MOTOR CO.

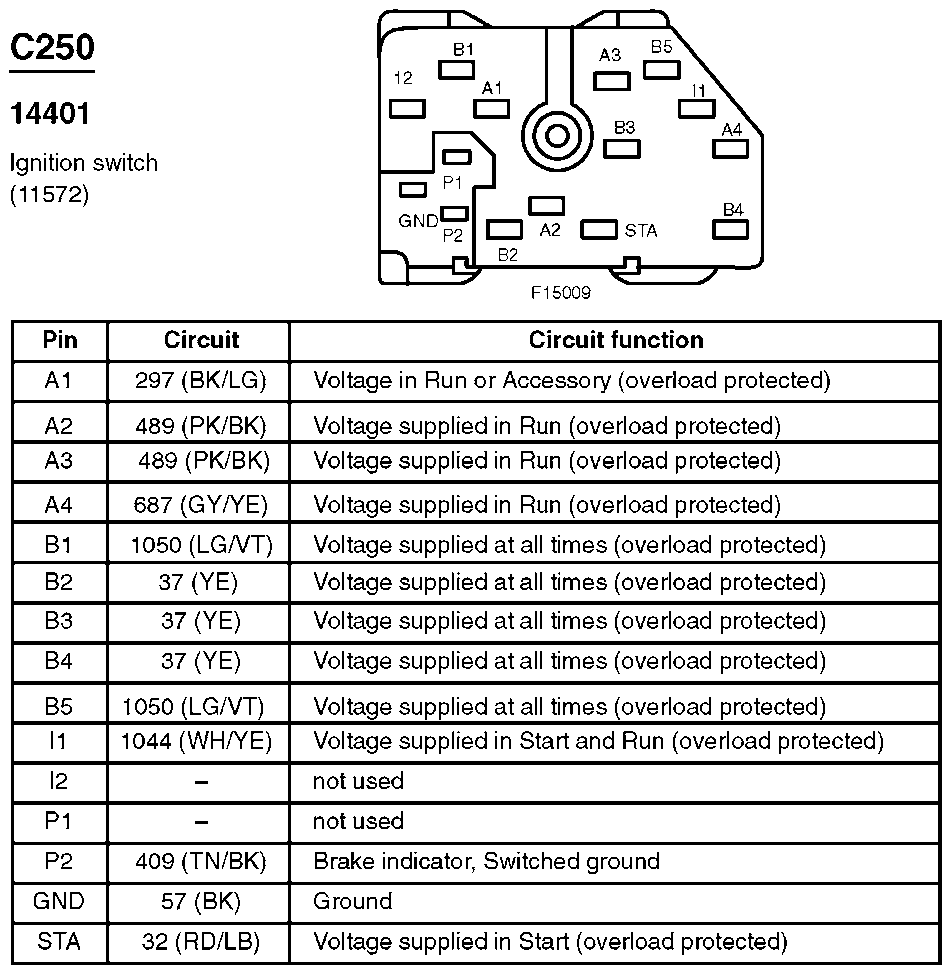

Fig 82: Ignition Switch Connector End View (C250)

G07840758

Courtesy of FORD MOTOR CO.

Fig 83: Data Link Connector (DLC) Connector End View (C251)

G07840759

Courtesy of FORD MOTOR CO.

Fig 84: Passive Anti-Theft Transceiver Module Connector End View (C252)

G07840760

Courtesy of FORD MOTOR CO.

Fig 85: Message Center Switch Connector End View (C253)

G07840761

Courtesy of FORD MOTOR CO.

Fig 86: Glove Box Lamp Connector End View (C254)

G07840762

Courtesy of FORD MOTOR CO.

Fig 87: Passenger Air Bag Module Connector End View (C256)

G07840763

Courtesy of FORD MOTOR CO.

Fig 88: Inline Connector End View (C260)

G07840764

Courtesy of FORD MOTOR CO.

Fig 89: Inline Connector End View (C263)

G07840765

Courtesy of FORD MOTOR CO.

Fig 90: Inline Connector End View (C264)

G07840766

Courtesy of FORD MOTOR CO.

Fig 91: Inline Connector End View (C265)

G07840767

Courtesy of FORD MOTOR CO.

Fig 92: Inline Connector End View (C268)

G07840768

Courtesy of FORD MOTOR CO.

Fig 93: Inline Connector End View (C275)

G07840769

Courtesy of FORD MOTOR CO.

Fig 94: Deactivator Switch Connector End View (C277)

G07840770

Courtesy of FORD MOTOR CO.

Fig 95: Brake Pedal Position Switch Connector End View (C278)

G07840771

Courtesy of FORD MOTOR CO.

Fig 96: Traction Control Switch Connector End View (C280)

G07840772

Courtesy of FORD MOTOR CO.

Fig 97: Autolamp Sensor Connector End View (C287)

G07840773

Courtesy of FORD MOTOR CO.

Fig 98: Fresh/Recirculation Door Actuator Connector End View (C289)

G07840774

Courtesy of FORD MOTOR CO.

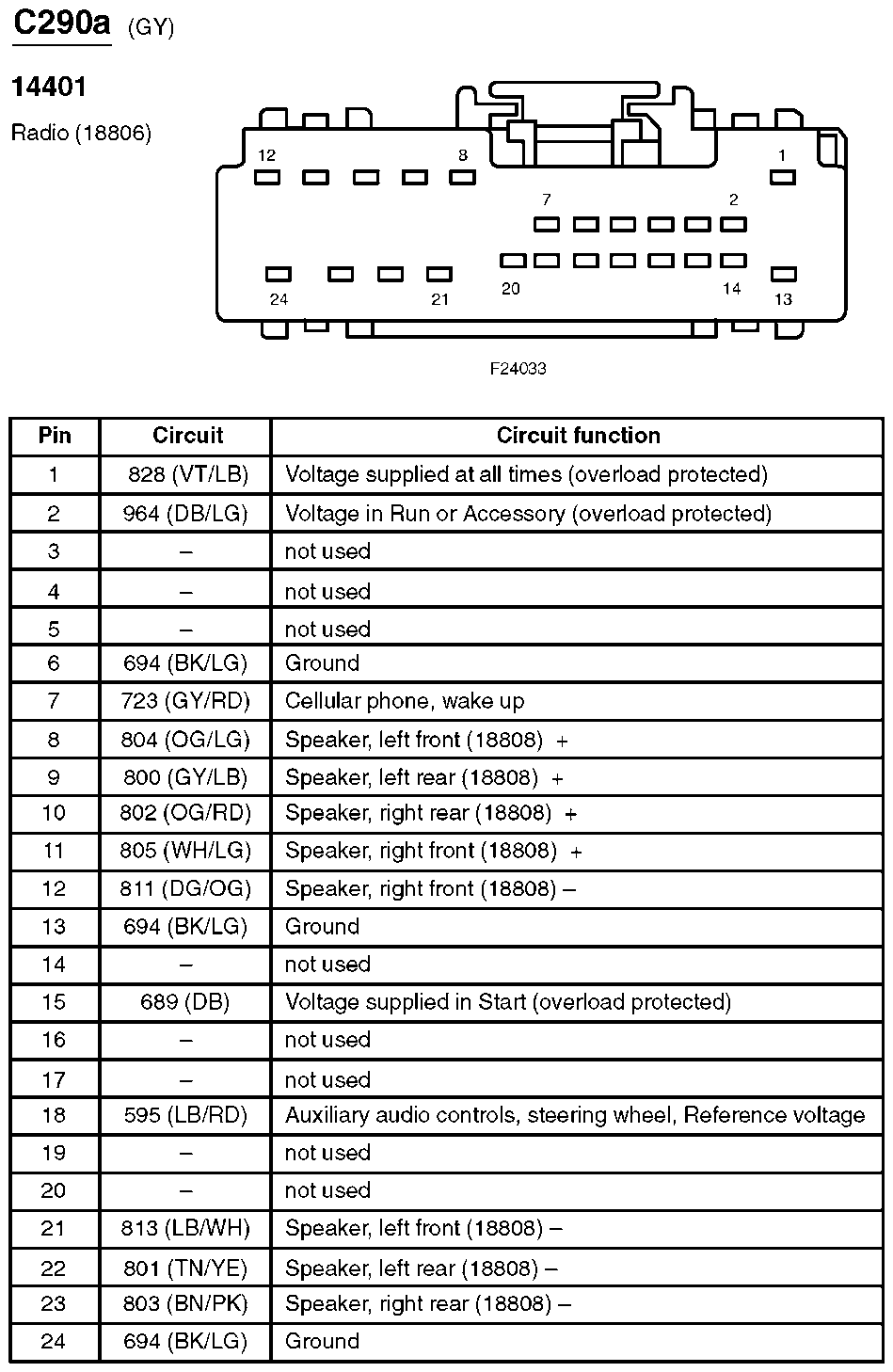

Fig 99: Radio Connector End View (C290a)

G07840775

Courtesy of FORD MOTOR CO.

Fig 100: Radio Connector End View (C290b)

G07840776

Courtesy of FORD MOTOR CO.

Fig 101: Radio Connector End View (C290c)

G07840777

Courtesy of FORD MOTOR CO.

Fig 102: Radio Connector End View (C290d)

G07840778

Courtesy of FORD MOTOR CO.

Fig 103: Inline Connector End View (C291)

G07840779

Courtesy of FORD MOTOR CO.

Fig 104: Inline Connector End View (C298)

G07840780

Courtesy of FORD MOTOR CO.

Fig 105: Inline Connector End View (C299)

G07840781

Courtesy of FORD MOTOR CO.

Fig 106: High Mounted Stoplamp Connector End View (C302)

G07840782

Courtesy of FORD MOTOR CO.

Fig 107: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)

G07840783

Courtesy of FORD MOTOR CO.

Fig 108: Side Air Bag Sensor, Right Connector End View (C304)

G07840784

Courtesy of FORD MOTOR CO.

Fig 109: Side Air Bag Sensor, Left Connector End View (C305)

G07840785

Courtesy of FORD MOTOR CO.

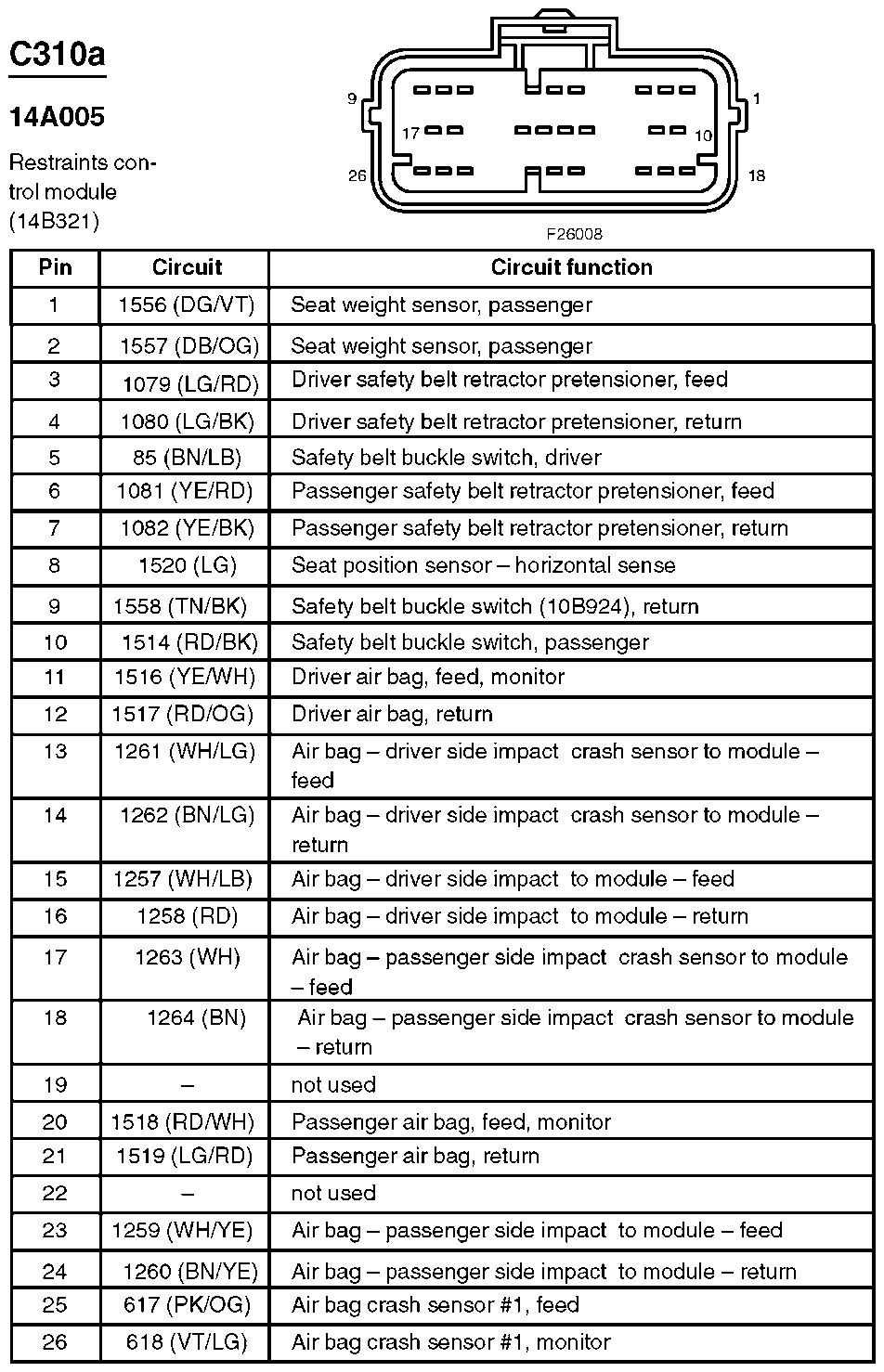

Fig 110: Restraints Control Module Connector End View (C310a)

G07840786

Courtesy of FORD MOTOR CO.

Fig 111: Restraints Control Module Connector End View (C310b)

G07840787

Courtesy of FORD MOTOR CO.

Fig 112: Inline Connector End View (C311)

G07840788

Courtesy of FORD MOTOR CO.

Fig 113: Inline Connector End View (C312)

G07840789

Courtesy of FORD MOTOR CO.

Fig 114: Inline Connector End View (C314)

G07840790

Courtesy of FORD MOTOR CO.

Fig 115: Inline Connector End View (C315)

G07840791

Courtesy of FORD MOTOR CO.

Fig 116: Cellular Phone Handset Connector End View (C318)

G07840792

Courtesy of FORD MOTOR CO.

Fig 117: Driver Safety Belt Retractor Pretensioner Connector End View (C323)

G07840793

Courtesy of FORD MOTOR CO.

Fig 118: Inline Connector End View (C327)

G07840794

Courtesy of FORD MOTOR CO.

Fig 119: Inline Connector End View (C328)

G07840795

Courtesy of FORD MOTOR CO.

Fig 120: Heated Seat Module, Passenger Side Front Connector End View (C329)

G07840796

Courtesy of FORD MOTOR CO.

Fig 121: Lumbar Adjust Switch, Right Front Connector End View (C331)

G07840797

Courtesy of FORD MOTOR CO.

Fig 122: Seat Cushion Heater, Right Front Connector End View (C334)

G07840798

Courtesy of FORD MOTOR CO.

Fig 123: Passenger Seat Lumbar Compressor Motor Connector End View (C336)

G07840799

Courtesy of FORD MOTOR CO.

Fig 124: Side Air Bag Module, Right Connector End View (C337)

G07840800

Courtesy of FORD MOTOR CO.

Fig 125: Passenger Seat Backrest Motor Connector End View (C338)

G07840801

Courtesy of FORD MOTOR CO.

Fig 126: Inline Connector End View (C339)

G07840802

Courtesy of FORD MOTOR CO.

Fig 127: Inline Connector End View (C340)

G07840803

Courtesy of FORD MOTOR CO.

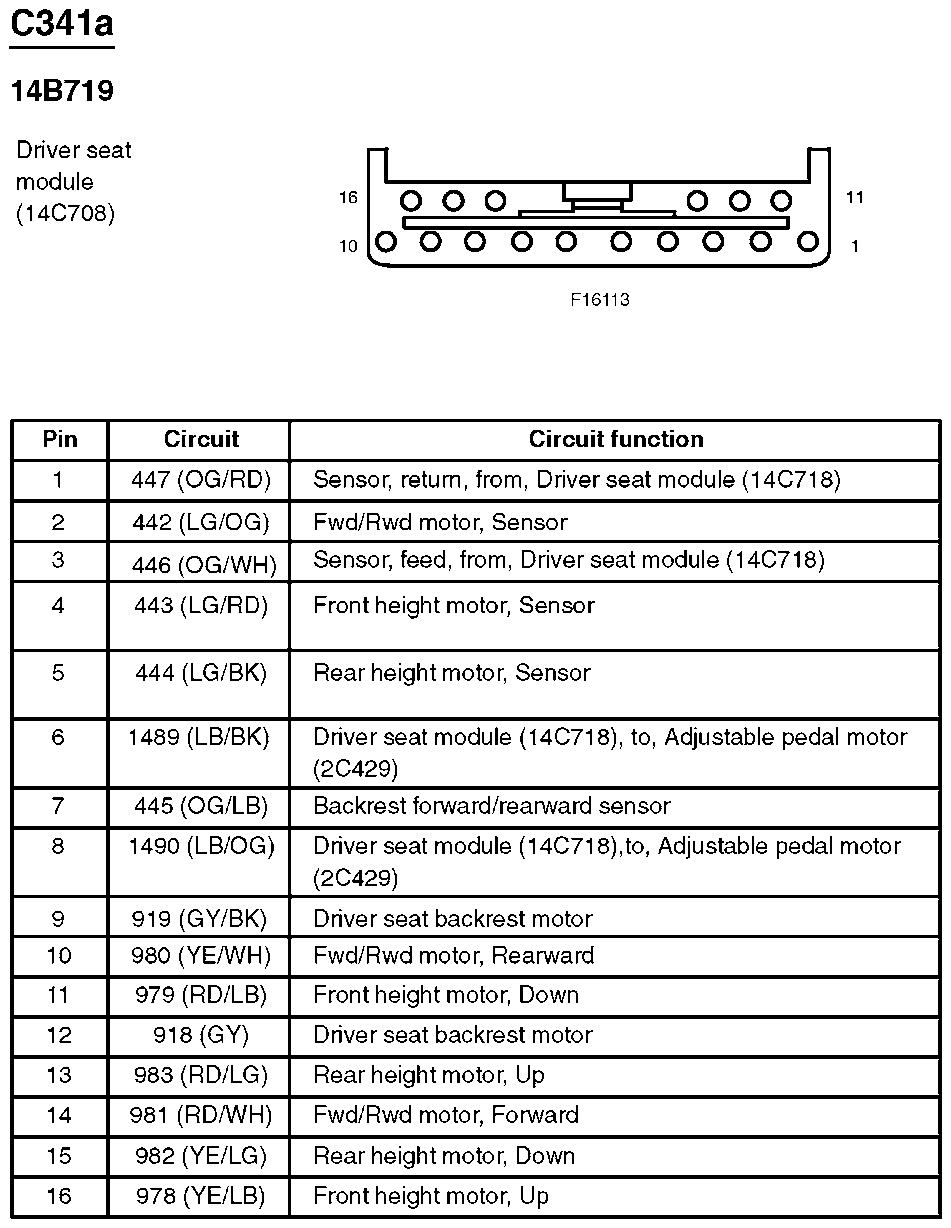

Fig 128: Driver Seat Module Connector End View (C341a)

G07840804

Courtesy of FORD MOTOR CO.

Fig 129: Driver Seat Module Connector End View (C341b)

G07840805

Courtesy of FORD MOTOR CO.

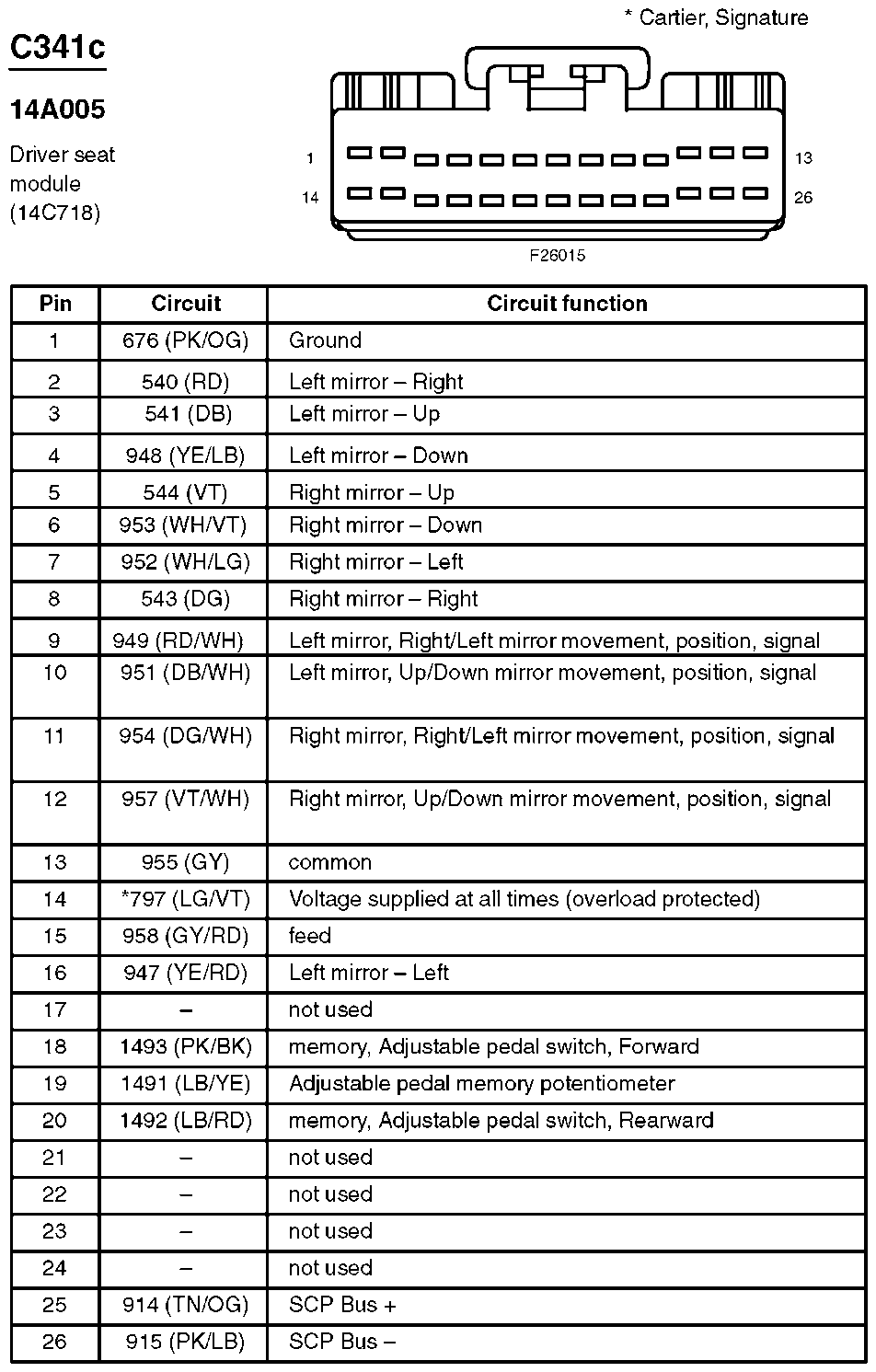

Fig 130: Driver Seat Module Connector End View (C341c)

G07840806

Courtesy of FORD MOTOR CO.

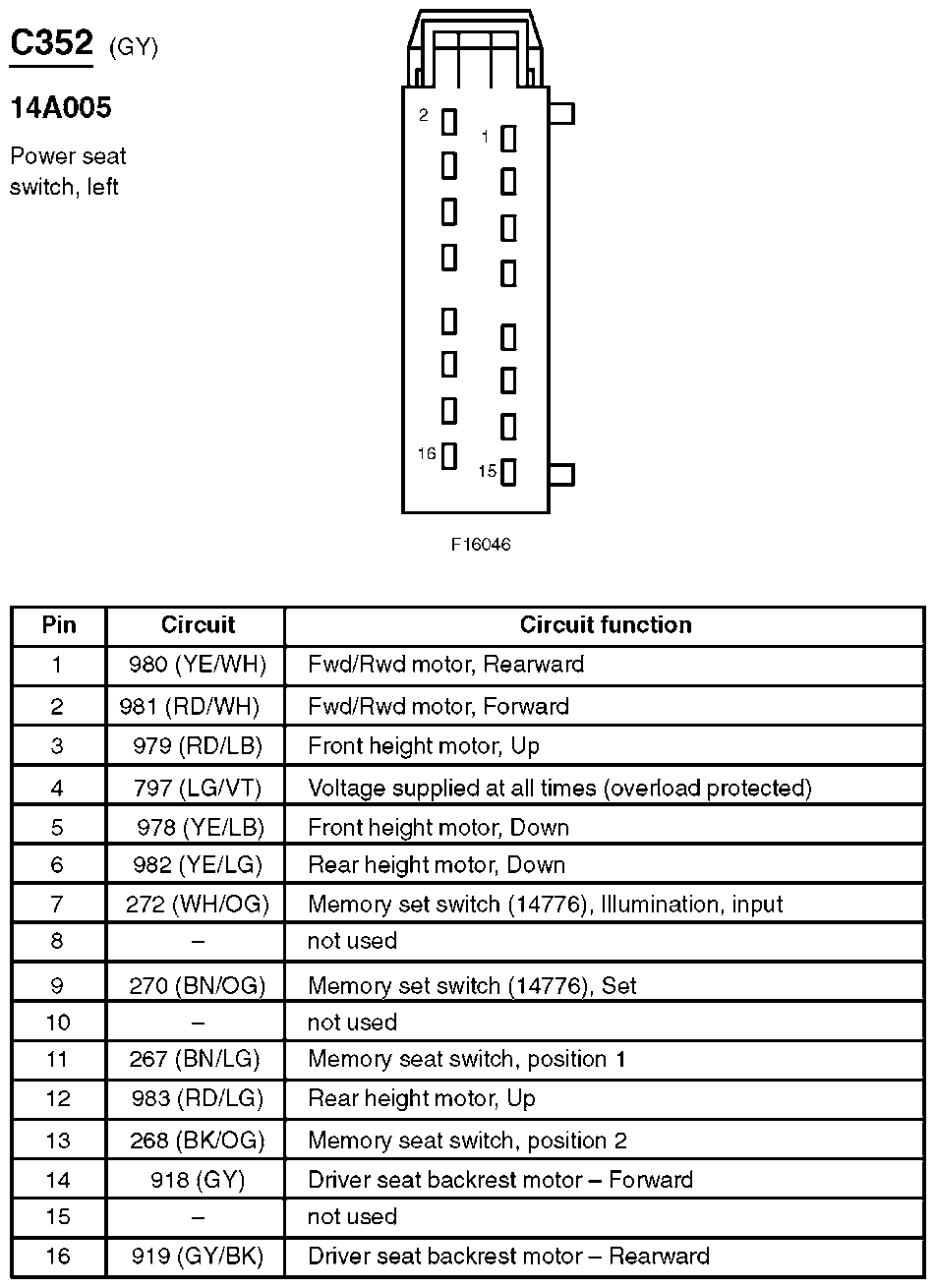

Fig 131: Power Seat Switch, Left Connector End View (C352)

G07840807

Courtesy of FORD MOTOR CO.

Fig 132: Power Seat Motor Assembly, Left Connector End View (C353)

G07840808

Courtesy of FORD MOTOR CO.

Fig 133: Seat Track Position Sensor, Left Connector End View (C356)

G07840809

Courtesy of FORD MOTOR CO.

Fig 134: Heated Seat Module, Driver Side Front Connector End View (C359)

G07840810

Courtesy of FORD MOTOR CO.

Fig 135: Lumbar Adjust Switch, Left Front Connector End View (C361)

G07840811

Courtesy of FORD MOTOR CO.

Fig 136: Seat Cushion Heater, Left Front Connector End View (C364)

G07840812

Courtesy of FORD MOTOR CO.

Fig 137: Driver Seat Lumbar Compressor Motor Connector End View (C366)

G07840813

Courtesy of FORD MOTOR CO.

Fig 138: Side Air Bag Module, Left Connector End View (C367)

G07840814

Courtesy of FORD MOTOR CO.

Fig 139: Driver Seat Backrest Motor Connector End View (C368)

G07840815

Courtesy of FORD MOTOR CO.

Fig 140: Power Seat Motor Assembly, Left Connector End View (C372)

G07840816

Courtesy of FORD MOTOR CO.

Fig 141: Power Seat Motor Assembly, Left Connector End View (C373)

G07840817

Courtesy of FORD MOTOR CO.

Fig 142: Driver Memory Backrest Sensor Connector End View (C376)

G07840818

Courtesy of FORD MOTOR CO.

Fig 143: Power Seat Motor Assembly, Left Connector End View (C383)

G07840819

Courtesy of FORD MOTOR CO.

Fig 144: Vehicle Emergency Message System (VEMS) Module Connector End View (C401a)

G07840820

Courtesy of FORD MOTOR CO.

Fig 145: Vehicle Emergency Message System (VEMS) Module Connector End View (C401b)

G07840821

Courtesy of FORD MOTOR CO.

Fig 146: Rear Window Defrost Grid Connector End View (C402a)

G07840822

Courtesy of FORD MOTOR CO.

Fig 147: Rear Window Defrost Grid Connector End View (C402b)

G07840823

Courtesy of FORD MOTOR CO.

Fig 148: Rear Window Defrost Grid Connector End View (C402c)

G07840824

Courtesy of FORD MOTOR CO.

Fig 149: Cellular Phone Module Connector End View (C403a)

G07840825

Courtesy of FORD MOTOR CO.

Fig 150: Cellular Phone Module Connector End View (C403b)

G07840826

Courtesy of FORD MOTOR CO.

Fig 151: Inline Connector End View (C405)

G07840827

Courtesy of FORD MOTOR CO.

Fig 152: Inline Connector End View (C406)

G07840828

Courtesy of FORD MOTOR CO.

Fig 153: Inline Connector End View (C408)

G07840829

Courtesy of FORD MOTOR CO.

Fig 154: Fuel Door Release Solenoid Connector End View (C409)

G07840830

Courtesy of FORD MOTOR CO.

Fig 155: Inline Connector End View (C410)

G07840831

Courtesy of FORD MOTOR CO.

Fig 156: Lamp Assembly, Left Rear Connector End View (C414a)

G07840832

Courtesy of FORD MOTOR CO.

Fig 157: Lamp Assembly, Left Rear Connector End View (C414b)

G07840833

Courtesy of FORD MOTOR CO.

Fig 158: Lamp Assembly, Right Rear Connector End View (C417a)

G07840834

Courtesy of FORD MOTOR CO.

Fig 159: Lamp Assembly, Right Rear Connector End View (C417b)

G07840835

Courtesy of FORD MOTOR CO.

Fig 160: Inline Connector End View (C423)

G07840836

Courtesy of FORD MOTOR CO.

Fig 161: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07840837

Courtesy of FORD MOTOR CO.

Fig 162: Luggage Compartment Lamp Connector End View (C428a)

G07840838

Courtesy of FORD MOTOR CO.

Fig 163: Luggage Compartment Lamp Connector End View (C428b)

G07840839

Courtesy of FORD MOTOR CO.

Fig 164: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G07840840

Courtesy of FORD MOTOR CO.

Fig 165: Inline Connector End View (C431)

G07840841

Courtesy of FORD MOTOR CO.

Fig 166: Inline Connector End View (C432)

G07840842

Courtesy of FORD MOTOR CO.

Fig 167: Fuel Pump Driver Module Connector End View (C433)

G07840843

Courtesy of FORD MOTOR CO.

Fig 168: Fuel Tank Unit Connector End View (C434)

G07840844

Courtesy of FORD MOTOR CO.

Fig 169: Wheel Speed Sensor, Left Rear Connector End View (C440)

G07840845

Courtesy of FORD MOTOR CO.

Fig 170: Subwoofer Amplifier Connector End View (C466)

G07840846

Courtesy of FORD MOTOR CO.

Fig 171: Reversing Lamp, Left Connector End View (C487)

G07840847

Courtesy of FORD MOTOR CO.

Fig 172: Reversing Lamp, Right Connector End View (C488)

G07840848

Courtesy of FORD MOTOR CO.

Fig 173: Key Pad Switch Assembly Connector End View (C500)

G07840849

Courtesy of FORD MOTOR CO.

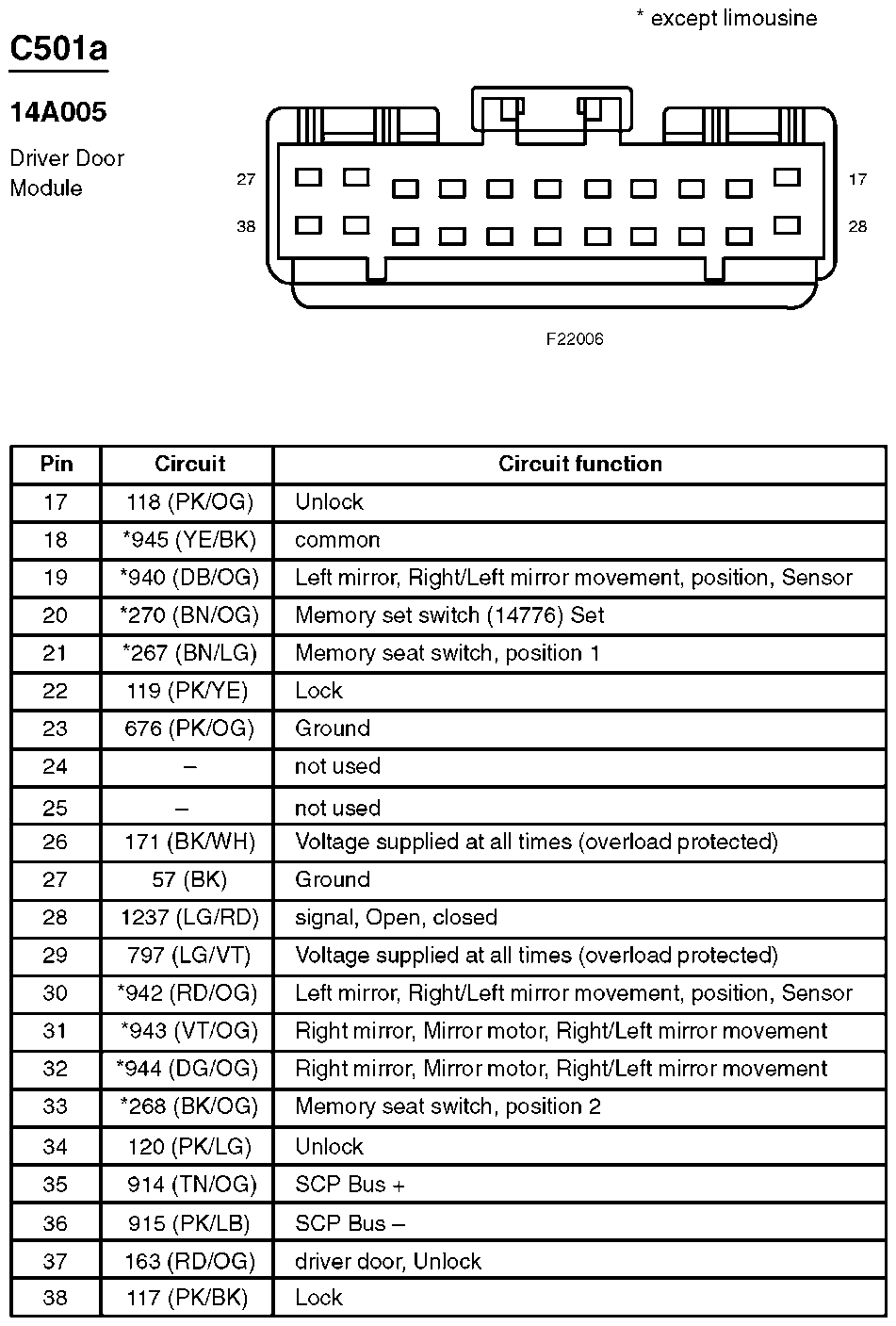

Fig 174: Driver Door Module Connector End View (C501a)

G07840850

Courtesy of FORD MOTOR CO.

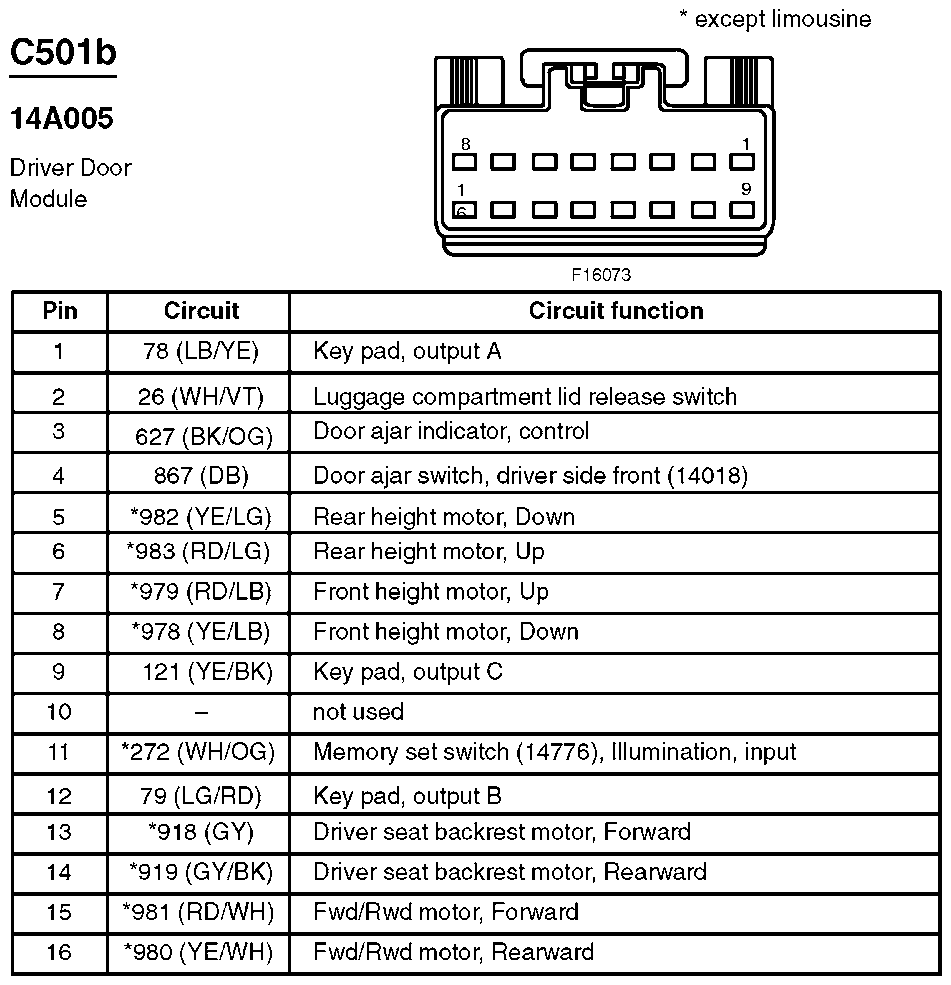

Fig 175: Driver Door Module Connector End View (C501b)

G07840851

Courtesy of FORD MOTOR CO.

Fig 176: Driver Door Module Connector End View (C501c)

G07840852

Courtesy of FORD MOTOR CO.

Fig 177: Master Window Adjust Switch Connector End View (C504a)

G07840853

Courtesy of FORD MOTOR CO.

Fig 178: Master Window Adjust Switch Connector End View (C504b)

G07840854

Courtesy of FORD MOTOR CO.

Fig 179: Door Lock Switch, Driver Side Connector End View (C505)

G07840855

Courtesy of FORD MOTOR CO.

Fig 180: Door Entry Lamp, Left Front Connector End View (C506)

G07840856

Courtesy of FORD MOTOR CO.

Fig 181: Anti-Theft Inhibit Switch Connector End View (C509)

G07840857

Courtesy of FORD MOTOR CO.

Fig 182: Inline Connector End View (C510)

G07840858

Courtesy of FORD MOTOR CO.

Fig 183: Inline Connector End View (C511)

G07840859

Courtesy of FORD MOTOR CO.

Fig 184: Fuel Door Release Switch Connector End View (C512)

G07840860

Courtesy of FORD MOTOR CO.

Fig 185: Exterior Rear View Mirror, Left Connector End View (C516a)

G07840861

Courtesy of FORD MOTOR CO.

Fig 186: Exterior Rear View Mirror, Left Connector End View (C516b)

G07840862

Courtesy of FORD MOTOR CO.

Fig 187: Exterior Rear View Mirror, Left Connector End View (C517)

G07840863

Courtesy of FORD MOTOR CO.

Fig 188: Speaker, Left Front Connector End View (C523)

G07840864

Courtesy of FORD MOTOR CO.

Fig 189: Power Window Motor, Driver Side Front Connector End View (C524)

G07840865

Courtesy of FORD MOTOR CO.

Fig 190: Door Lock Unit, Driver Side Front Connector End View (C525)

G07840866

Courtesy of FORD MOTOR CO.

Fig 191: Door Ajar Switch, Driver Side Front Connector End View (C526a)

G07840867

Courtesy of FORD MOTOR CO.

Fig 192: Door Ajar Switch, Driver Side Front Connector End View (C526b)

G07840868

Courtesy of FORD MOTOR CO.

Fig 193: Exterior Rear View Mirror Switch Connector End View (C527)

G07840869

Courtesy of FORD MOTOR CO.

Fig 194: Luggage Compartment Lid Release Switch Connector End View (C534)

G07840870

Courtesy of FORD MOTOR CO.

Fig 195: Seat Heater Switch, Driver Side Connector End View (C538)

G07840871

Courtesy of FORD MOTOR CO.

Fig 196: Exterior Rear View Mirror, Right Connector End View (C601)

G07840872

Courtesy of FORD MOTOR CO.

Fig 197: Door Ajar Switch, Passenger Side Front Connector End View (C602a)

G07840873

Courtesy of FORD MOTOR CO.

Fig 198: Door Ajar Switch, Passenger Side Front Connector End View (C602b)

G07840874

Courtesy of FORD MOTOR CO.

Fig 199: Window Adjust Switch, Passenger Side Connector End View (C604)

G07840875

Courtesy of FORD MOTOR CO.

Fig 200: Door Lock Switch, Passenger Side Connector End View (C605)

G07840876

Courtesy of FORD MOTOR CO.

Fig 201: Door Entry Lamp, Right Front Connector End View (C606)

G07840877

Courtesy of FORD MOTOR CO.

Fig 202: Power Window Motor, Passenger Side Front Connector End View (C608)

G07840878

Courtesy of FORD MOTOR CO.

Fig 203: Door Lock Unit, Passenger Side Front Connector End View (C609)

G07840879

Courtesy of FORD MOTOR CO.

Fig 204: Inline Connector End View (C610)

G07840880

Courtesy of FORD MOTOR CO.

Fig 205: Inline Connector End View (C611)

G07840881

Courtesy of FORD MOTOR CO.

Fig 206: Speaker, Right Front Connector End View (C612)

G07840882

Courtesy of FORD MOTOR CO.

Fig 207: Exterior Rear View Mirror, Right Connector End View (C615a)

G07840883

Courtesy of FORD MOTOR CO.

Fig 208: Exterior Rear View Mirror, Right Connector End View (C615b)

G07840884

Courtesy of FORD MOTOR CO.

Fig 209: Seat Adjust Switch, Passenger Side Front Connector End View (C627)

G07840885

Courtesy of FORD MOTOR CO.

Fig 210: Seat Heater Switch, Passenger Side Connector End View (C630)

G07840886

Courtesy of FORD MOTOR CO.

Fig 211: Inline Connector End View (C700)

G07840887

Courtesy of FORD MOTOR CO.

Fig 212: Window Adjust Switch, Left Rear Connector End View (C701)

G07840888

Courtesy of FORD MOTOR CO.

Fig 213: Speaker, Left Rear Connector End View (C702)

G07840889

Courtesy of FORD MOTOR CO.

Fig 214: Power Window Motor, Left Rear Connector End View (C703)

G07840890

Courtesy of FORD MOTOR CO.

Fig 215: Door Lock Unit, Left Rear Connector End View (C705)

G07840891

Courtesy of FORD MOTOR CO.

Fig 216: Inline Connector End View (C710)

G07840892

Courtesy of FORD MOTOR CO.

Fig 217: Courtesy Lamp, Left Rear Door Connector End View (C713)

G07840893

Courtesy of FORD MOTOR CO.

Fig 218: Cigar Lighter, Left Rear Door Connector End View (C714)

G07840894

Courtesy of FORD MOTOR CO.

Fig 219: Door Ajar Switch, Driver Side Rear Connector End View (C715a)

G07840895

Courtesy of FORD MOTOR CO.

Fig 220: Door Ajar Switch, Driver Side Rear Connector End View (C715b)

G07840896

Courtesy of FORD MOTOR CO.

Fig 221: Inline Connector End View (C716)

G07840897

Courtesy of FORD MOTOR CO.

Fig 222: Inline Connector End View (C721)

G07840898

Courtesy of FORD MOTOR CO.

Fig 223: Seat Heater Switch, Left Rear Connector End View (C722)

G07840899

Courtesy of FORD MOTOR CO.

Fig 224: Inline Connector End View (C800)

G07840900

Courtesy of FORD MOTOR CO.

Fig 225: Window Adjust Switch, Right Rear Connector End View (C801)

G07840901

Courtesy of FORD MOTOR CO.

Fig 226: Speaker, Right Rear Connector End View (C802)

G07840902

Courtesy of FORD MOTOR CO.

Fig 227: Power Window Motor, Right Rear Connector End View (C803)

G07840903

Courtesy of FORD MOTOR CO.

Fig 228: Door Lock Unit, Right Rear Connector End View (C805)

G07840904

Courtesy of FORD MOTOR CO.

Fig 229: Inline Connector End View (C810)

G07840905

Courtesy of FORD MOTOR CO.

Fig 230: Courtesy Lamp, Right Rear Door Connector End View (C812)

G07840906

Courtesy of FORD MOTOR CO.

Fig 231: Cigar Lighter, Right Rear Door Connector End View (C814)

G07840907

Courtesy of FORD MOTOR CO.

Fig 232: Inline Connector End View (C818)

G07840908

Courtesy of FORD MOTOR CO.

Fig 233: Door Ajar Switch, Passenger Side Rear Connector End View (C820b)

G07840909

Courtesy of FORD MOTOR CO.

Fig 234: Inline Connector End View (C821)

G07840910

Courtesy of FORD MOTOR CO.

Fig 235: Seat Heater Switch, Right Rear Connector End View (C822)

G07840911

Courtesy of FORD MOTOR CO.

Fig 236: Vanity Mirror Lamp, Right Connector End View (C906)

G07840912

Courtesy of FORD MOTOR CO.

Fig 237: Vanity Mirror Lamp, Left Connector End View (C907)

G07840913

Courtesy of FORD MOTOR CO.

Fig 238: Electrochromatic Inside Mirror Unit Connector End View (C911)

G07840914

Courtesy of FORD MOTOR CO.

Fig 239: Inline Connector End View (C913)

G07840915

Courtesy of FORD MOTOR CO.

Fig 240: Rain Sensor Module Connector End View (C914)

G07840916

Courtesy of FORD MOTOR CO.

Fig 241: Inline Connector End View (C915)

G07840917

Courtesy of FORD MOTOR CO.

Fig 242: Inline Connector End View (C919)

G07840918

Courtesy of FORD MOTOR CO.

Fig 243: Roof Opening Panel Motor Assembly Connector End View (C920)

G07840919

Courtesy of FORD MOTOR CO.

Fig 244: Roof Opening Panel Module Connector End View (C921a)

G07840920

Courtesy of FORD MOTOR CO.

Fig 245: Roof Opening Panel Module Connector End View (C921b)

G07840921

Courtesy of FORD MOTOR CO.

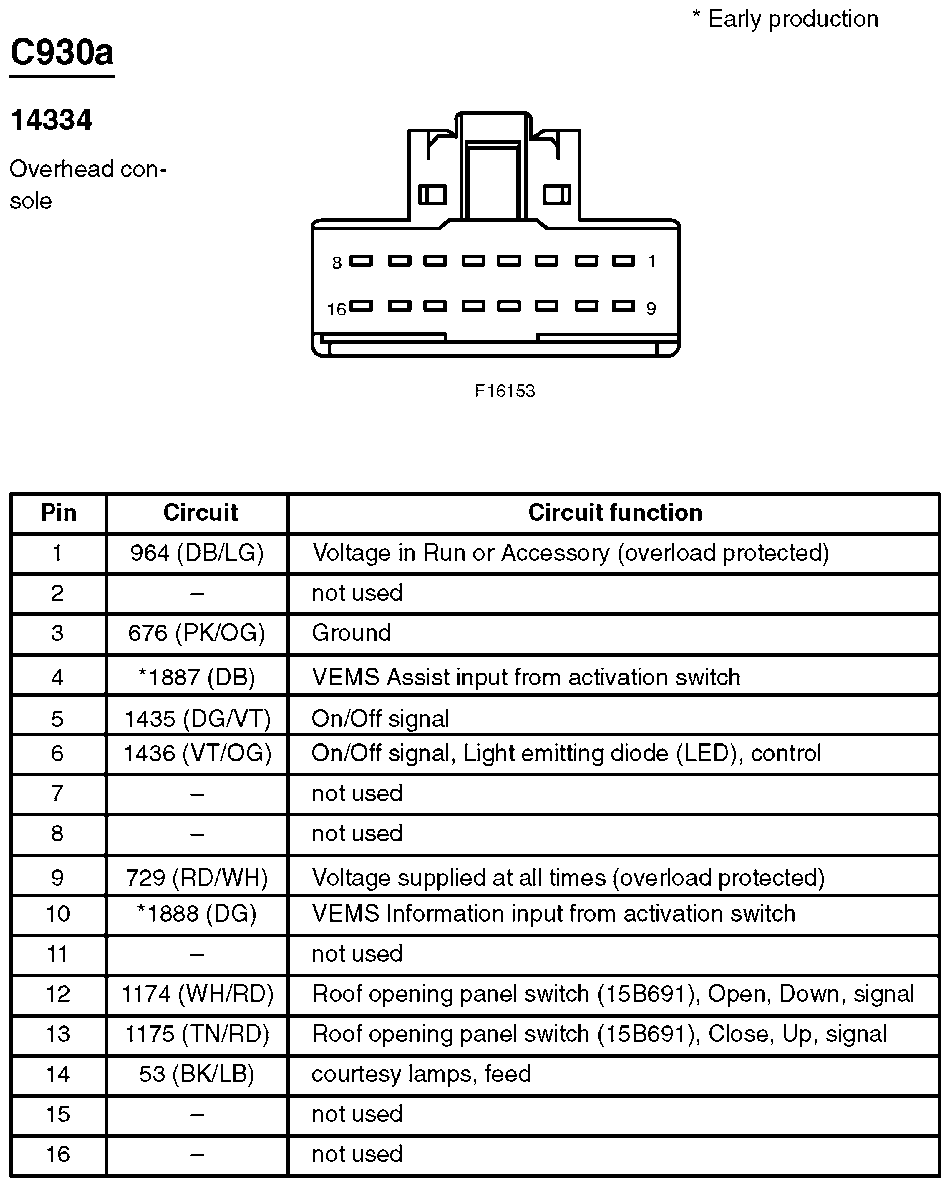

Fig 246: Overhead Console Connector End View (C930a)

G07840922

Courtesy of FORD MOTOR CO.

Fig 247: Overhead Console Connector End View (C930b)

G07840923

Courtesy of FORD MOTOR CO.

Fig 248: Rail Lamp, LH Side Connector End View (C941)

G07840924

Courtesy of FORD MOTOR CO.

Fig 249: Rail Lamp, RH Side Connector End View (C942)

G07840925

Courtesy of FORD MOTOR CO.

Fig 250: Filter Connector End View (C946)

G07840926

Courtesy of FORD MOTOR CO.

Fig 251: Vanity Mirror Lamp, Left Rear Connector End View (C950a)

G07840927

Courtesy of FORD MOTOR CO.

Fig 252: Vanity Mirror Lamp, Left Rear Connector End View (C950b)

G07840928

Courtesy of FORD MOTOR CO.

Fig 253: Vanity Mirror Lamp, Right Rear Connector End View (C952a)

G07840929

Courtesy of FORD MOTOR CO.

Fig 254: Vanity Mirror Lamp, Right Rear Connector End View (C952b)

G07840930

Courtesy of FORD MOTOR CO.

Fig 255: Horn Relay Connector End View (C1006)

G07840931

Courtesy of FORD MOTOR CO.

Fig 256: Fog Lamp Relay Connector End View (C1007)

G07840932

Courtesy of FORD MOTOR CO.

Fig 257: A/C Clutch Relay Connector End View (C1008)

G07840933

Courtesy of FORD MOTOR CO.

Fig 258: Inline Connector End View (C1010)

G07840934

Courtesy of FORD MOTOR CO.

Fig 259: Blower Motor Relay Connector End View (C1011)

G07840935

Courtesy of FORD MOTOR CO.

Fig 260: PCM Power Relay Connector End View (C1016)

G07840936

Courtesy of FORD MOTOR CO.

Fig 261: Starter Relay Connector End View (C1017)

G07840937

Courtesy of FORD MOTOR CO.

Fig 262: PCM Power Diode Connector End View (C1018)

G07840938

Courtesy of FORD MOTOR CO.

Fig 263: Inline Connector End View (C1019)

G07840939

Courtesy of FORD MOTOR CO.

Fig 264: High Beam Lamp, Left Front Connector End View (C1020)

G07840940

Courtesy of FORD MOTOR CO.

Fig 265: Heater Blower Motor Connector End View (C1031)

G07840941

Courtesy of FORD MOTOR CO.

Fig 266: Battery Junction Box (BJB) Connector End View (C1035)

G07840942

Courtesy of FORD MOTOR CO.

Fig 267: High Beam Lamp, Right Front Connector End View (C1040)

G07840943

Courtesy of FORD MOTOR CO.

Fig 268: Inline Connector End View (C1045)

G07840944

Courtesy of FORD MOTOR CO.

Fig 269: Inline Connector End View (C1046)

G07840945

Courtesy of FORD MOTOR CO.

Fig 270: Engine Cooling Fan Module Connector End View (C1048a)

G07840946

Courtesy of FORD MOTOR CO.

Fig 271: Engine Cooling Fan Module Connector End View (C1048b)

G07840947

Courtesy of FORD MOTOR CO.

Fig 272: Fuel Pump Relay Connector End View (C1051)

G07840948

Courtesy of FORD MOTOR CO.

Fig 273: Idle Air Control (IAC) Valve Connector End View (C1066)

G07840949

Courtesy of FORD MOTOR CO.

Fig 274: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07840950

Courtesy of FORD MOTOR CO.

Fig 275: Injector Pressure Sensor Connector End View (C1073)

G07840951

Courtesy of FORD MOTOR CO.

Fig 276: Park Lamp Relay Connector End View (C1095)

G07840952

Courtesy of FORD MOTOR CO.

Fig 277: Rear Window Defrost Relay Connector End View (C1099)

G07840953

Courtesy of FORD MOTOR CO.

Fig 278: Battery Connector End View (C1100a)

G07840954

Courtesy of FORD MOTOR CO.

Fig 279: Battery Connector End View (C1100b)

G07840955

Courtesy of FORD MOTOR CO.

Fig 280: Output Shaft Speed (OSS) Sensor Connector End View (C1107)

G07840956

Courtesy of FORD MOTOR CO.

Fig 281: Low Beam Lamp, Left Front Connector End View (C1111)

G07840957

Courtesy of FORD MOTOR CO.

Fig 282: Low Beam Lamp, Right Front Connector End View (C1112)

G07840958

Courtesy of FORD MOTOR CO.

Fig 283: Park/Turn Lamp, Left Front Connector End View (C1115)

G07840959

Courtesy of FORD MOTOR CO.

Fig 284: Park/Turn Lamp, Right Front Connector End View (C1116)

G07840960

Courtesy of FORD MOTOR CO.

Fig 285: Crankshaft Position Sensor Connector End View (C1120)

G07840961

Courtesy of FORD MOTOR CO.

Fig 286: Power Steering Pressure Switch Connector End View (C1121)

G07840962

Courtesy of FORD MOTOR CO.

Fig 287: Parking Lamp, Left Front Connector End View (C1126)

G07840963

Courtesy of FORD MOTOR CO.

Fig 288: Parking Lamp, Right Front Connector End View (C1127)

G07840964

Courtesy of FORD MOTOR CO.

Fig 289: Engine Compartment Lamp Connector End View (C1159)

G07840965

Courtesy of FORD MOTOR CO.

Fig 290: Air Suspension Compressor Assembly Connector End View (C1179)

G07840966

Courtesy of FORD MOTOR CO.

Fig 291: Throttle Position Sensor (TPS) Connector End View (C1189)

G07840967

Courtesy of FORD MOTOR CO.

Fig 292: Ignition Transformer Capacitor Connector End View (C1196)

G07840968

Courtesy of FORD MOTOR CO.

Fig 293: ABS Relay Connector End View (C1255)

G07840969

Courtesy of FORD MOTOR CO.

Fig 294: A/C Pressure Transducer Sensor Connector End View (C1260)

G07840970

Courtesy of FORD MOTOR CO.

Fig 295: 4R70W Transmission Connector End View (C1274)

G07840971

Courtesy of FORD MOTOR CO.

Fig 296: Air Suspension Compressor Relay Connector End View (C1300)

G07840972

Courtesy of FORD MOTOR CO.

Fig 297: Front Blower Motor Speed Controller Connector End View (C1308)

G07840973

Courtesy of FORD MOTOR CO.

Fig 298: Side Lamp Relay Connector End View (C1376)

G07840974

Courtesy of FORD MOTOR CO.

Fig 299: Evaporator Discharge Air Temperature Sensor Connector End View (C1447)

G07840975

Courtesy of FORD MOTOR CO.

Fig 300: Adjustable Pedal Motor Connector End View (C2003)

G07840976

Courtesy of FORD MOTOR CO.

Fig 301: Brake Shift Interlock Connector End View (C2008)

G07840977

Courtesy of FORD MOTOR CO.

Fig 302: Parking Brake Switch Connector End View (C2015)

G07840978

Courtesy of FORD MOTOR CO.

Fig 303: Clock Connector End View (C2016)

G07840979

Courtesy of FORD MOTOR CO.

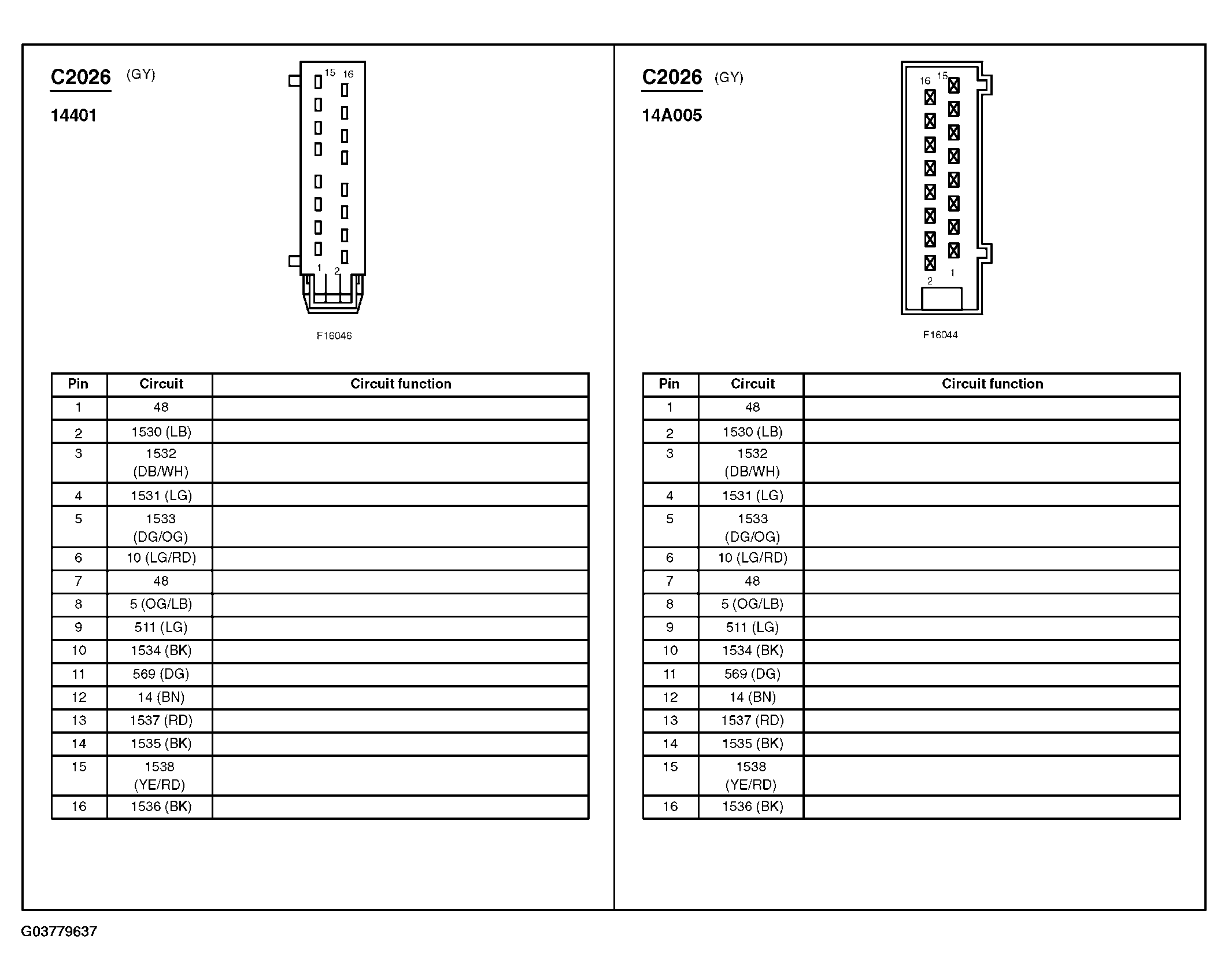

Fig 304: Inline Connector End View (C2026)

G03779637

Courtesy of FORD MOTOR CO.

Fig 305: Cigar Lighter, Front Connector End View (C2031)

G07840980

Courtesy of FORD MOTOR CO.

Fig 306: Power Point Connector End View (C2033)

G07840981

Courtesy of FORD MOTOR CO.

Fig 307: Courtesy Lamp, Left Footwell Connector End View (C2056)

G07840982

Courtesy of FORD MOTOR CO.

Fig 308: Courtesy Lamp, Right Footwell Connector End View (C2057)

G07840983

Courtesy of FORD MOTOR CO.

Fig 309: Accessory Delay Relay Connector End View (C2075)

G07840984

Courtesy of FORD MOTOR CO.

Fig 310: Adjustable Pedal Switch Connector End View (C2089)

G07840985

Courtesy of FORD MOTOR CO.

Fig 311: Adjustable Pedal Memory Potentiometer Connector End View (C2090)

G07840986

Courtesy of FORD MOTOR CO.

Fig 312: Temperature Blend Door Actuator, Driver Connector End View (C2091)

G07840987

Courtesy of FORD MOTOR CO.

Fig 313: Temperature Blend Door Actuator, Passenger Connector End View (C2092)

G07840988

Courtesy of FORD MOTOR CO.

Fig 314: Air Suspension Module Connector End View (C2131a)

G07840989

Courtesy of FORD MOTOR CO.

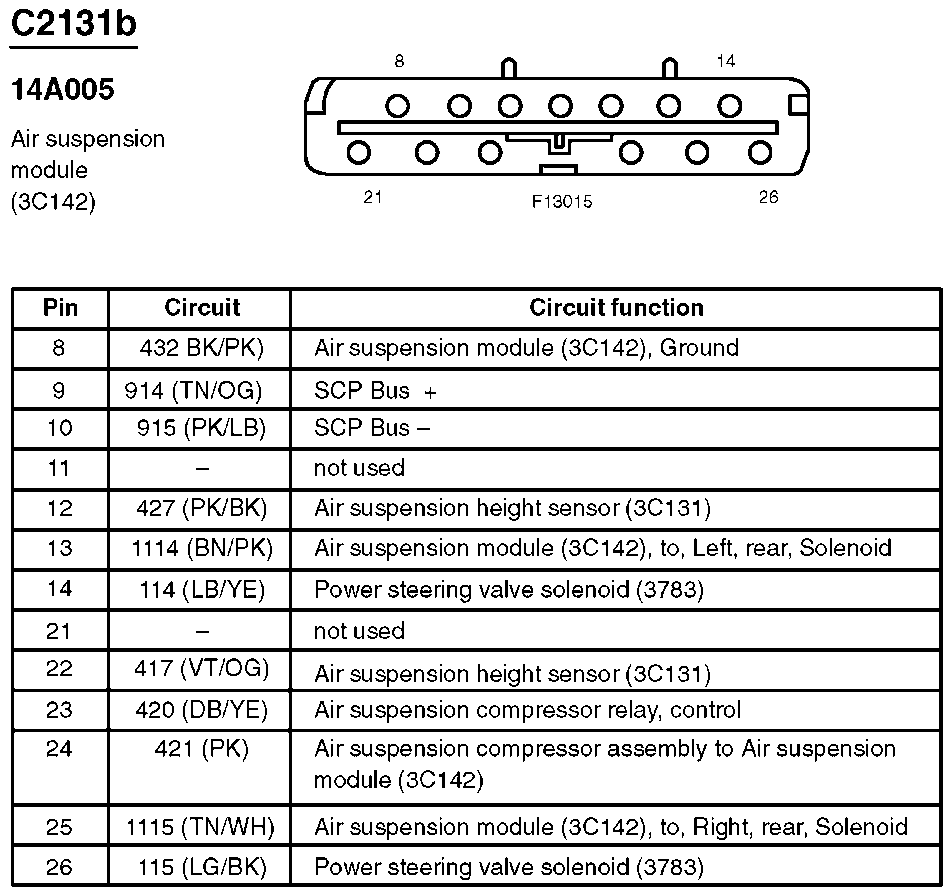

Fig 315: Air Suspension Module Connector End View (C2131b)

G07840990

Courtesy of FORD MOTOR CO.

Fig 316: Cellular Phone Microphone Connector End View (C2133)

G07840991

Courtesy of FORD MOTOR CO.

Fig 317: Overdrive Cancel Switch Connector End View (C2135)

G07840992

Courtesy of FORD MOTOR CO.

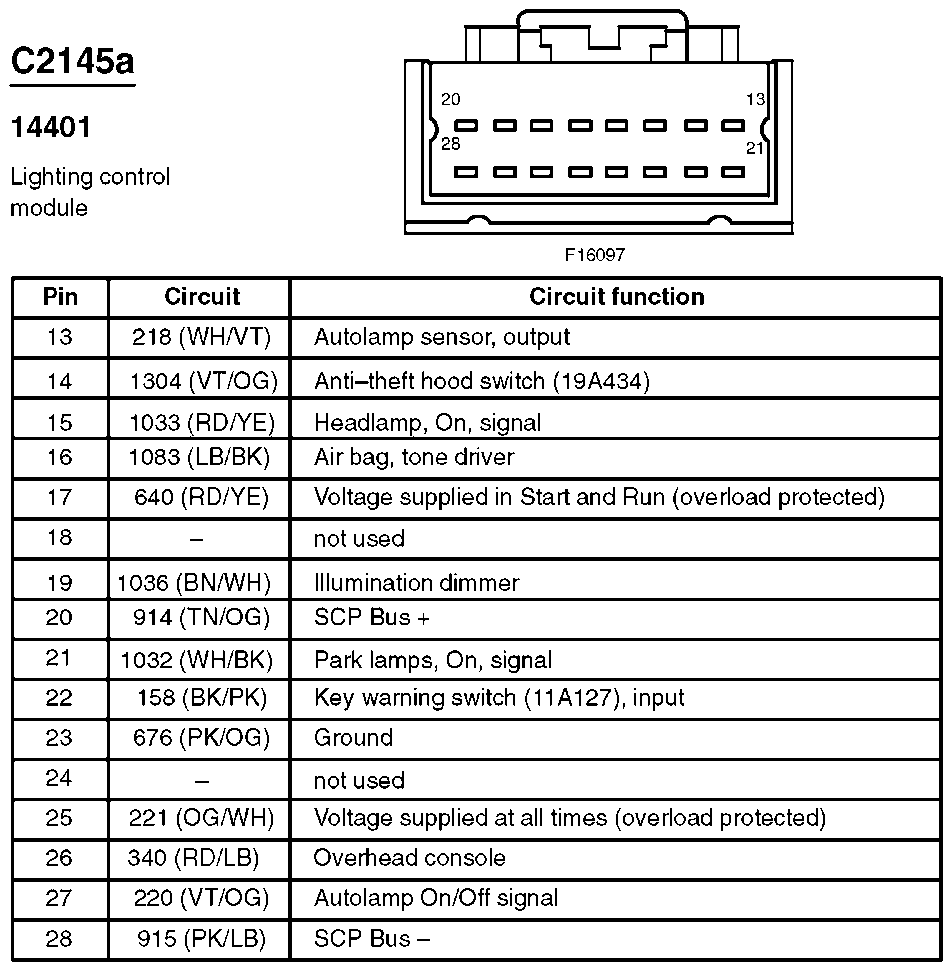

Fig 318: Lighting Control Module Connector End View (C2145a)

G07840993

Courtesy of FORD MOTOR CO.

Fig 319: Lighting Control Module Connector End View (C2145b)

G07840994

Courtesy of FORD MOTOR CO.

Fig 320: Lighting Control Module Connector End View (C2145c)

G07840995

Courtesy of FORD MOTOR CO.

Fig 321: Lighting Control Module Connector End View (C2145d)

G07840996

Courtesy of FORD MOTOR CO.

Fig 322: Panel/Defrost Mode Actuator Connector End View (C2248)

G07840997

Courtesy of FORD MOTOR CO.

Fig 323: Audio/Navigation Control Unit Connector End View (C2253a)

G07840998

Courtesy of FORD MOTOR CO.

Fig 324: Audio/Navigation Control Unit Connector End View (C2253b)

G07840999

Courtesy of FORD MOTOR CO.

Fig 325: Audio/Navigation Control Unit Connector End View (C2253c)

G07841000

Courtesy of FORD MOTOR CO.

Fig 326: Audio/Navigation Control Unit Connector End View (C2253d)

G07841001

Courtesy of FORD MOTOR CO.

Fig 327: Power Seat Motor Assembly, Right Connector End View (C3015)

G07841002

Courtesy of FORD MOTOR CO.

Fig 328: Power Seat Switch, Left Connector End View (C3016)

G07841003

Courtesy of FORD MOTOR CO.

Fig 329: CD Changer Connector End View (C3028)

G07841004

Courtesy of FORD MOTOR CO.

Fig 330: Inline Connector End View (C3047)

G07841005

Courtesy of FORD MOTOR CO.

Fig 331: Inline Connector End View (C3049)

G07841006

Courtesy of FORD MOTOR CO.

Fig 332: Inline Connector End View (C3050)

G07841007

Courtesy of FORD MOTOR CO.

Fig 333: Inline Connector End View (C3051)

G07841008

Courtesy of FORD MOTOR CO.

Fig 334: Inline Connector End View (C3053)

G07841009

Courtesy of FORD MOTOR CO.

Fig 335: Safety Belt Buckle Switch, Driver Connector End View (C3065)

G07841010

Courtesy of FORD MOTOR CO.

Fig 336: Safety Belt Buckle Switch, Passenger Connector End View (C3066)

G07841011

Courtesy of FORD MOTOR CO.

Fig 337: Inline Connector End View (C3133)

G07841012

Courtesy of FORD MOTOR CO.

Fig 338: Inline Connector End View (C3134)

G07841013

Courtesy of FORD MOTOR CO.

Fig 339: Inline Connector End View (C3135)

G07841014

Courtesy of FORD MOTOR CO.

Fig 340: Inline Connector End View (C3137)

G07841015

Courtesy of FORD MOTOR CO.

Fig 341: Occupant Classification Sensor (OCS) Connector End View (C3159b)

G07841016

Courtesy of FORD MOTOR CO.

Fig 342: Occupant Classification Sensor (OCS) Connector End View (C3159b)

G07841017

Courtesy of FORD MOTOR CO.

Fig 343: Rear Audio/Climate Control Module Connector End View (C3160)

G07841018

Courtesy of FORD MOTOR CO.

Fig 344: Rear Audio/Climate Control Switch Connector End View (C3161)

G07841019

Courtesy of FORD MOTOR CO.

Fig 345: Heated Seat Module, Left Rear Connector End View (C3162)

G07841020

Courtesy of FORD MOTOR CO.

Fig 346: Heated Seat Module, Right Rear Connector End View (C3163)

G07841021

Courtesy of FORD MOTOR CO.

Fig 347: Power Point, Left Rear Connector End View (C3164)

G07841022

Courtesy of FORD MOTOR CO.

Fig 348: Power Point, Right Rear Connector End View (C3165)

G07841023

Courtesy of FORD MOTOR CO.

Fig 349: Seat Cushion Heater, Left Rear Connector End View (C3167)

G07841024

Courtesy of FORD MOTOR CO.

Fig 350: Seat Back Heater, Left Rear Connector End View (C3168)

G07841025

Courtesy of FORD MOTOR CO.

Fig 351: Seat Cushion Heater, Right Rear Connector End View (C3169)

G07841026

Courtesy of FORD MOTOR CO.

Fig 352: Seat Back Heater, Right Rear Connector End View (C3170)

G07841027

Courtesy of FORD MOTOR CO.

Fig 353: Redundant Seat Adjust Switch, Passenger Side Front Connector End View (C3197)

G07841028

Courtesy of FORD MOTOR CO.

Fig 354: Inline Connector End View (C3205)

G07841029

Courtesy of FORD MOTOR CO.

Fig 355: Inline Connector End View (C3206)

G07841030

Courtesy of FORD MOTOR CO.

Fig 356: Parking Aid Sensor, Outer Left Connector End View (C4009)

G07841031

Courtesy of FORD MOTOR CO.

Fig 357: Parking Aid Sensor, Outer Right Connector End View (C4011)

G07841032

Courtesy of FORD MOTOR CO.

Fig 358: Parking Aid Module (PAM) Connector End View (C4014a)

G07841033

Courtesy of FORD MOTOR CO.

Fig 359: Parking Aid Module (PAM) Connector End View (C4014b)

G07841034

Courtesy of FORD MOTOR CO.

Fig 360: Air Suspension Height Sensor Connector End View (C4043)

G07841035

Courtesy of FORD MOTOR CO.

Fig 361: Air Spring Solenoid Valve, Left Rear Connector End View (C4044)

G07841036

Courtesy of FORD MOTOR CO.

Fig 362: Air Spring Solenoid Valve, Right Rear Connector End View (C4045)

G07841037

Courtesy of FORD MOTOR CO.

Fig 363: License Plate Lamp Connector End View (C4046)

G07841038

Courtesy of FORD MOTOR CO.

Fig 364: Luggage Compartment Lid Switch Connector End View (C4079)

G07841039

Courtesy of FORD MOTOR CO.

Fig 365: Luggage Compartment Lid Closing Motor Connector End View (C4080)

G07841040

Courtesy of FORD MOTOR CO.

Fig 366: Power Luggage Compartment Lid Module Connector End View (C4081a)

G07841041

Courtesy of FORD MOTOR CO.

Fig 367: Power Luggage Compartment Lid Module Connector End View (C4081b)

G07841042

Courtesy of FORD MOTOR CO.

Fig 368: Power Luggage Compartment Lid Module Connector End View (C4081c)

G07841043

Courtesy of FORD MOTOR CO.

Fig 369: Power Luggage Compartment Lid Module Connector End View (C4081d)

G07841044

Courtesy of FORD MOTOR CO.

Fig 370: Parking Aid Radar Sensor Connector End View (C4082)

G07841045

Courtesy of FORD MOTOR CO.

Fig 371: Air Suspension Disable Switch Connector End View (C4087)

G07841046

Courtesy of FORD MOTOR CO.

Fig 372: EVAP Canister Vent Control Solenoid Connector End View (C4116)

G07841047

Courtesy of FORD MOTOR CO.

Fig 373: Inertia Fuel Shutoff (IFS) Switch Connector End View (C4168)

G07841048

Courtesy of FORD MOTOR CO.

Fig 374: Trunk Pull-Down Module Connector End View (C4197)

G07841049

Courtesy of FORD MOTOR CO.

Fig 375: Luggage Compartment Lid Motor Connector End View (C4200a)

G07841050

Courtesy of FORD MOTOR CO.

Fig 376: Luggage Compartment Lid Motor Connector End View (C4200b)

G07841051

Courtesy of FORD MOTOR CO.

Fig 377: Luggage Compartment Lid Motor Connector End View (C4200c)

G07841052

Courtesy of FORD MOTOR CO.

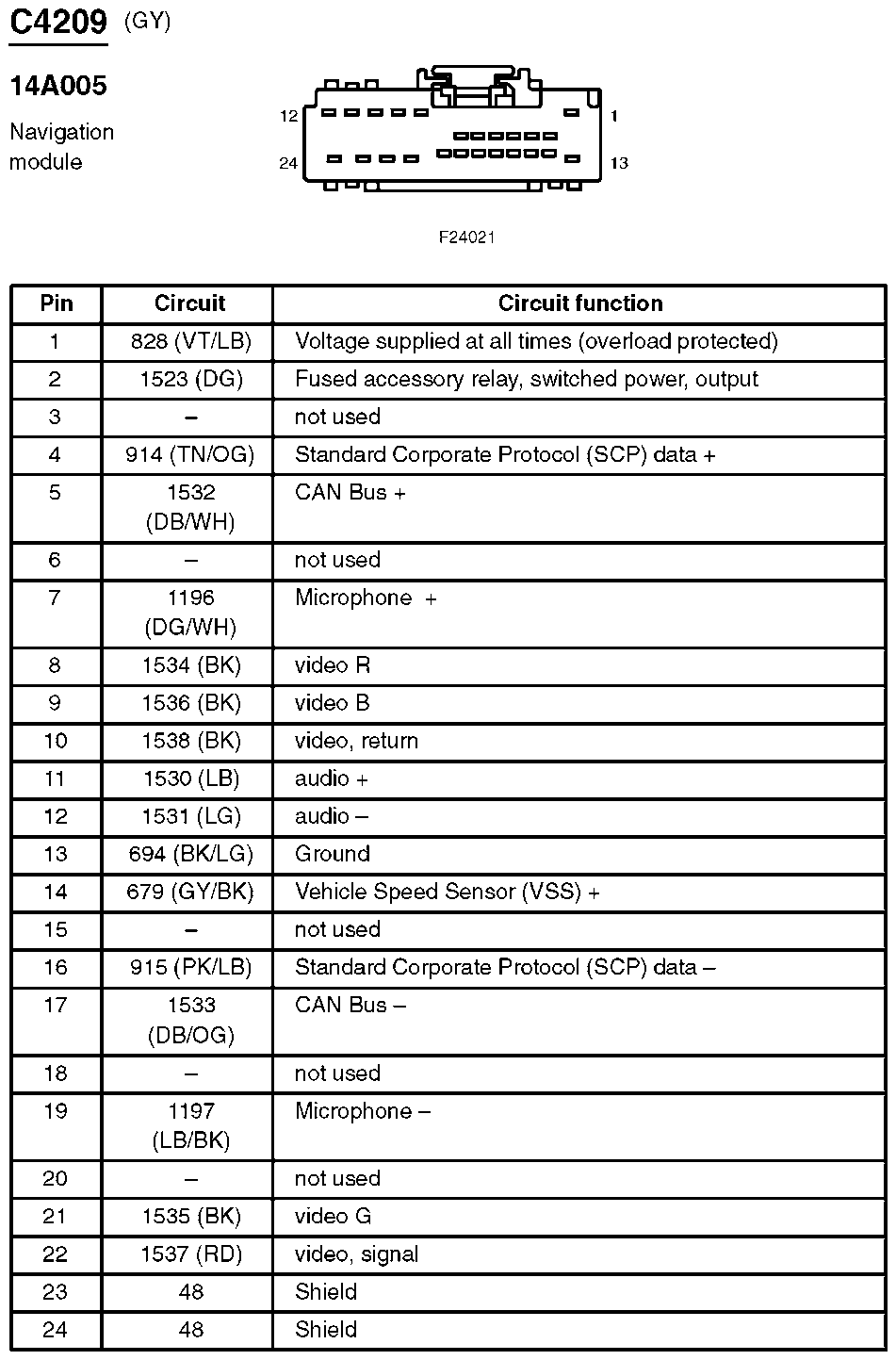

Fig 378: Navigation Module Connector End View (C4209)

G07841053

Courtesy of FORD MOTOR CO.

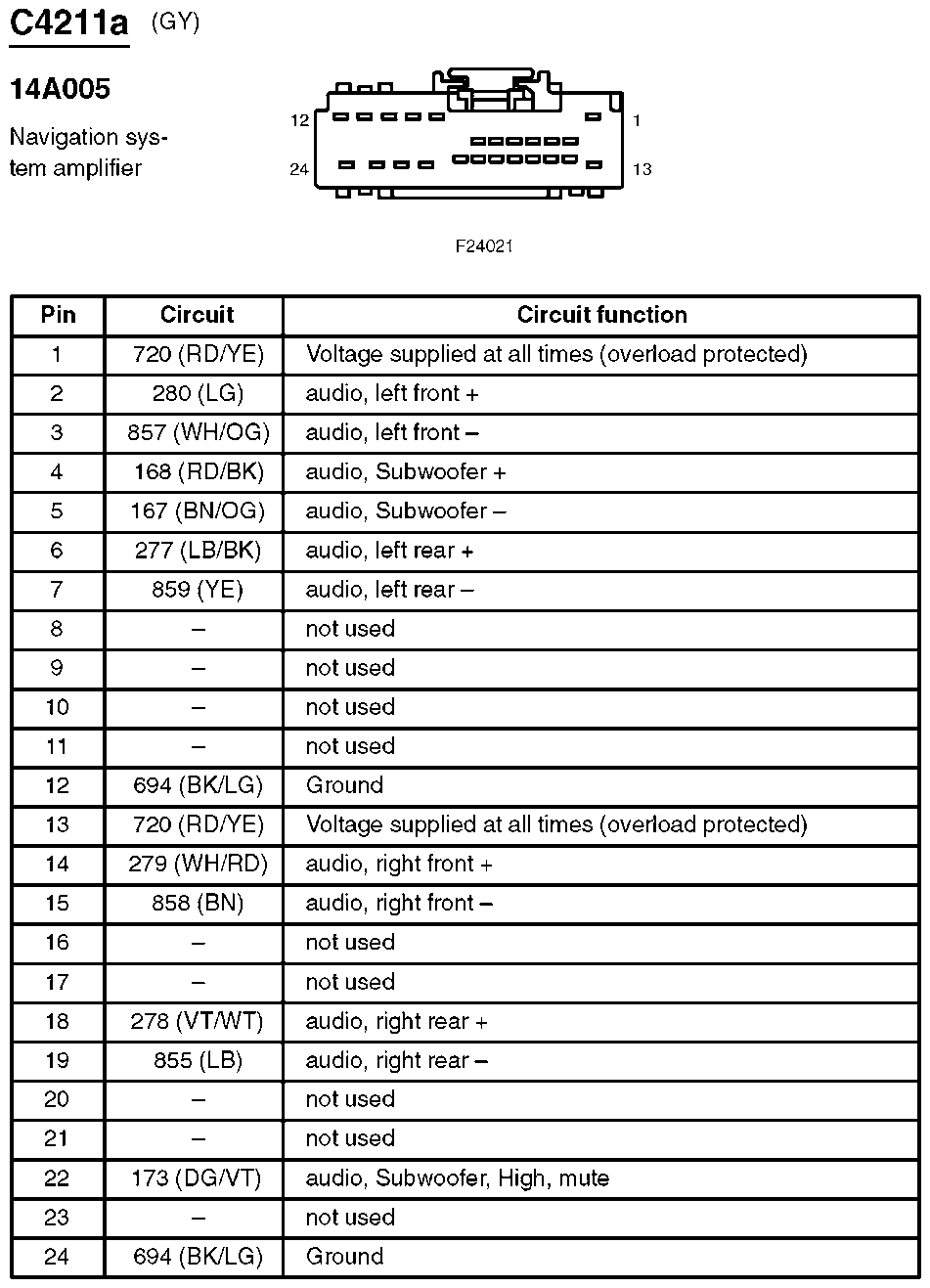

Fig 379: Navigation System Amplifier Connector End View (C4211a)

G07841054

Courtesy of FORD MOTOR CO.

Fig 380: Navigation System Amplifier Connector End View (C4211b)

G07841055

Courtesy of FORD MOTOR CO.

Fig 381: Subwoofer Connector End View (C4212)

G07841056

Courtesy of FORD MOTOR CO.

Fig 382: Isolator/Radio Antenna Module Connector End View (C4221a)

G07841057

Courtesy of FORD MOTOR CO.

Fig 383: Isolator/Radio Antenna Module Connector End View (C4221b)

G07841058

Courtesy of FORD MOTOR CO.

Fig 384: Electrochromatic Inside Mirror Unit Connector End View (C9012)

G07841059

Courtesy of FORD MOTOR CO.
