Pinpoint Test A

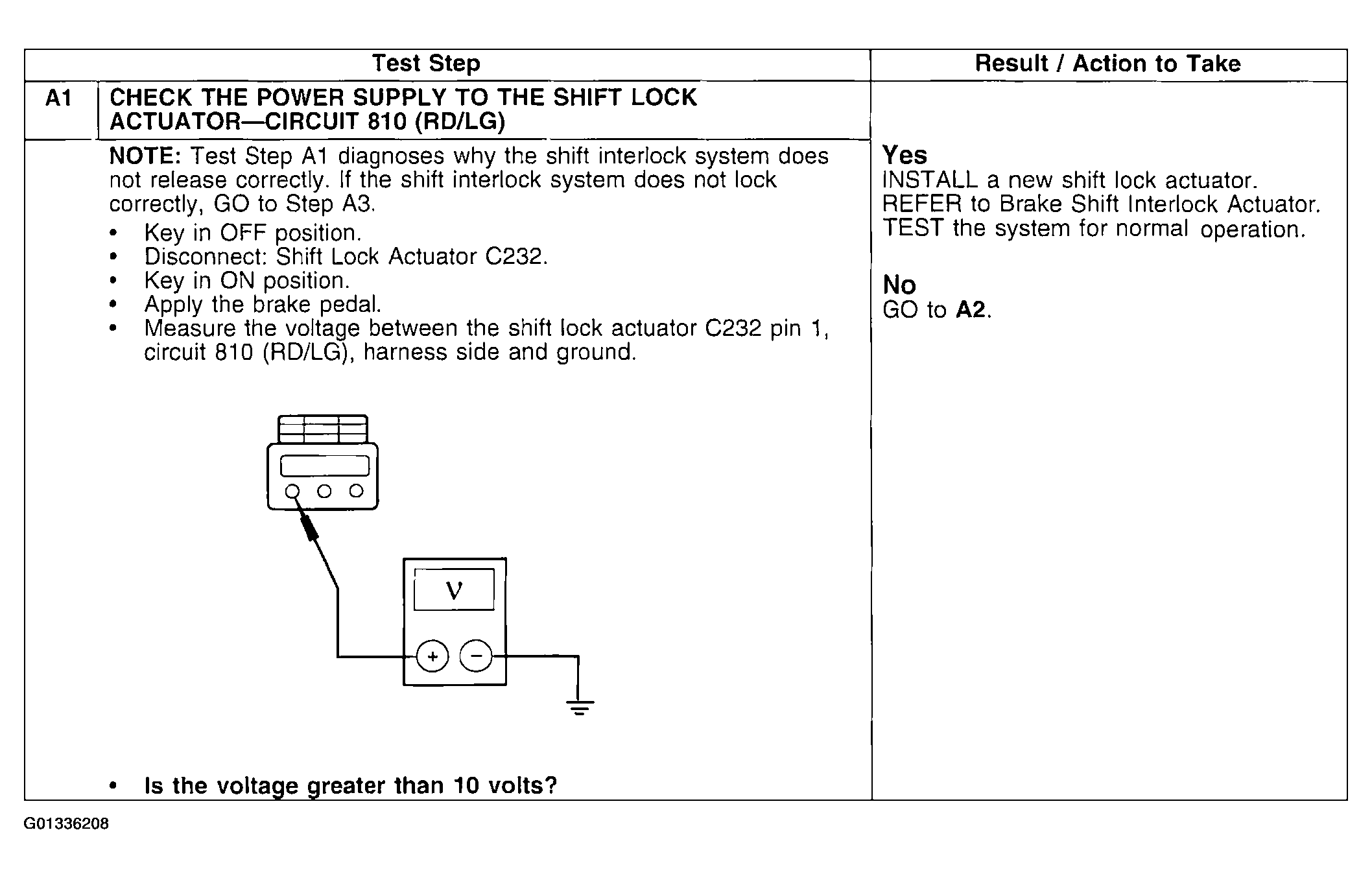

Fig 1: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly (1 Of 3)
G01336208Courtesy of FORD MOTOR CO.

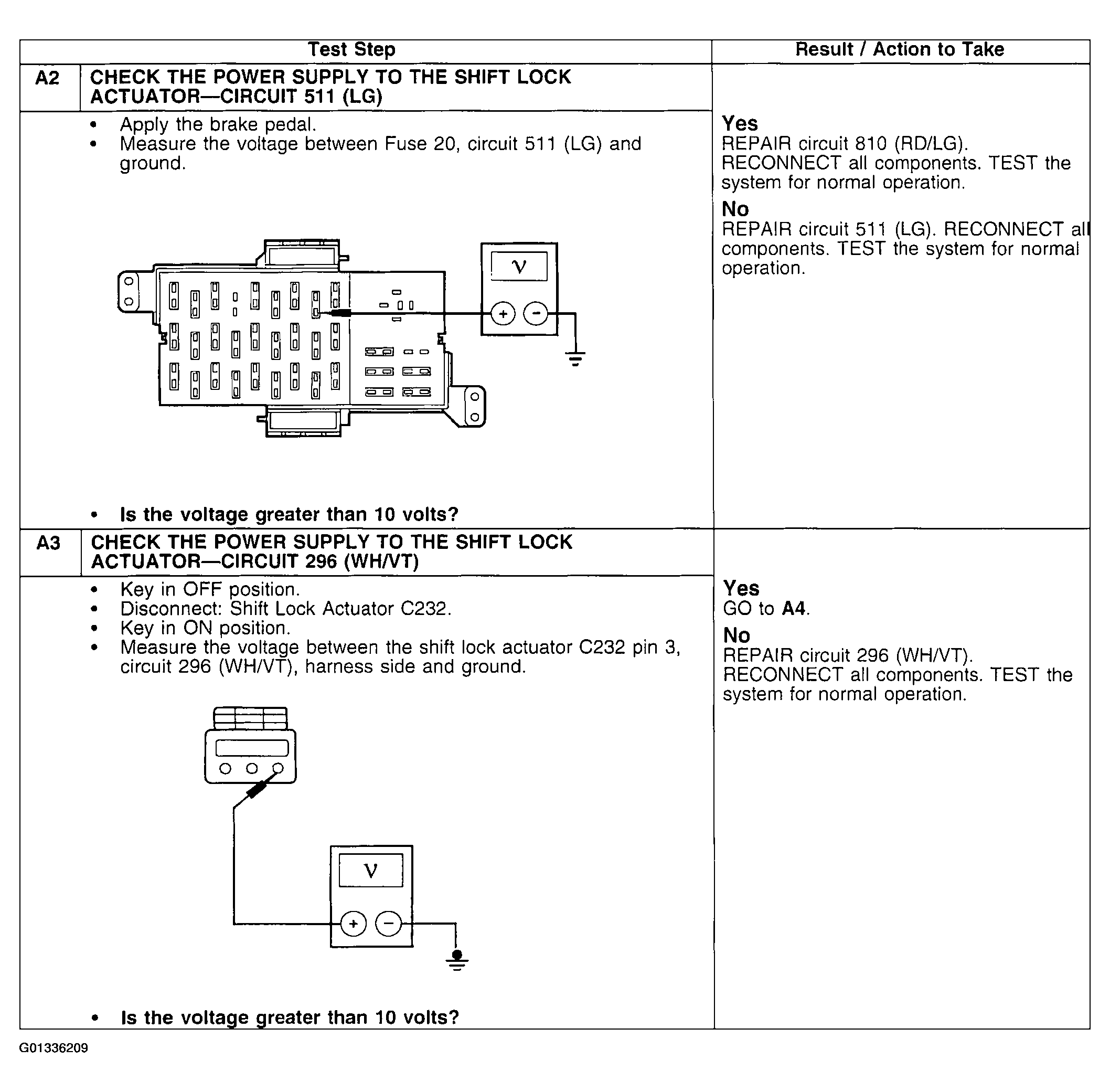

Fig 2: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly (2 Of 3)
G01336209Courtesy of FORD MOTOR CO.

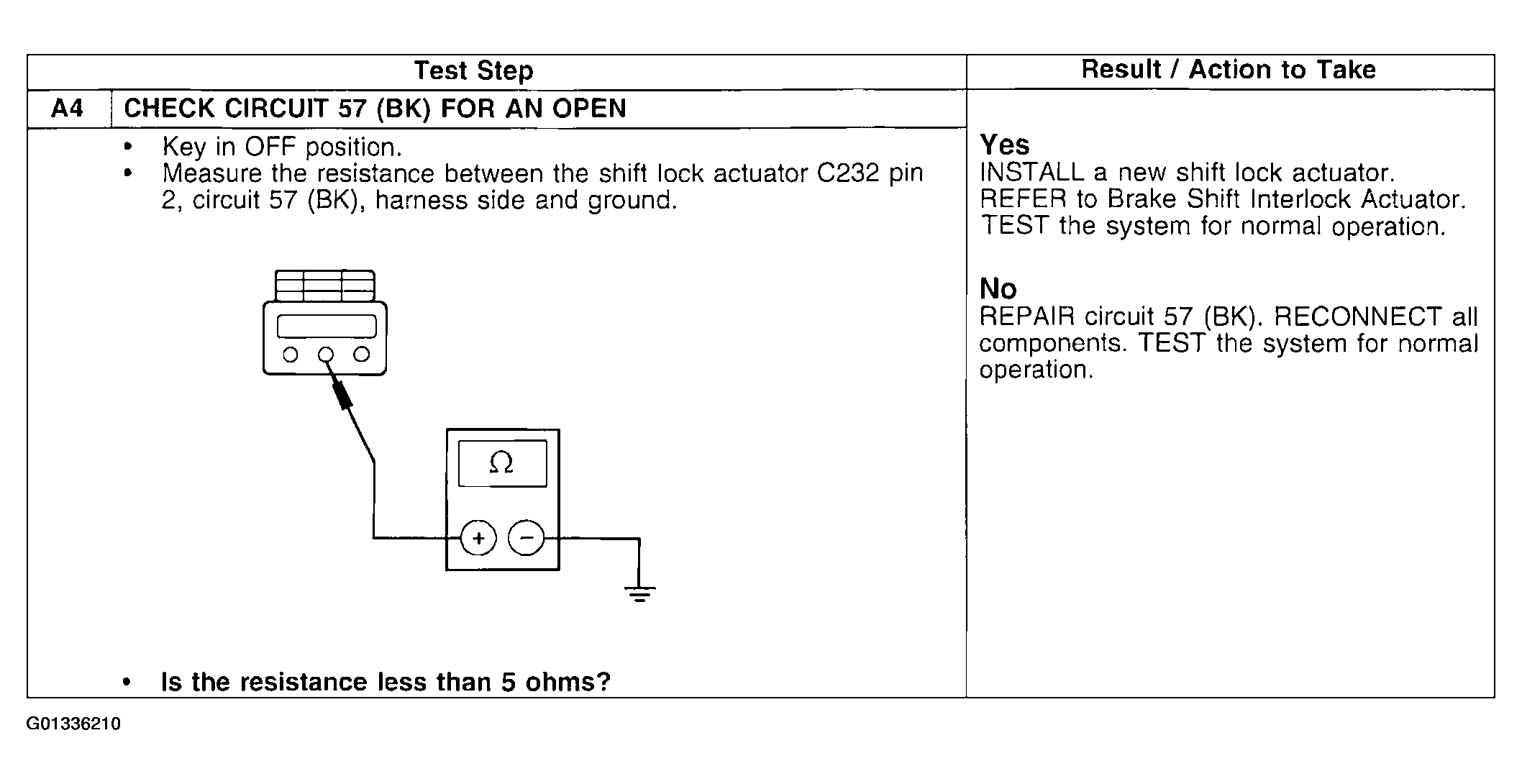

Fig 3: Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly (3 Of 3)
G01336210Courtesy of FORD MOTOR CO.
