Pinpoint Test D: No Communication With The Lighting Control Module (LCM)

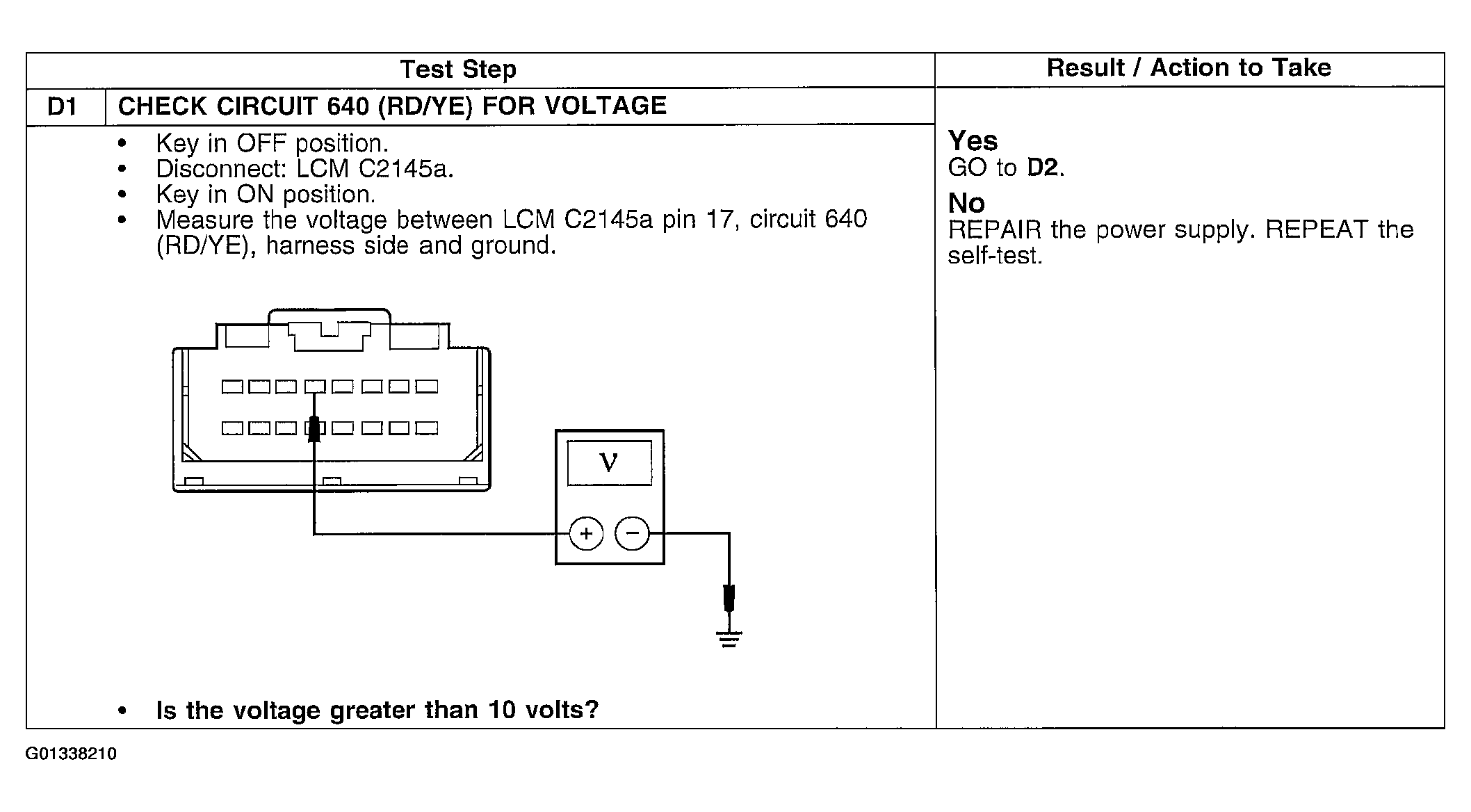

Fig 1: Pinpoint Test D (Step D1)
G01338210Courtesy of FORD MOTOR CO.

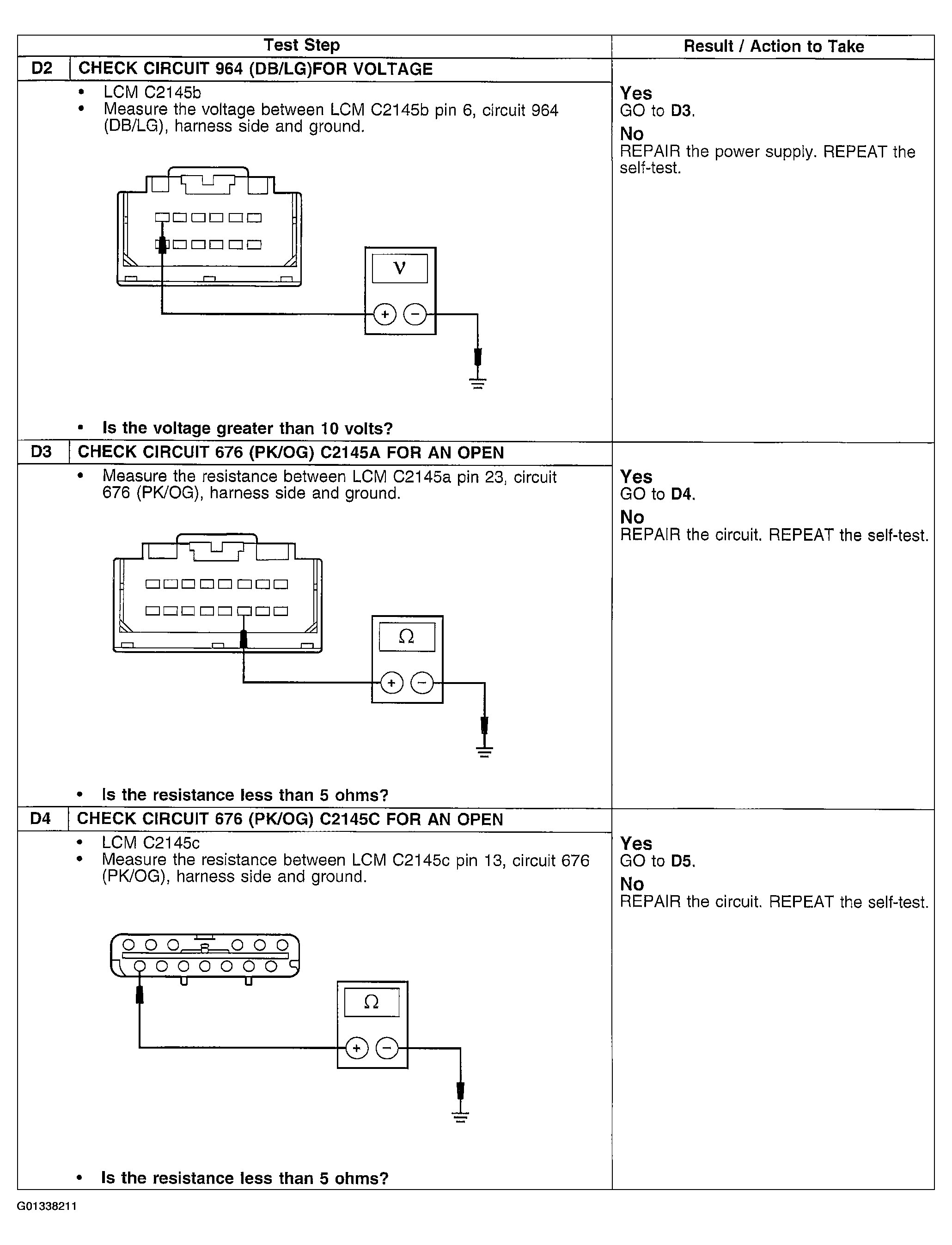

Fig 2: Pinpoint Test D (Steps D2-D4)
G01338211Courtesy of FORD MOTOR CO.

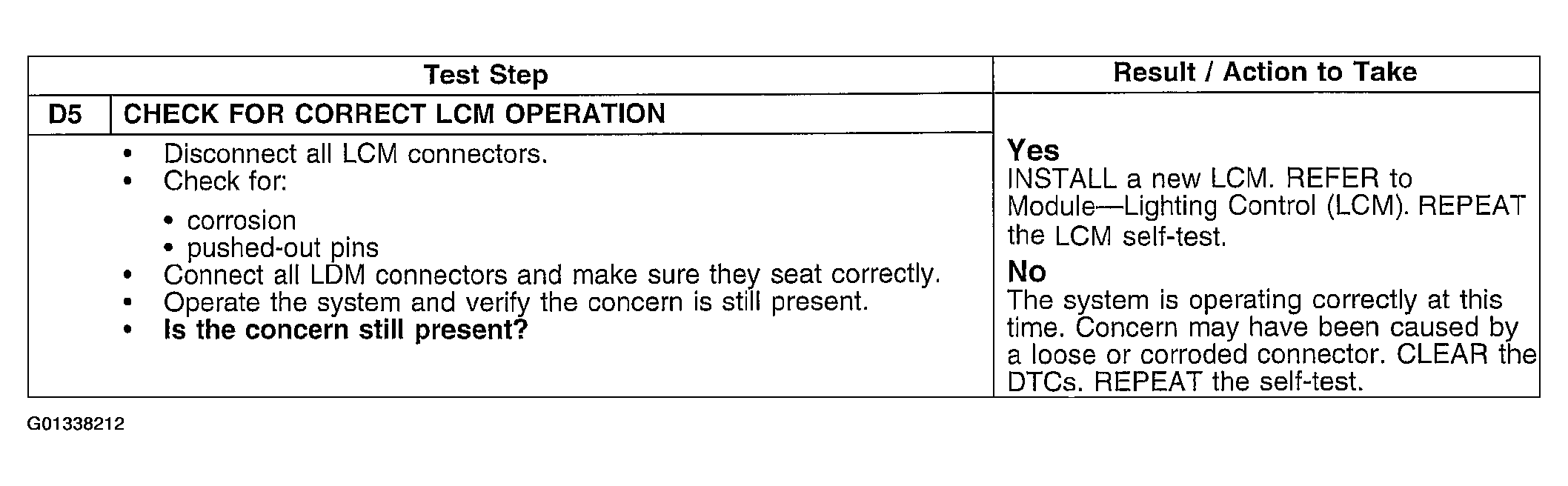

Fig 3: Pinpoint Test D (Step D5)
G01338212Courtesy of FORD MOTOR CO.
