Headlamp switch, Interior lamps: Notes

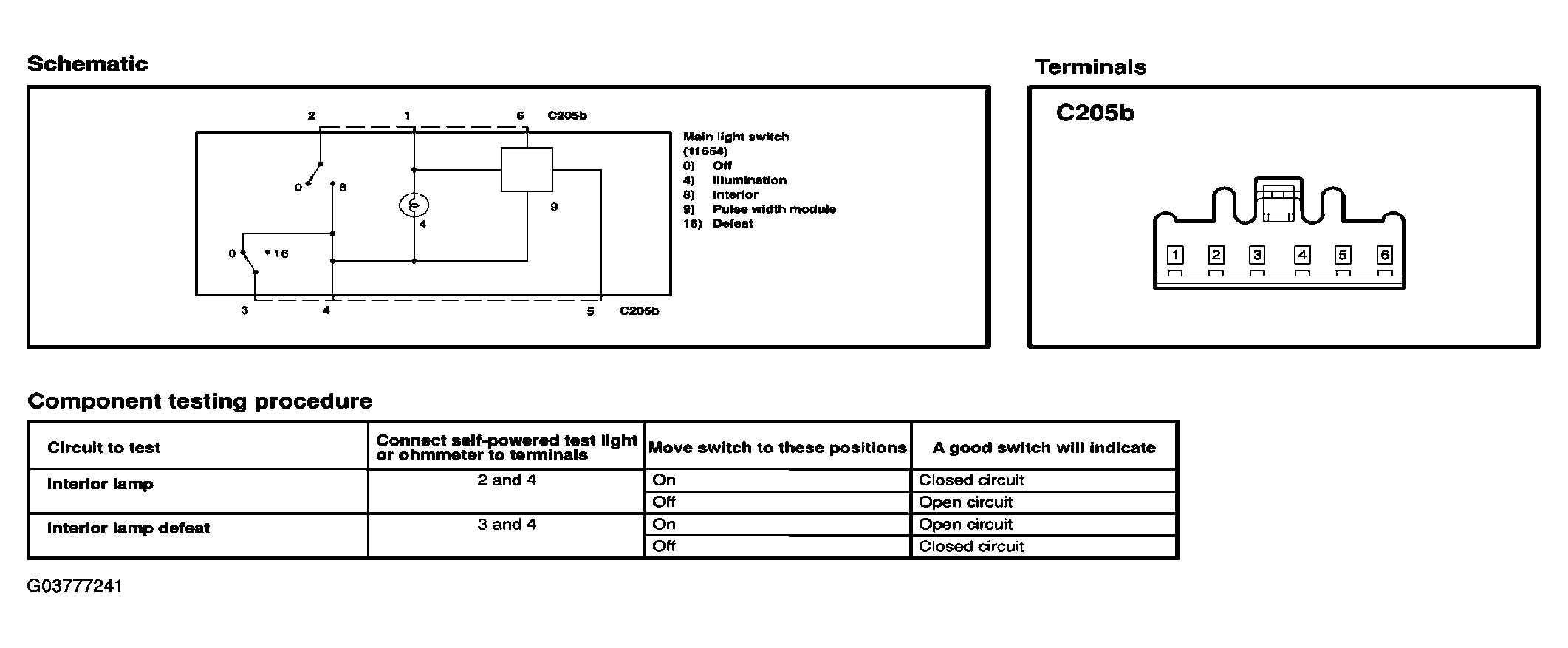

Fig 1: Testing Headlamp Switch - Interior Lamps

G03777241

Courtesy of FORD MOTOR CO.
