IVD Control Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
IVD Control Switch

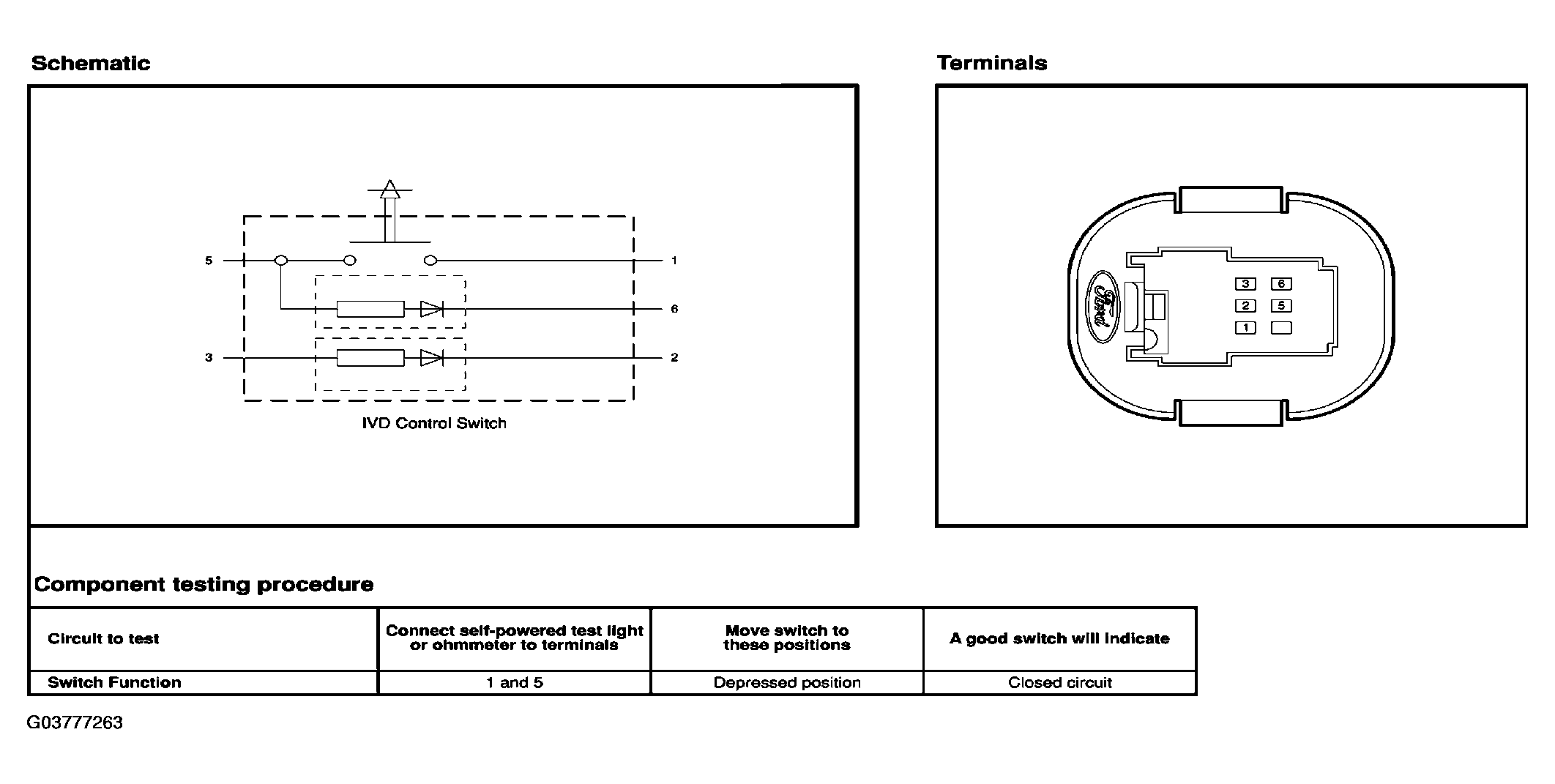

Fig 1: Testing IVD Control Switch
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
