Message Center Switch

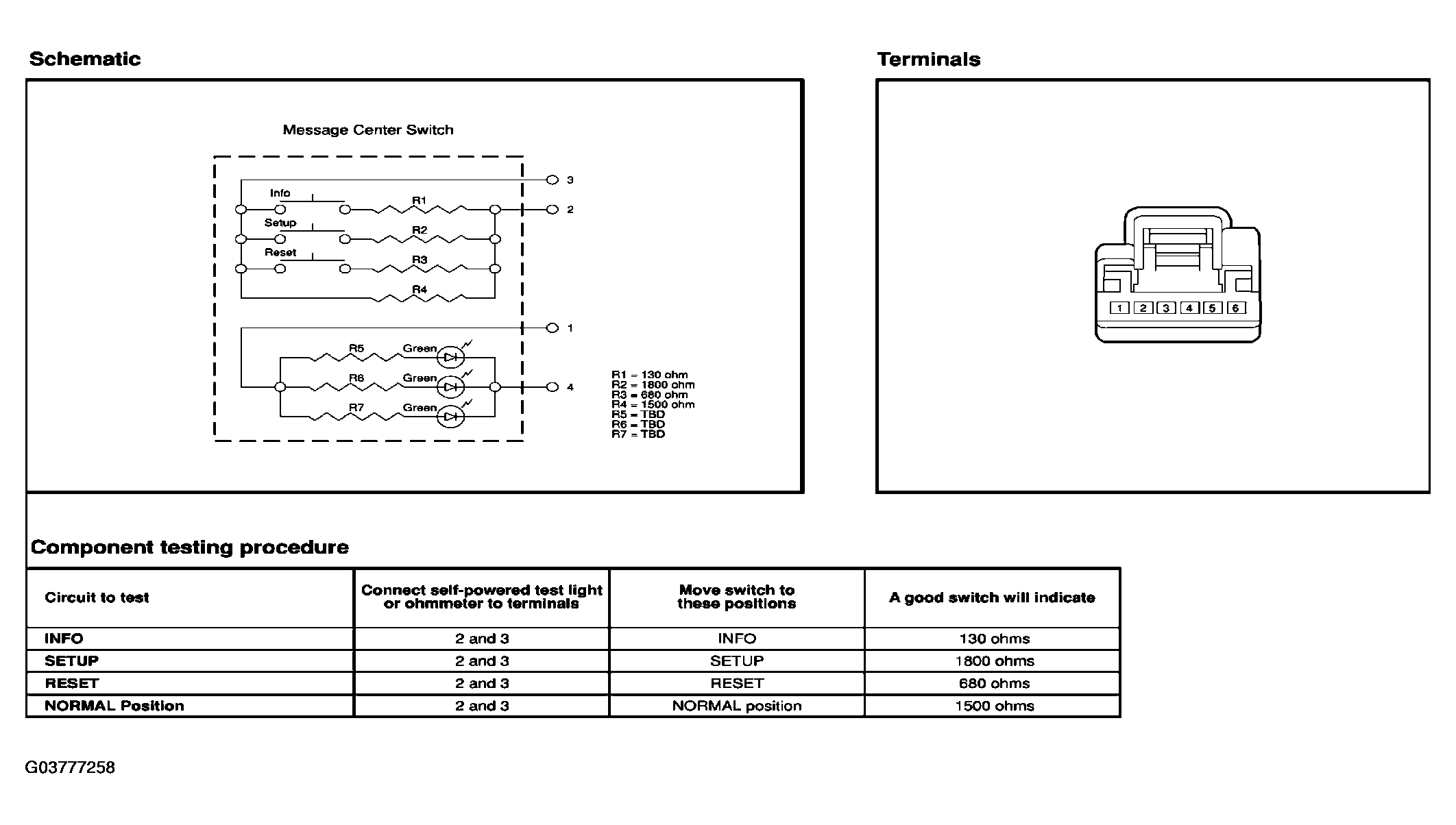

Fig 1: Testing Message Center Switch
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
