Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Accessories Control Systems
>>
Component Testing
>>
Component testing
>>
Multifunction Switch, Lamp Portion
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Multifunction Switch, Lamp Portion

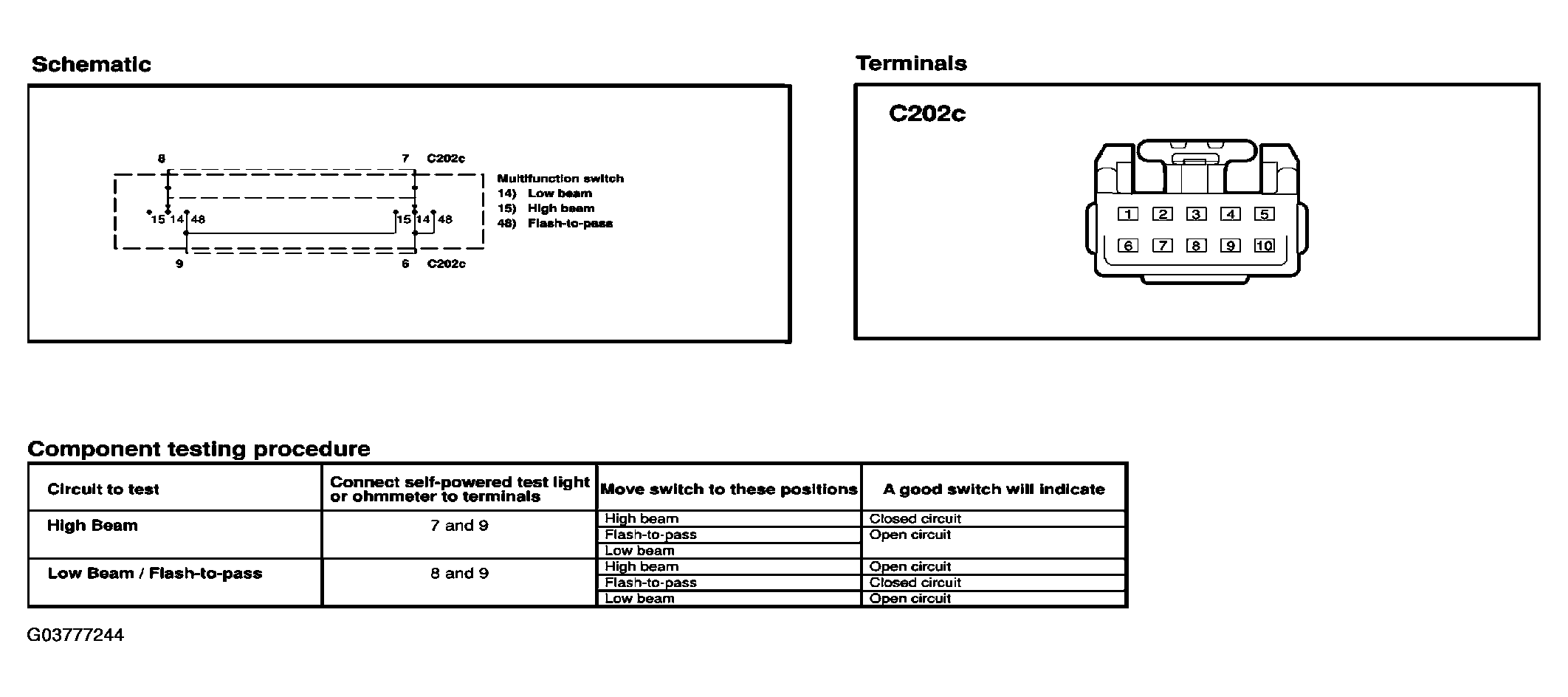

Fig 1: Testing Multifunction Switch - Lamp Portion
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
