Primary Brake Pressure Transducer C147

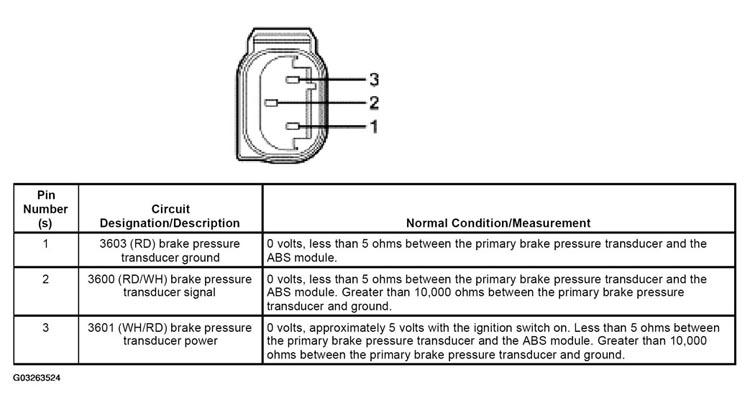

Fig 1: Identifying Primary Brake Pressure Transducer C147 Connector Terminal Specifications
G03263524Courtesy of FORD MOTOR CO.
