Heat/Cool Seat Switch

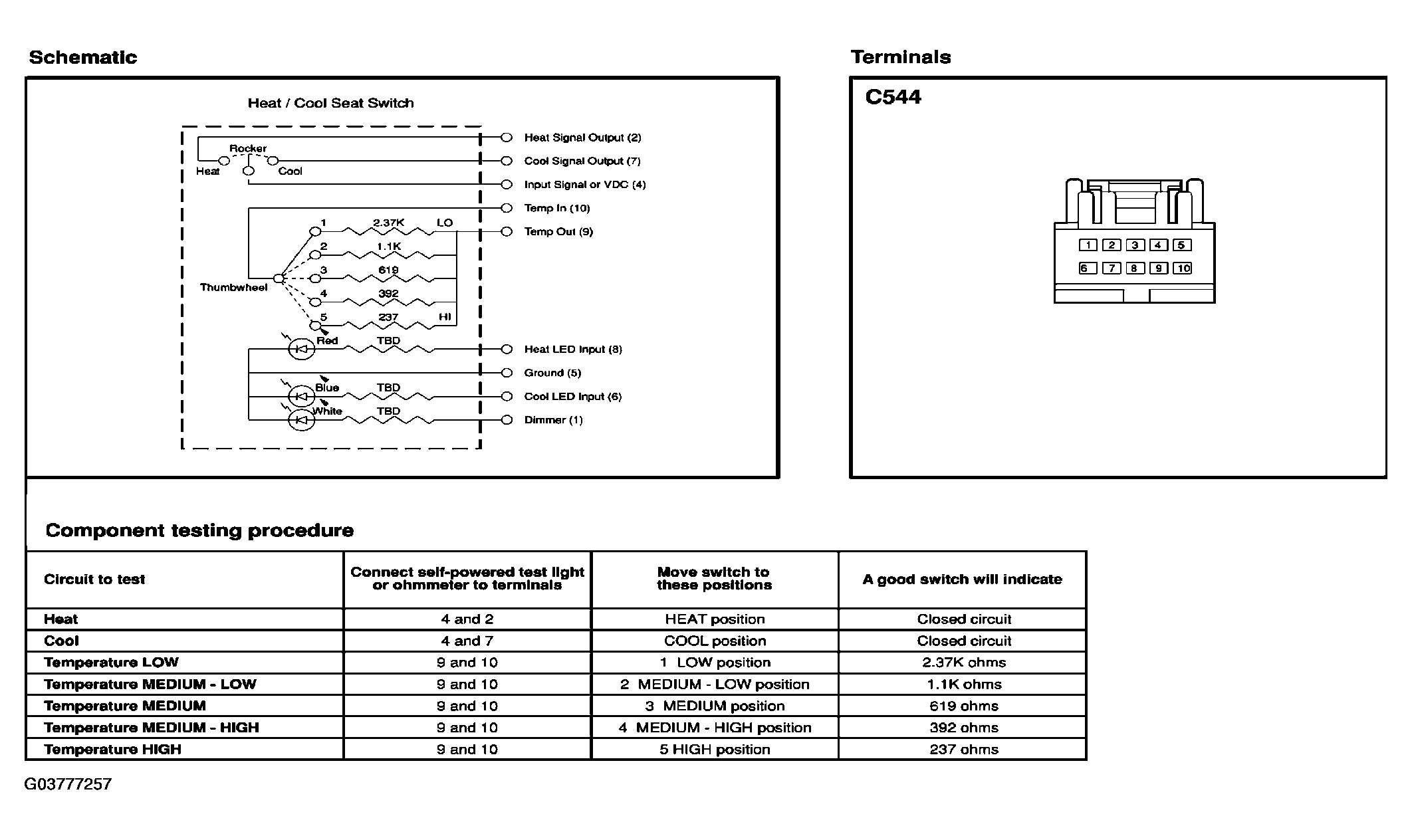

Fig 1: Testing Heat/Cool Seat Switch
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
