Liftgate Door Lock Switch

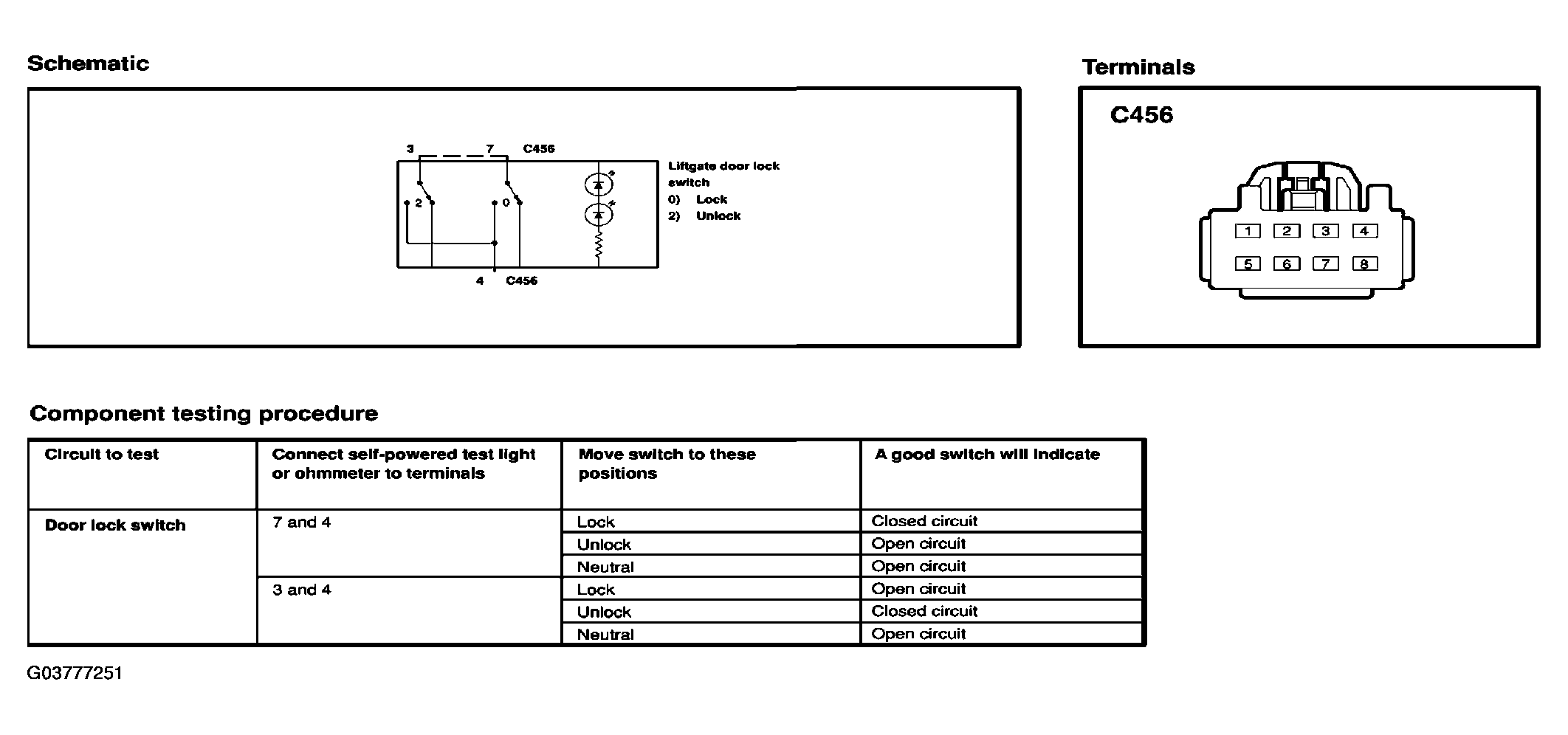

Fig 1: Testing Liftgate Door Lock Switch
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
