Roof Opening Panel Switch (15B691)

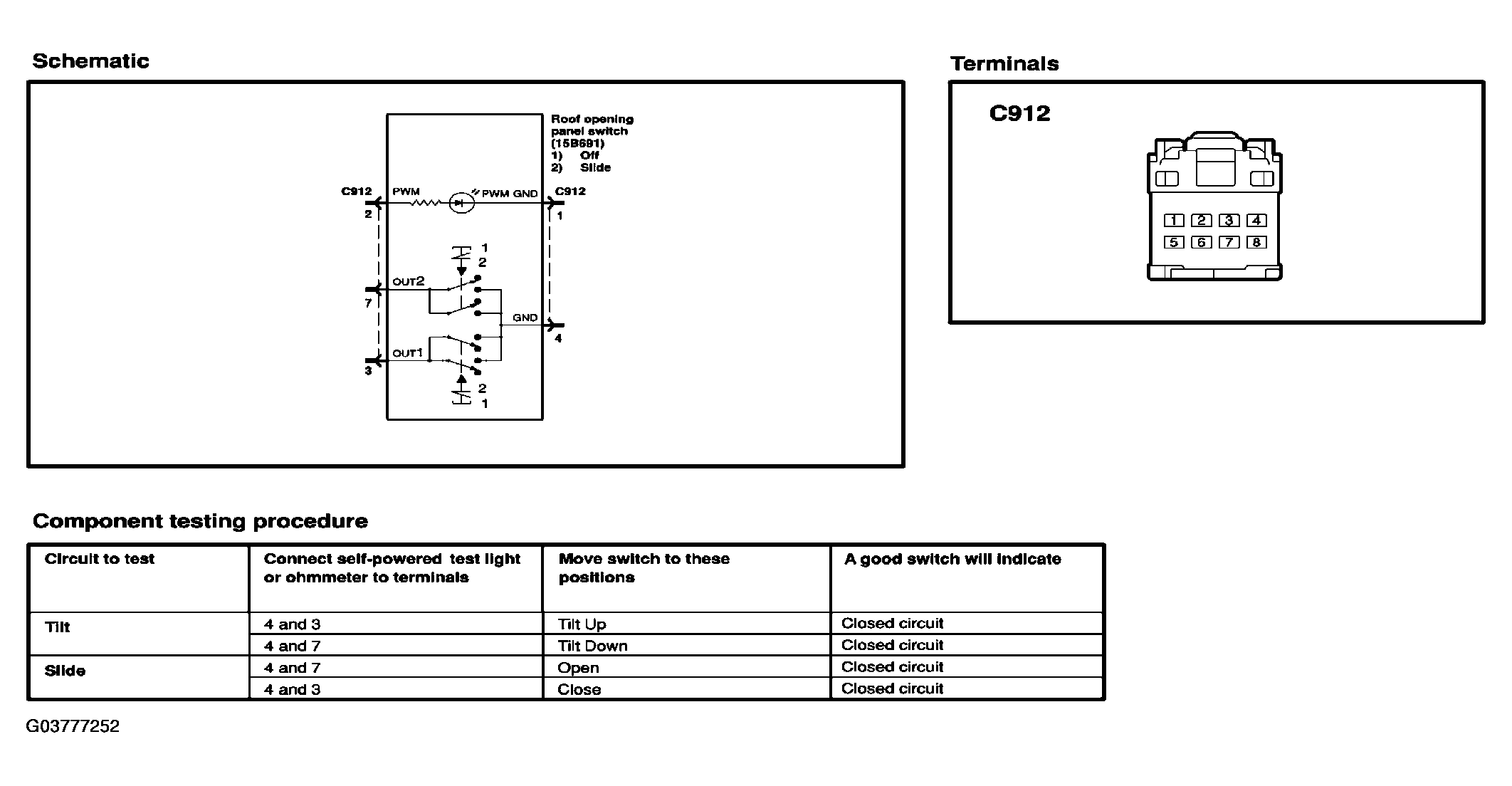

Fig 1: Testing Roof Opening Panel Switch
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
