Navigation System Module
CAUTION:
Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.
NOTE:
Prior to removal of the navigation system module, it is necessary to remove the digital versatile disc (DVD) from the navigation system module and store it in the customer case.
- Disconnect the battery ground cable.
- Remove the third row child safety seat tether anchor. For additional information, refer to SAFETY BELT SYSTEM .
- Position the navigation system module assembly aside.

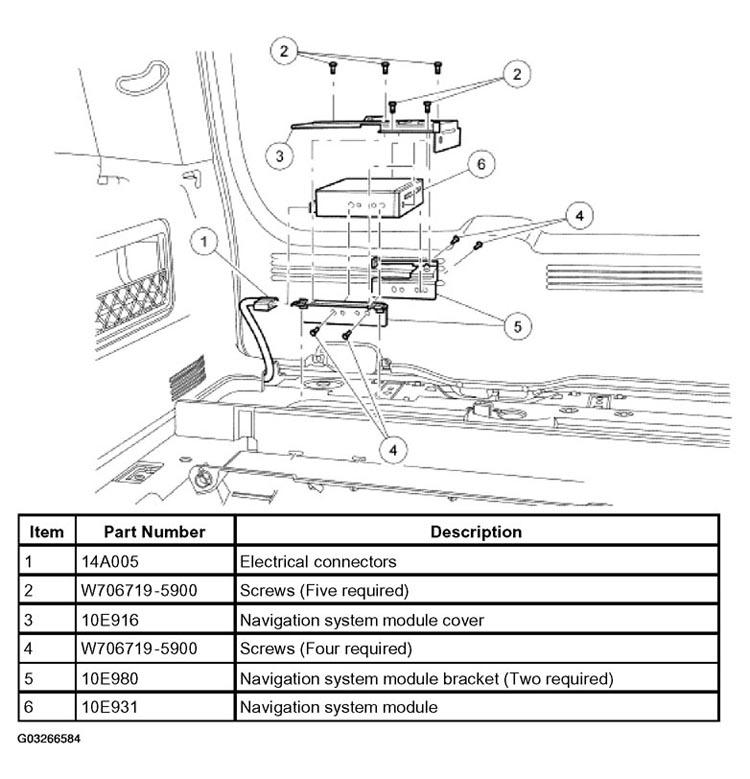

- Remove the components in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
NOTE:
The navigation system module assembly must be pulled straight back out of the floor panel before positioning aside.
