Speed Control
>>
Connector Circuit Reference
>>
Clockspring C218a
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Clockspring C218a

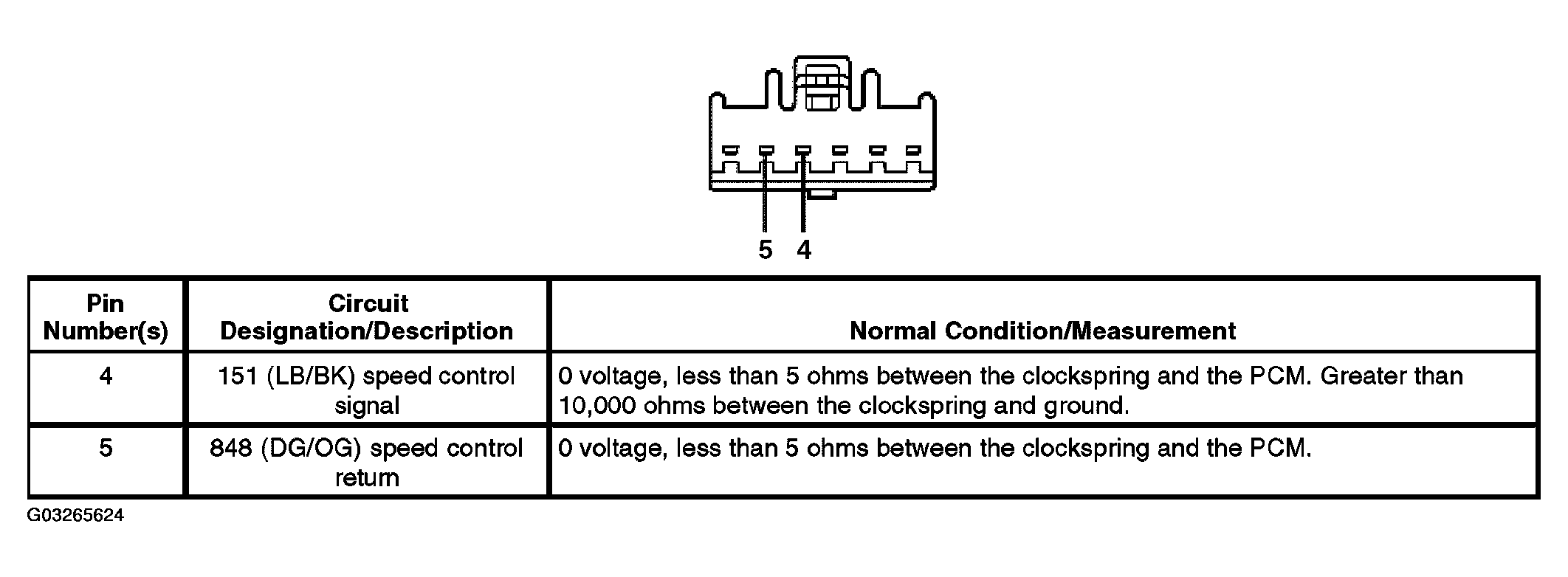

Fig 1: Locating Clockspring C218a Connector Pin
Courtesy of FORD MOTOR CO.
