Front Bumper: Notes

Fig 1: Identifying Special Tool(s)
G03263887Courtesy of FORD MOTOR CO.
  1. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    FRONT BUMPER COMPONENT REMOVAL STEPS

    Part Steps
    Front Bumper Cover 1-11
    Front Lower Valence Panel 10, 11
    Front Bumper 1-8, 12, 13

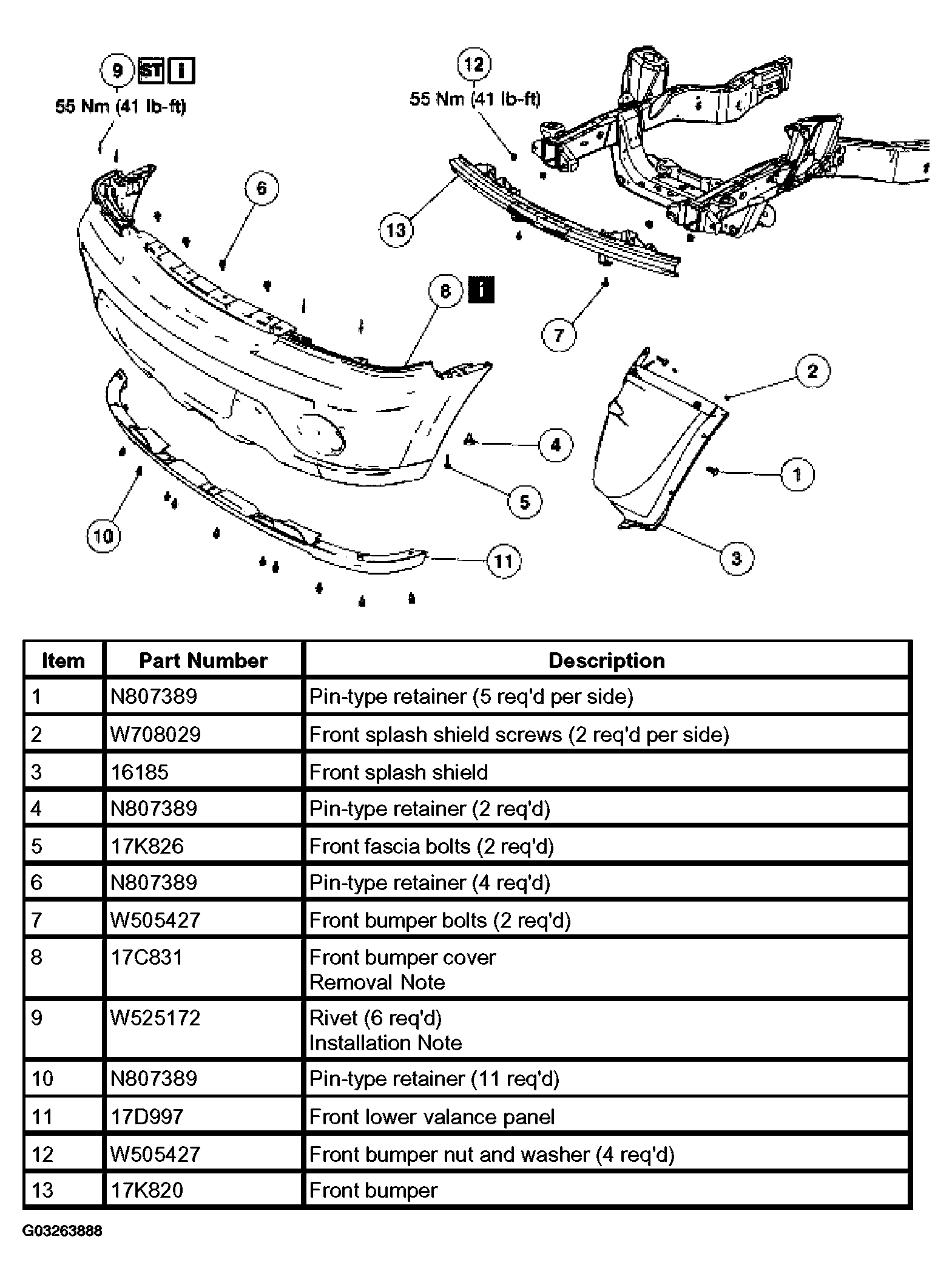

    Fig 2: Removing Front Bumper
    G03263888Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
