Removal And Installation: Hood: Notes

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

HOOD COMPONENT REMOVAL STEPS

Part	Steps
Hood Insulator	1,2
Hood	3-4

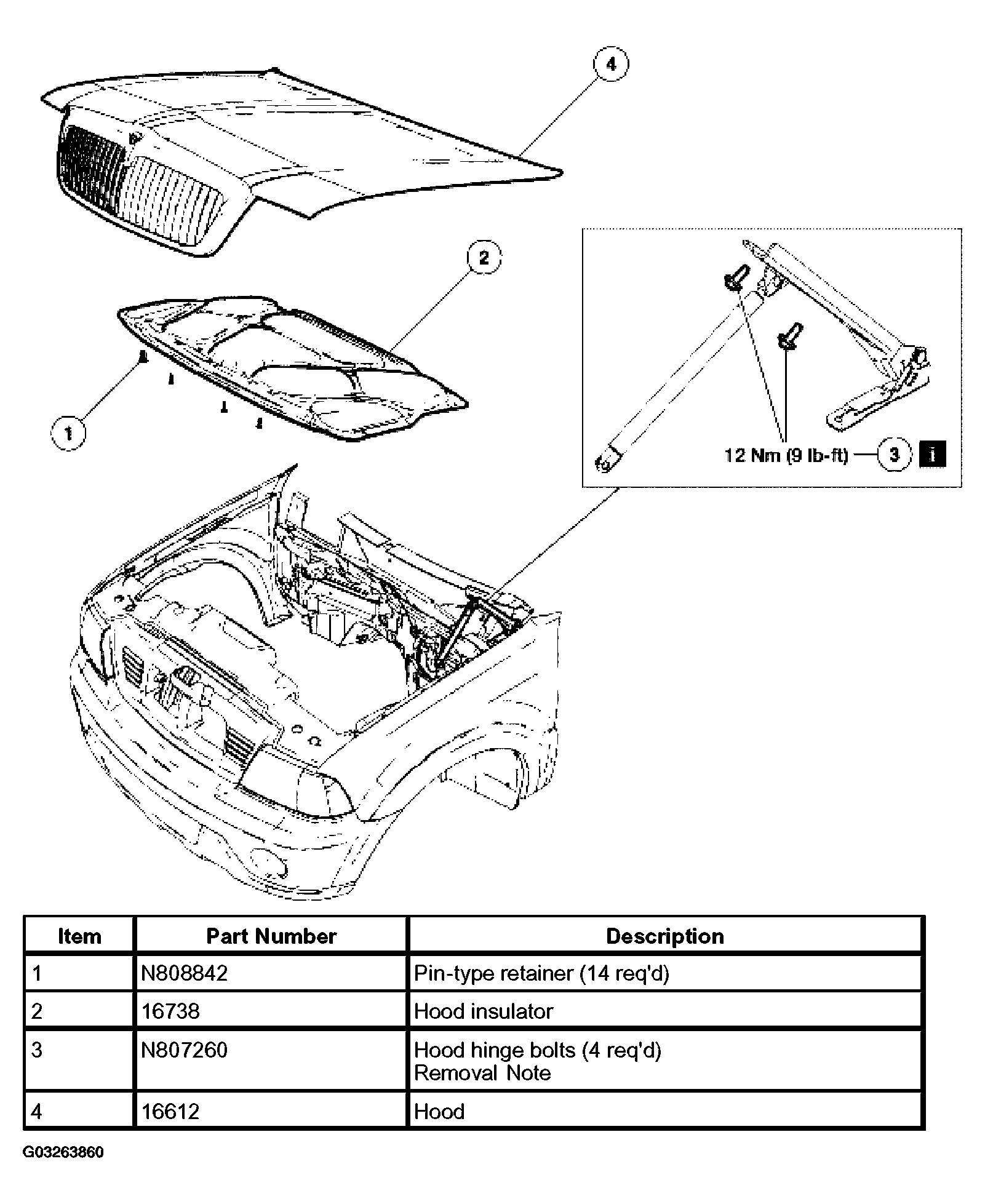

Fig 1: Removing Hood

Courtesy of FORD MOTOR CO.
