Window Control Switch: Notes

  1. Remove the parts in the order indicated in the following illustration and table.

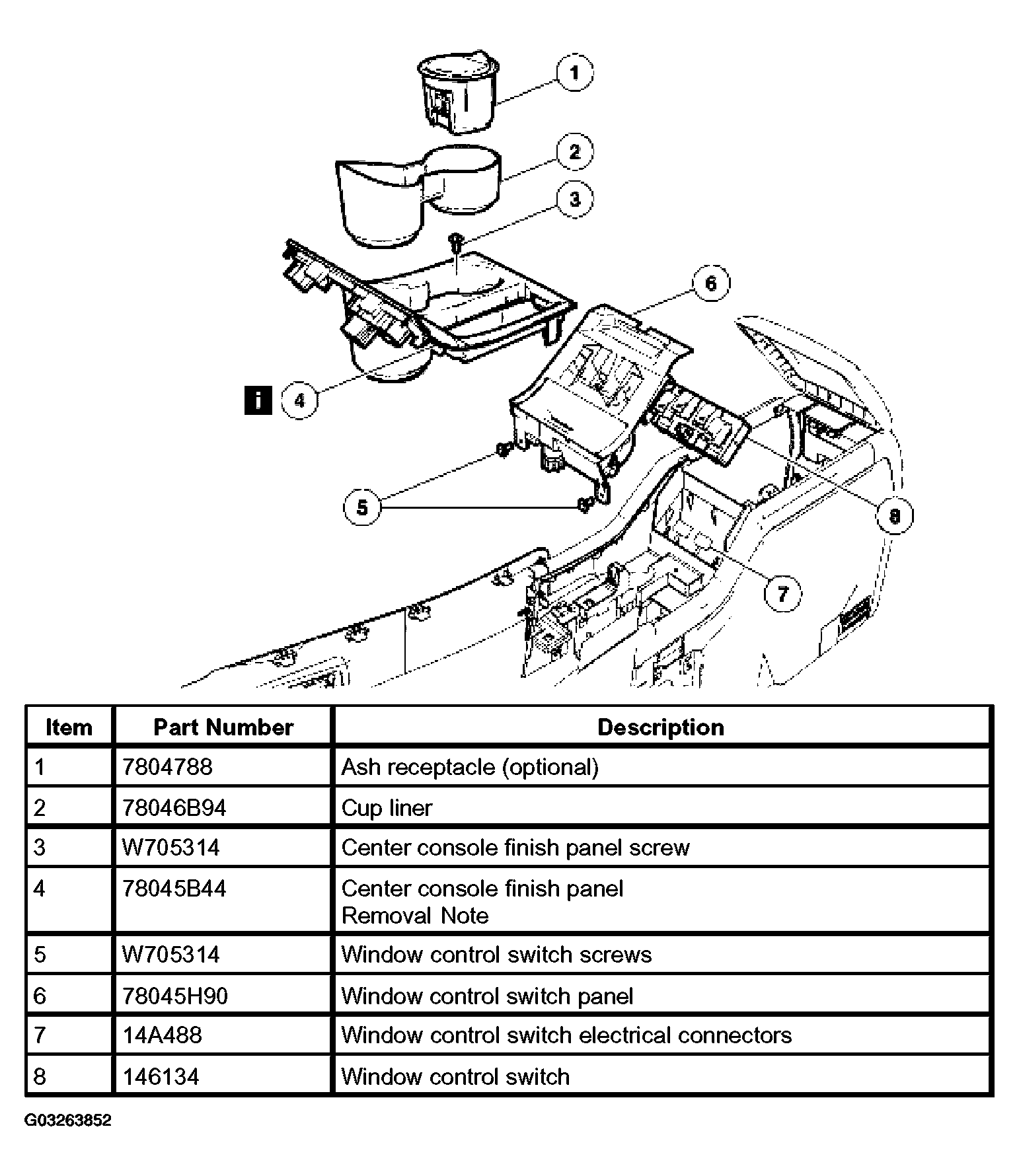

    Fig 1: Removing Parts In Order
    G03263852Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.

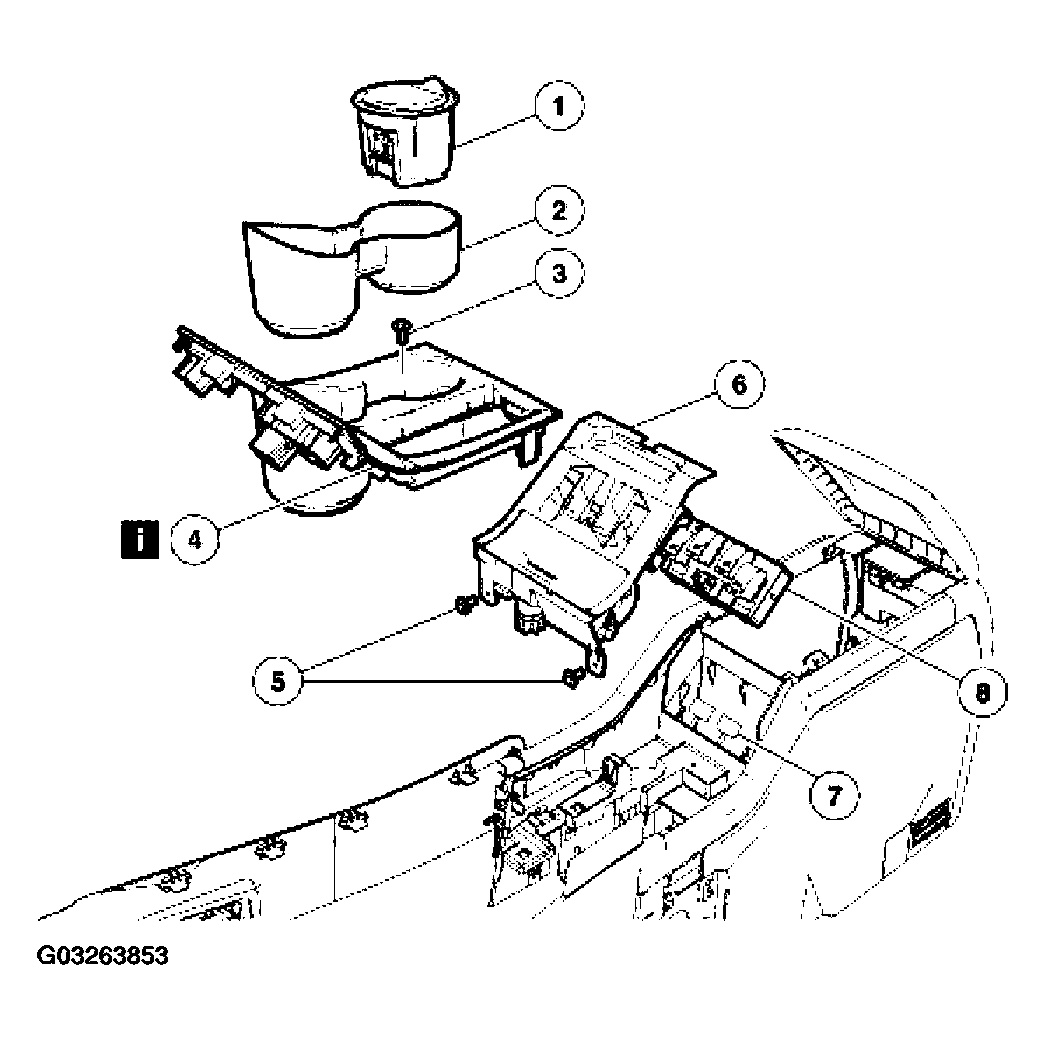

    Fig 2: Installing, Reverse Removal Procedure
    G03263853Courtesy of FORD MOTOR CO.
