Windshield Glass: Notes
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Urethane Adhesive Metal Primer Essex U-413 | WSB-M2G234-C |
| Urethane Glass Prep Essex U-401 | WSB-M5B280-C |
| Urethane Glass Primer Essex U-402 | WSB-M2G314-B |
| Urethane Adhesive Essex 400-HV | WSB-M2G316-B |
WARNING:
To prevent glass splinters from entering the eyes or cutting hands, wear safety glasses and heavy gloves when cutting and removing the glass from the vehicle.
- Remove the A-pillar trim panels, sun visors and retainers and the overhead console. For additional information, refer to BODY SYSTEM - INTERIOR .
- Remove the interior mirror. For additional information, refer to Interior Mirror .
- Lower the front portion of the headliner.
- Remove the cowl panel grille. For additional information, refer to COWL PANEL GRILLE .

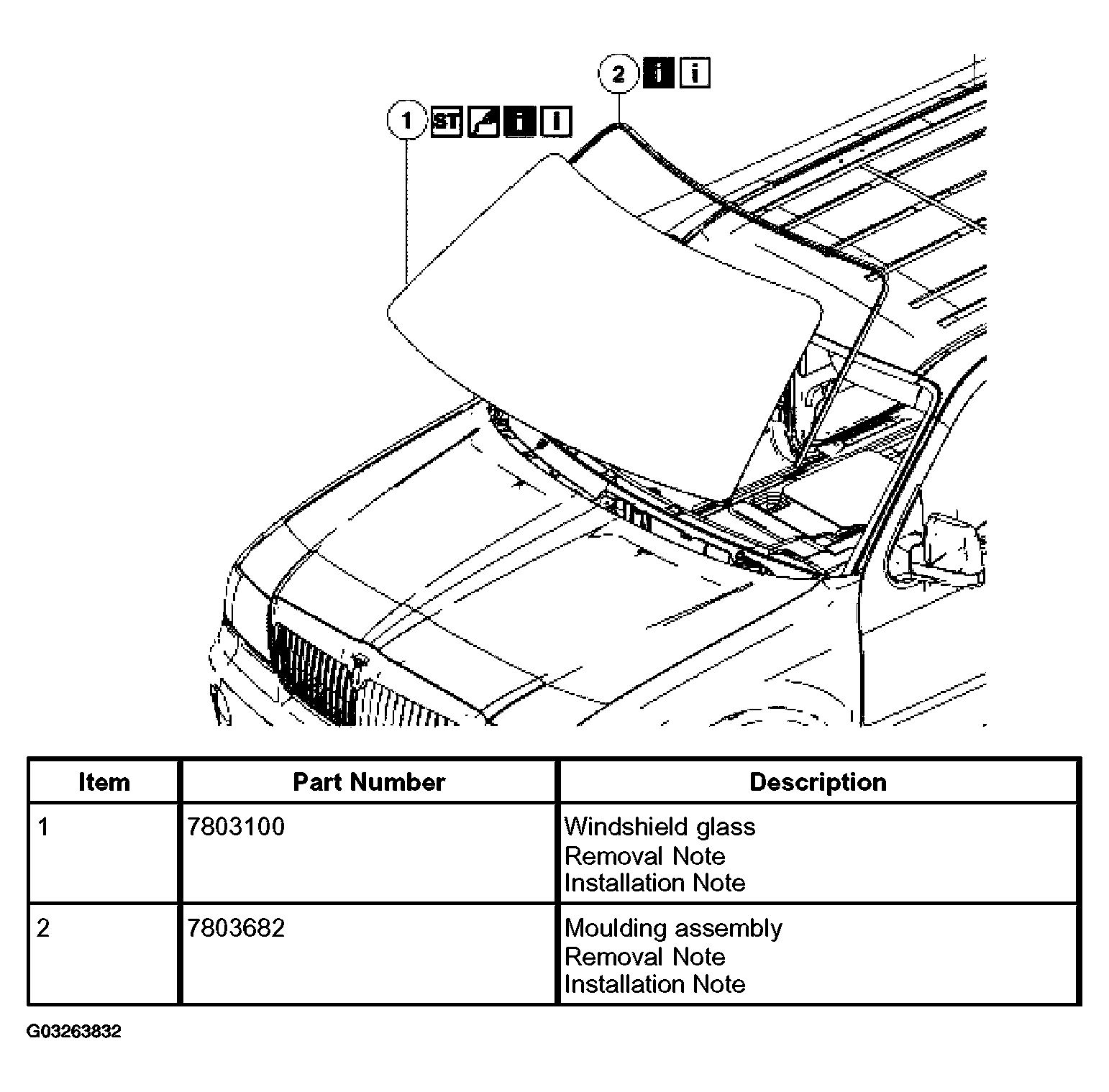

- Remove the parts in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
