Windshield Wiper: Notes

  1. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    WINDSHIELD WIPER COMPONENT REMOVAL STEPS

    Part Steps
    Windshield Wiper Arm 1
    Cowl Panel Grille 1-2
    Windshield Wiper Motor and Transmission Assembly 1-6
    Windshield Wiper Motor 1-9

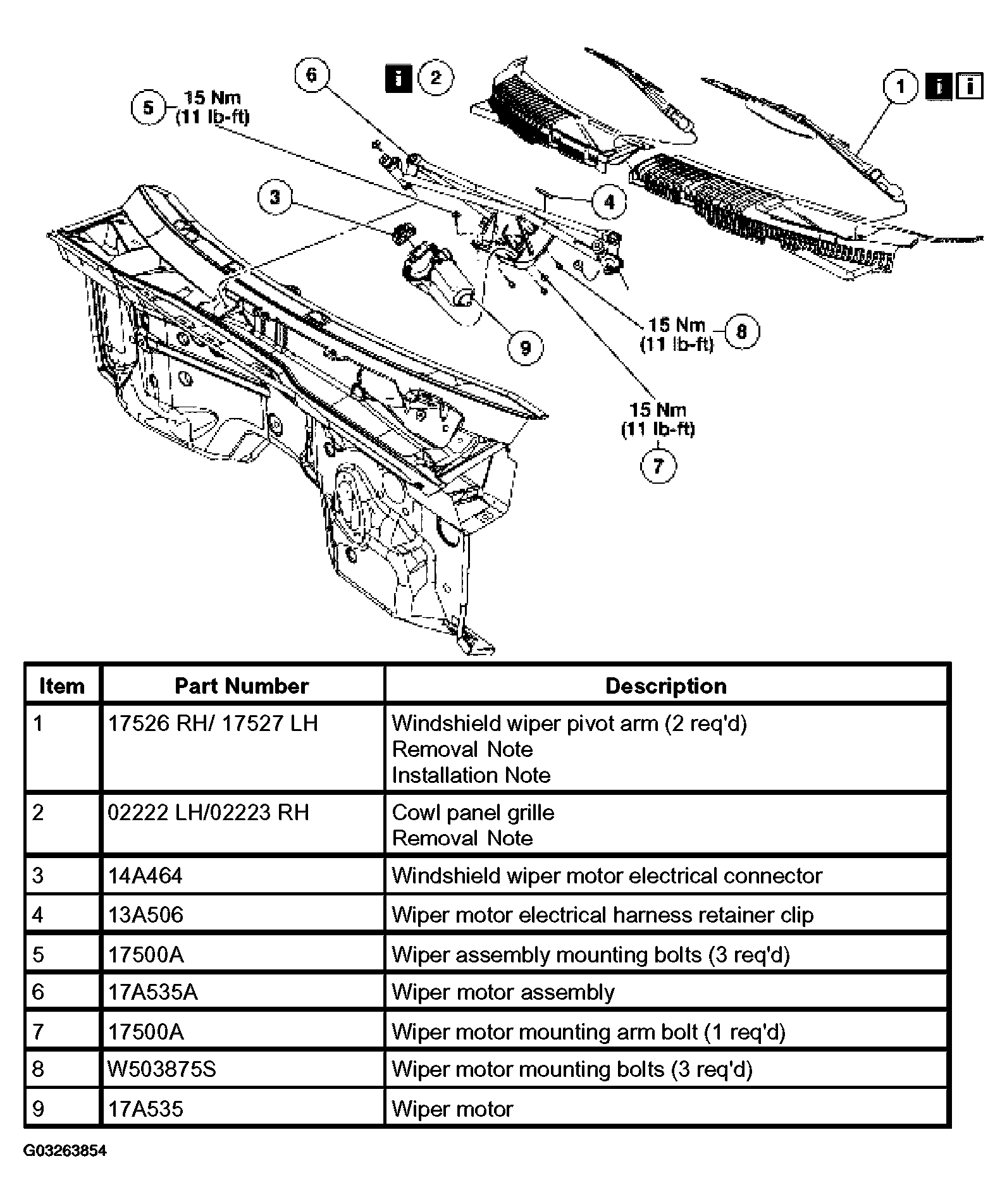

    Fig 1: Removing Windshield Wiper
    G03263854Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
