Front Axle Assembly: Material

MATERIAL CHART

Item Specification
SAE 80W-90 Premium Rear Axle Lubricant XL-80W90-QL WSP-M2C197-A
Silicone Gasket and Sealant F7AZ-19554-EA WSE-M4G323-A4
CAUTION: Any operation in which the pinion nut and washer were disturbed changes the differential pinion bearing preload. Carefully reset the preload during assembly.
  1. Place the vehicle in NEUTRAL and position on a hoist. For additional information, refer to JACKING & LIFTING
  2. Remove the front axle assembly from the vehicle. For additional information, refer to FRONT AXLE ASSEMBLY .
  3. Remove the parts in the order indicated in the following illustration and table.

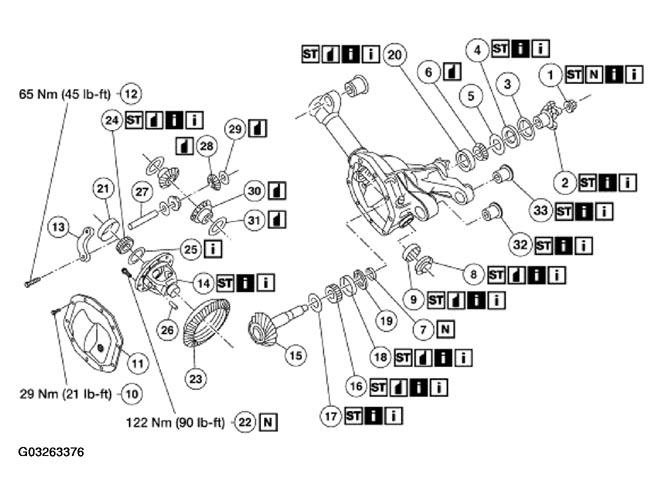

    Fig 1: Exploded View Of Front Axle Assembly Components (1 Of 2)
    G03263376Courtesy of FORD MOTOR CO.

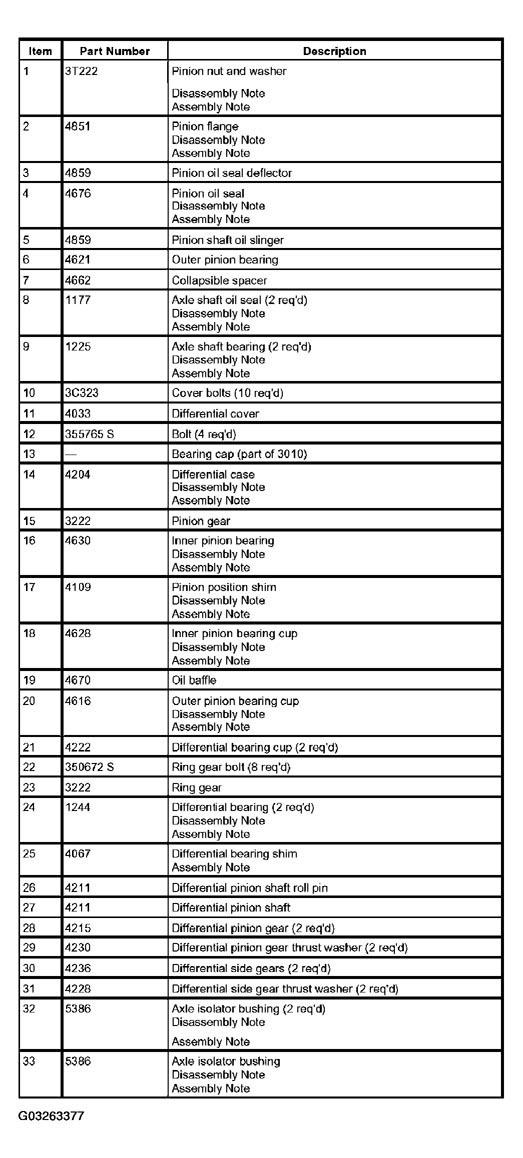

    Fig 2: Exploded View Of Front Axle Assembly Components (2 Of 2)
    G03263377Courtesy of FORD MOTOR CO.
  4. To assemble, reverse the disassembly procedure.
  5. Fill the axle to the specified fluid level with the fluid listed in Specifications.
