Connecting Rod Bushing Diameter

  1. Measure the inner diameter of the connecting rod bushing, if equipped. Verify the diameter is within specification.
    • Refer to ENGINE for the procedure.
    • If out of specification, install new components as necessary. Refer to ENGINE for the procedure.

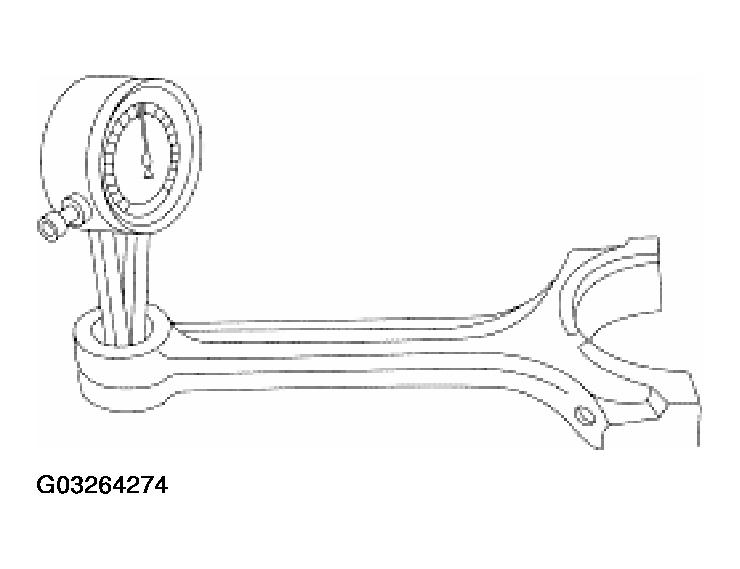

    Fig 1: Measuring Connecting Rod Bushing Diameter
    G03264274Courtesy of FORD MOTOR CO.
