Special Tool(s)

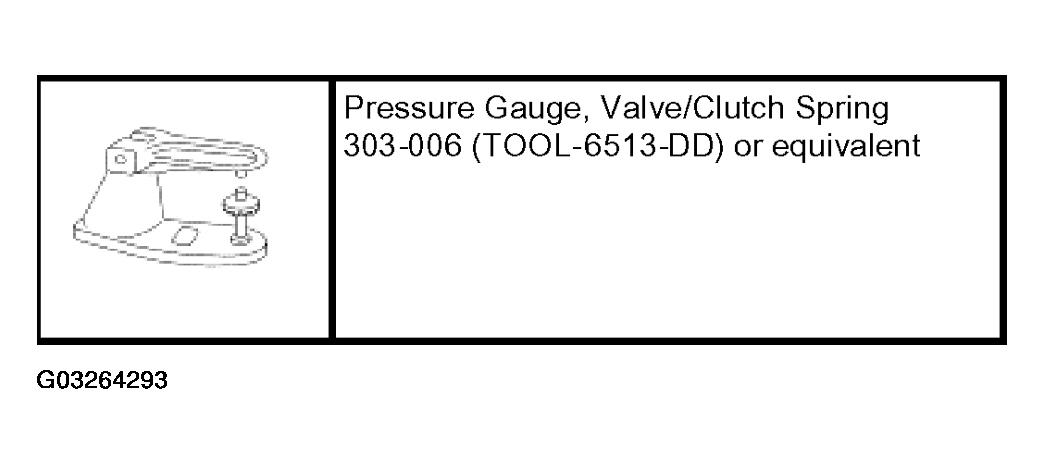

Fig 1: Identifying Special Tool(s)
G03264293Courtesy of FORD MOTOR CO.
  1. Use a Valve/Clutch Spring Pressure Gauge to check the valve spring for correct strength at the specified valve spring length.
    • Refer to ENGINE for the procedure.
    • If out of specification, install new components as necessary. Refer to ENGINE for the procedure.

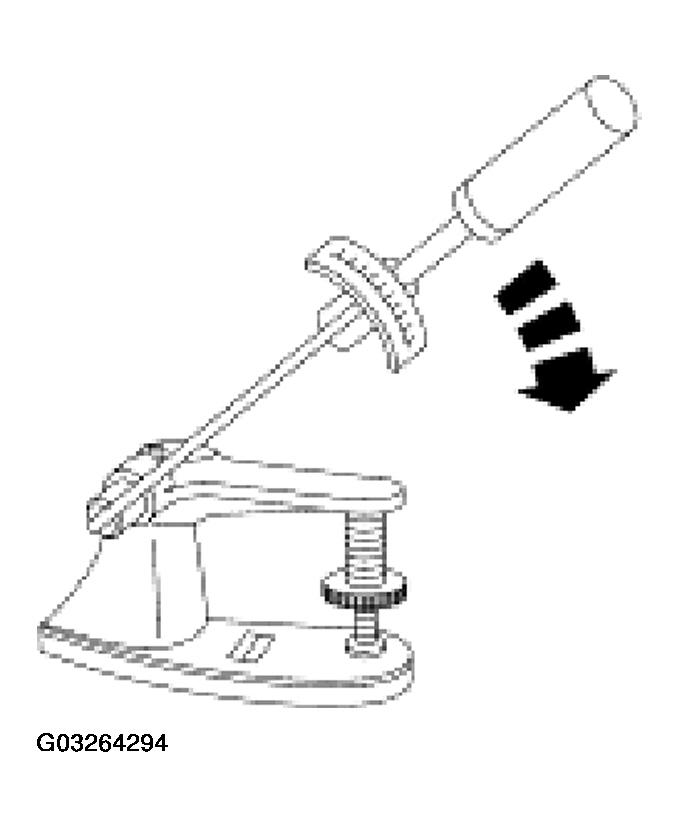

    Fig 2: Using A Valve/Clutch Spring Pressure Gauge To Check Valve Spring
    G03264294Courtesy of FORD MOTOR CO.
