Ignition Switch

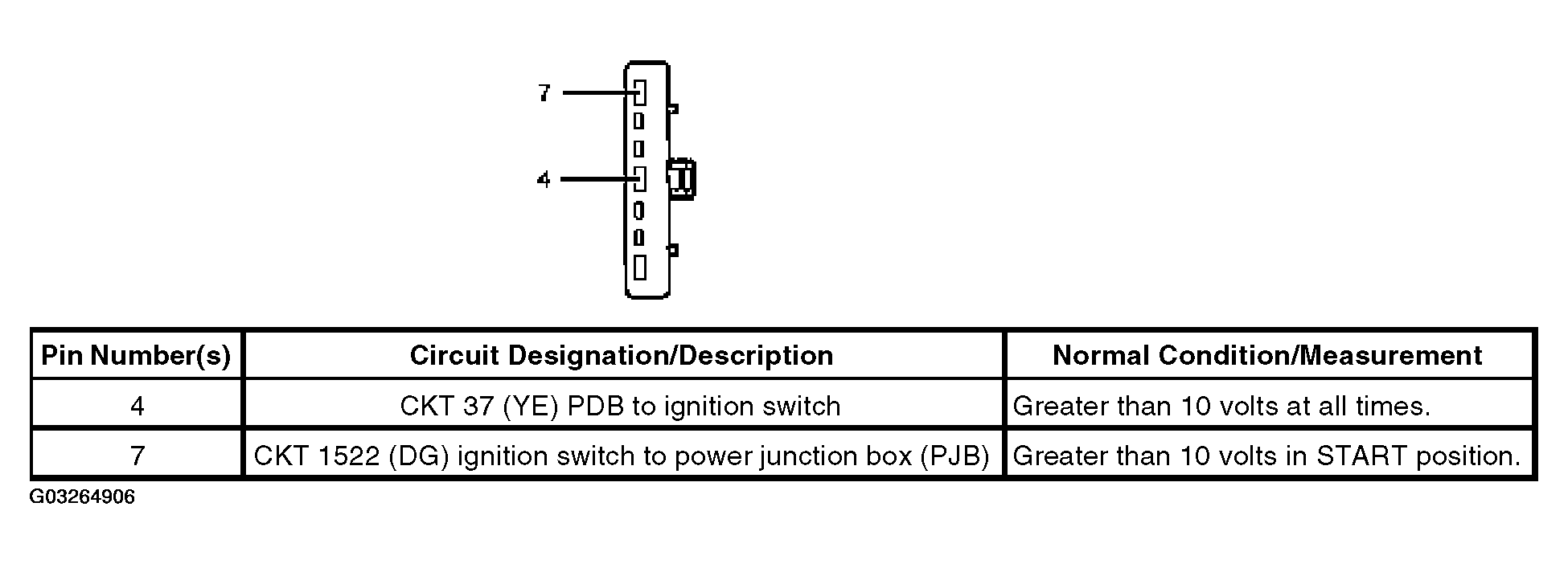

Fig 1: Identifying Ignition Switch Connector
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
