Item 4: PCM and Bracket Assembly Removal Note

  1. Remove the pin-type retainer and position up the sound deadening insulation.

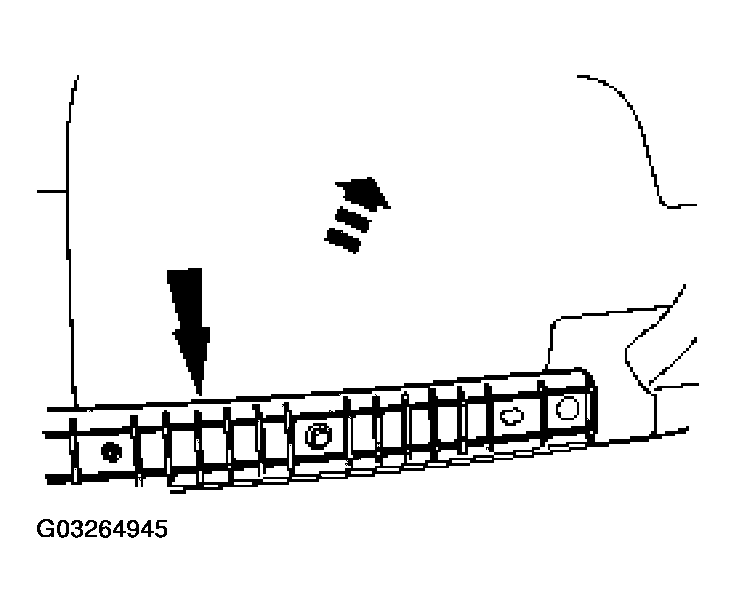

    Fig 1: Removing Pin-Type Retainer And Position Up Sound Deadening
    G03264945Courtesy of FORD MOTOR CO.
  2. Remove the lower screw for the fuel pump driver module and position back and disconnect the electrical connector.

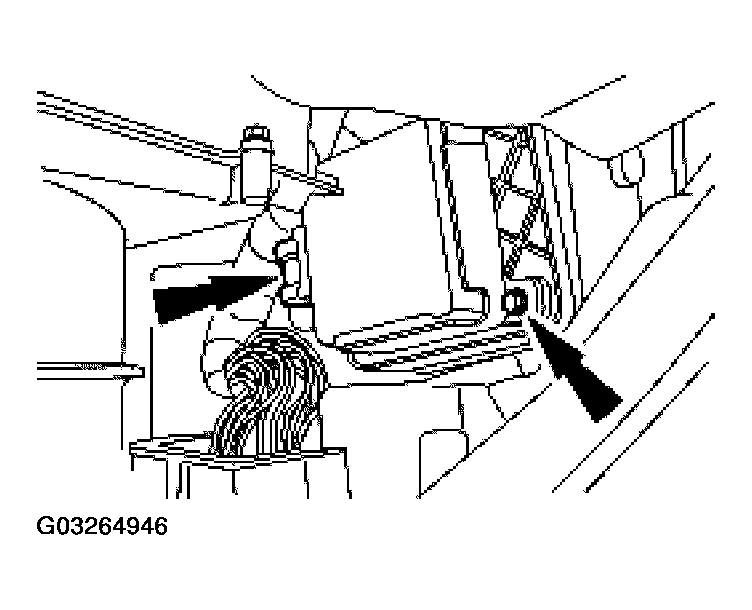

    Fig 2: Removing Lower Screw For Fuel Pump Driver Module
    G03264946Courtesy of FORD MOTOR CO.
  3. Remove the PCM and the bracket assembly.
