Powertrain Control Module (PCM): Notes

  1. Disconnect the battery ground cable.
  2. Remove the right front door scuff plate.
  3. Remove the right side cowl side trim panel.
  4. Remove the parts in the order indicated in the following illustration and table.

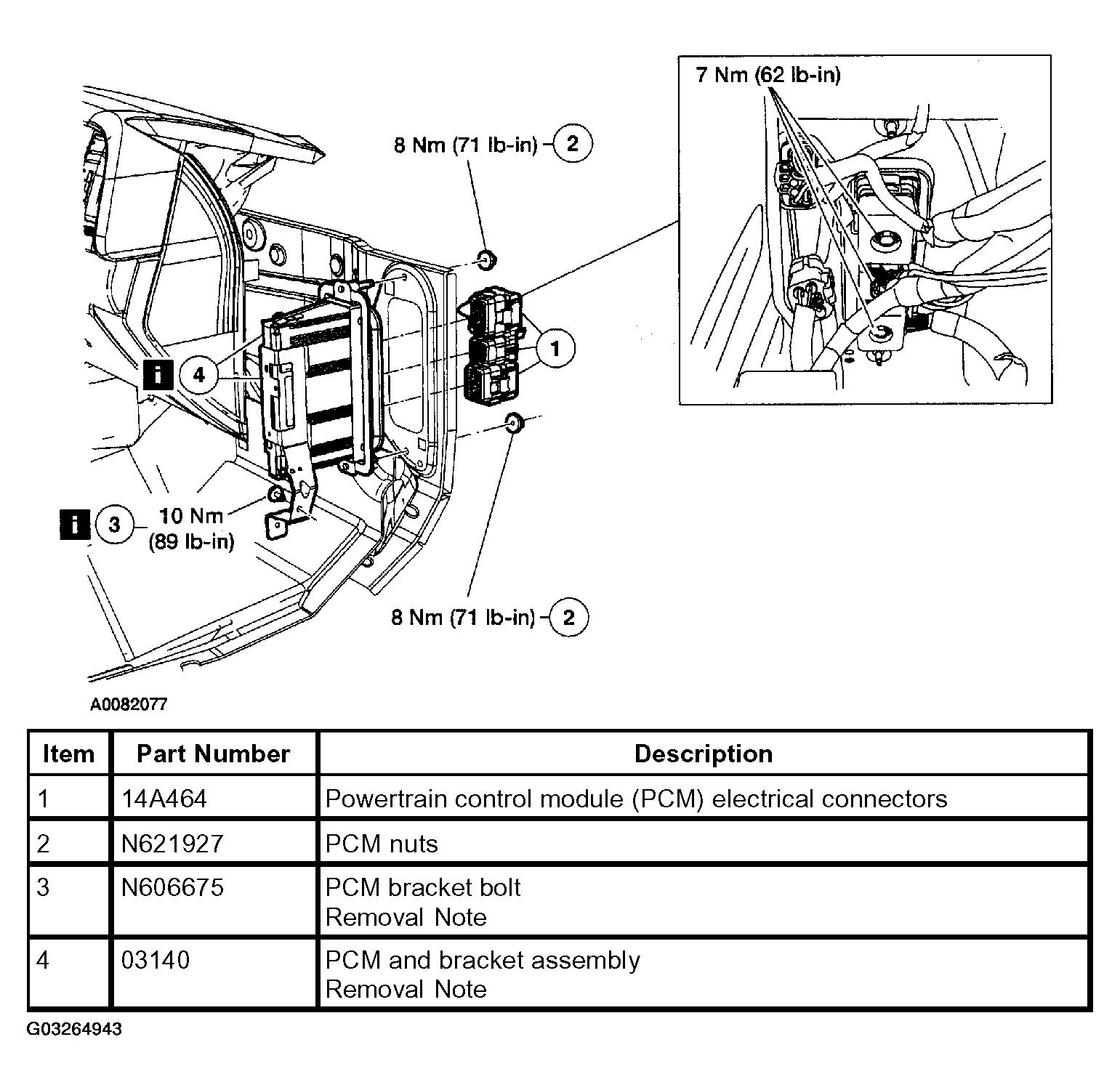

    Fig 1: Removing Powertrain Control Module (PCM)
    G03264943Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
