Lumbar Control Switch: Installation

WARNING: This page is about a different car, the 2005 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Install the power lumbar switch until seated into bezel.

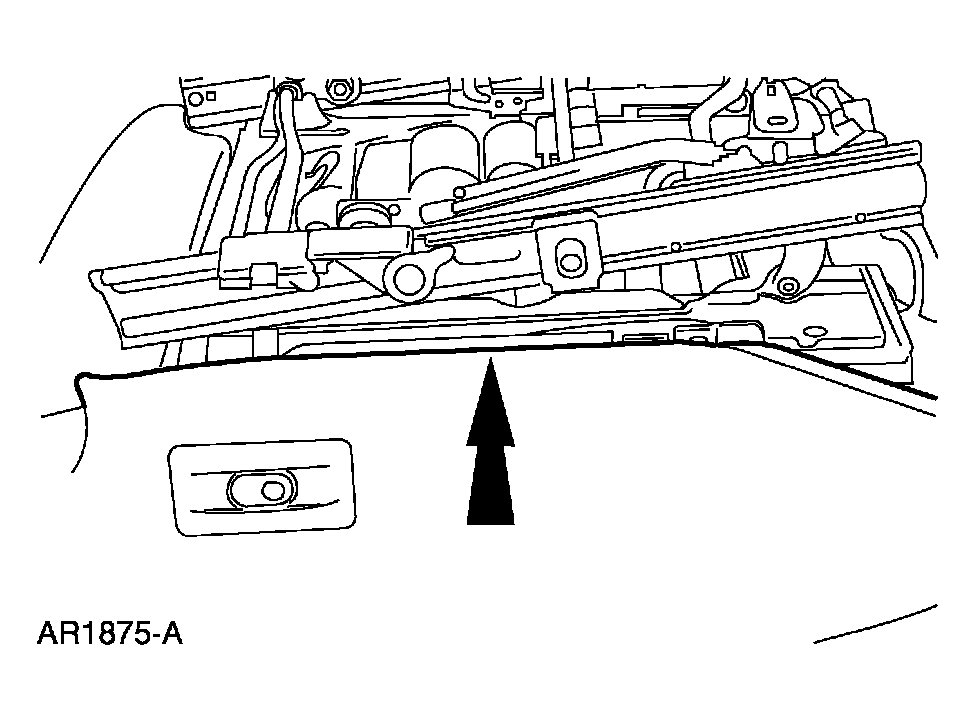

Fig 1: Installing Power Lumbar Switch
Courtesy of FORD MOTOR CO.
Connect the power lumbar switch electrical connector.

Fig 2: Connecting Power Lumbar Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Position the seat cushion trim cover back and fasten the J-clips.

Fig 3: Fastening J-Clips
Courtesy of FORD MOTOR CO.
Install the affected seat. For additional information, refer to FRONT SEAT .
Repower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
