Section 268 (Climate Control System - General Information)
>>
Diagnosis And Testing
>>
Climate Control System
>>
Symptom Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Symptom Chart
WARNING:
This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

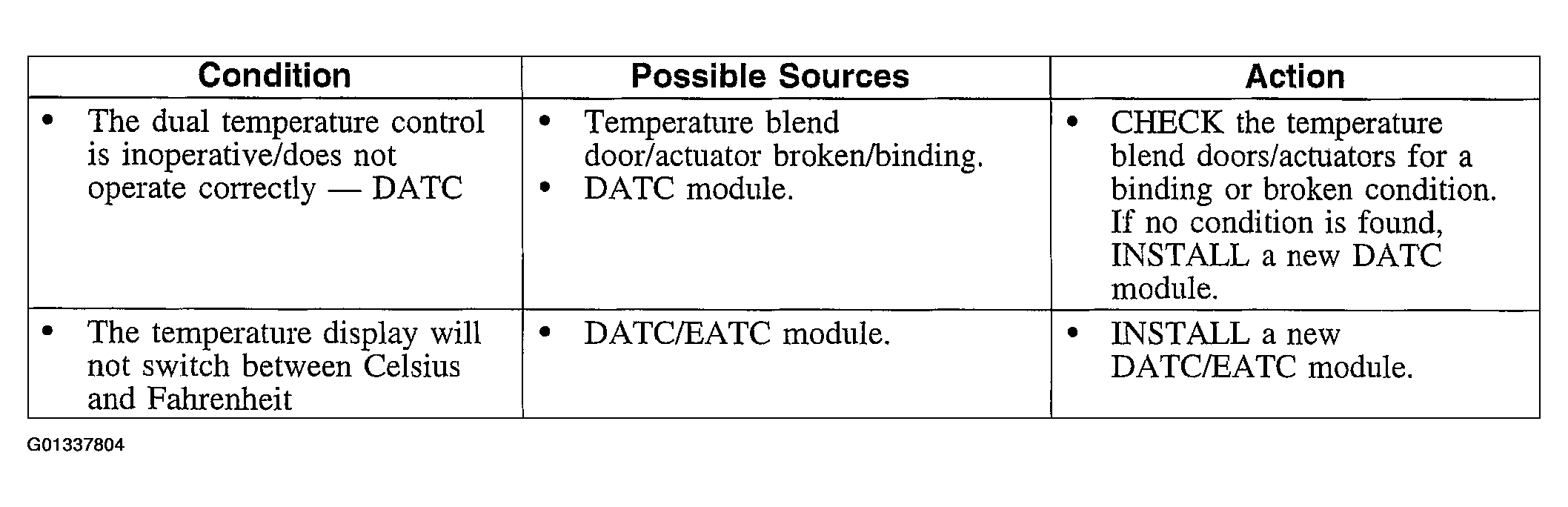

Fig 1: Symptom Chart (1 Of 3)
Courtesy of FORD MOTOR CO.

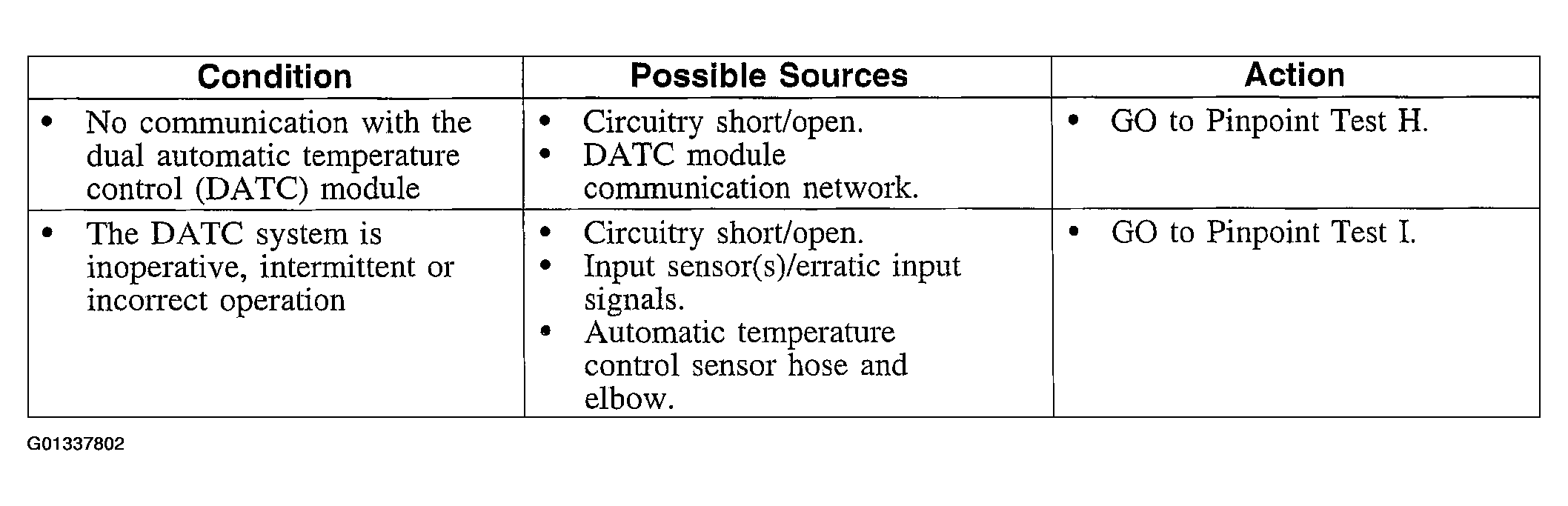

Fig 2: Symptom Chart (2 Of 3)
Courtesy of FORD MOTOR CO.

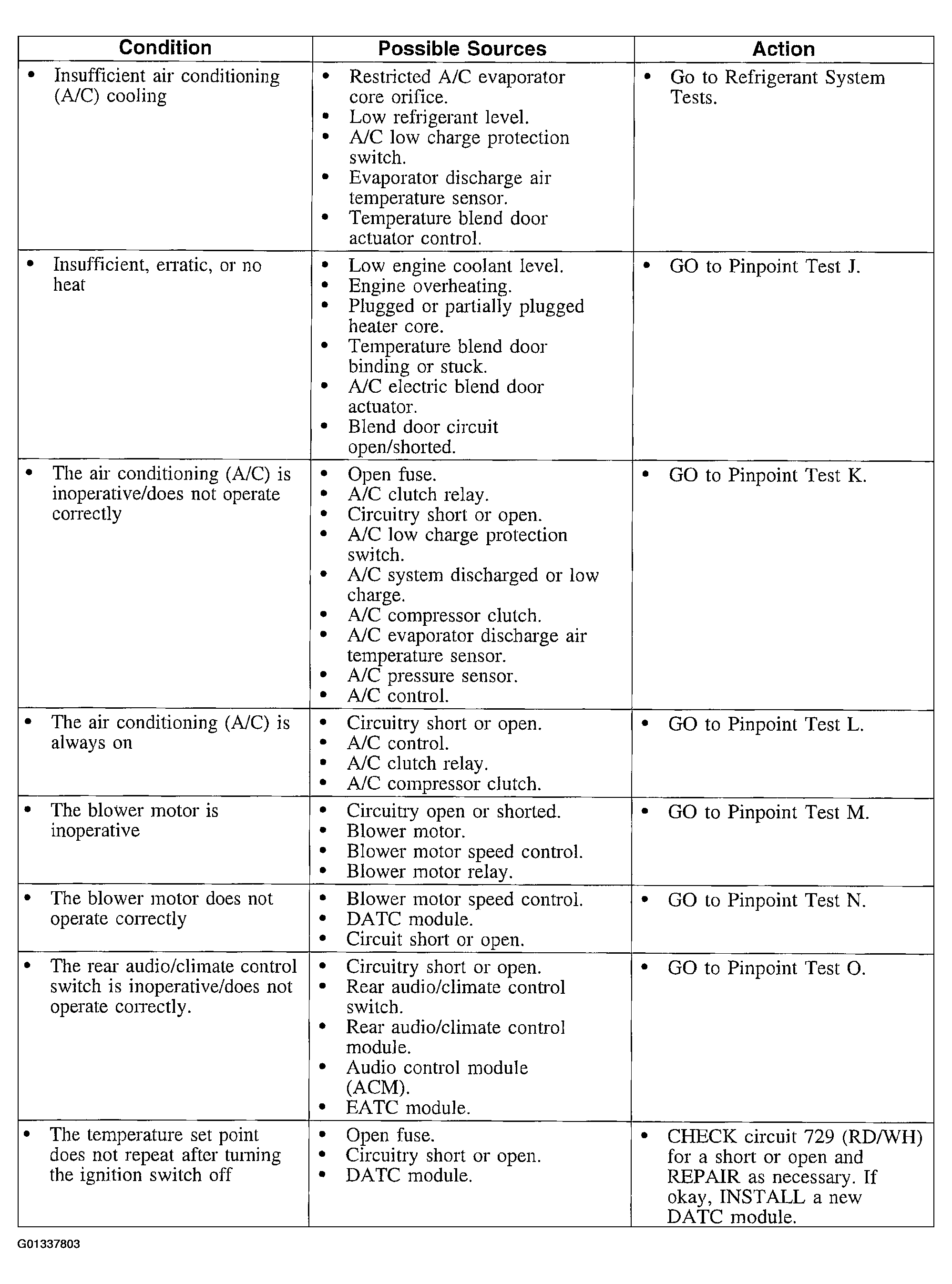

Fig 3: Symptom Chart (3 Of 3)
Courtesy of FORD MOTOR CO.
