Pinpoint Test G: Poor Vehicle Tracking During Anti-Lock Function
WARNING: This page is about a different car, the 2003 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

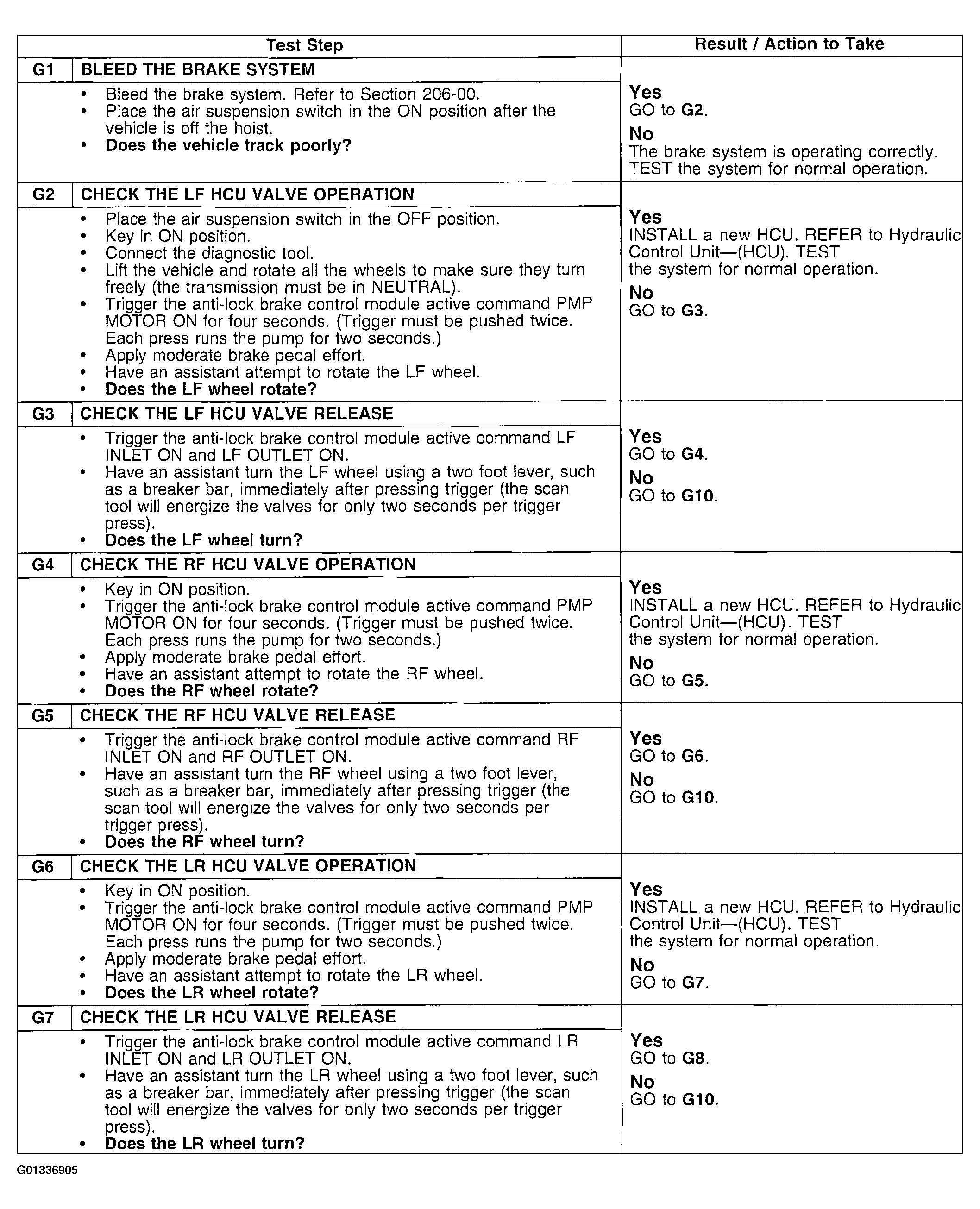

Fig 1: Pinpoint Test G: Poor Vehicle Tracking During Anti-Lock Function (Steps G1-G7)
Courtesy of FORD MOTOR CO.

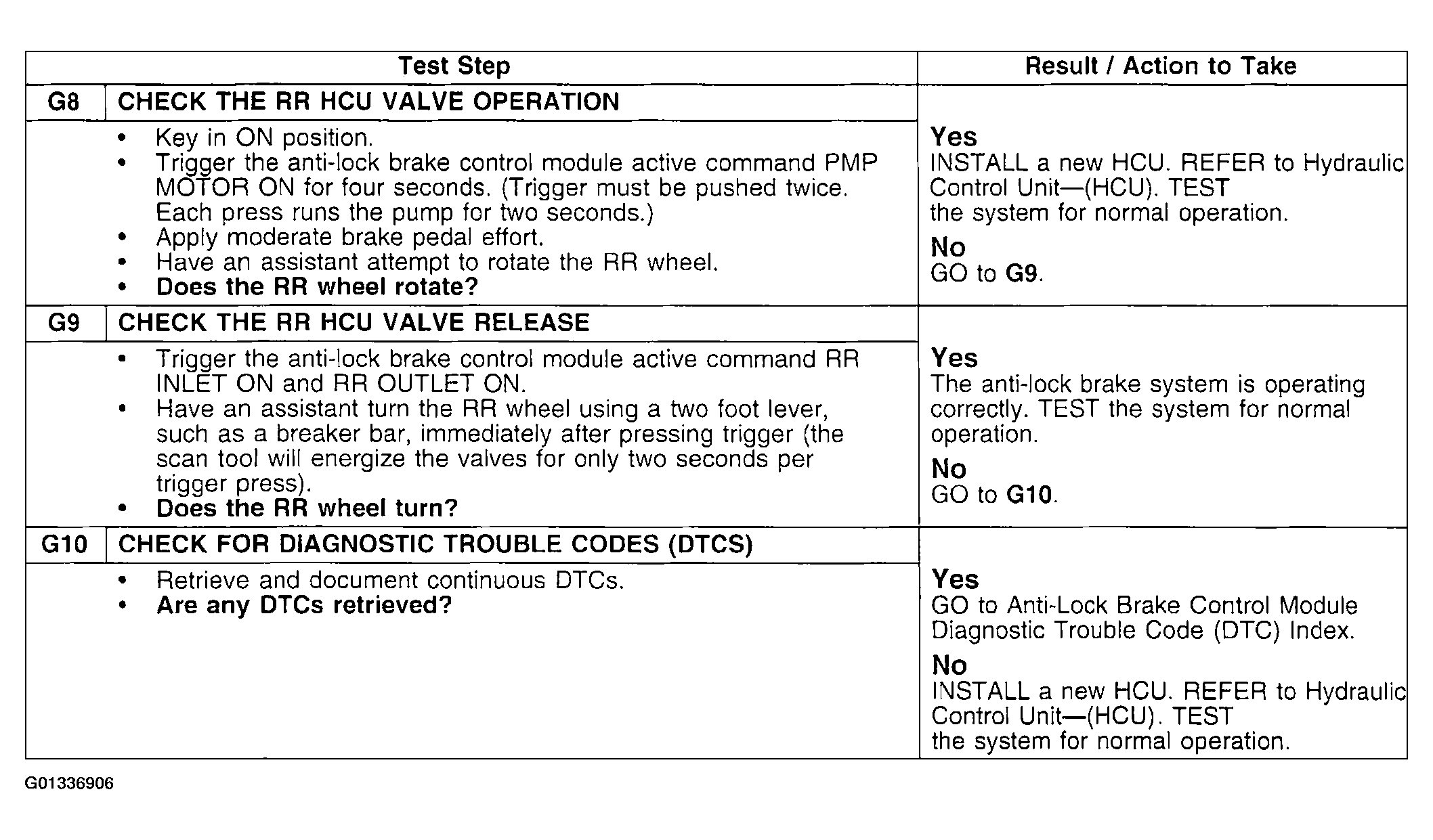

Fig 2: Pinpoint Test G: Poor Vehicle Tracking During Anti-Lock Function (Steps G8-G10)
