Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

Remove the differential case from the differential housing. For additional information, refer to REAR AXLE ASSEMBLY .
Disassemble the components in the order indicated in the following illustration.
To assemble, reverse the disassembly procedure.

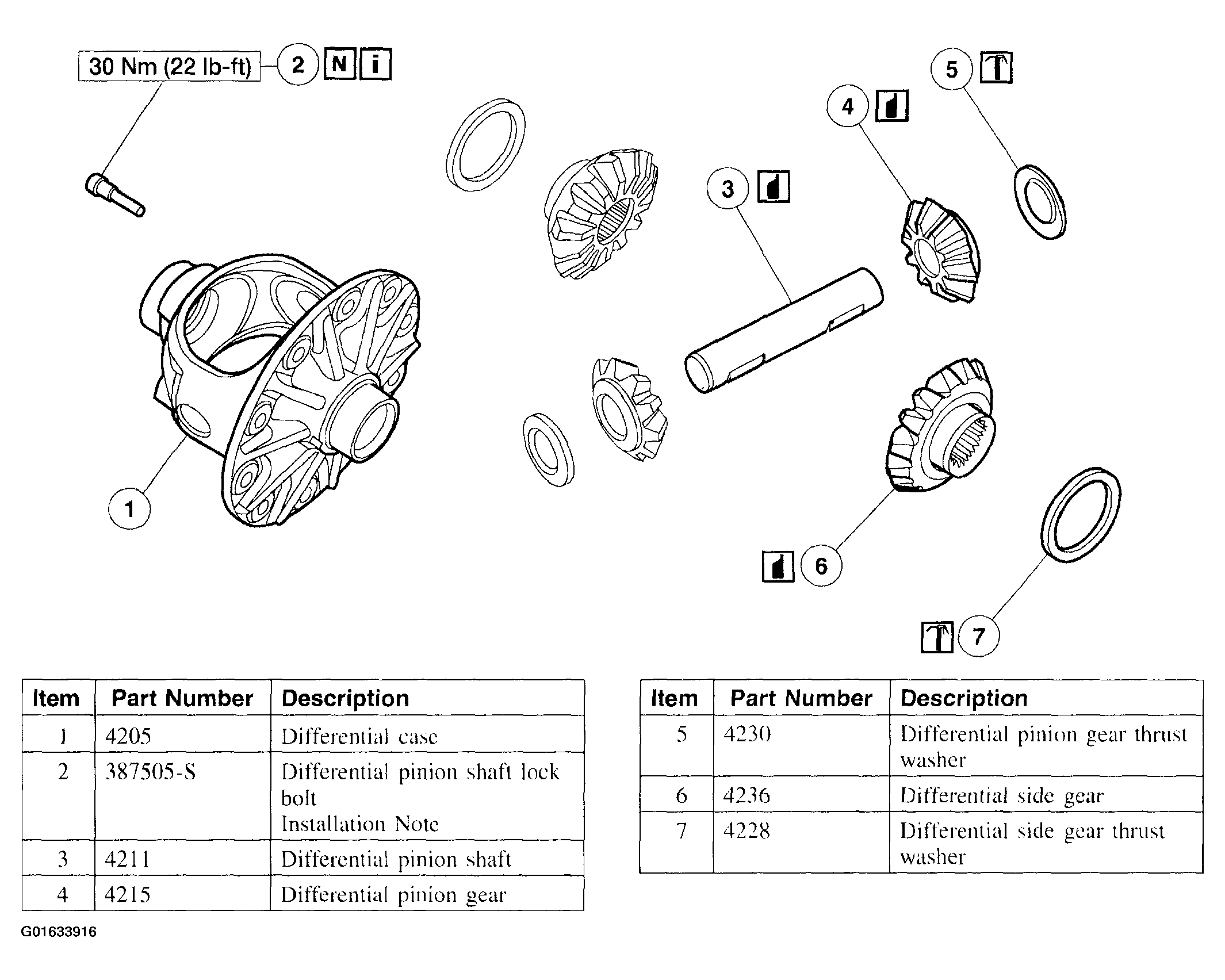

Fig 1: Rear Axle Differential Case Disassembly Sequence
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
