Test Procedure

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

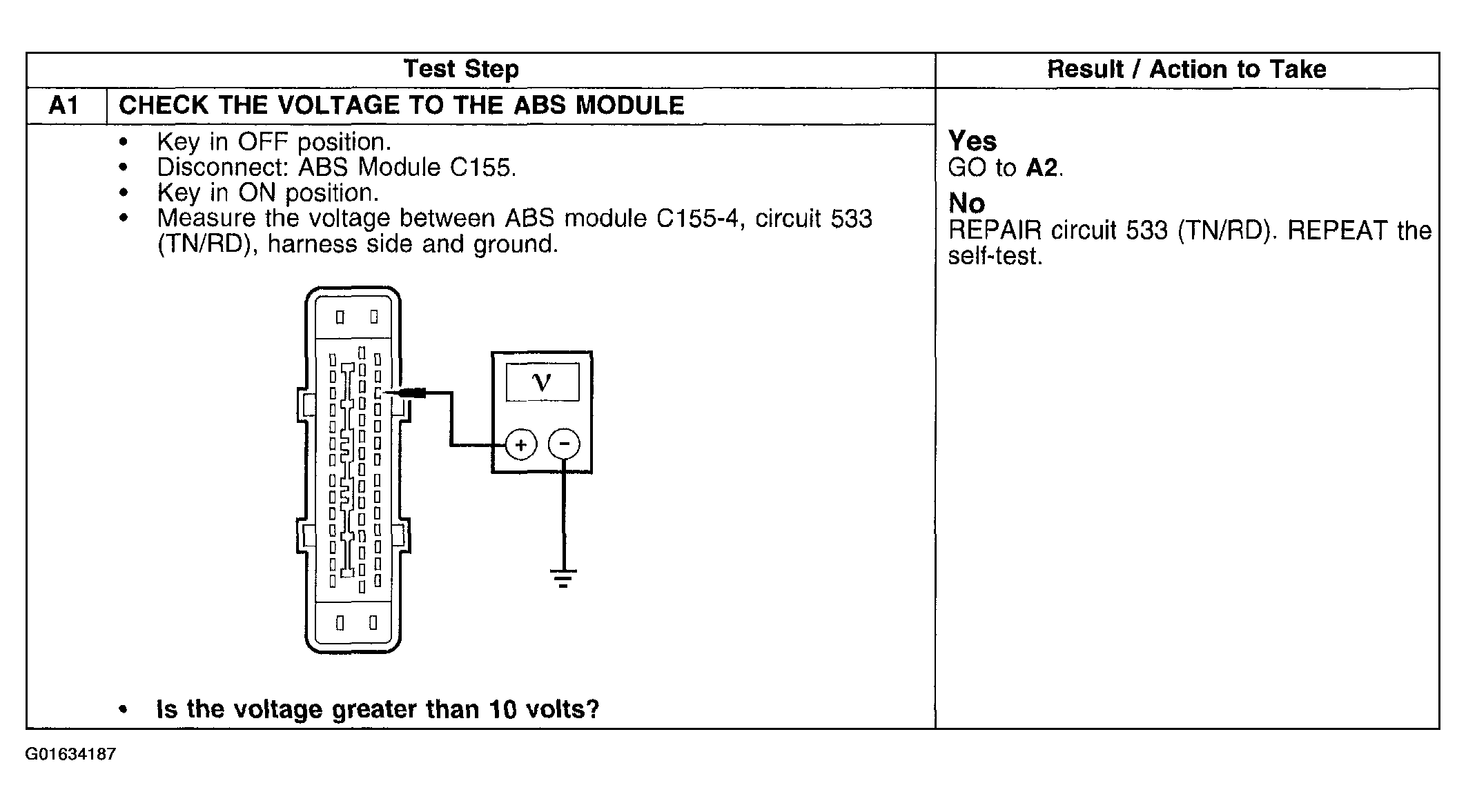

Fig 1: Pinpoint Test A: No Communication With The ABS Module (Step A1)
G01634187Courtesy of FORD MOTOR CO.

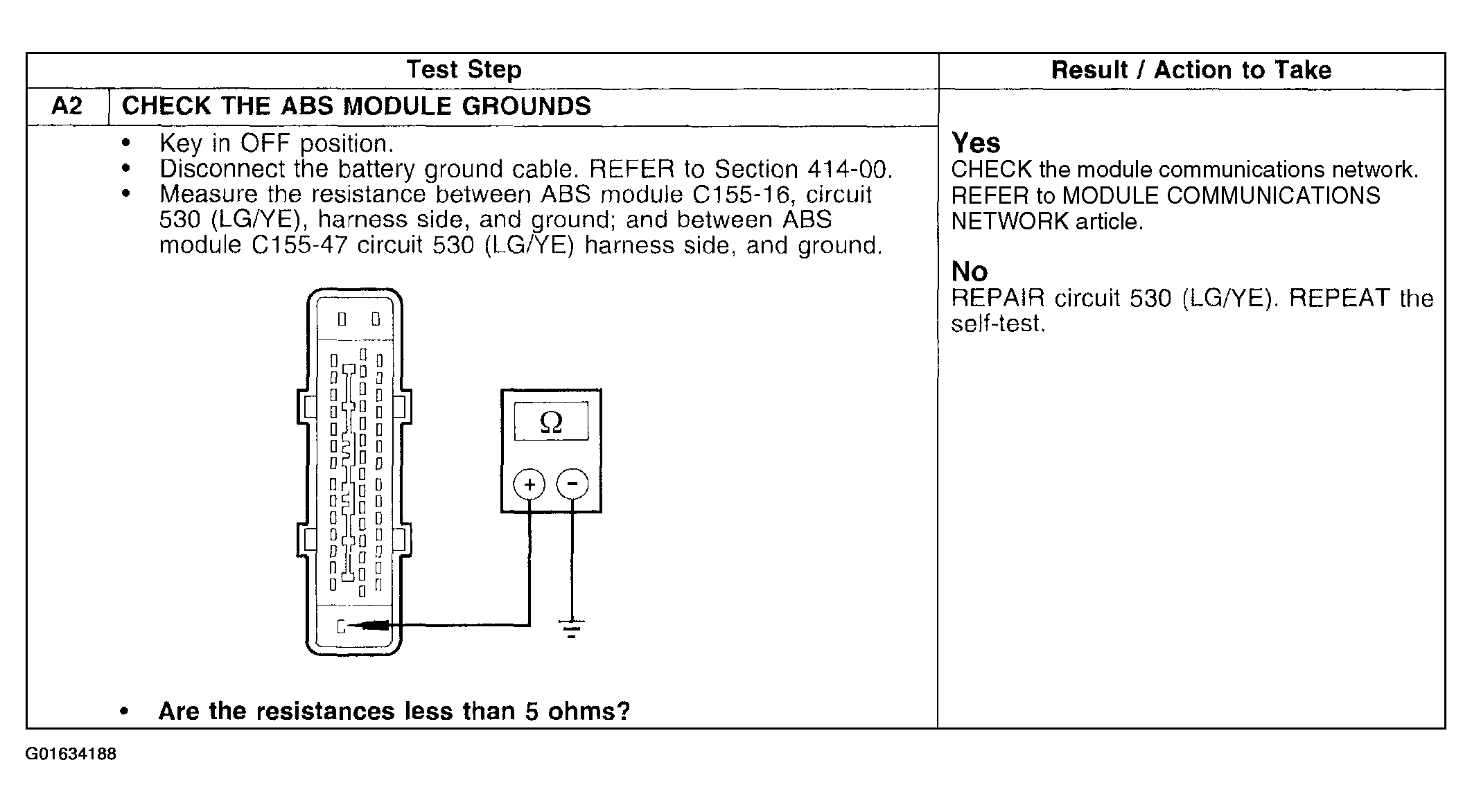

Fig 2: Pinpoint Test A: No Communication With The ABS Module (Step A2)
G01634188Courtesy of FORD MOTOR CO.
