Test Procedure

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

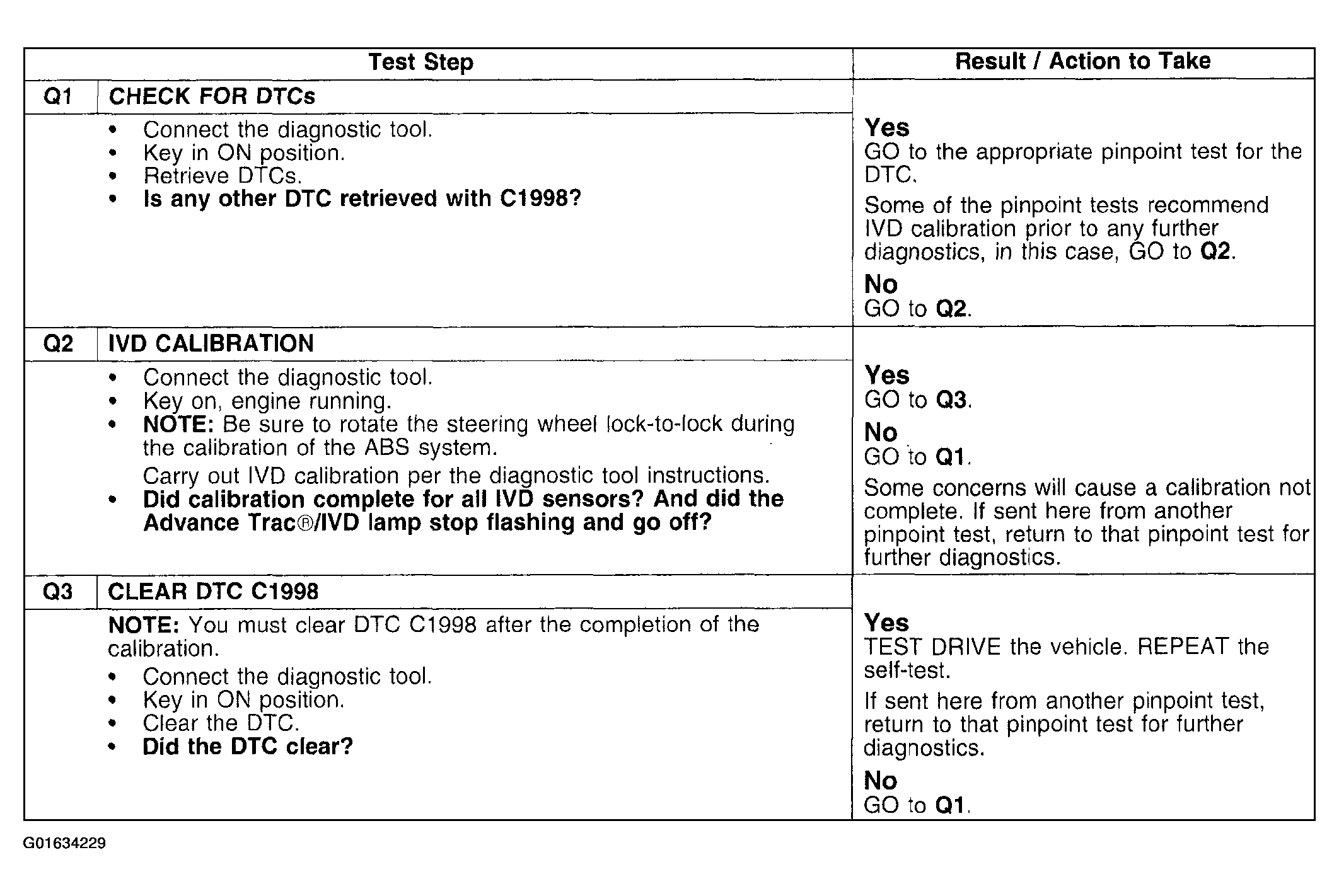

Fig 1: Pinpoint Test Q: DTC C1998 - Module Calibration Not Complete
G01634229Courtesy of FORD MOTOR CO.
