Test Procedure

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Carry out this test only if the front auxiliary climate control assembly correctly operates the PANEL/FLOOR control.

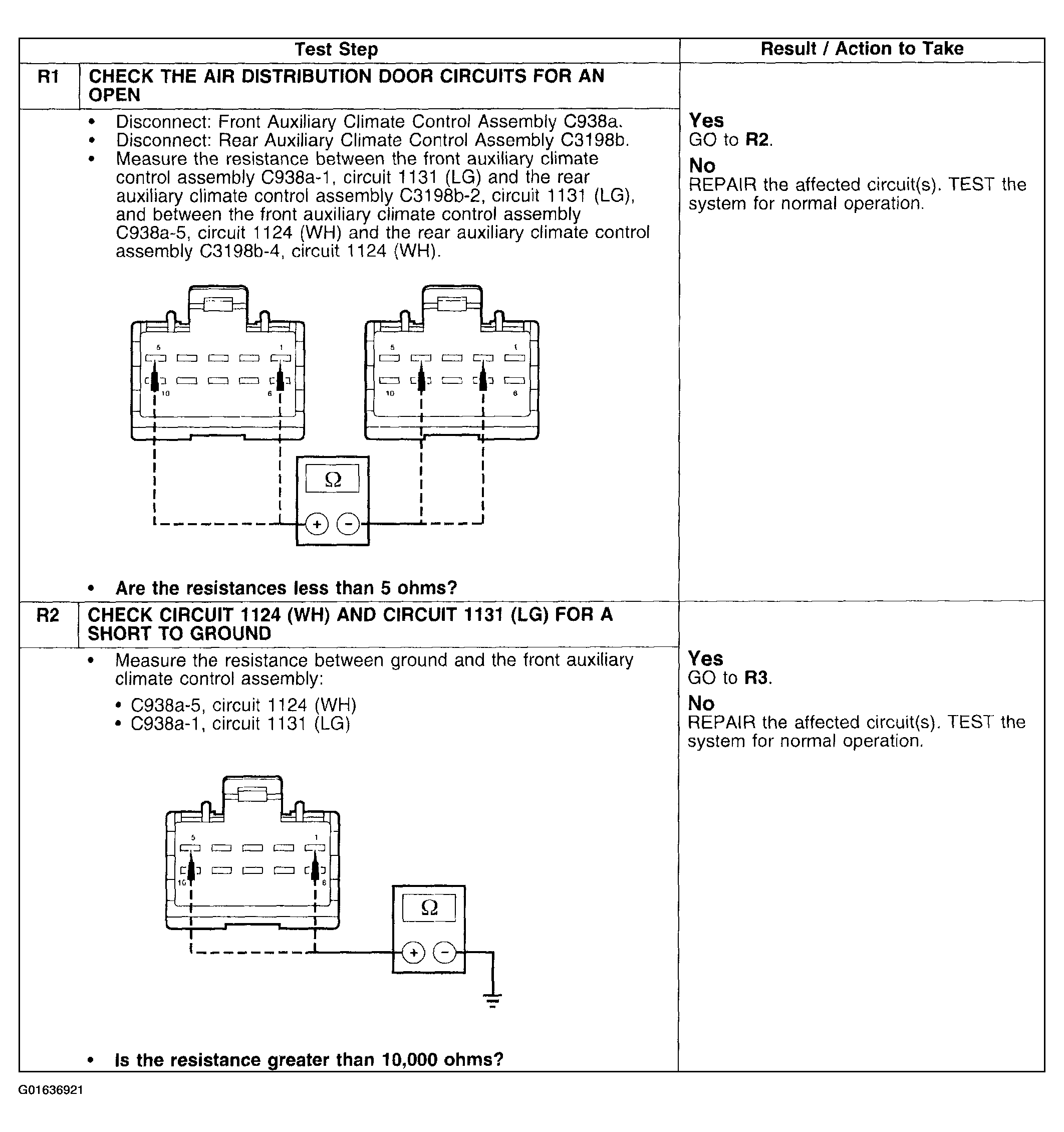

Fig 1: Pinpoint Test R: The Panel/Floor Control Is Inoperative Using The Rear Auxiliary Climate Controls (Steps R1 & R2)

Courtesy of FORD MOTOR CO.

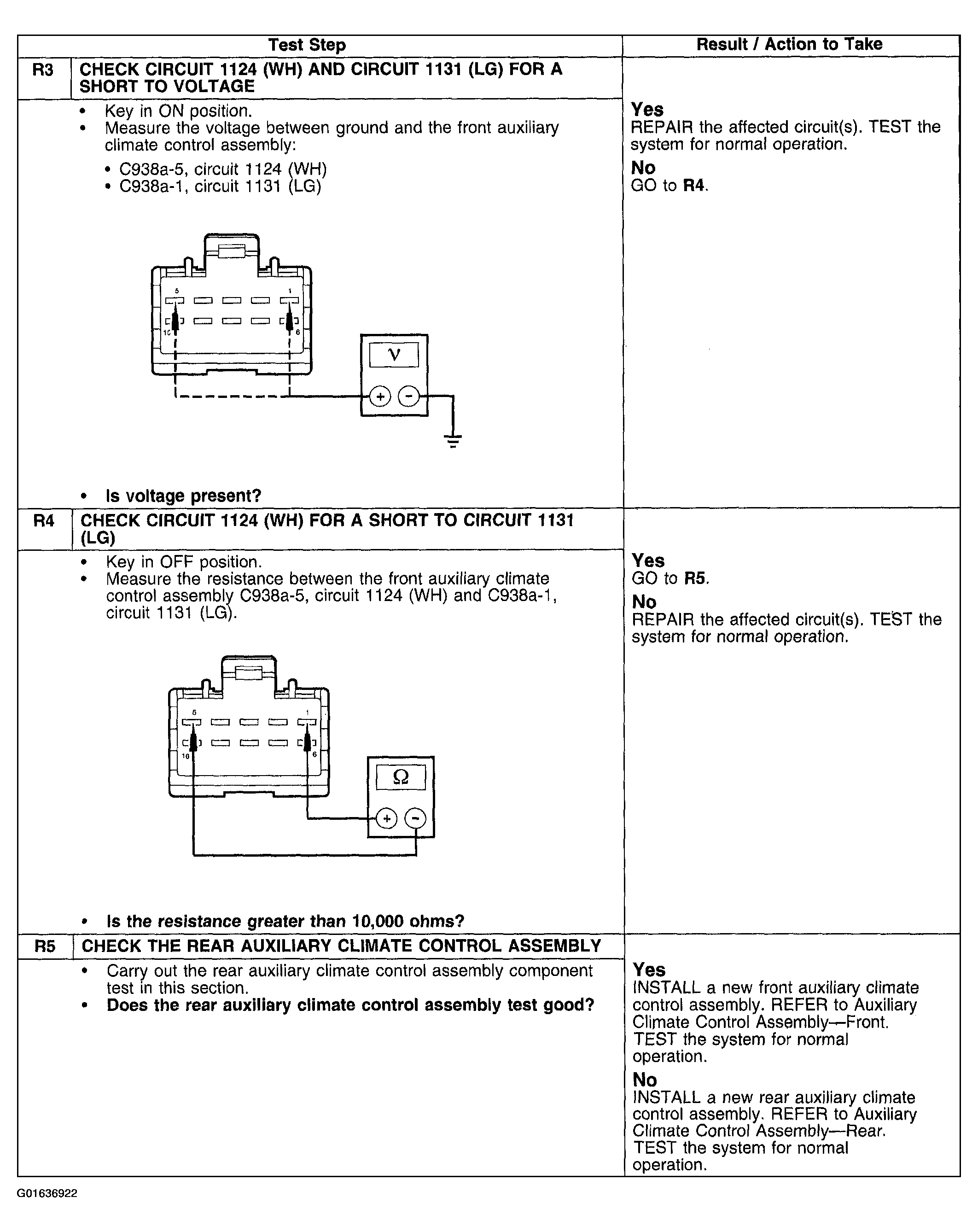

Fig 2: Pinpoint Test R: The Panel/Floor Control Is Inoperative Using The Rear Auxiliary Climate Controls (Steps R3-R5)

Courtesy of FORD MOTOR CO.
