Vacuum Schematic - Dual Automatic Temperature Control System
WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

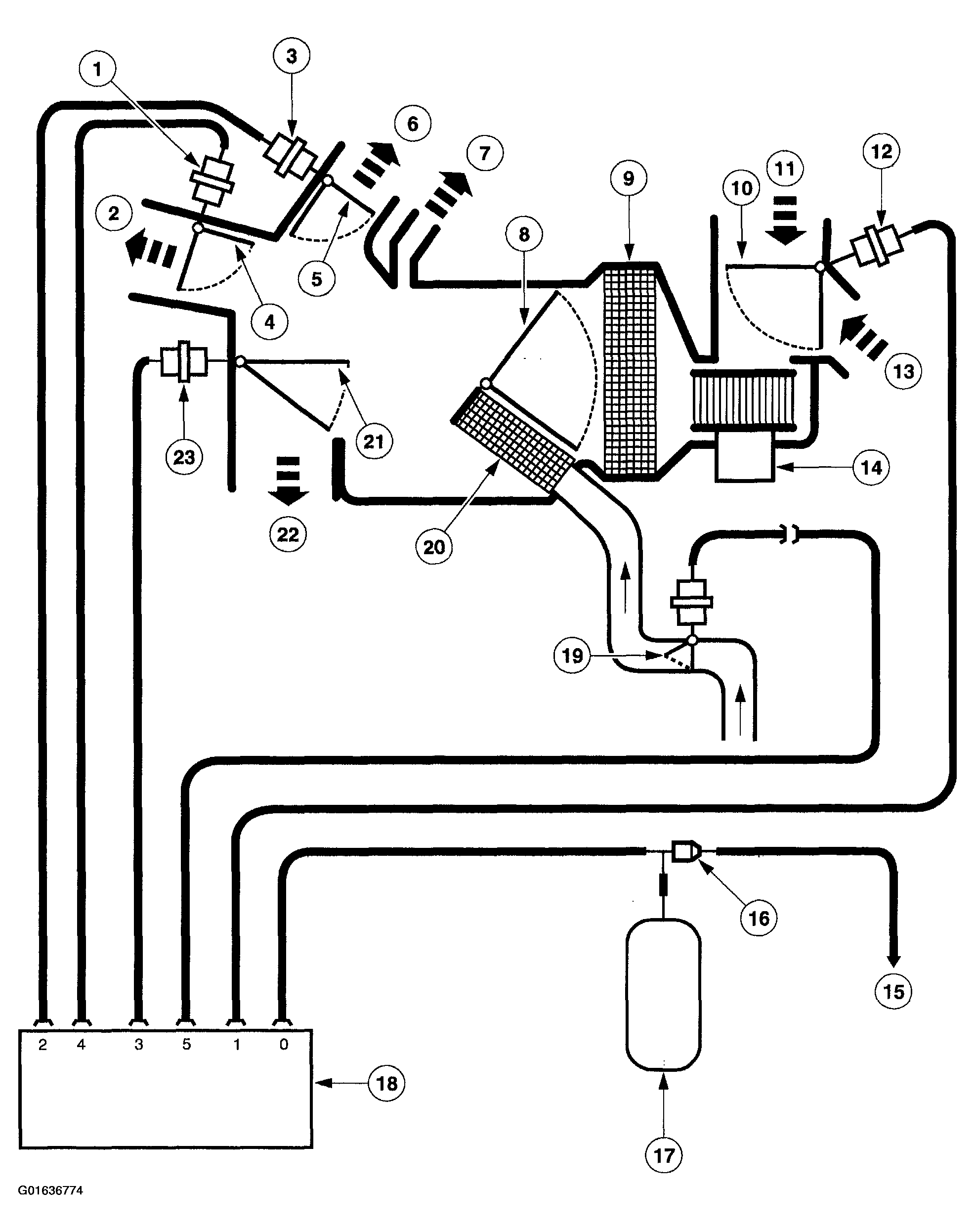

Fig 1: Vacuum Schematic And Dual Automatic Temperature Control System
Courtesy of FORD MOTOR CO.

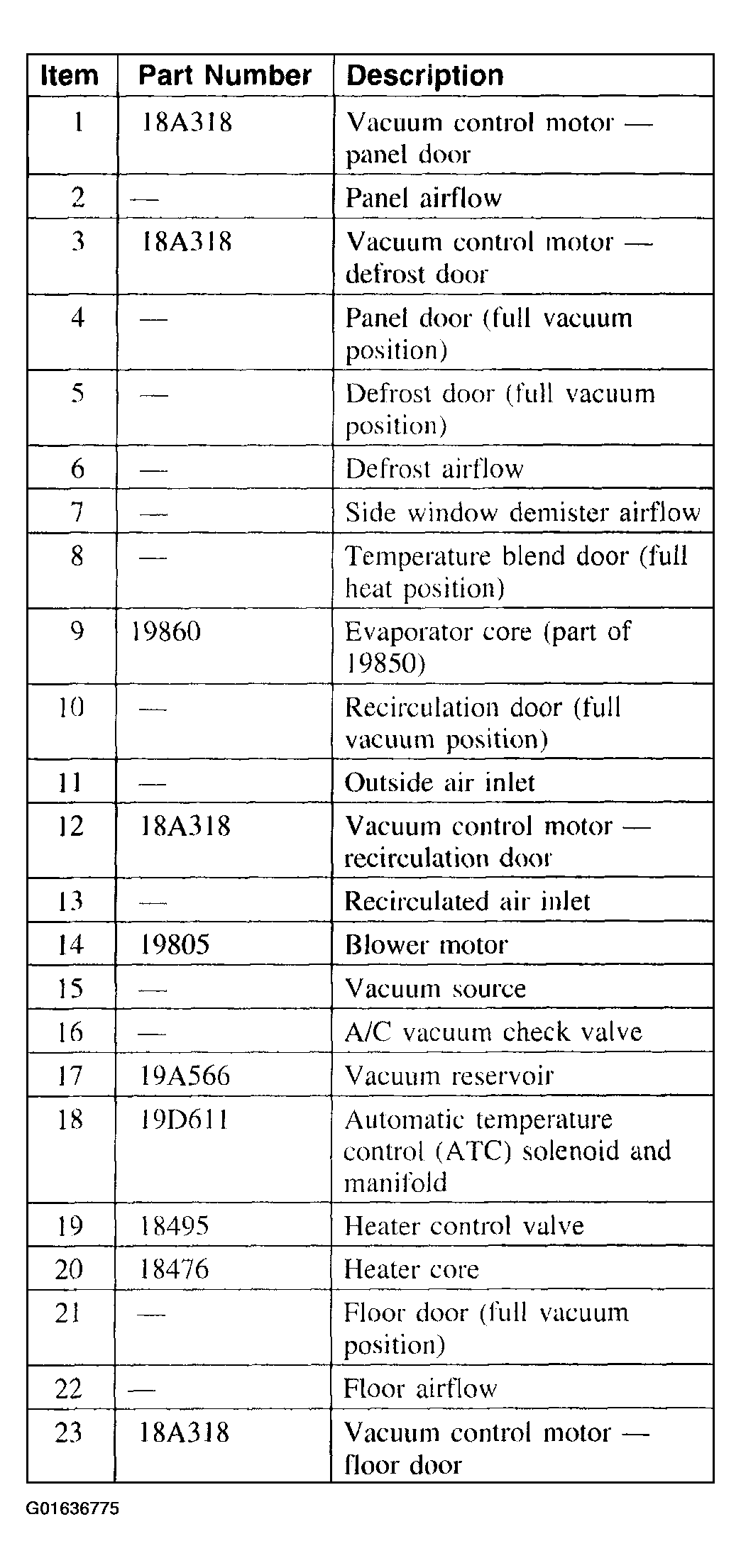

Fig 2: Vacuum Schematic And Dual Automatic Temperature Control System Legend
Courtesy of FORD MOTOR CO.

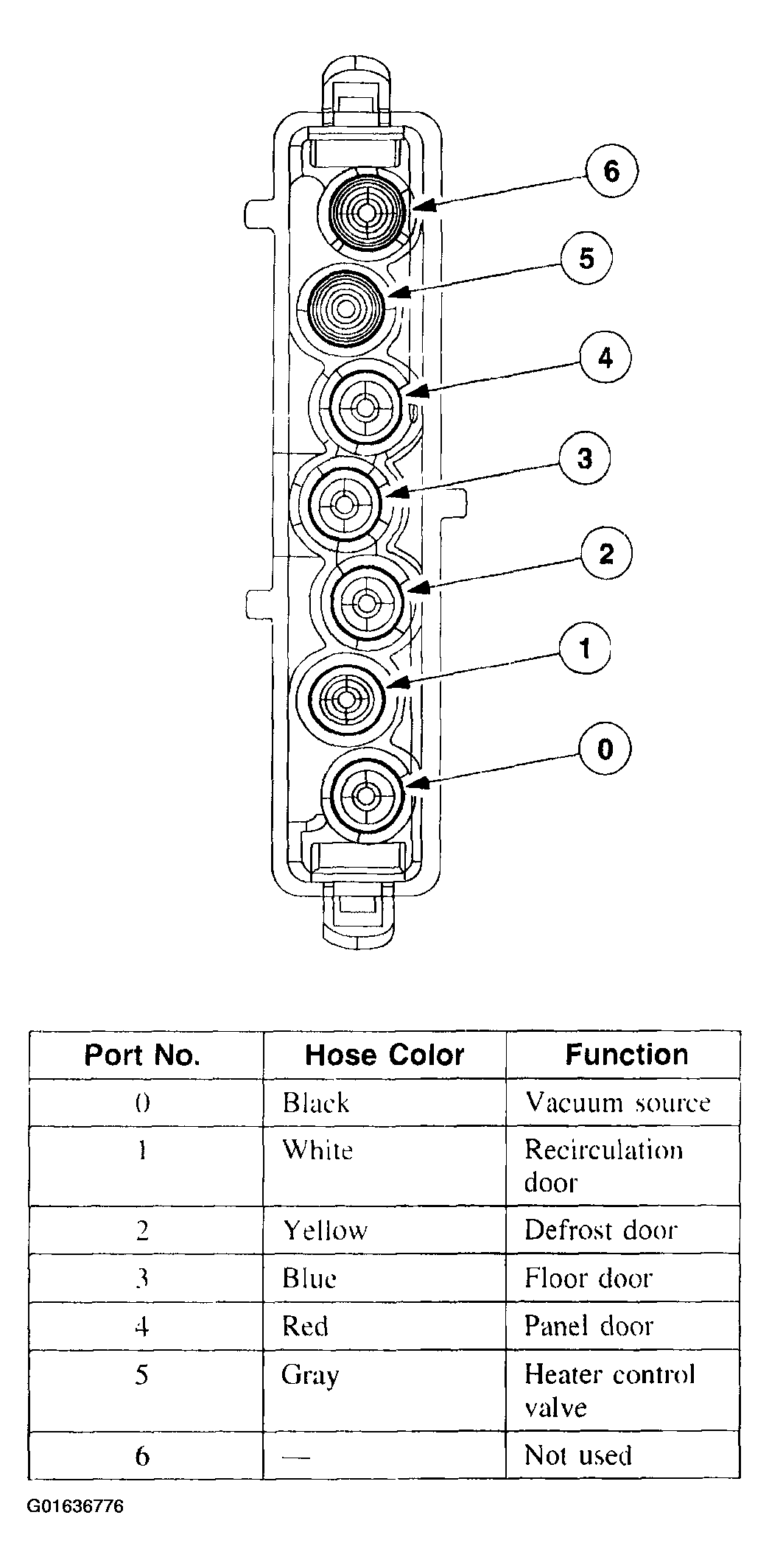

Fig 3: Vacuum Connector End View - Automatic Temperature Control (ATC) Solenoid and Manifold
Courtesy of FORD MOTOR CO.

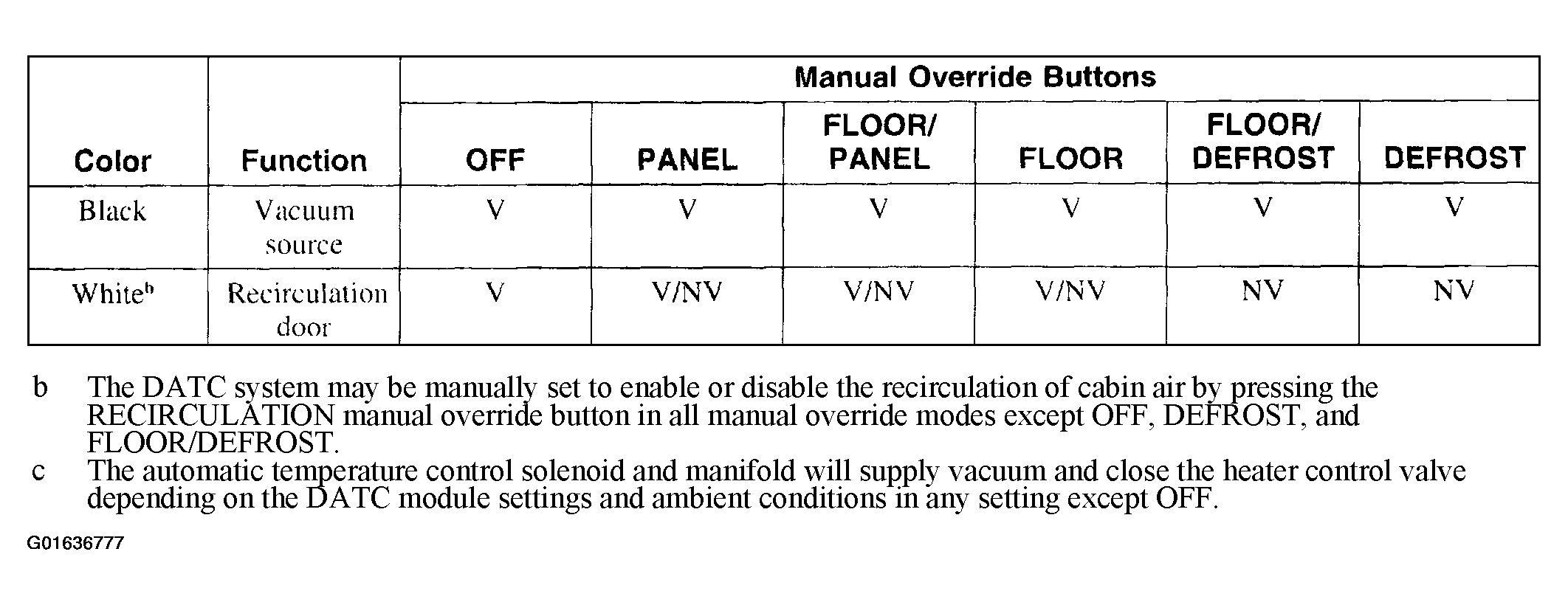

Fig 4: Vacuum Application Chart - Dual Automatic Temperature Control (1 Of 2)
Courtesy of FORD MOTOR CO.

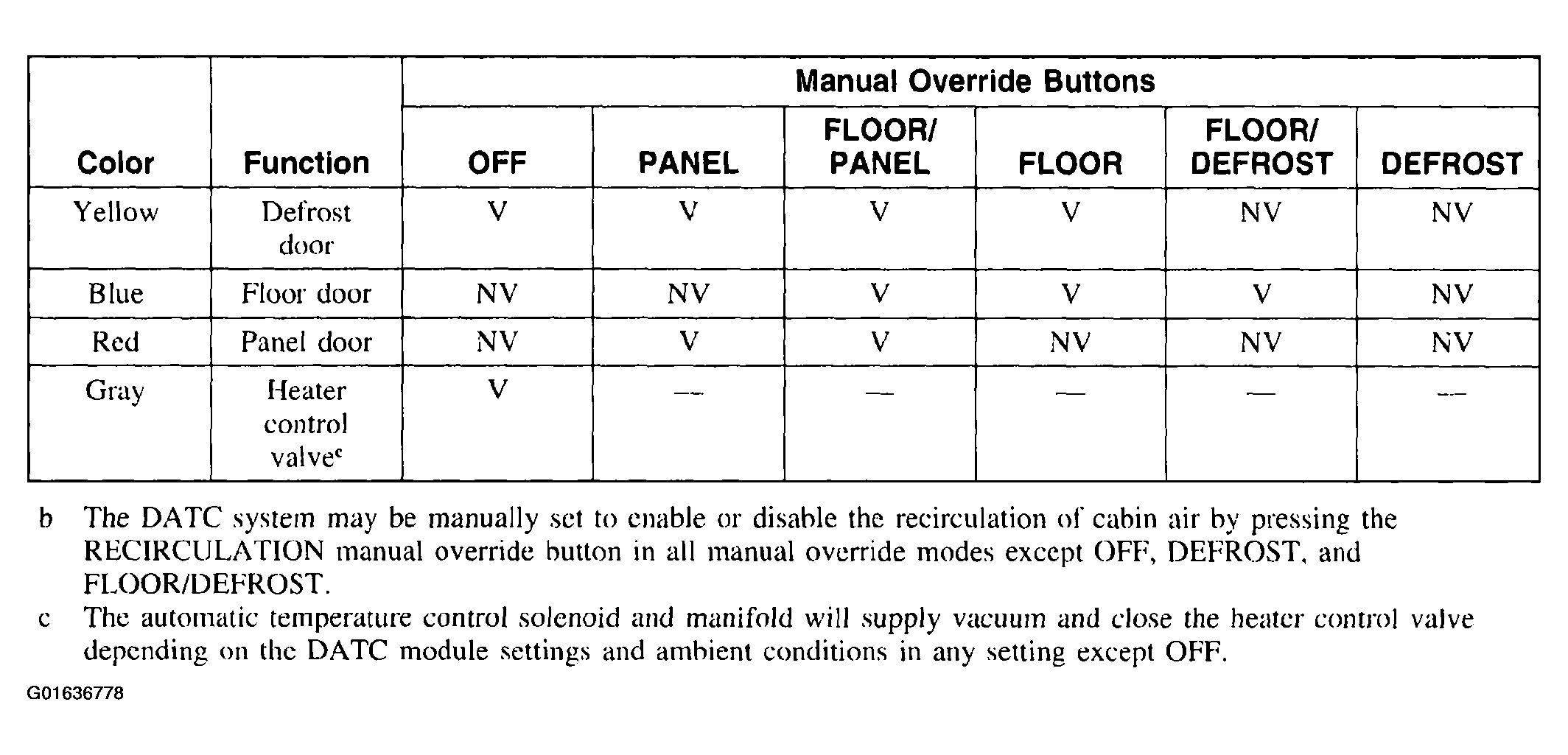

Fig 5: Vacuum Application Chart - Dual Automatic Temperature Control (2 Of 2)
