Connector Circuit Reference

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

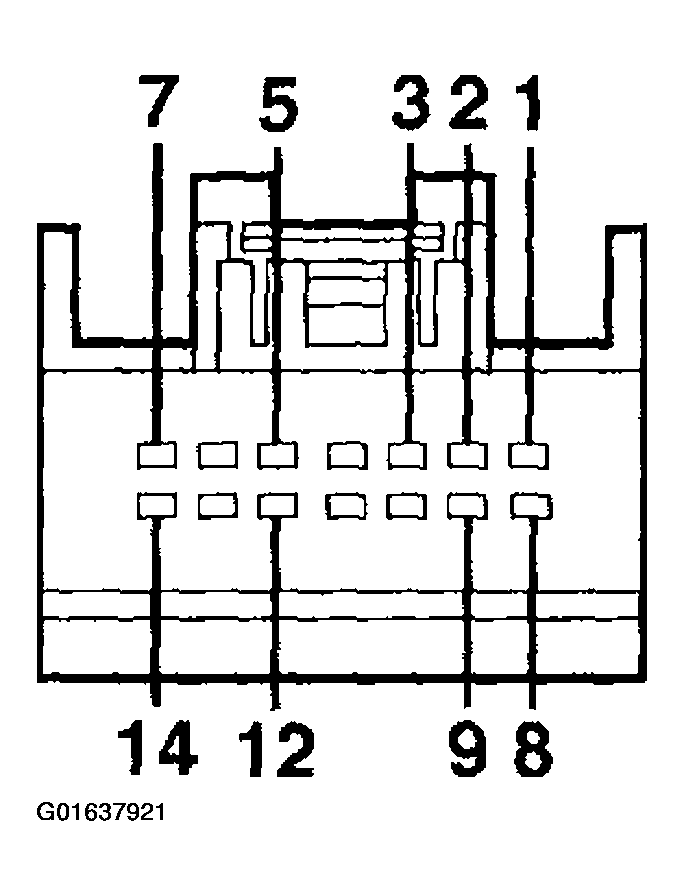

Fig 1: Identifying Navigation System Module C4209 Connector Terminals And Specification (1 Of 3)

Courtesy of FORD MOTOR CO.

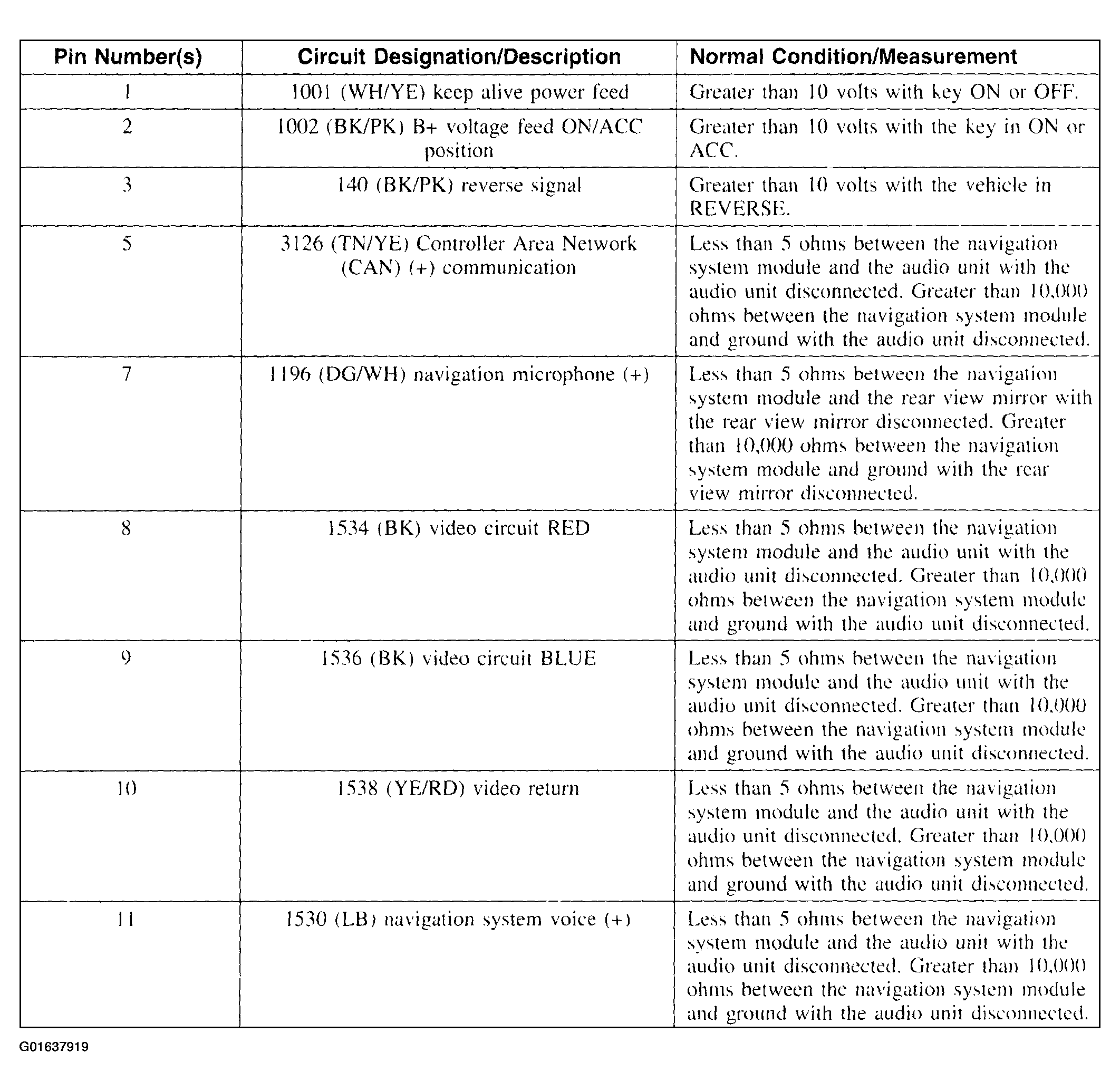

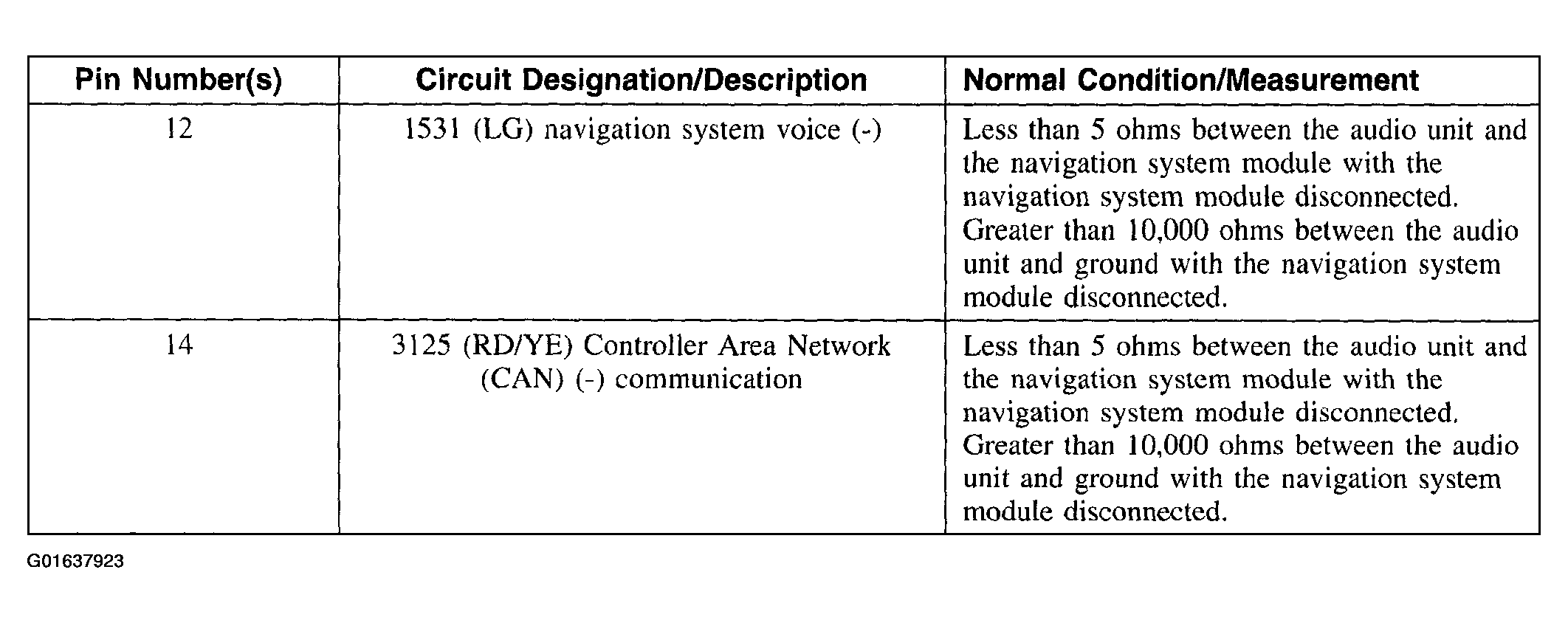

Fig 2: Identifying Navigation System Module C4209 Connector Terminals And Specification (2 Of 3)

Courtesy of FORD MOTOR CO.

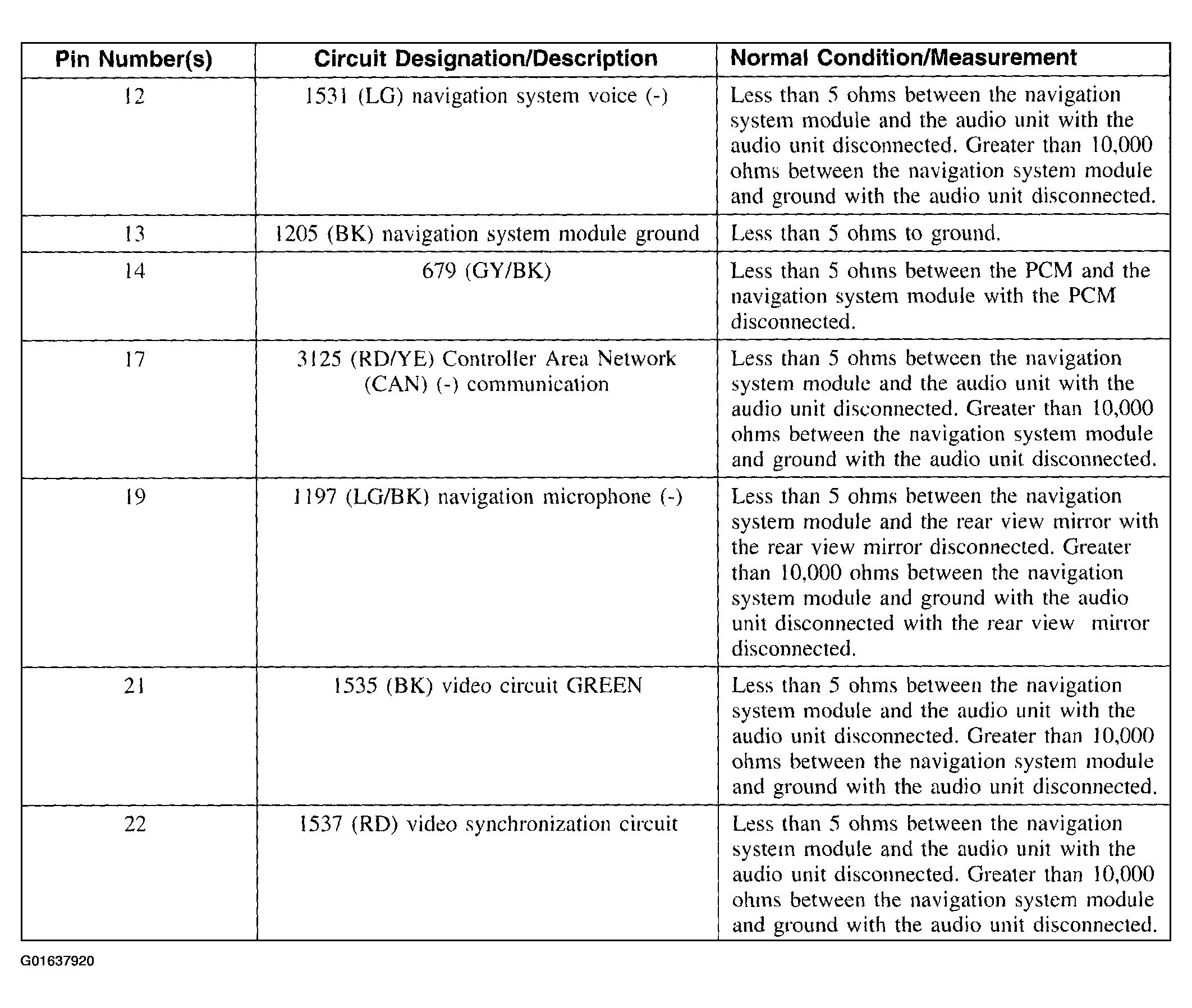

Fig 3: Identifying Navigation System Module C4209 Connector Terminals And Specification (3 Of 3)

Courtesy of FORD MOTOR CO.

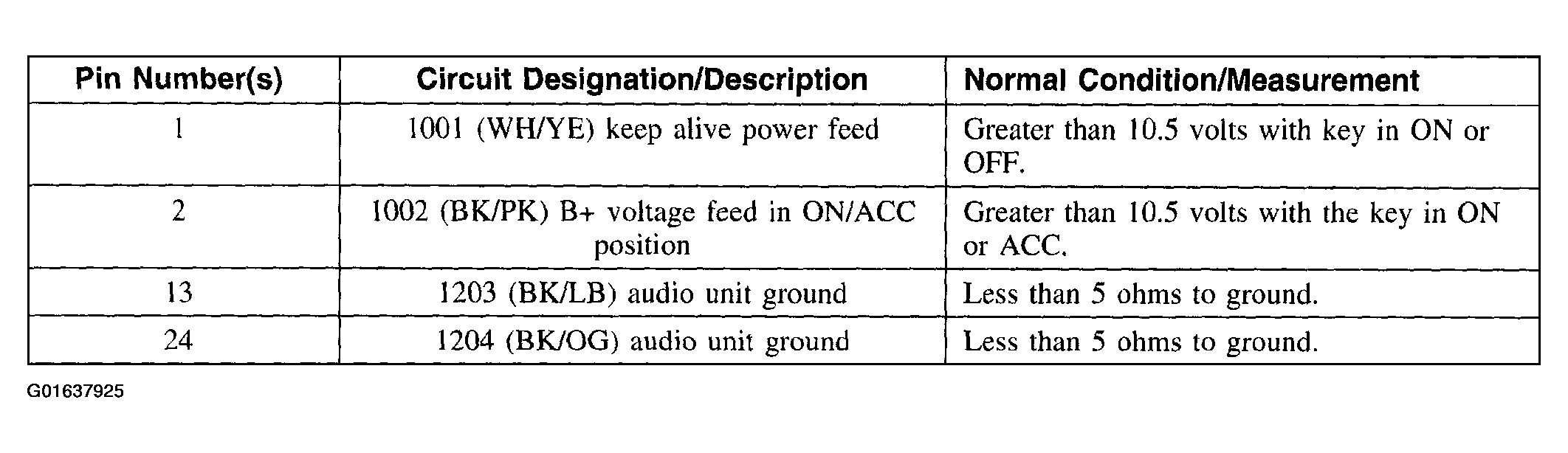

Fig 4: Identifying Audio Unit C2253a Connector Terminals And Specification (1 Of 3)

Courtesy of FORD MOTOR CO.

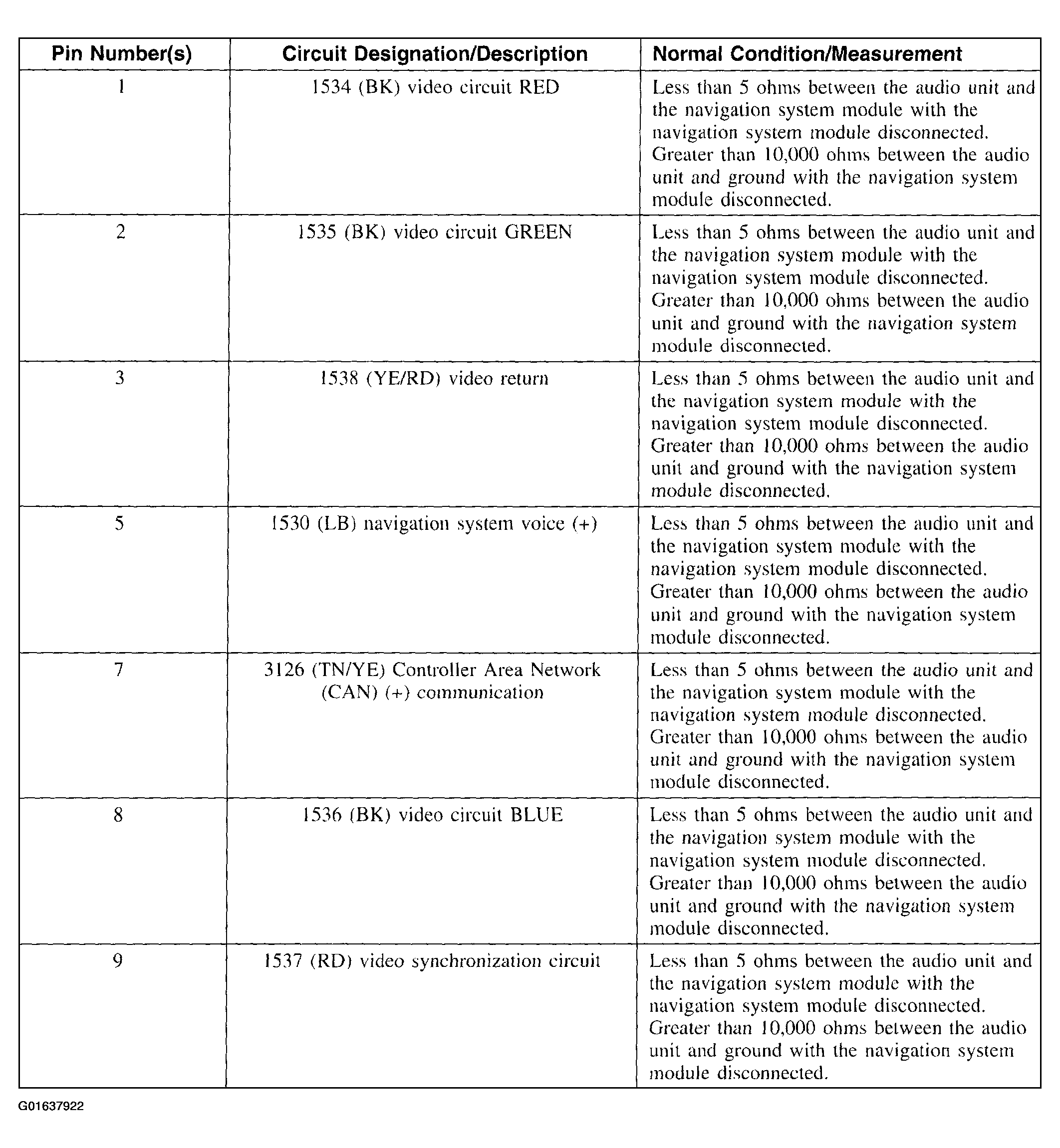

Fig 5: Identifying Audio Unit C2253a Connector Terminals And Specification (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Audio Unit C2253a Connector Terminals And Specification (3 Of 3)

Courtesy of FORD MOTOR CO.

Fig 7: Identifying Audio Unit C2253c Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 8: Identifying Audio Unit C2253c Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 9: Identifying Rear View Mirror C911 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

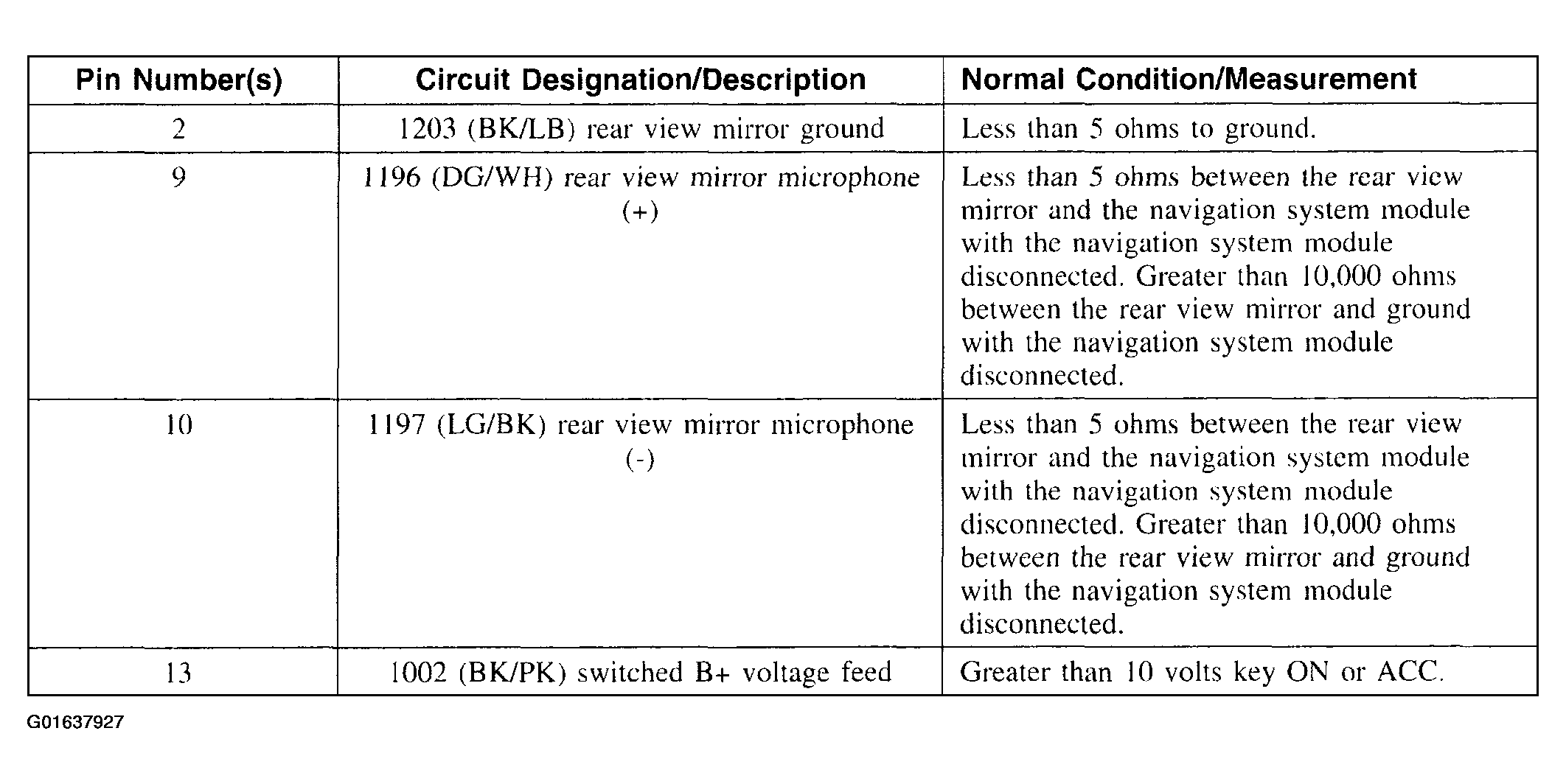

Fig 10: Identifying Rear View Mirror C911 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

Fig 11: Identifying Digital Transmission Range Selector C167 Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

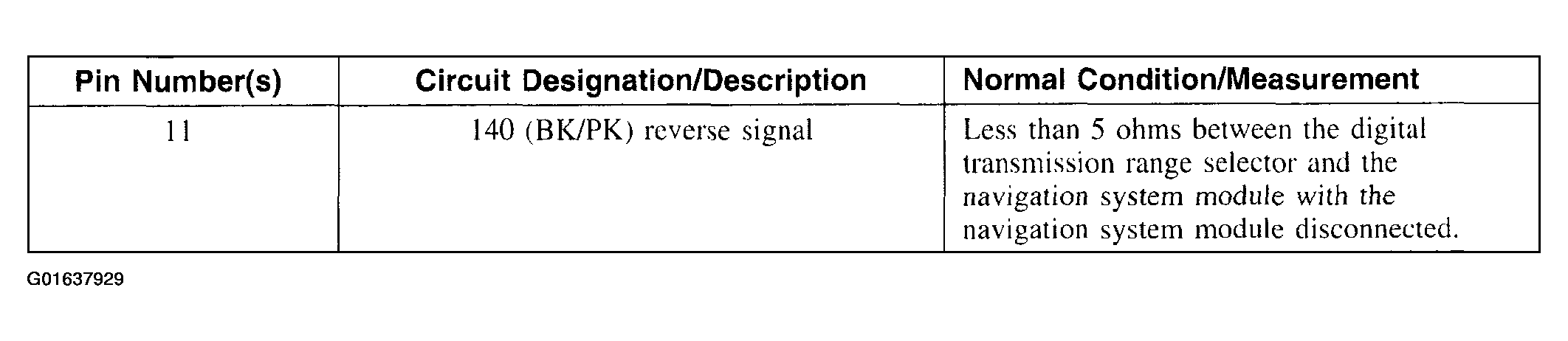

Fig 12: Identifying Digital Transmission Range Selector C167 Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.

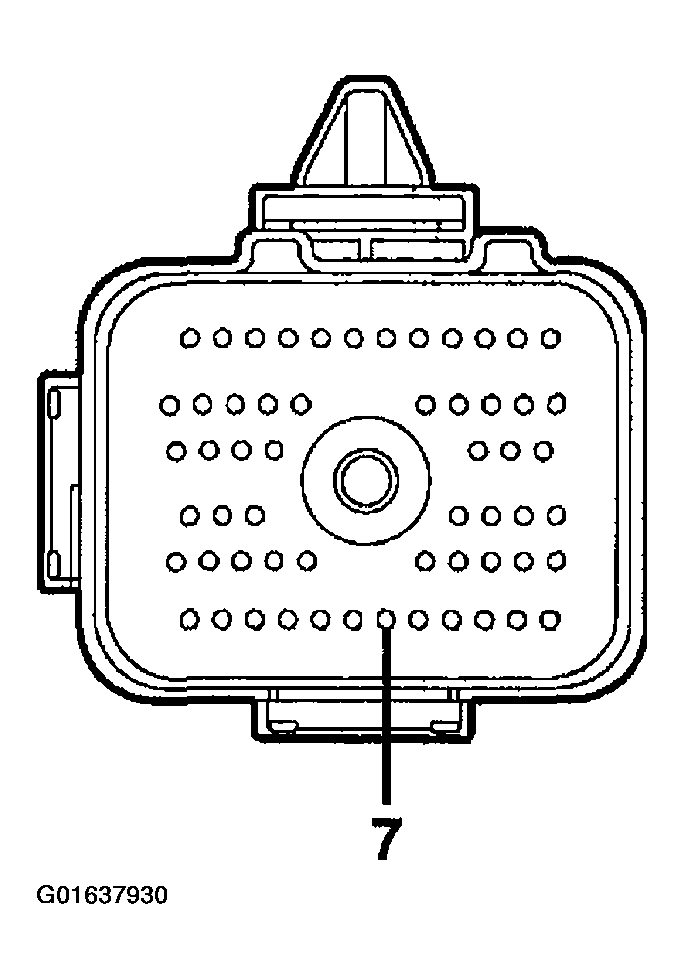

Fig 13: Identifying Powertrain Control Module C175b Connector Terminals And Specification (1 Of 2)

Courtesy of FORD MOTOR CO.

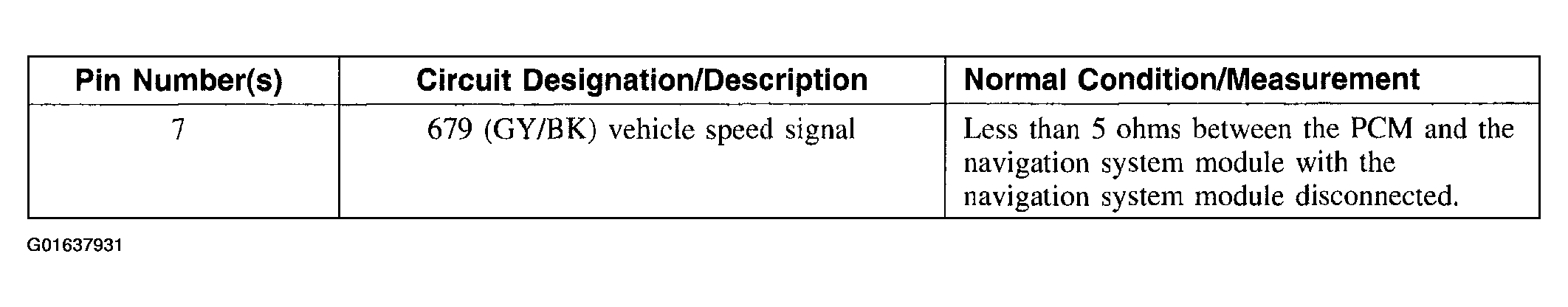

Fig 14: Identifying Powertrain Control Module C175b Connector Terminals And Specification (2 Of 2)

Courtesy of FORD MOTOR CO.
