Navigation System Module

WARNING: This page is about a different car, the 2003 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

NOTE: Prior to removal of the navigation system module, it is necessary to remove the digital versatile disc (DVD) from the navigation system module and store it in the customer case.

Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM .
Remove the third row child safety seat tether anchor. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .

NOTE: The navigation system module assembly must be pulled straight back out of the floor panel before positioning aside.

Position the navigation system module assembly aside.
Remove the components in the order indicated in the following illustration.

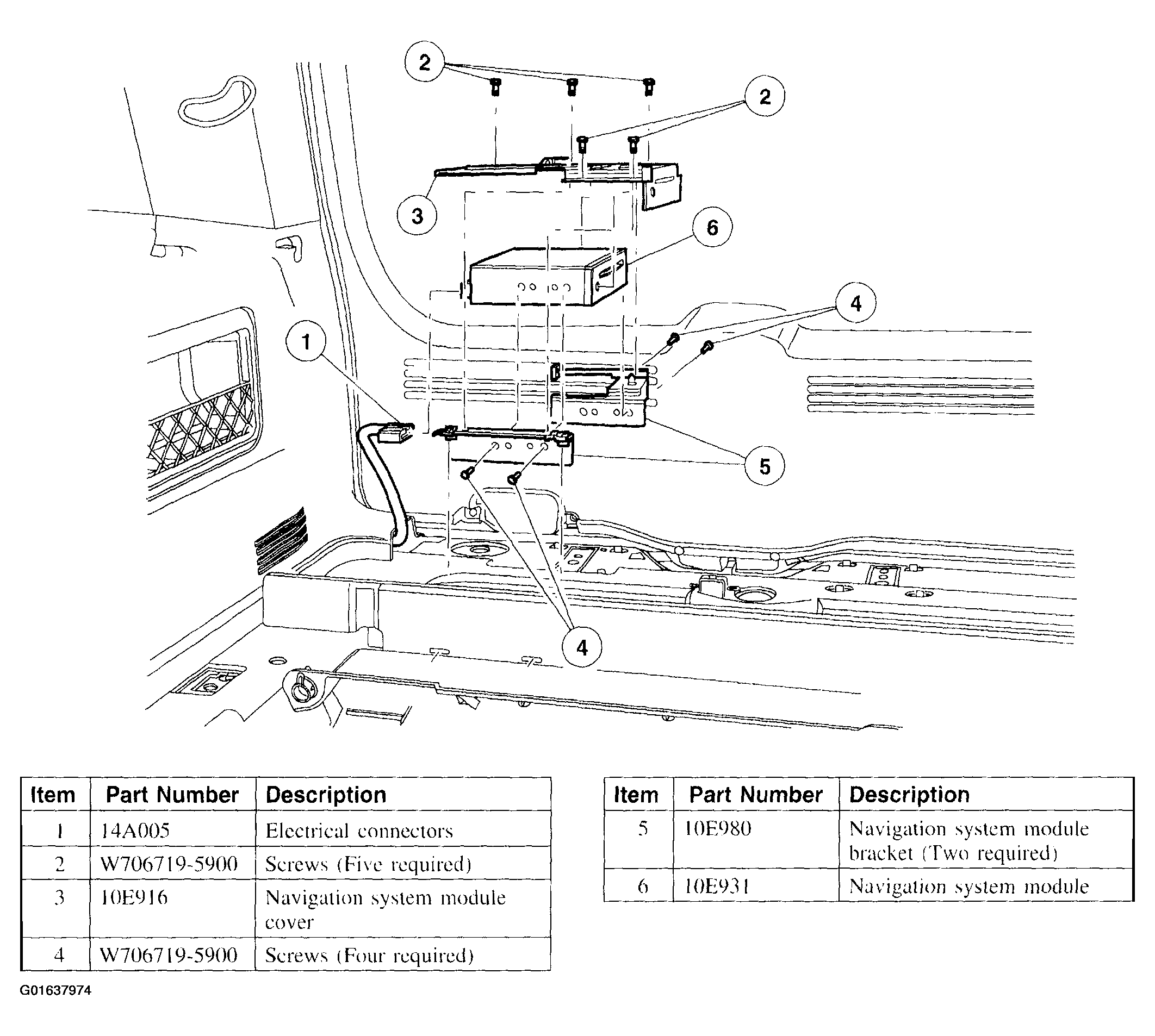

Fig 1: Removal Sequence Of Navigation System Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
