Engine Component View

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

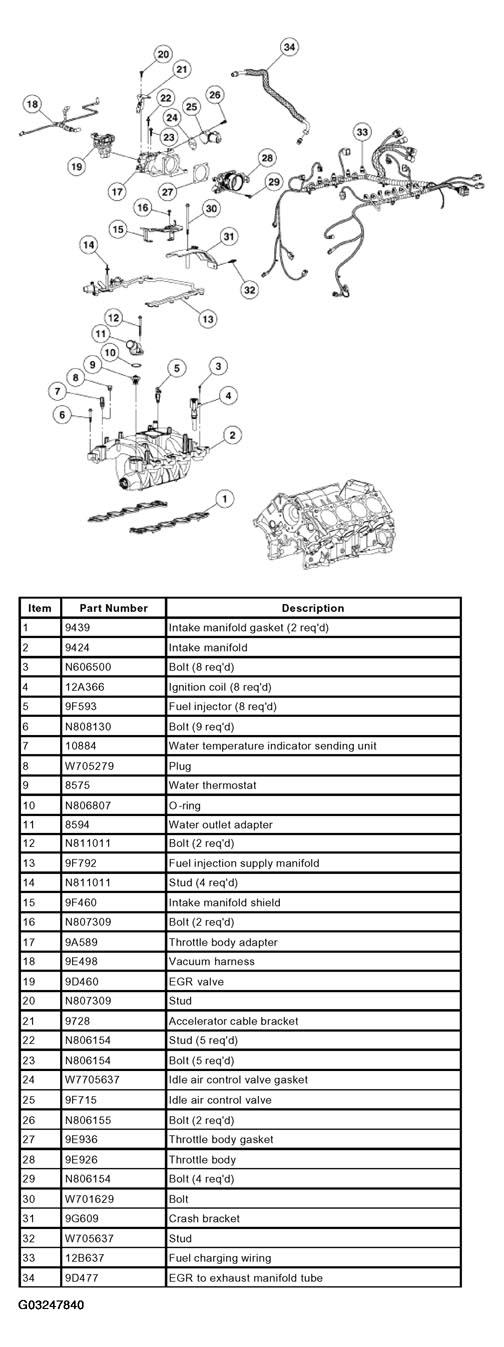

Fig 1: Identifying Intake Manifold & Associated Components

Courtesy of FORD MOTOR CO.

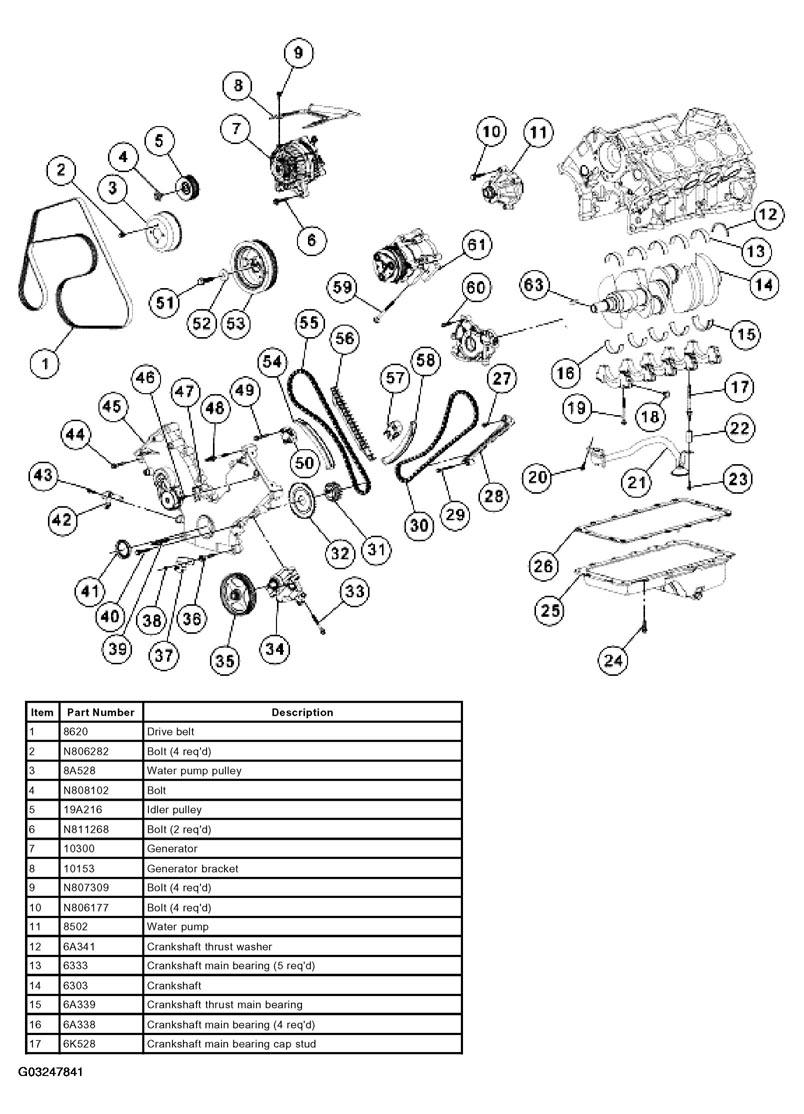

Fig 2: Identifying Engine Timing & Accessory Drive Components (Items 1-17)

Courtesy of FORD MOTOR CO.

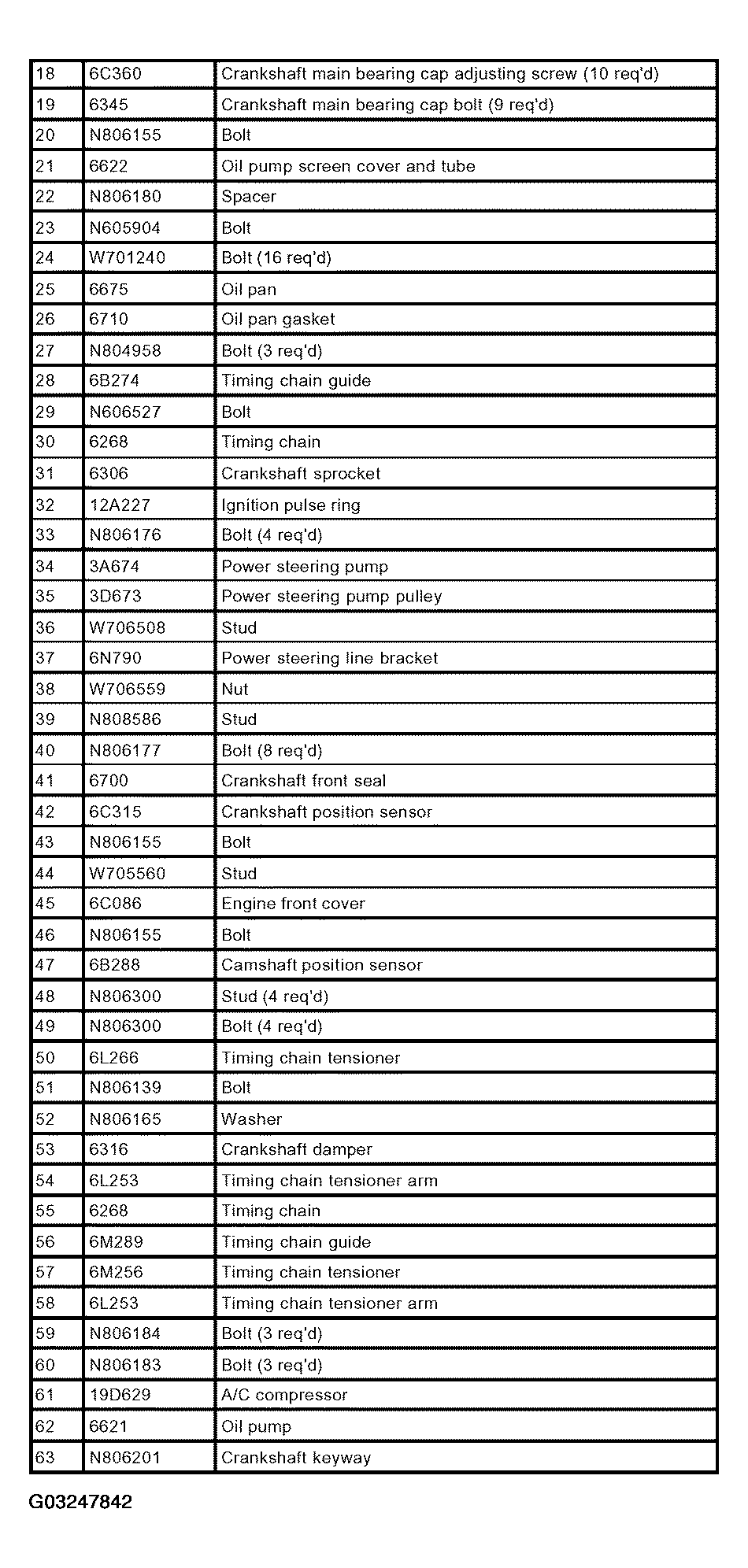

Fig 3: Identifying Engine Timing & Accessory Drive Components (Items 18-63)

Courtesy of FORD MOTOR CO.

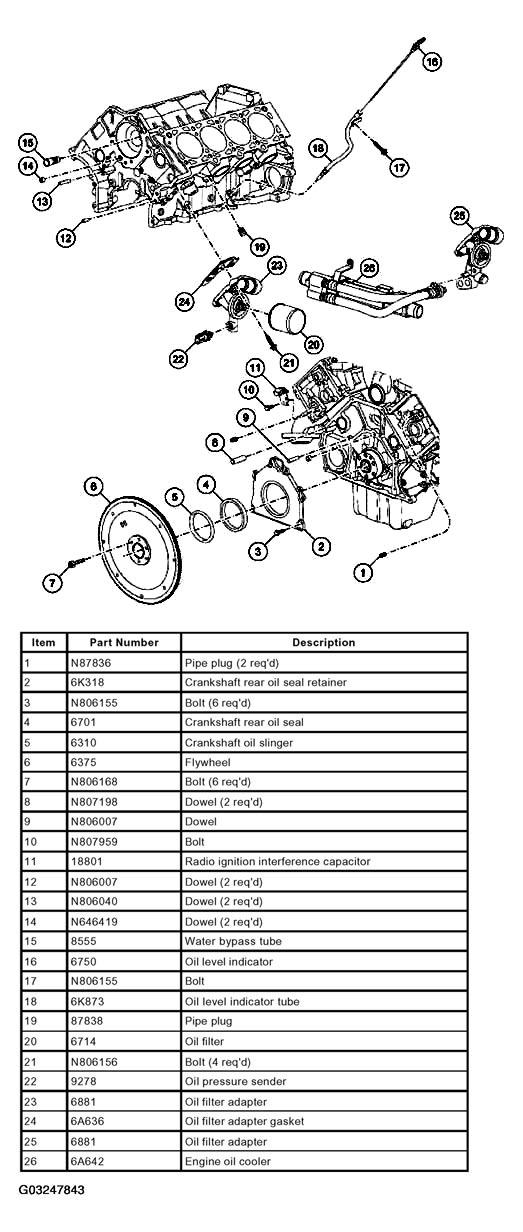

Fig 4: Identifying Engine Filtration & Rear Main Components

Courtesy of FORD MOTOR CO.

Fig 5: Identifying Engine Block & Cylinder Head Components (Items 1-11)

Courtesy of FORD MOTOR CO.

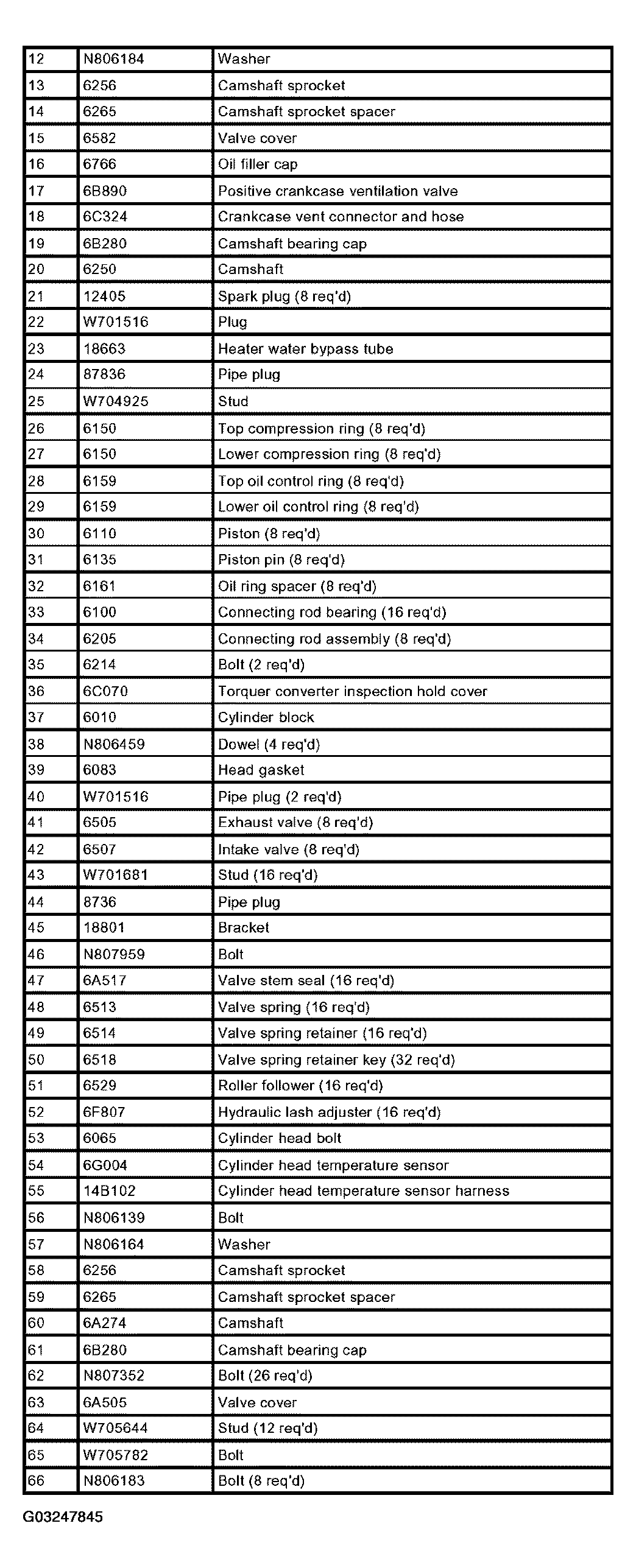

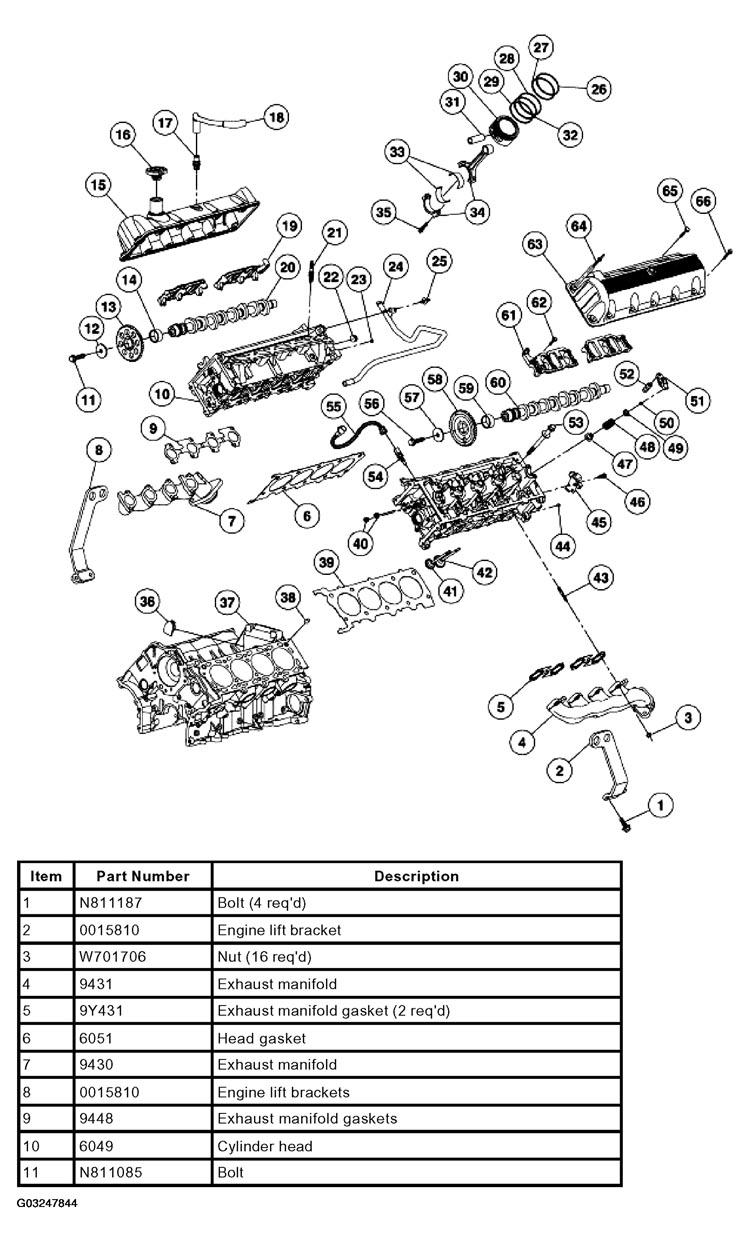

Fig 6: Identifying Engine Block & Cylinder Head Components (Items 12-66)

Courtesy of FORD MOTOR CO.
