Section 476 (Engine): Removal: Engine

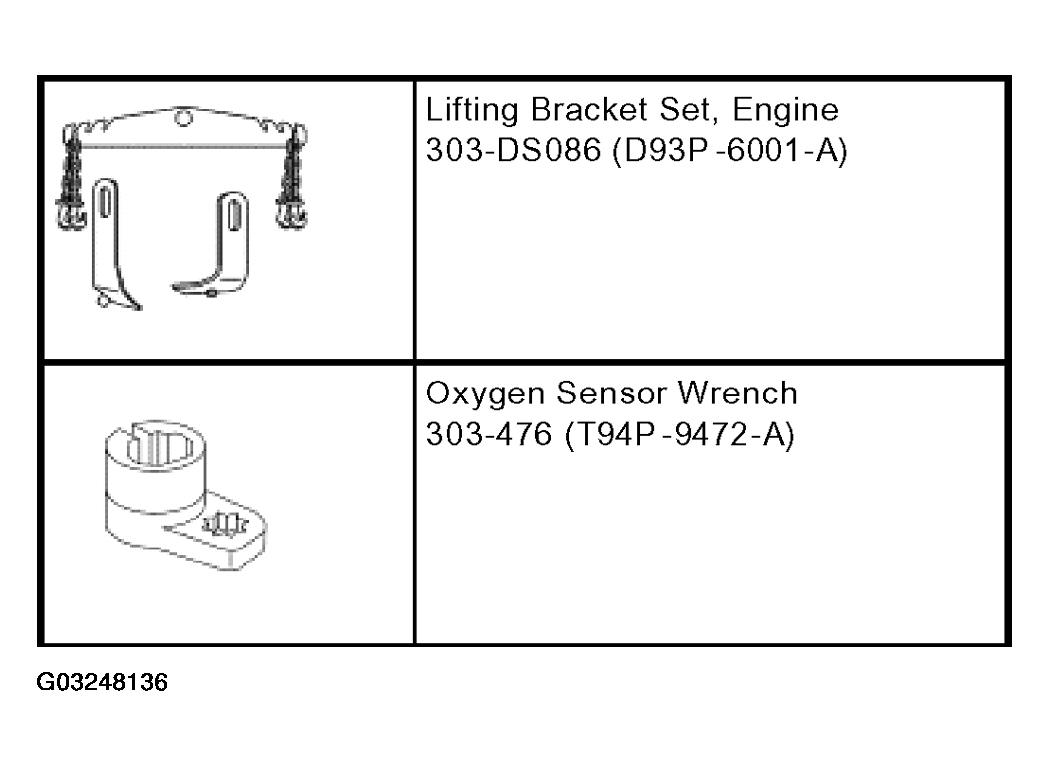

Special Tool(s)

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Remove the hood.
2. Disconnect both battery cables. For additional information, refer to BATTERY, MOUNTING AND CABLES .
3. Remove the air cleaner and outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
4. Remove the wiper mounting arm and pivot shaft. For additional information, refer to WIPERS AND WASHERS .
5. Remove the accessory drive belt. .

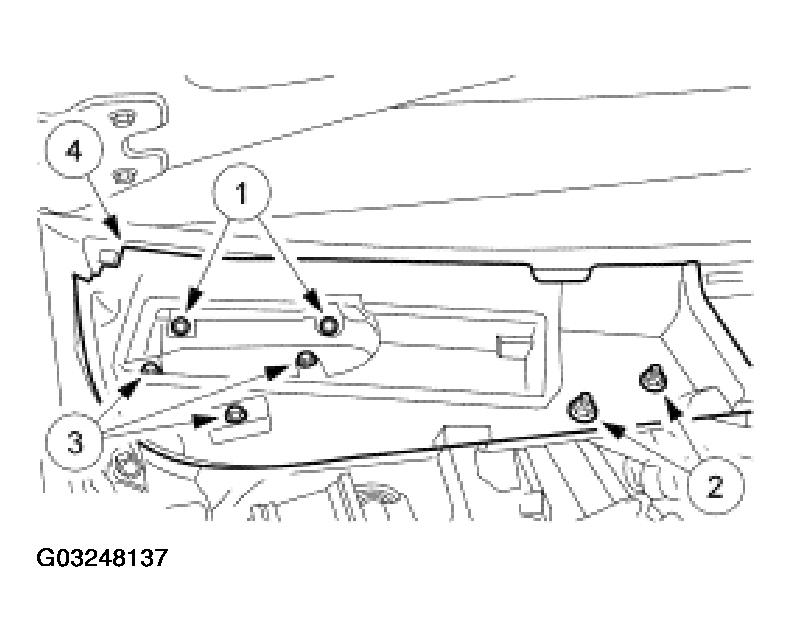

6. Remove the RH cowl extension.
   1. Remove the pin-type retainers.
   2. Remove the nuts.
   3. Remove the bolts.
   4. Remove the extension.
   Fig 2: Removing RH Cowl Extension

   Courtesy of FORD MOTOR CO.

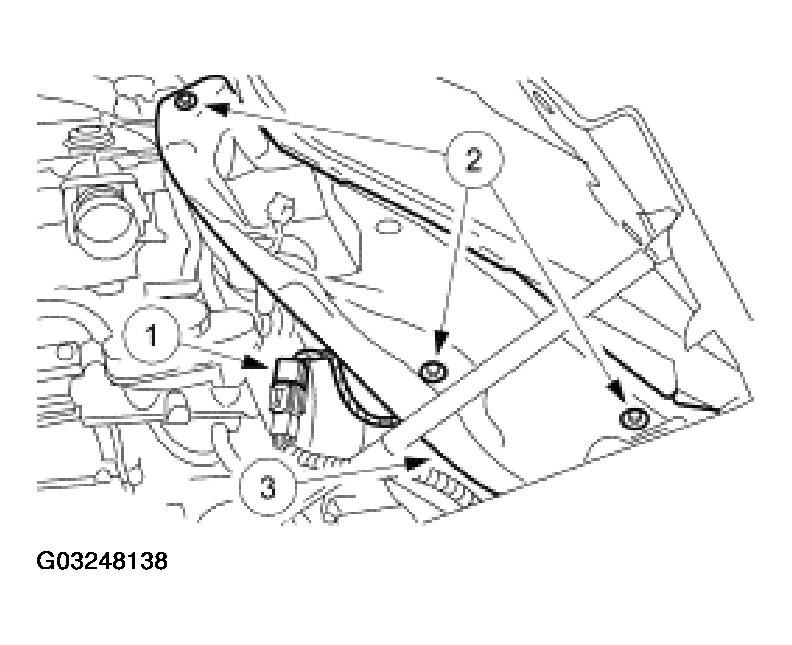

7. Remove the LH cowl extension.
   1. Disconnect the electrical connector.
   2. Remove the bolts.
   3. Remove the extension.
   Fig 3: Removing LH Cowl Extension

   Courtesy of FORD MOTOR CO.
8. Drain the engine cooling system. For additional information, refer to ENGINE COOLING .

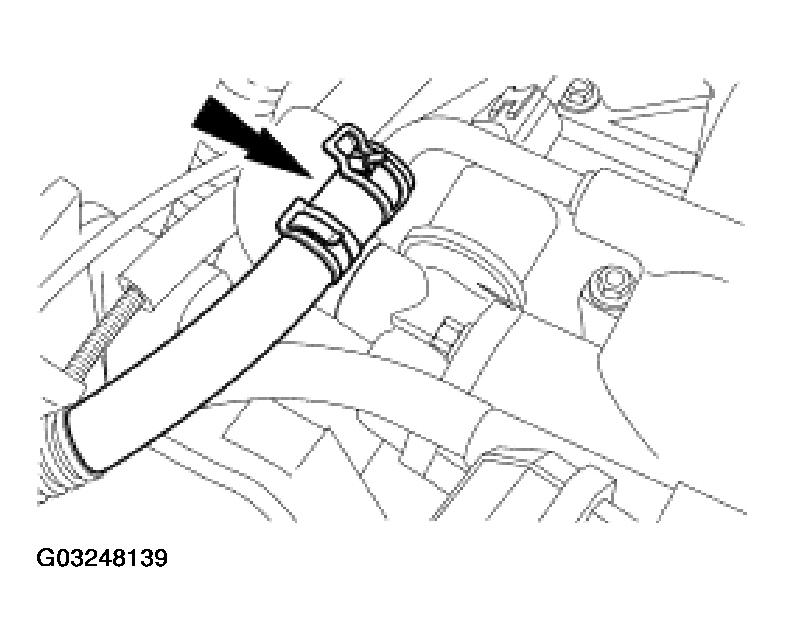

9. Disconnect the vacuum hose.
   Fig 4: Disconnecting Vacuum Hose

   Courtesy of FORD MOTOR CO.

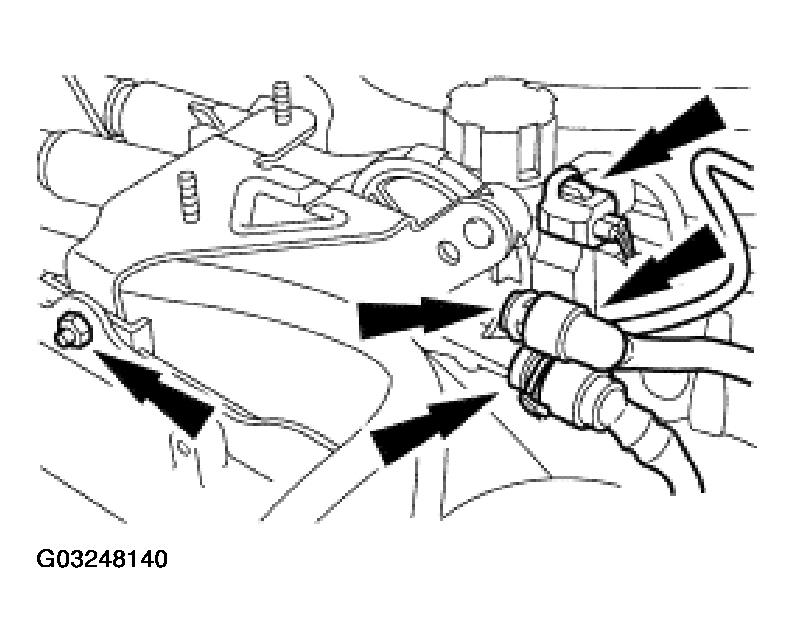

10. Remove the evaporative emission (EVAP) canister purge valve.
    • Disconnect the three hoses.
    • Disconnect the electrical connector.
    • Remove the nut and the evaporative emission canister purge valve.
    Fig 5: Removing Evaporative Emission (EVAP) Canister Purge Valve

    Courtesy of FORD MOTOR CO.

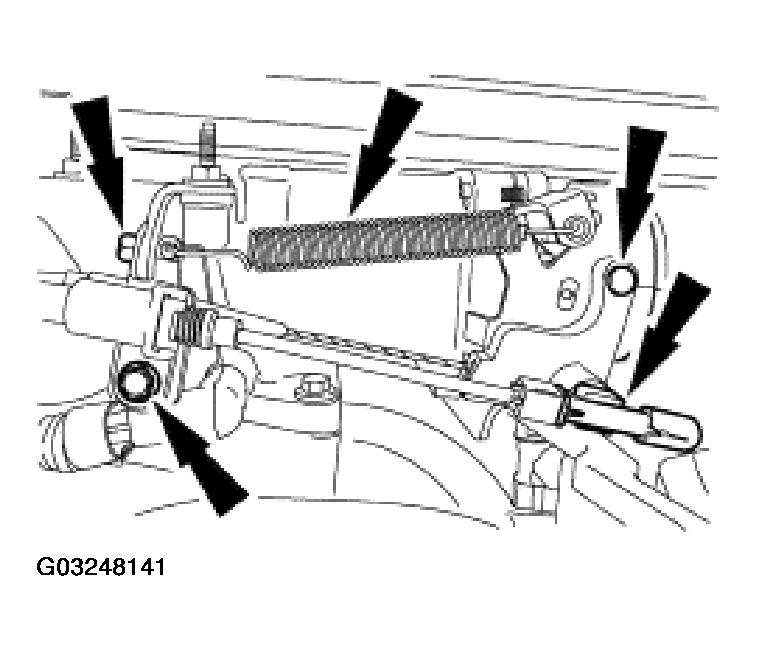

11. Disconnect the accelerator cable and the speed control actuator cable.
    • Remove the bolts.
    • Disconnect the cables.
    Fig 6: Disconnecting Accelerator Cable And Speed Control Actuator Cable

    Courtesy of FORD MOTOR CO.

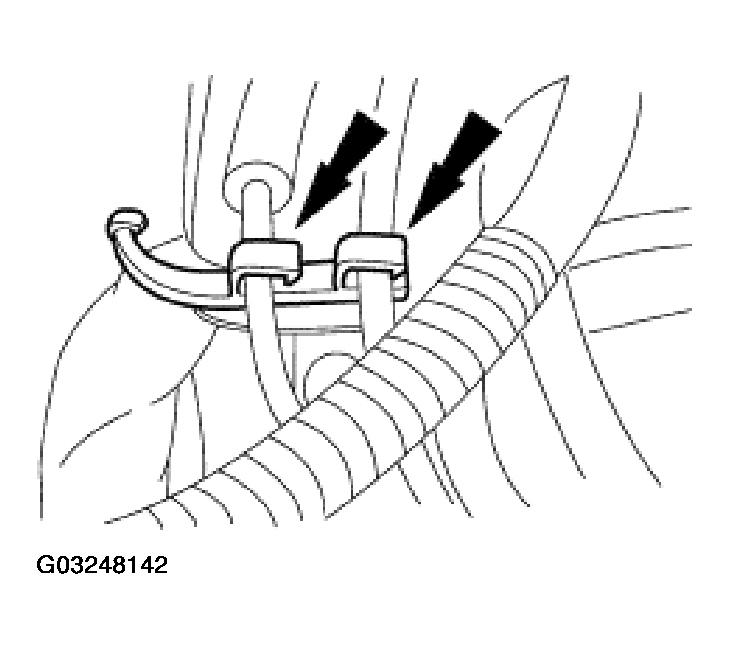

12. Remove the accelerator cable and the speed control actuator cable from the clips and position out of the way.

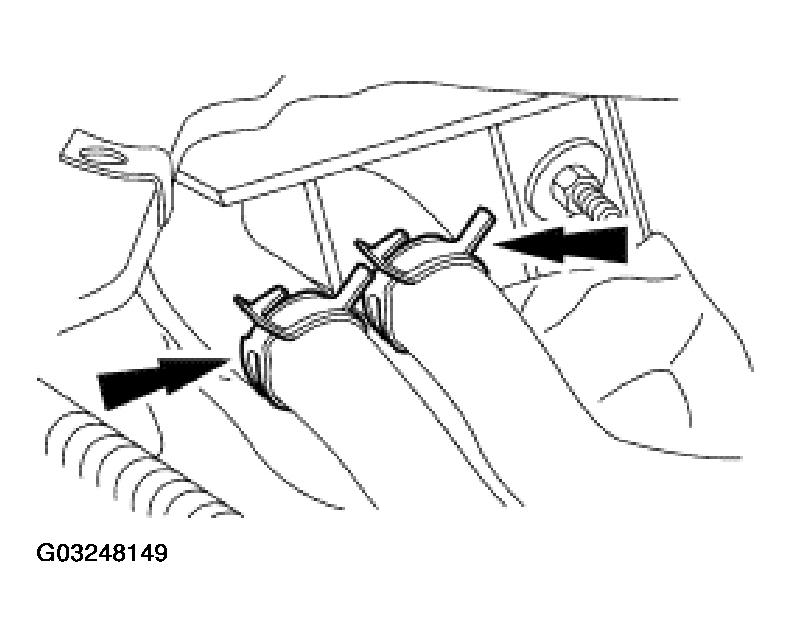

    Fig 7: Removing Accelerator Cable And Speed Control Actuator Cable From Clips

    Courtesy of FORD MOTOR CO.
13. Disconnect the fuel spring lock connector. For additional information, refer to FUEL TANK & LINES .

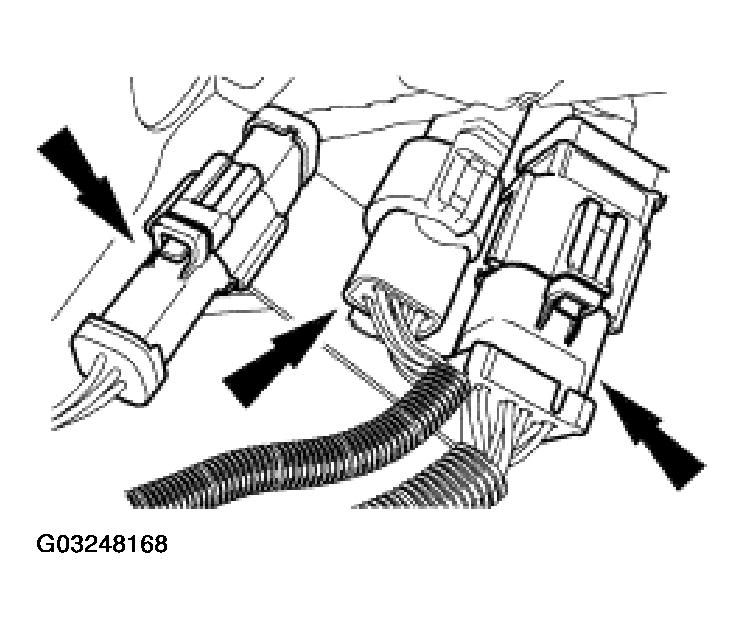

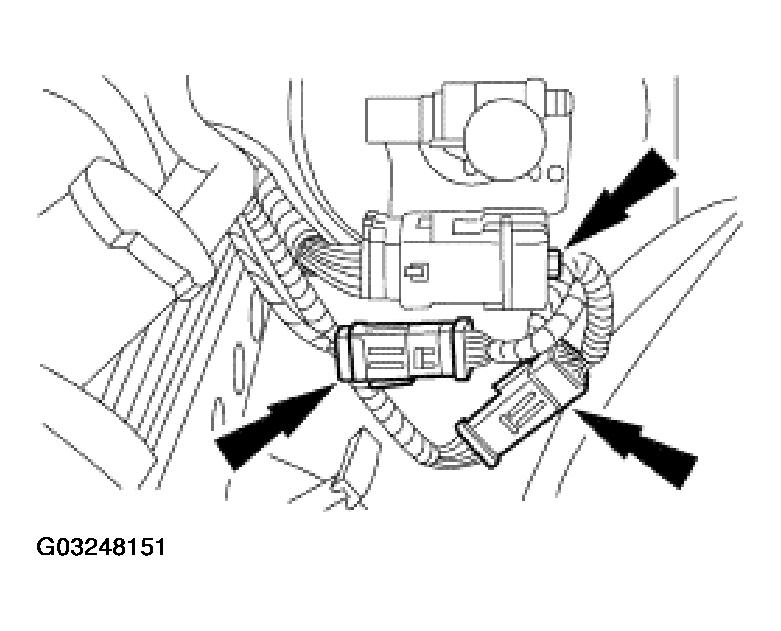

14. Disconnect the electrical connectors.
    Fig 8: Disconnecting Electrical Connectors

    Courtesy of FORD MOTOR CO.

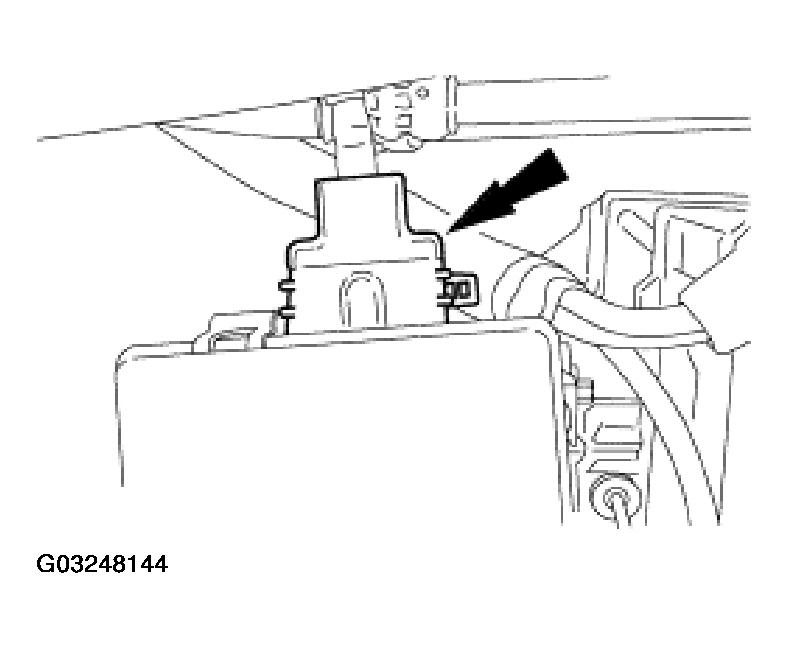

15. Remove the electrical connection cover.
    Fig 9: Removing Electrical Connection Cover

    Courtesy of FORD MOTOR CO.
16. Disconnect the power distribution power supply electrical connector.
    Fig 10: Disconnecting Power Distribution Power Supply Electrical Connector

    Courtesy of FORD MOTOR CO.

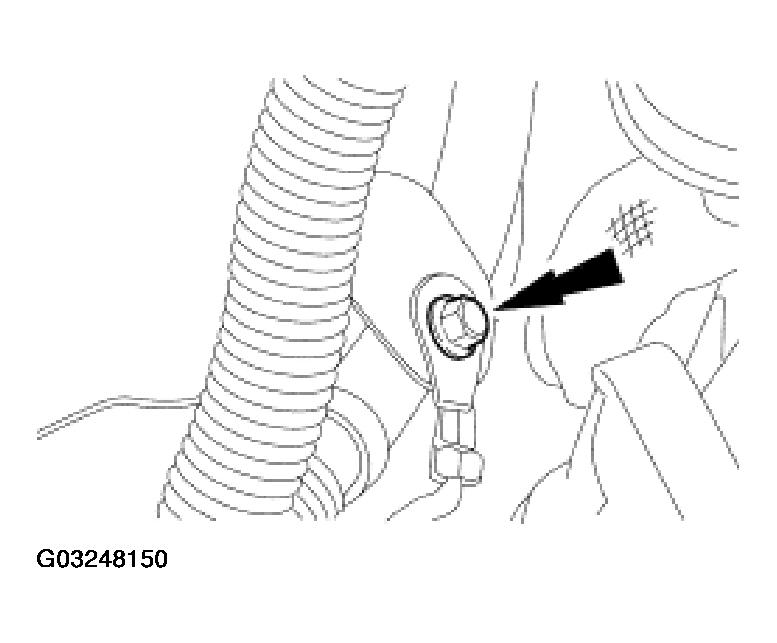

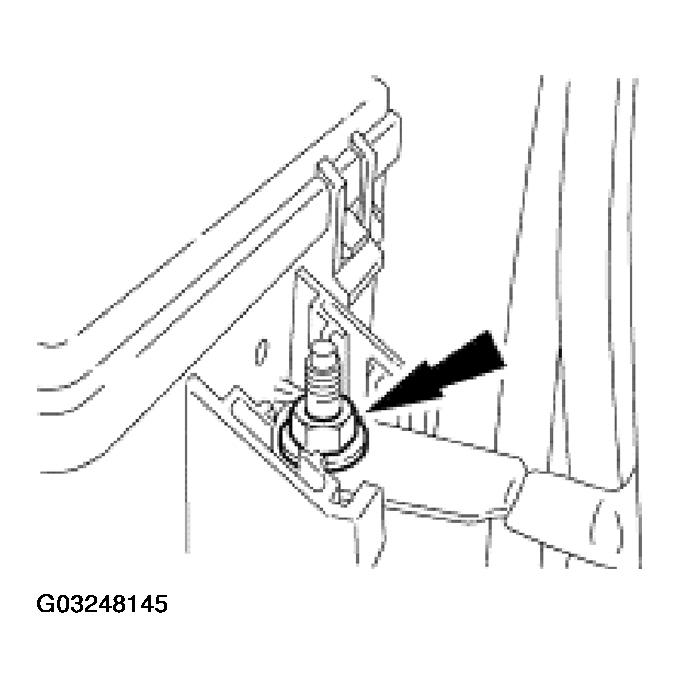

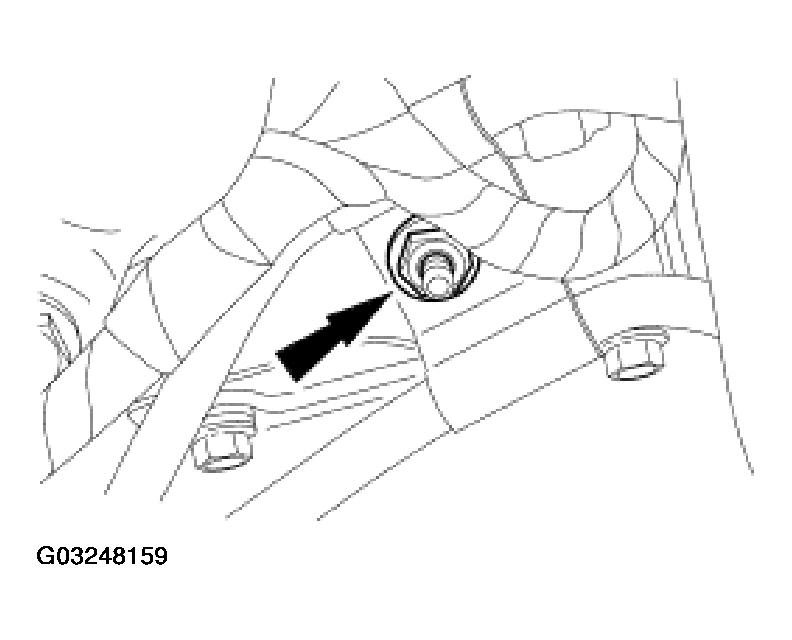

17. Disconnect the ground wire.
    Fig 11: Disconnecting Ground Wire

    Courtesy of FORD MOTOR CO.

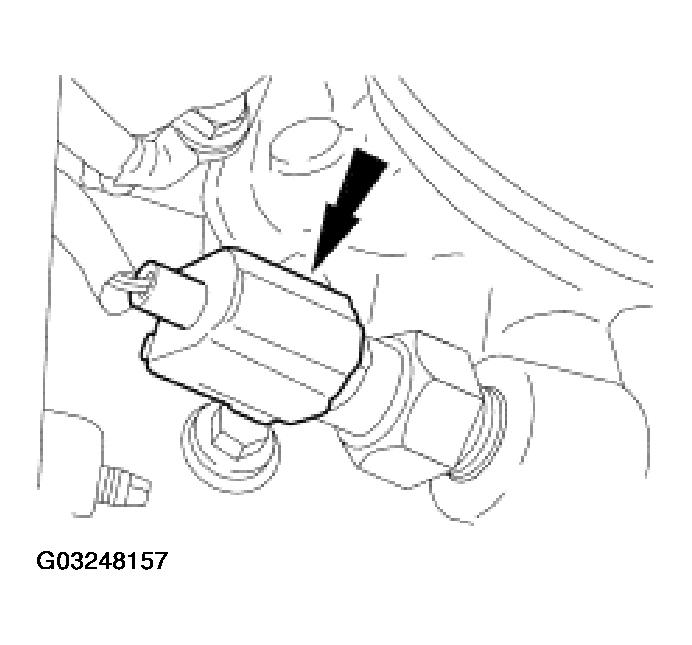

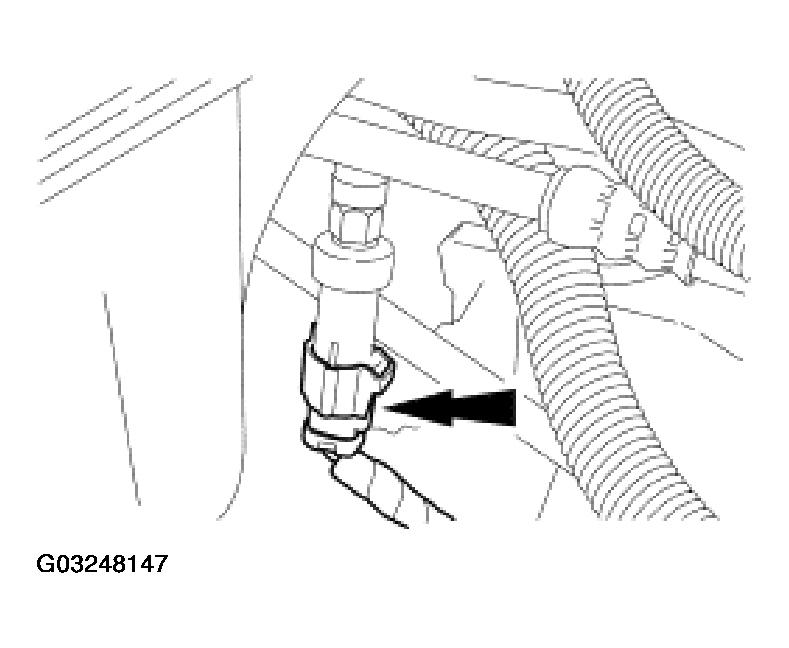

18. Disconnect the A/C high pressure switch electrical connector.
    Fig 12: Disconnecting A/C High Pressure Switch Electrical Connector

    Courtesy of FORD MOTOR CO.
19. Disconnect the A/C low charge protection switch electrical connector.
    Fig 13: Disconnecting A/C Low Charge Protection Switch Electrical Connector

    Courtesy of FORD MOTOR CO.
20. Disconnect the heater water hoses.
    Fig 14: Disconnecting Heater Water Hoses

    Courtesy of FORD MOTOR CO.
21. Remove the ground strap.
    Fig 15: Removing Ground Strap

    Courtesy of FORD MOTOR CO.
22. Disconnect the engine bulkhead connectors.
    Fig 16: Disconnecting Engine Bulkhead Connectors

    Courtesy of FORD MOTOR CO.

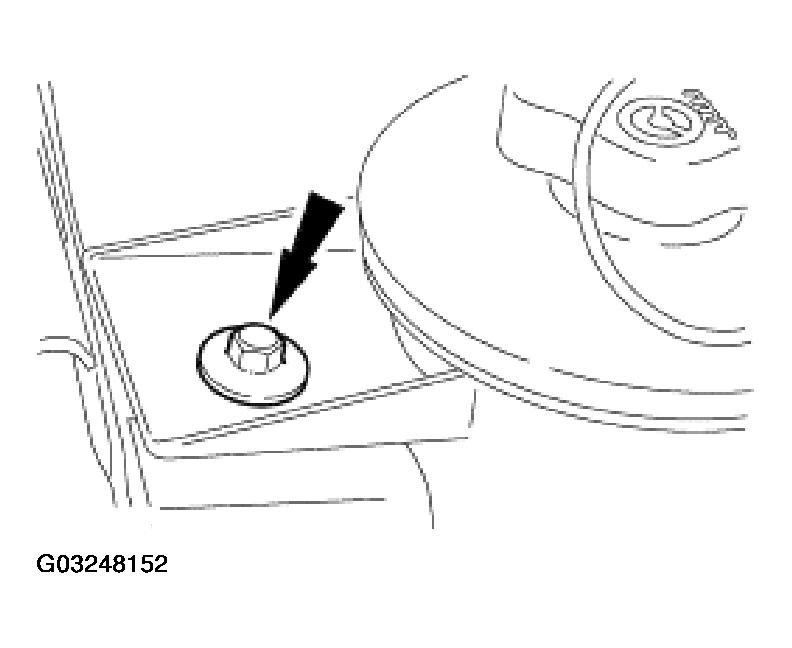

23. Remove the bolt and position the power steering pump reservoir aside.
    Fig 17: Removing Power Steering Pump Reservoir Bolt

    Courtesy of FORD MOTOR CO.

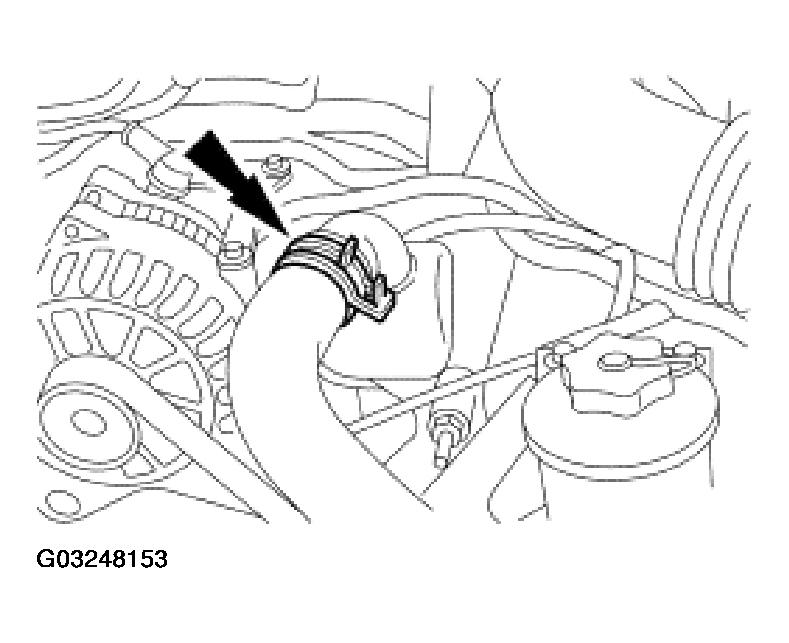

24. Disconnect the upper radiator hose from the water hose connection. Secure the hose to the radiator assembly.
    Fig 18: Disconnecting Upper Radiator Hose From Water Hose Connection

    Courtesy of FORD MOTOR CO.

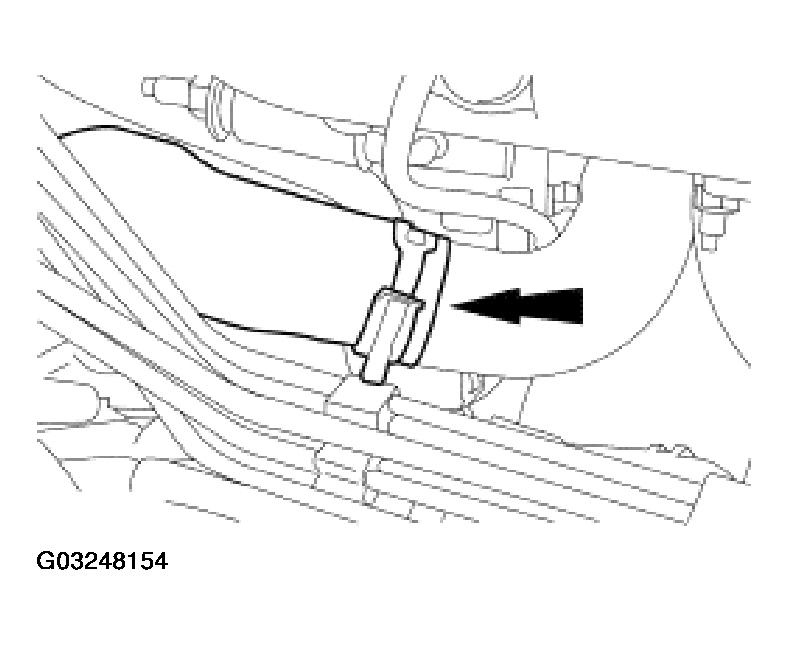

25. Disconnect the lower radiator hose from the oil filter adapter.
    Fig 19: Disconnecting Lower Radiator Hose From Oil Filter Adapter

    Courtesy of FORD MOTOR CO.
26. Remove the cooling fan. For additional information, refer to ENGINE COOLING .
27. Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .

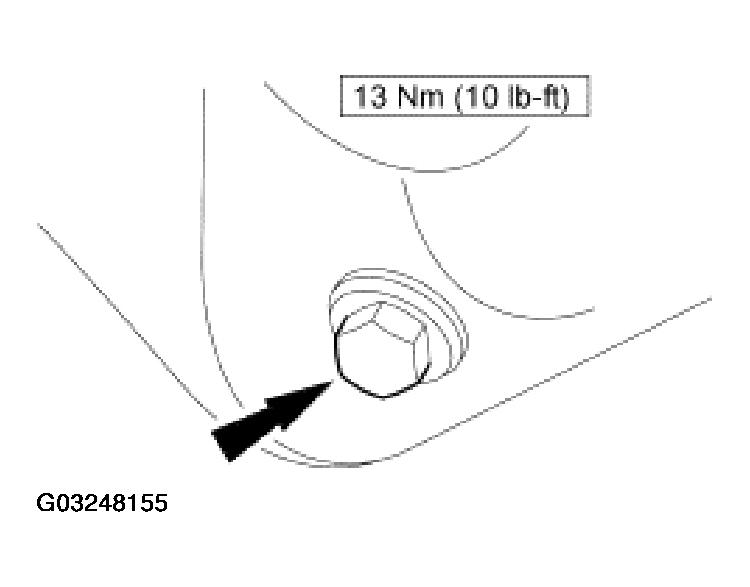

28. Drain the engine oil.
    • Install the drain plug when finished.
    Fig 20: Installing Drain Plug

    Courtesy of FORD MOTOR CO.
29. Disconnect the power steering electrical connector.
    Fig 21: Disconnecting Power Steering Electrical Connector

    Courtesy of FORD MOTOR CO.
30. Disconnect the electrical connector.
    Fig 22: Disconnecting Electrical Connector

    Courtesy of FORD MOTOR CO.

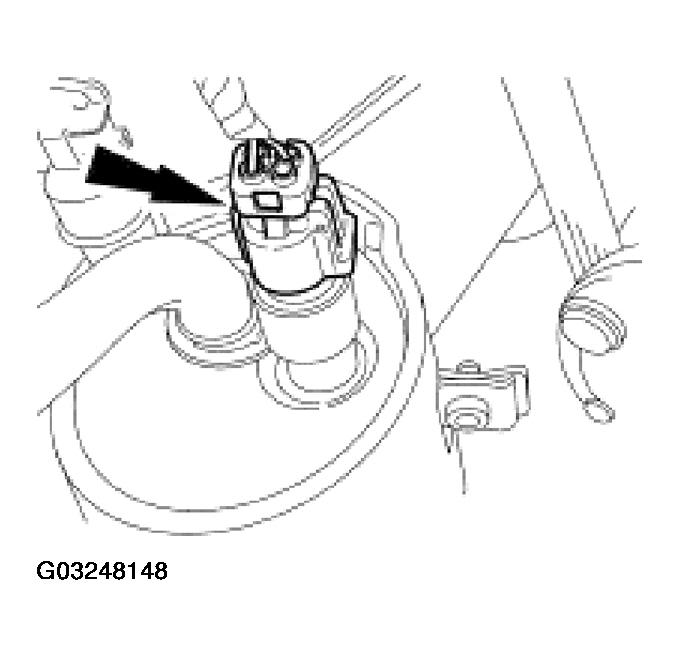

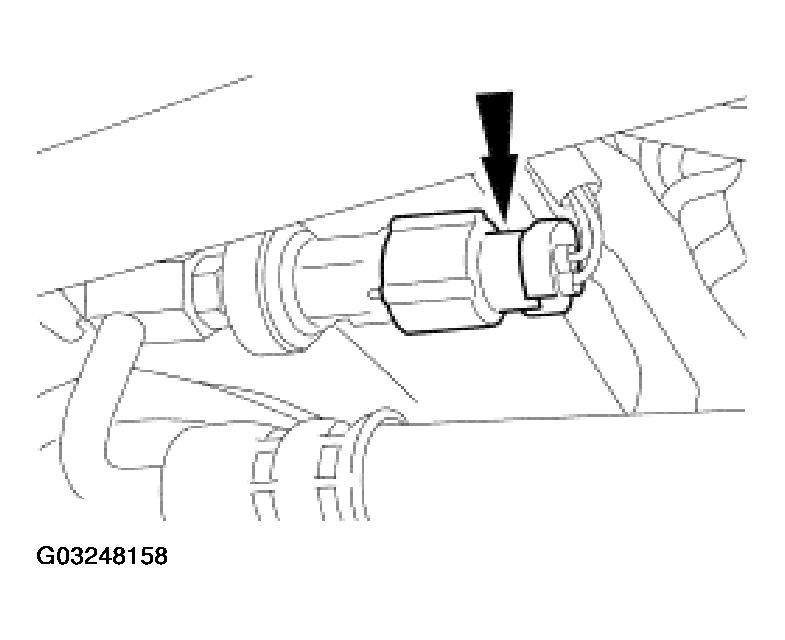

31. Disconnect the power steering pressure (PSP) switch electrical connector.
    Fig 23: Disconnecting Power Steering Pressure (PSP) Switch Electrical Connector

    Courtesy of FORD MOTOR CO.

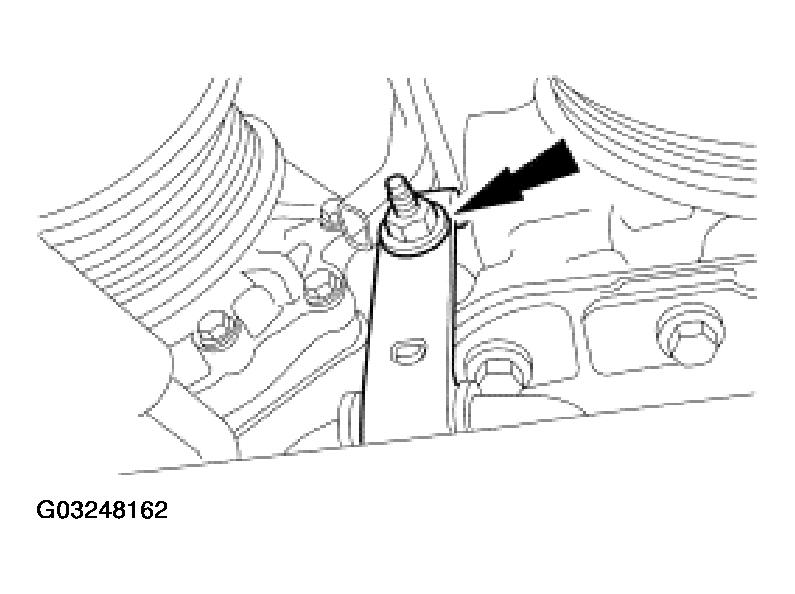

32. Remove the nut and the transmission cooler tube support bracket.
    Fig 24: Removing Transmission Cooler Tube Support Bracket

    Courtesy of FORD MOTOR CO.

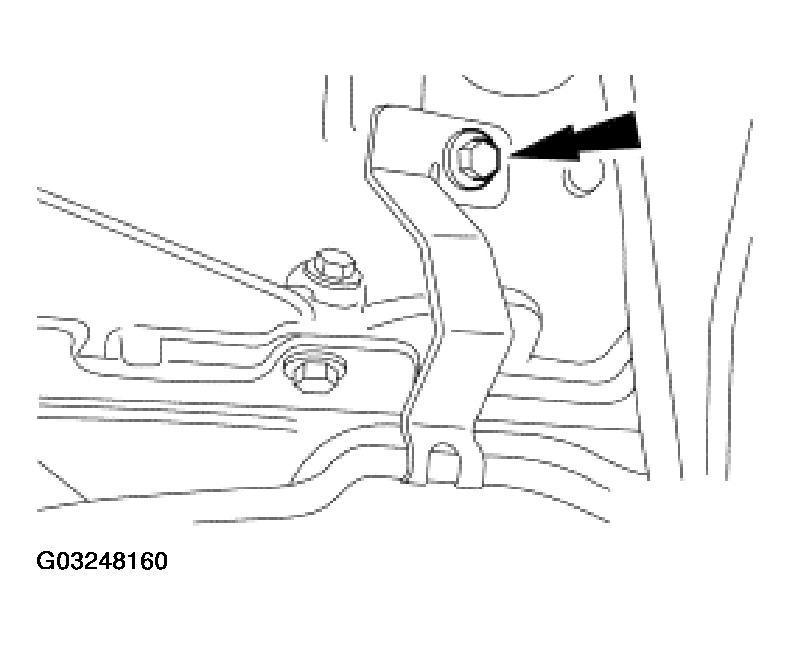

33. Remove the bolt.
    Fig 25: Removing Cooler Tube Retaining Bracket

    Courtesy of FORD MOTOR CO.

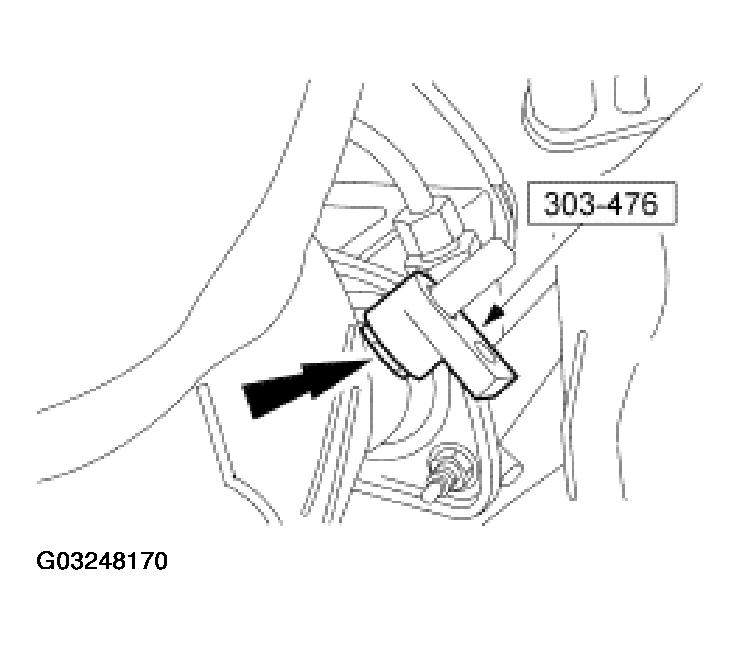

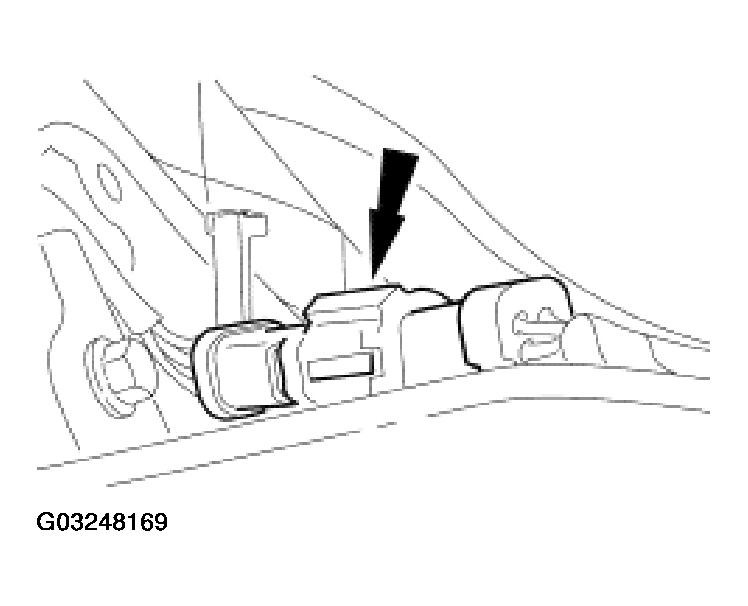

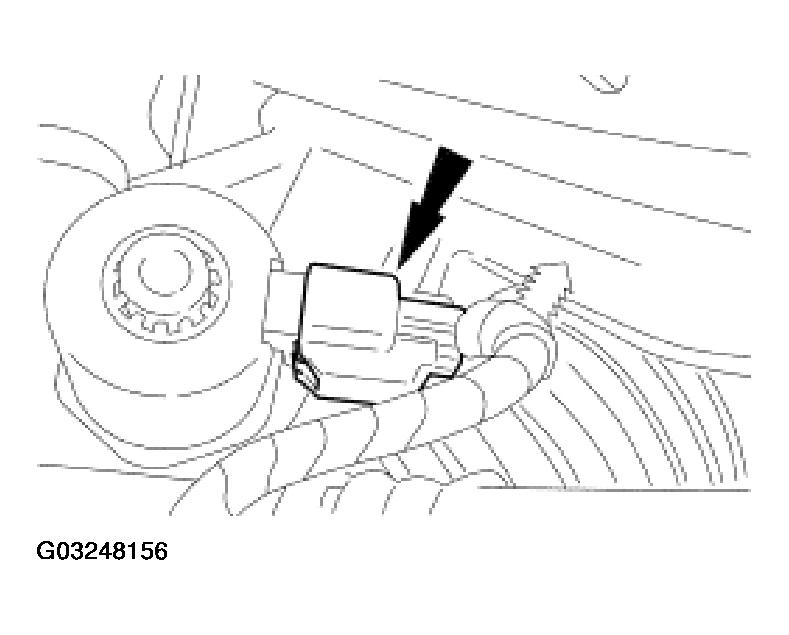

34. Disconnect the crankshaft position (CKP) sensor electrical connector.
    Fig 26: Disconnecting Crankshaft Position (CKP) Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
35. Position the power steering pressure line bracket aside.
    Fig 27: Removing Power Steering Pressure Line Bracket

    Courtesy of FORD MOTOR CO.

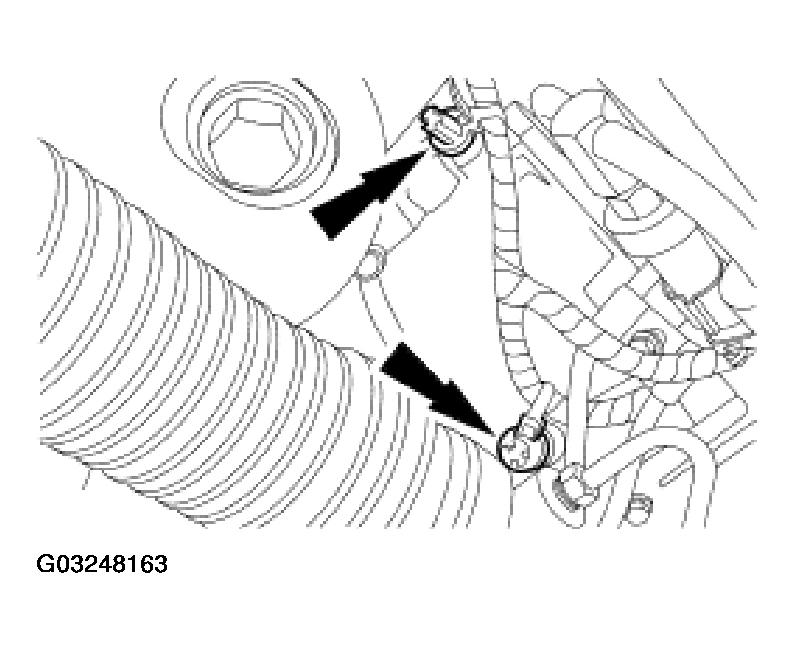

36. Disconnect the engine wiring harness retainers from the A/C compressor.
    Fig 28: Disconnecting Engine Wiring Harness Retainers From A/C Compressor

    Courtesy of FORD MOTOR CO.

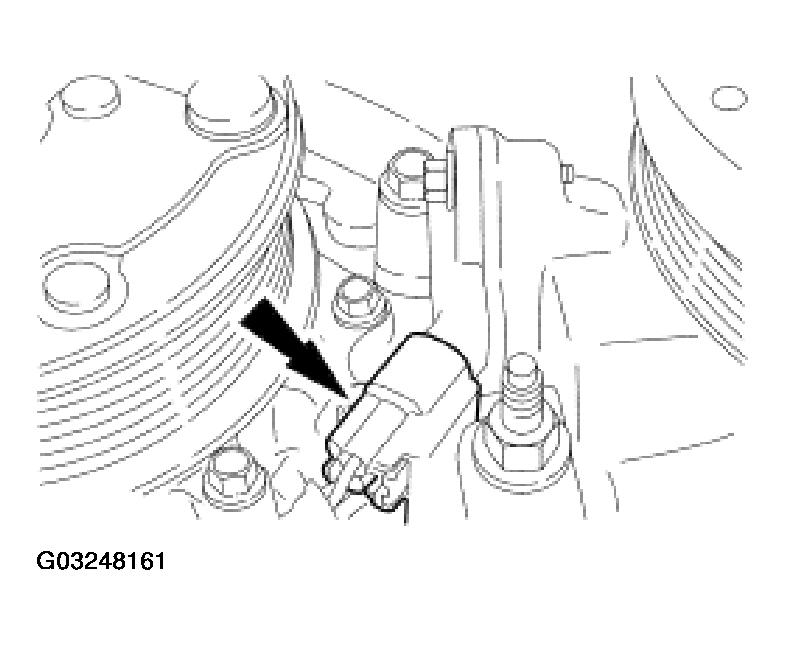

37. Disconnect the A/C compressor electrical connector.

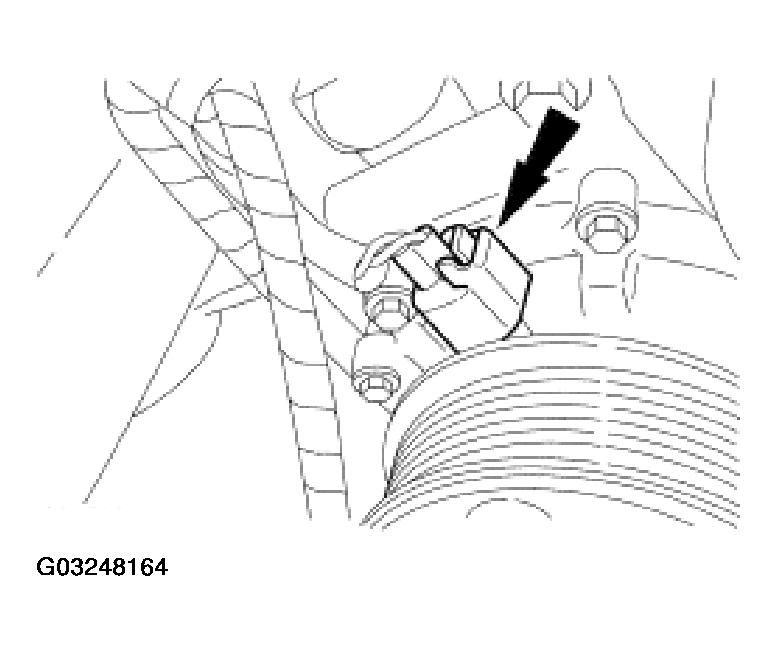

    Fig 29: Disconnecting A/C Compressor Electrical Connector

    Courtesy of FORD MOTOR CO.

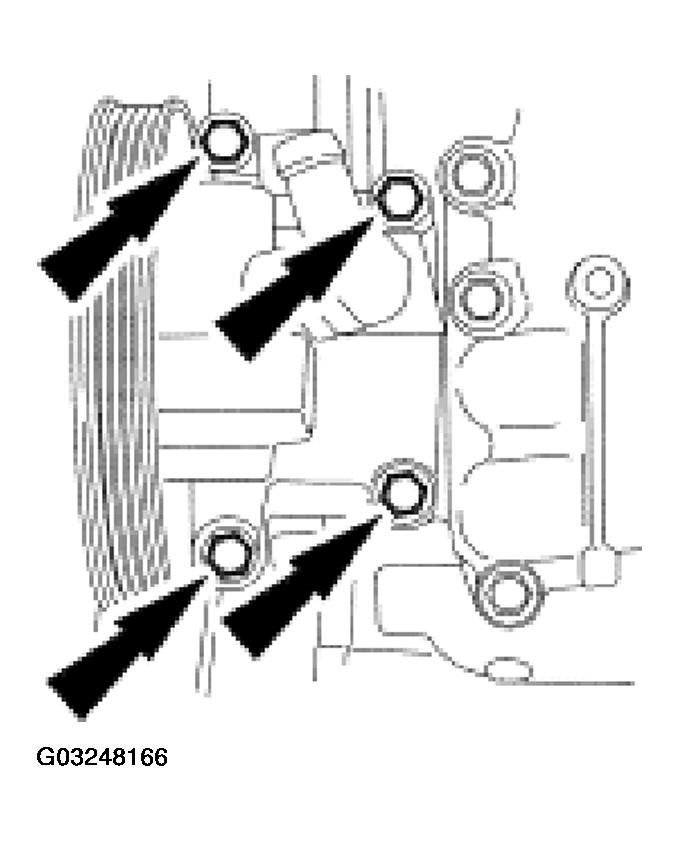

38. Remove the four bolts and position the A/C compressor aside.
    Fig 30: Removing A/C Compressor Bolts

    Courtesy of FORD MOTOR CO.

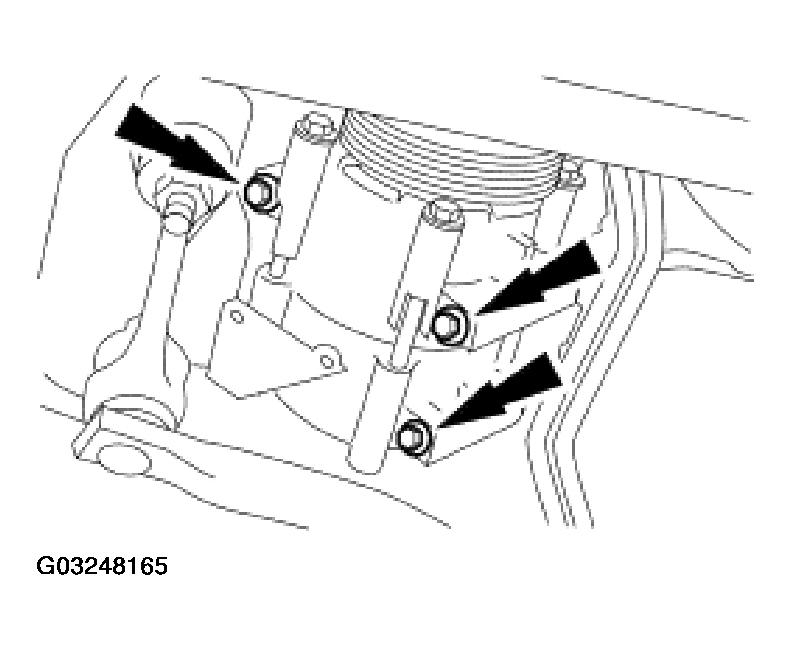

39. Remove the bolts and position the power steering pump aside.
    Fig 31: Removing Position Power Steering Pump Bolts

    Courtesy of FORD MOTOR CO.

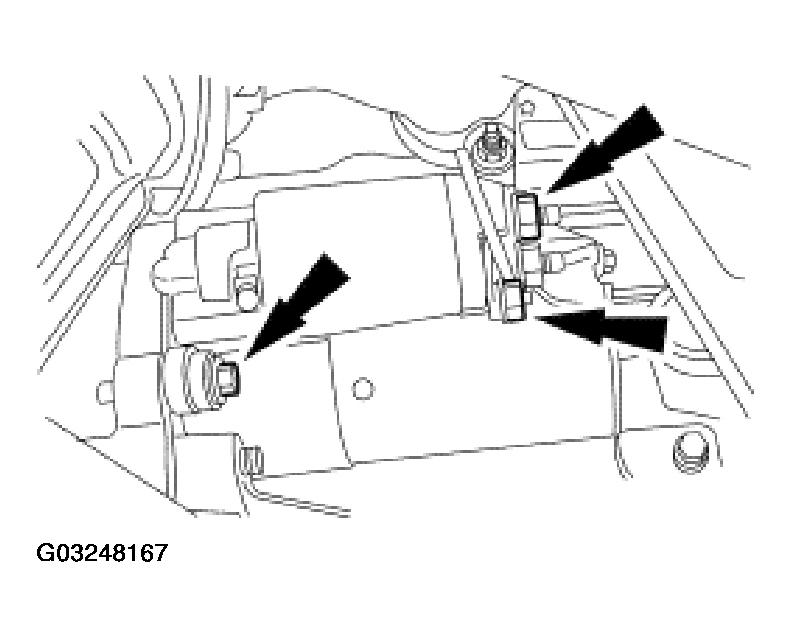

40. Remove the starter motor.
    • Remove the starter motor solenoid cover.
    • Disconnect the electrical connections.
    • Remove the bolts.
    • Remove the starter motor.
    Fig 32: Removing Starter Motor

    Courtesy of FORD MOTOR CO.

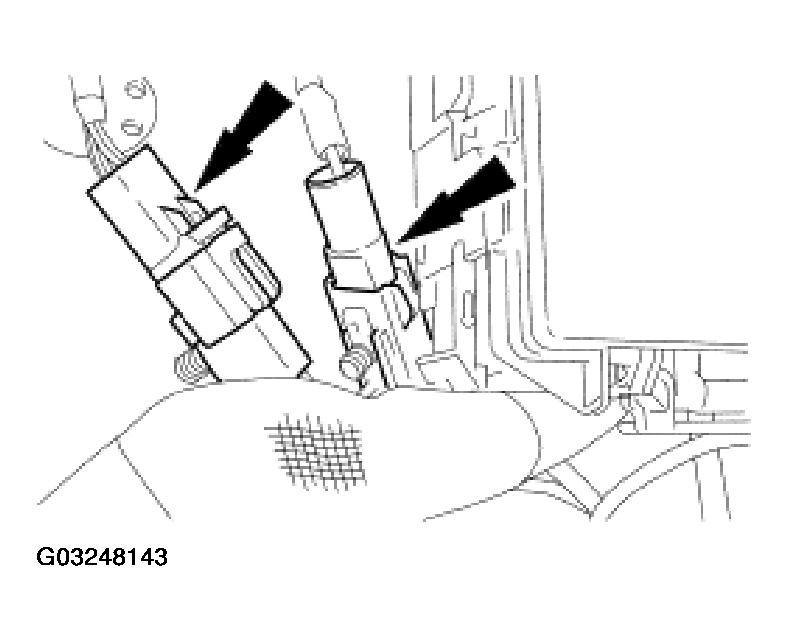

41. Disconnect the transmission electrical connectors and the RH heated oxygen sensor electrical connectors.
    Fig 33: Disconnecting Transmission Electrical Connectors And RH Heated Oxygen Sensor Electrical Connectors

    Courtesy of FORD MOTOR CO.
42. Disconnect the LH heated oxygen sensor electrical connector.
    Fig 34: Disconnecting LH Heated Oxygen Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
43. Remove the LH heated oxygen sensor.
    Fig 35: Removing LH Heated Oxygen Sensor

    Courtesy of FORD MOTOR CO.

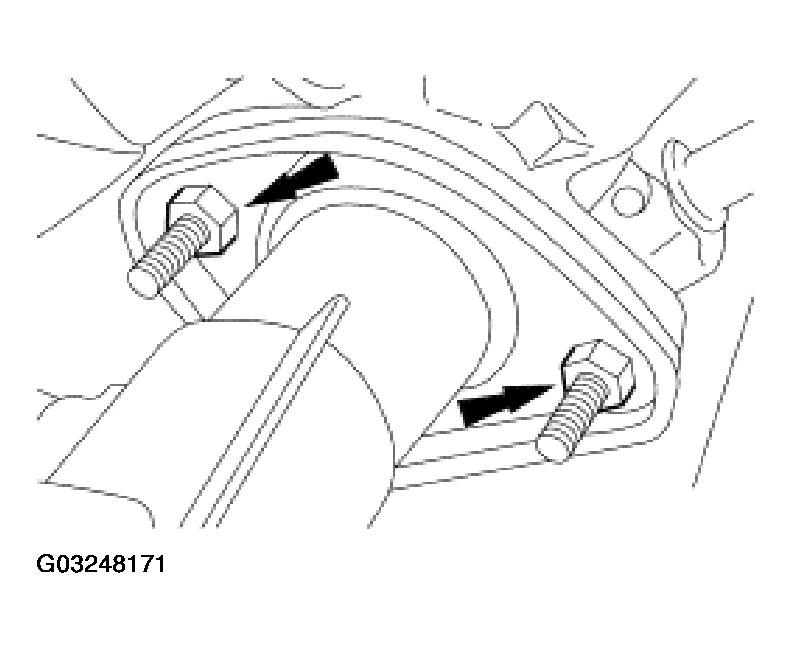

44. Remove the four nuts.
    Fig 36: Removing Nuts

    Courtesy of FORD MOTOR CO.

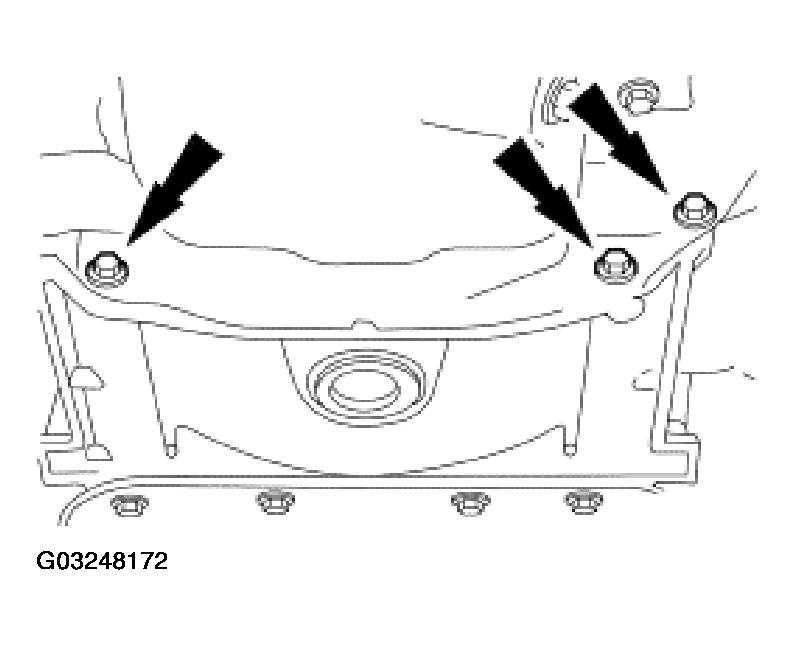

45. Remove the bolts and the inspection cover.
    Fig 37: Removing Inspection Cover

    Courtesy of FORD MOTOR CO.

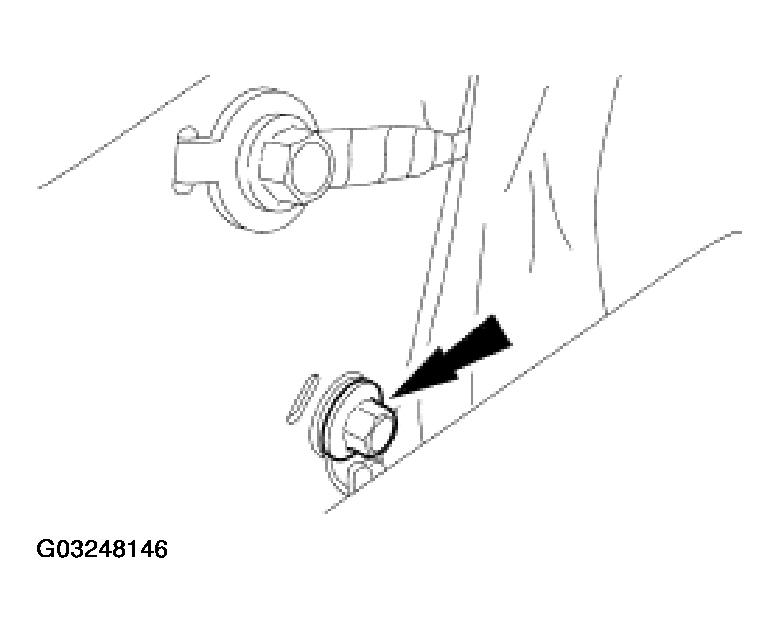

46. Remove the torque converter nut access plug.
    • Remove the four nuts.

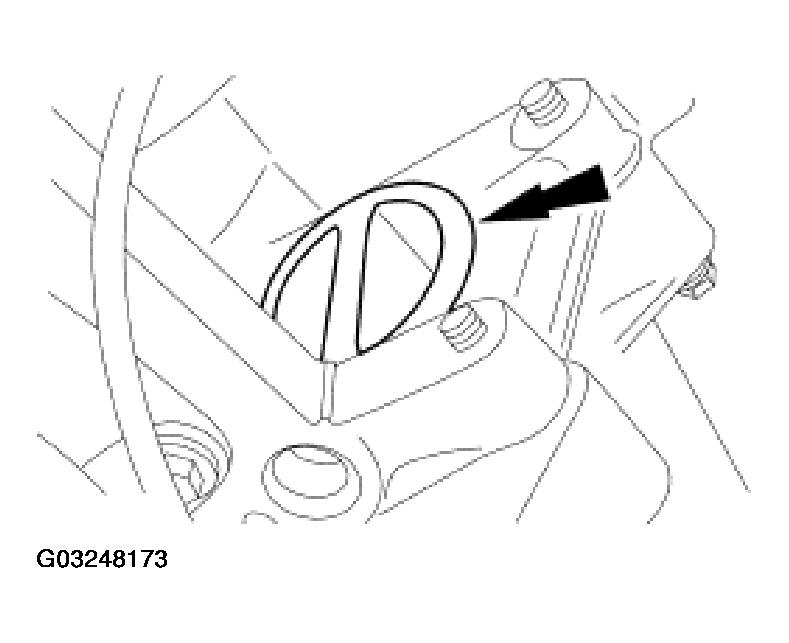

    Fig 38: Removing Torque Converter Nut Access Plug

    Courtesy of FORD MOTOR CO.
47. Remove the four bolts and one stud.

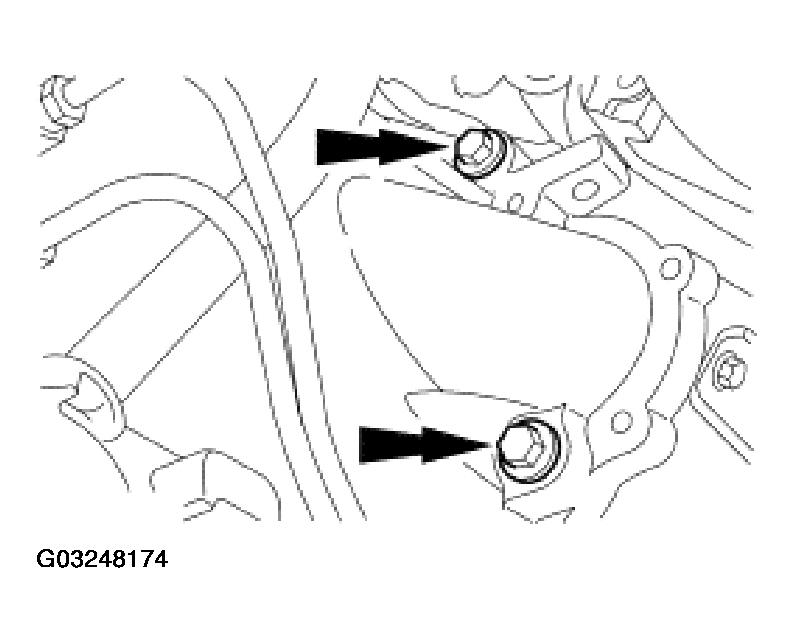

    Fig 39: Removing Bolts And One Stud

    Courtesy of FORD MOTOR CO.
48. Remove the engine support insulator nuts.
49. Lower the vehicle.

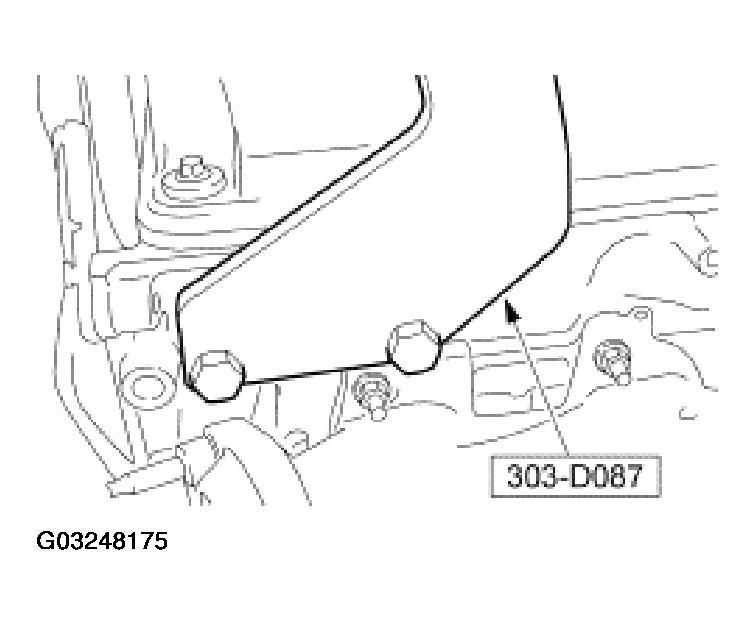

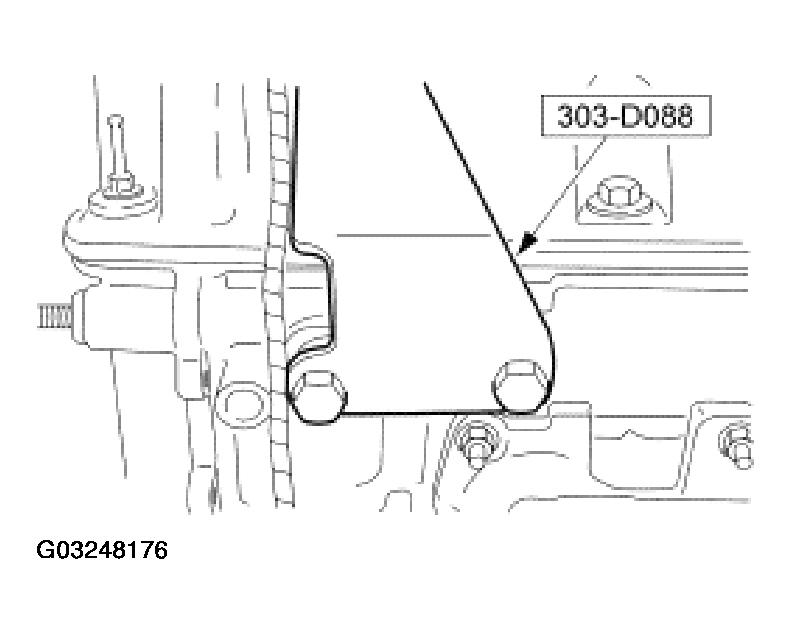

50. Install the special tool to the RH cylinder head.
    Fig 40: Install Special Tool To RH Cylinder Head

    Courtesy of FORD MOTOR CO.
51. Install the special tool to the LH cylinder head.
    Fig 41: Installing Special Tool To LH Cylinder Head

    Courtesy of FORD MOTOR CO.

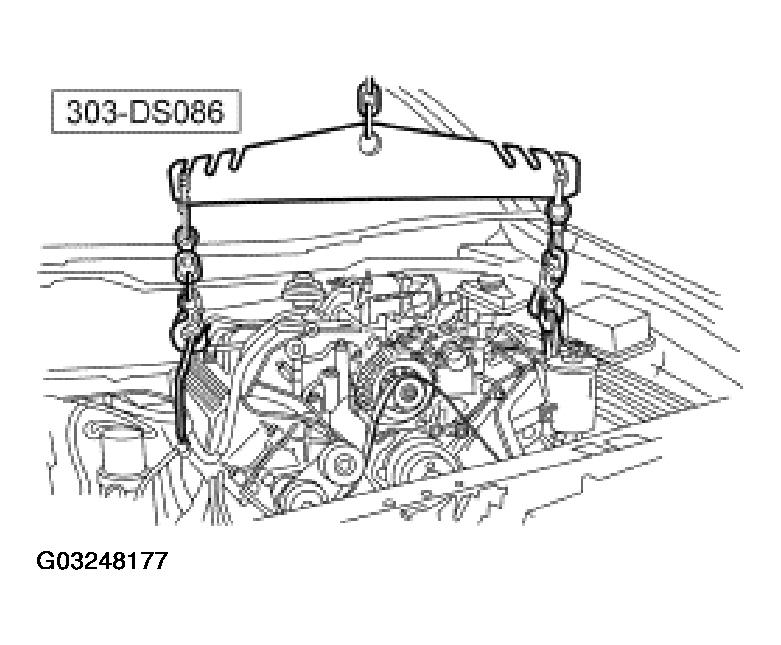

52. Install the special tools.
    Fig 42: Installing Special Tools

    Courtesy of FORD MOTOR CO.
53. Support the transmission.

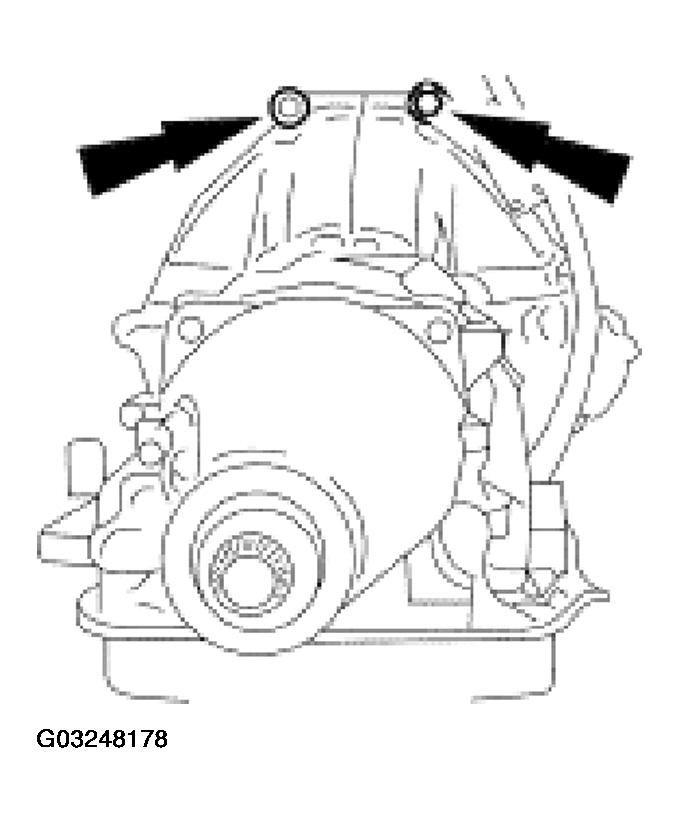

54. Remove the bolts.
    Fig 43: Removing Transmission-To-Engine Bolts

    Courtesy of FORD MOTOR CO.

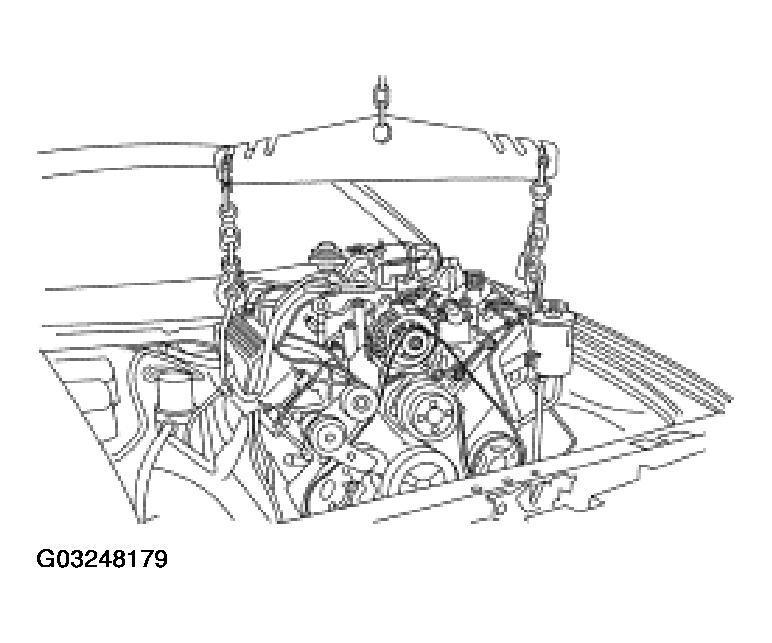

55. Remove the engine assembly from the vehicle.
    Fig 44: Removing Engine Assembly From Vehicle

    Courtesy of FORD MOTOR CO.
