Removal And Installation

WARNING: This page is about a different car, the 2004 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the instrument panel finish panel. Refer to INSTRUMENT PANEL AND CONSOLE .
Remove the clock assembly.
- Remove the screws.
- Disconnect the electrical connector.

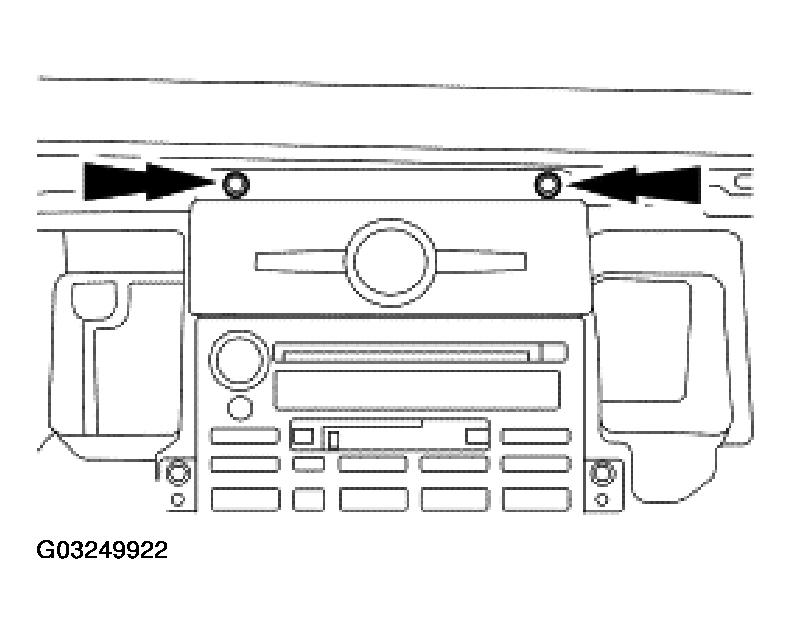

Fig 1: Removing Clock Assembly Screws
Courtesy of FORD MOTOR CO.

NOTE: Dual media audio unit shown, navigation similar.

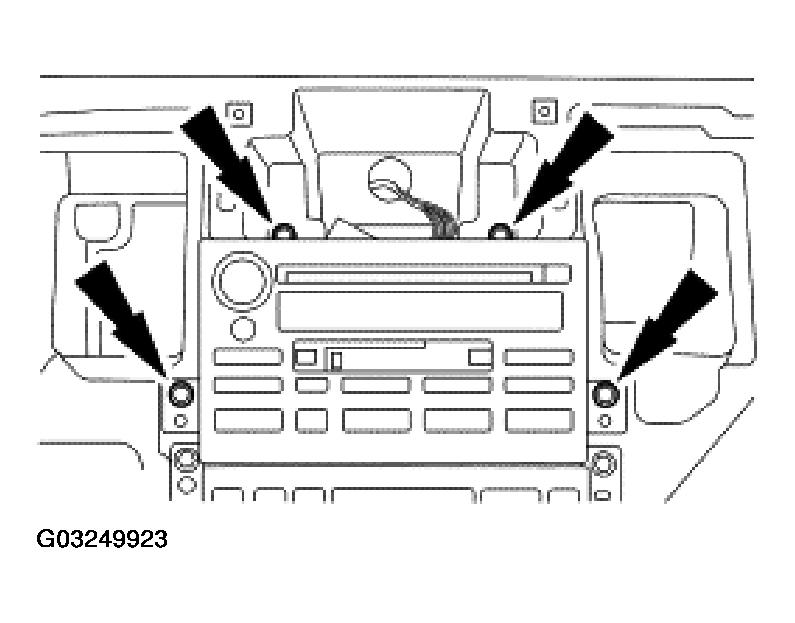

Fig 2: Positioning Audio Unit Aside

Courtesy of FORD MOTOR CO.

Position the audio unit aside.
- Remove the screws.
Remove the audio unit.
- Disconnect the electrical connectors and the antenna lead-in cable.

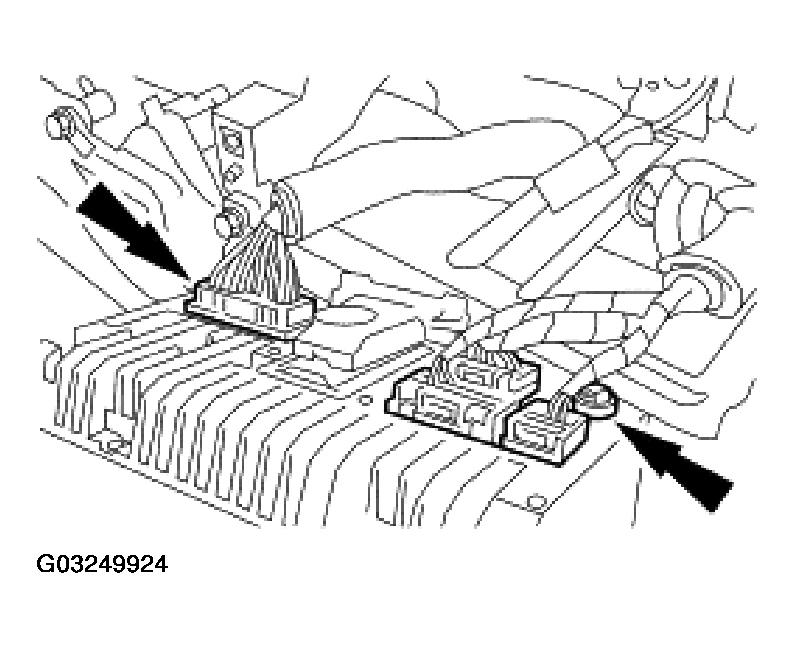

Fig 3: Disconnecting Electrical Connectors And Antenna Lead-In Cable
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
