Shock Absorber And Spring Assembly - Rear: Notes

  1. Remove the wheel and tire assembly. For additional information, refer to WHEEL AND TIRE - REAR .
  2. Remove the parts in the order indicated in the following illustration and table.

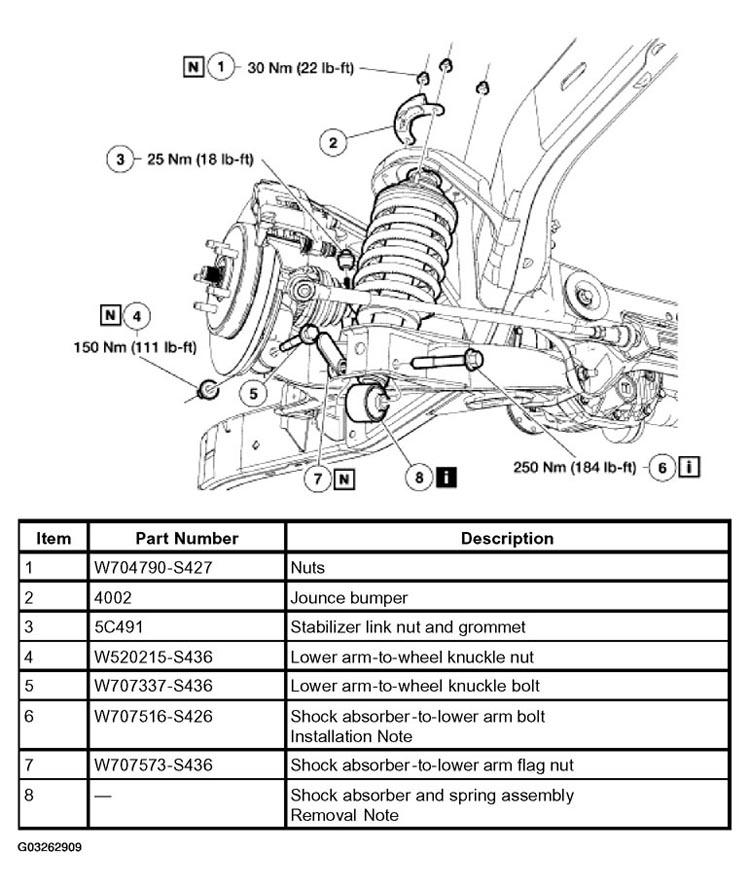

    Fig 1: Identifying Shock Absorber And Spring Assembly Components
    G03262909Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
