Shock Absorber And Spring Assembly: Notes

Remove the shock absorber and spring assembly. For additional information, refer to SHOCK ABSORBER AND SPRING ASSEMBLY - FRONT or SHOCK ABSORBER AND SPRING ASSEMBLY - REAR .
Using a suitable spring compressor, compress the spring until the tension is released from the shock absorber.

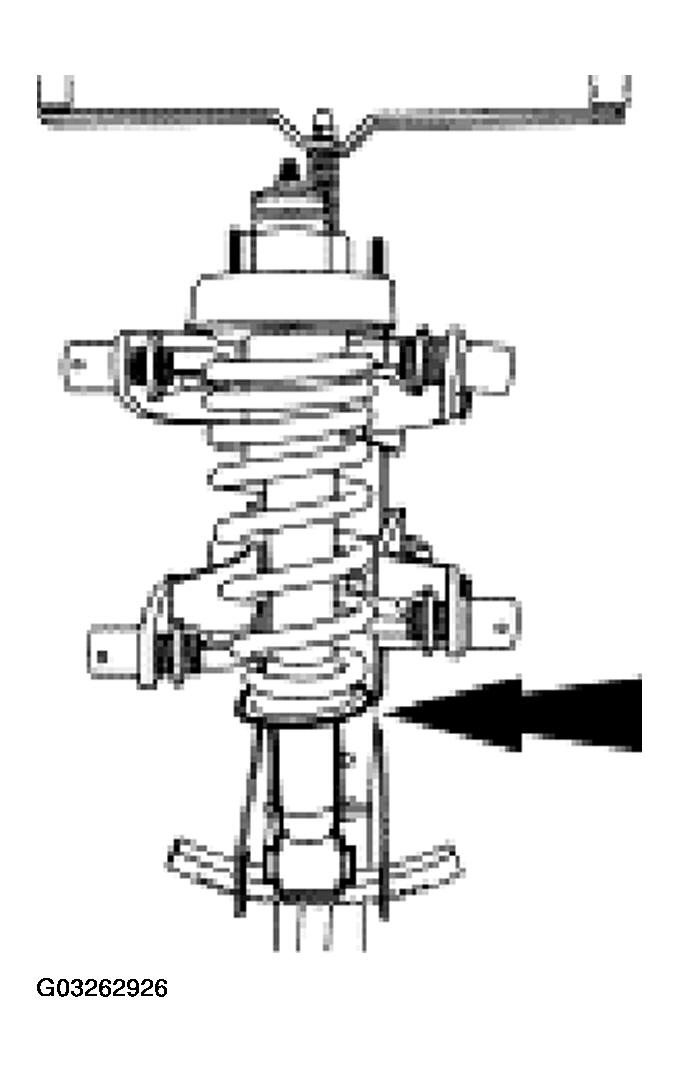

Fig 1: Compressing Spring Until Tension Is Released From Shock Absorber
Courtesy of FORD MOTOR CO.
Disassemble the parts in the order indicated in the following illustration and table.

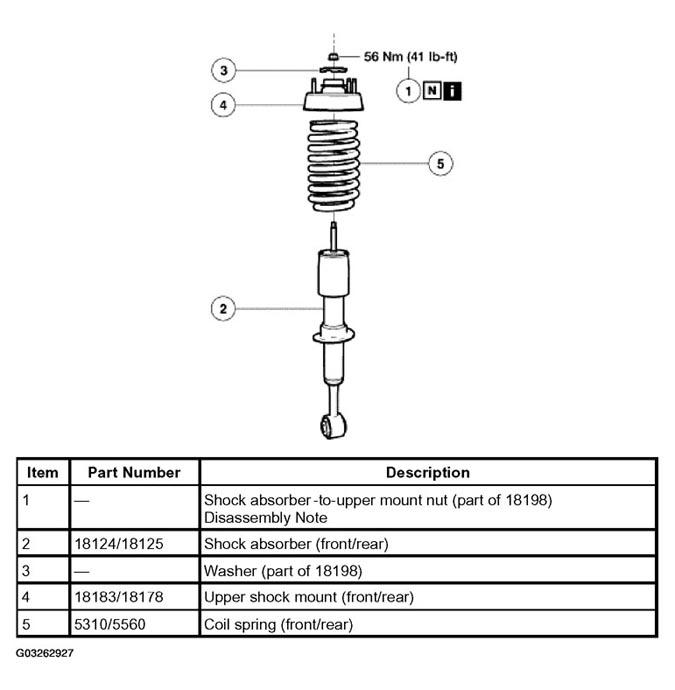

Fig 2: Identifying Shock Absorber And Spring Assembly Components
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
