Tire Pressure Monitoring System Module

Remove the parts in the order indicated in the following illustration and table.

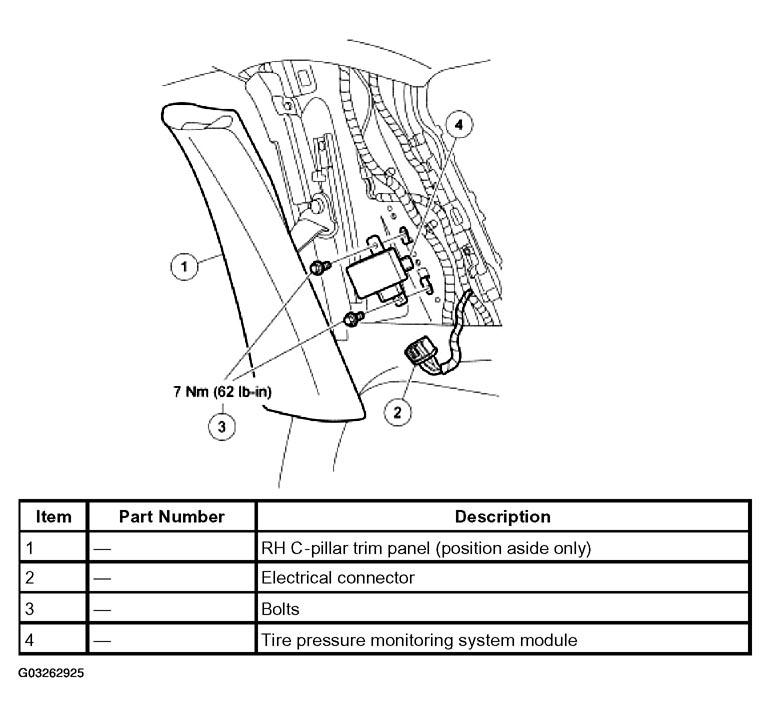

Fig 1: Identifying Tire Pressure Monitoring System Module Components
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Reconfigure the TPMS module. For additional information, refer to MODULE COMMUNICATIONS NETWORK .
Train the tire pressure sensors. For additional information, refer to SENSOR TRAINING .
Clear the DTCs. Repeat the self-test.
